HGLRC Sector25CR 2.5" Cinewhoop Frame

A superlight cinewhoop frame from HGLRC. Use with the included ducts or remove them for extra weight savings. Configure it however you want with multiple electronics stack mounting options!

Features

• Supports (20×20-25.5×25.5) mounting holes
• Supports both AIO/stack installing at the same time
• Ultra-lightweight for long flight time

Specifications

• Material:3K carbon fiber
• Type:2.5 inches Frame
• Wheelbase:132mm
• Size:136 * 116mm
• Top plate:2mm
• Bottom plate:2.5mm
• Space:25mm
• FC mounting hole:20x20mm/25.5×25.5mm
• Support camera:19*19mm

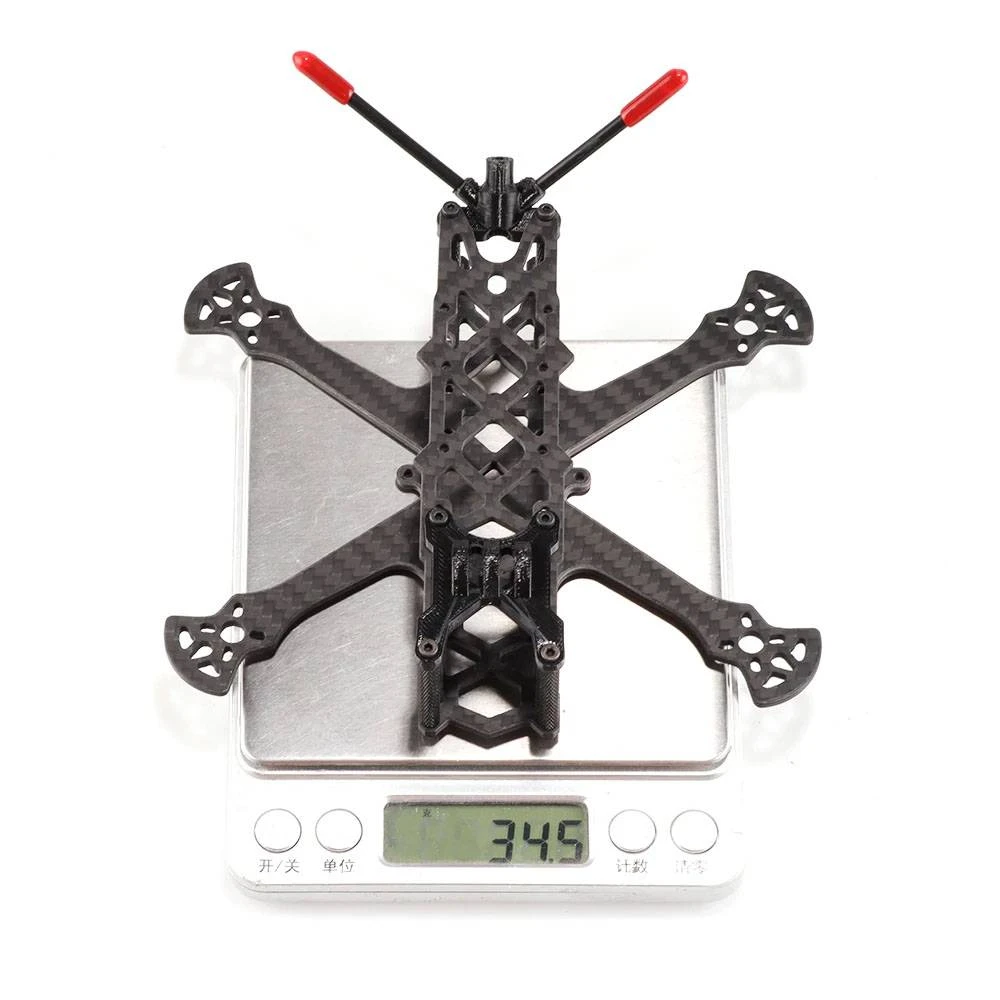

• Weight: 34.5g (Without propeller guards)
• Motor mounting hole: ∅9-12 (∅9-10 for guards)

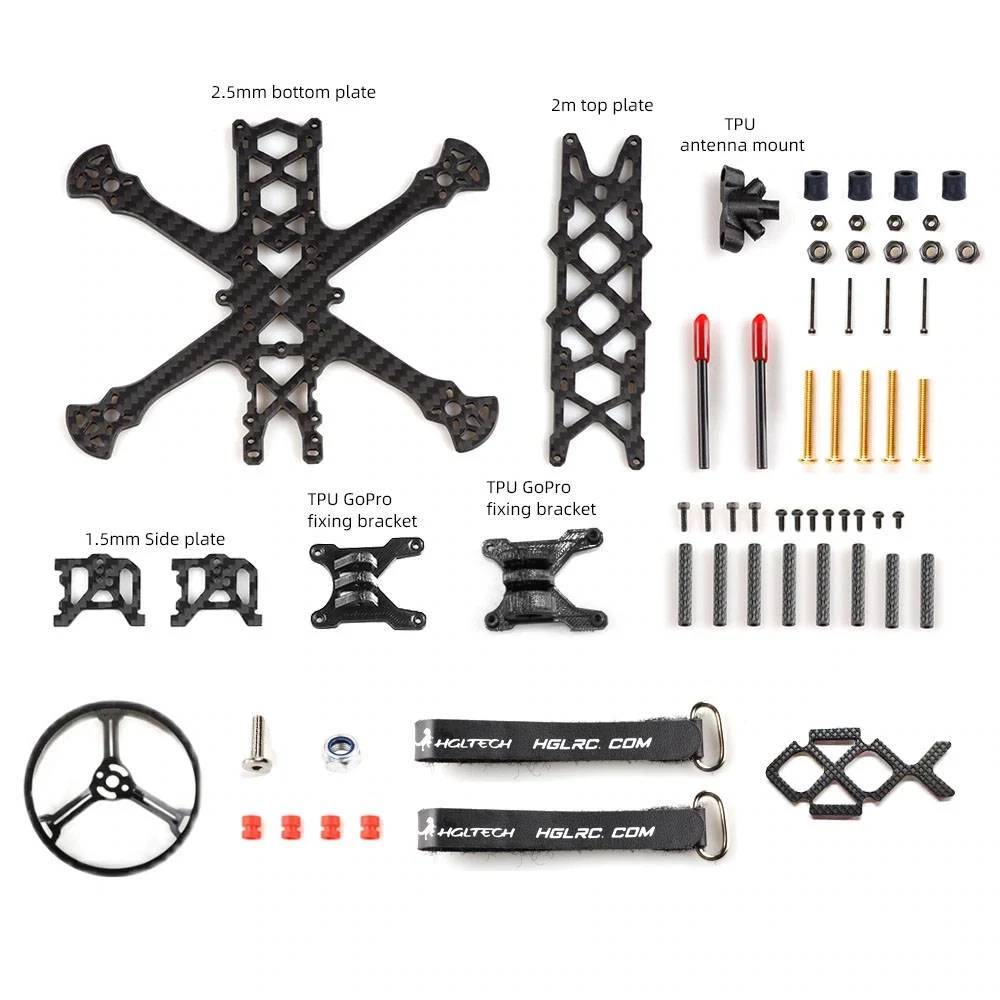

Includes

• 4 x 2.5 Inch Propeller Protective Guard
• 1x 2mm top plate
• 1x 2.5mm bottom plate
• 2x 1.5mm camera side plate
• 6x M2*25mm black mesh aluminum columns
• 2x M2*23mm black mesh aluminum columns
• 1x round head screw M5*20
• 4x round head screws M3*25
• 1x round head screw M3*20
• 4x round head screws M2*20
• 8x cup head screws M2*7
• 6x round head screws M2*6
• 2x round head screws M2*4
• 1x M5 self-locking nut
• 5x M3 self-locking nuts
• 4x M2 self-locking nuts
• 4x M3*8 shock absorbing balls
• 4x M2*4 shock absorption columns
• 2x battery straps 10x150mm
• 1x battery non-slip pad
• 1x TPU naked GoPro mount
• 1x TPU naked GoPro fixing mount
• 1x TPU antenna base

Recommended parts: (not included)

• Motor:14XX/16XX/18XX
• ESC:25A-40A
• Camera:19X19mm
• Propeller:2.5-3inches
• Battery:4S 450mAh 450-650mAh
