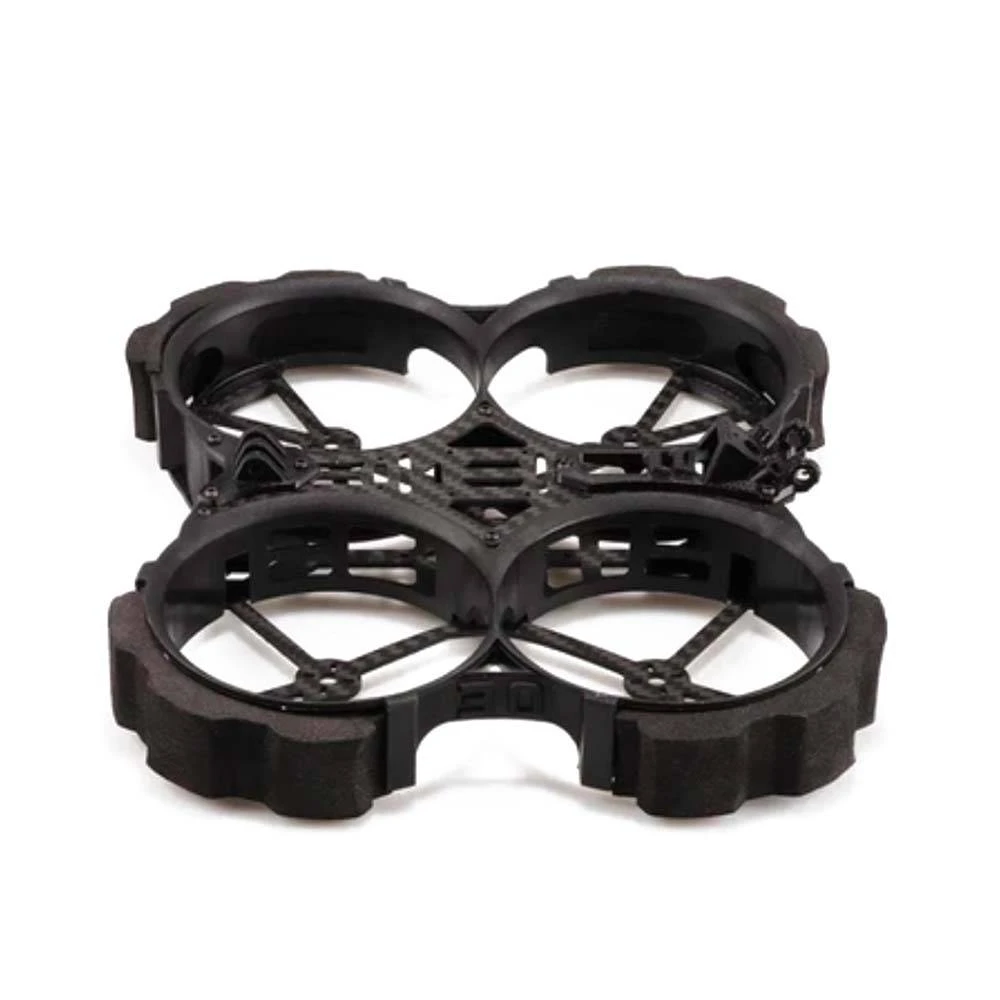

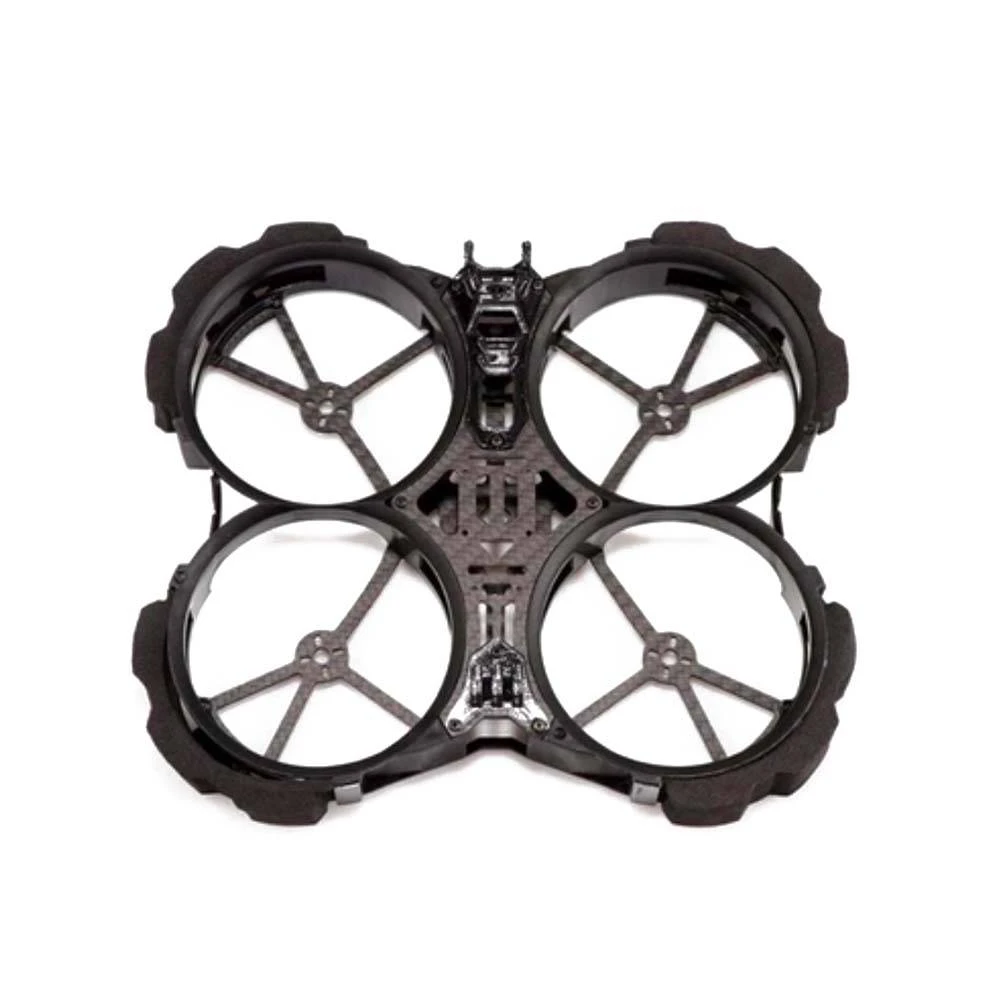

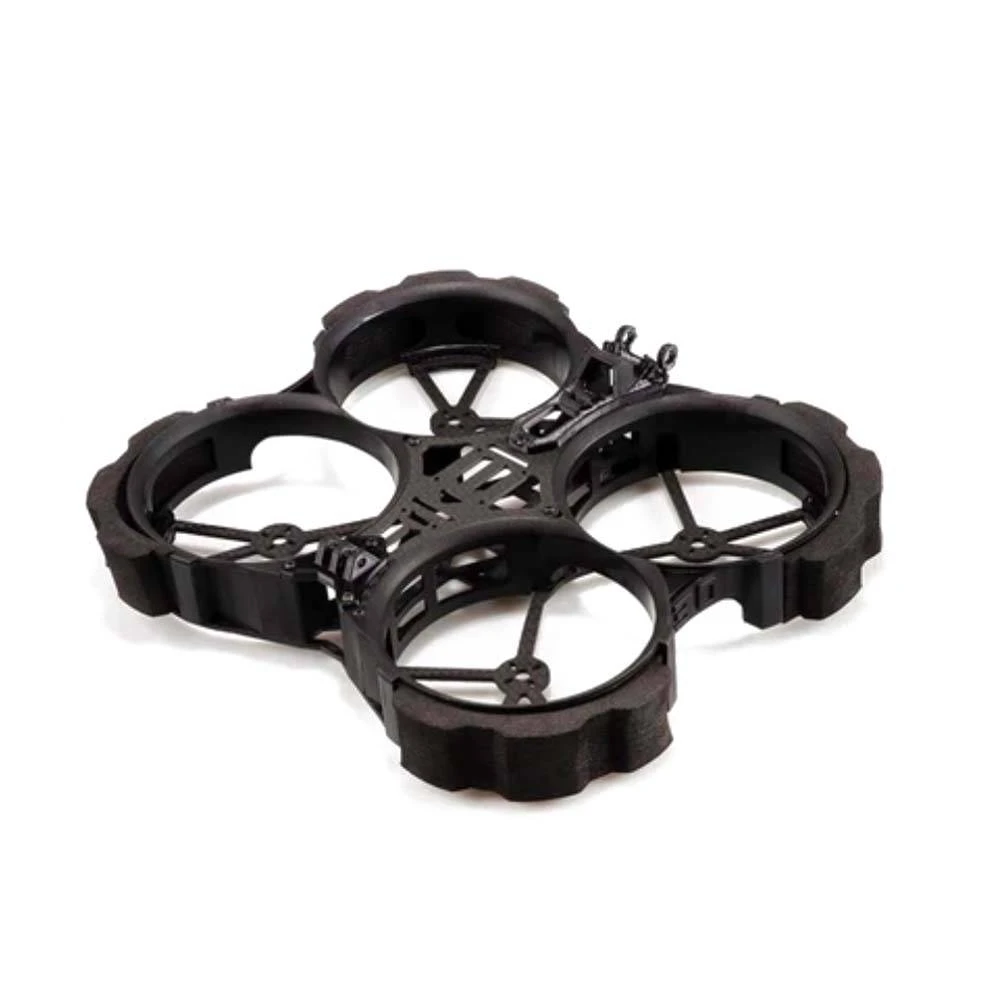

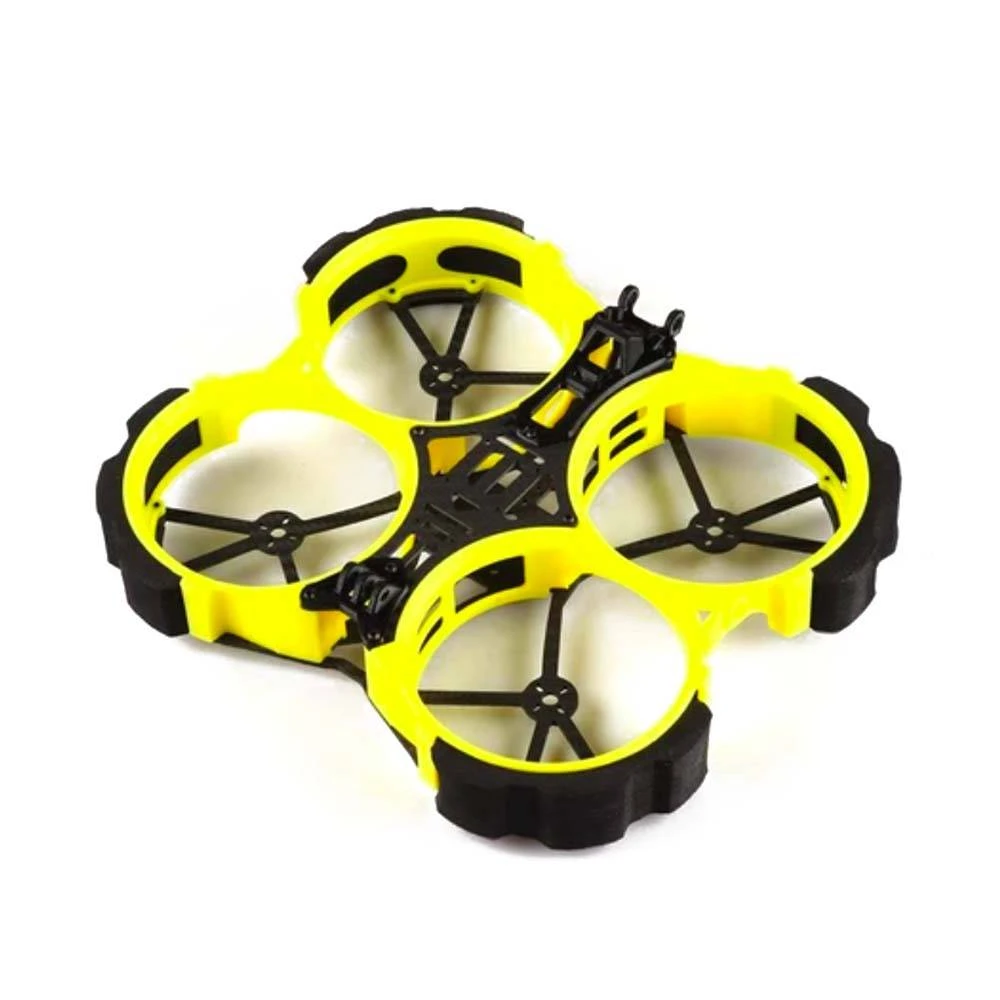

HGLRC Veyron25CR 2.5" Cinewhoop Frame Kit

The Veyron25CR 2.5″ CineWhoop Frame Kit by HGLRC is a lightweight frame made out of 3K carbon fiber and has a  motor distance of 120mm to perfectly fit the Caddx Polar Vista Digital HD System. Suitable for 2.5″ props, 19X19mm camera, and 4S 450mAh-650mAh batteries!

Features

• Supports (20×20-25.5×25.5) mounting holes
• Supports both AIO/stack installing at the same time. Equipped with 1404 Aeolus motors, ultra-lightweight, and have a super long flight time.
• Using mold EVA protecting ducts, super durable.

Specifications

• Model: Veyron25CR Cinewhoop Frame
• Material:3K carbon fiber
• Type:2.5 inches Frame
• Wheelbase:120mm
• Size:187*164mm
• Top plate:1.5mm
• Bottom plate:2mm
• Space:25mm
• Flight control mounting hole:20x20mm/25.5×25.5mm
• Support camera:19*19mm
• Weight:82g

Recommended Parts (Not Included)

• Flight control:Zeus25/F722 MINI
• Motor:14XX/16XX/18XX
• ESC:Zeus25A-40A
• Camera:19X19mm
• Propeller:2.5 inches
• Battery:4S 450mAh 650mAh

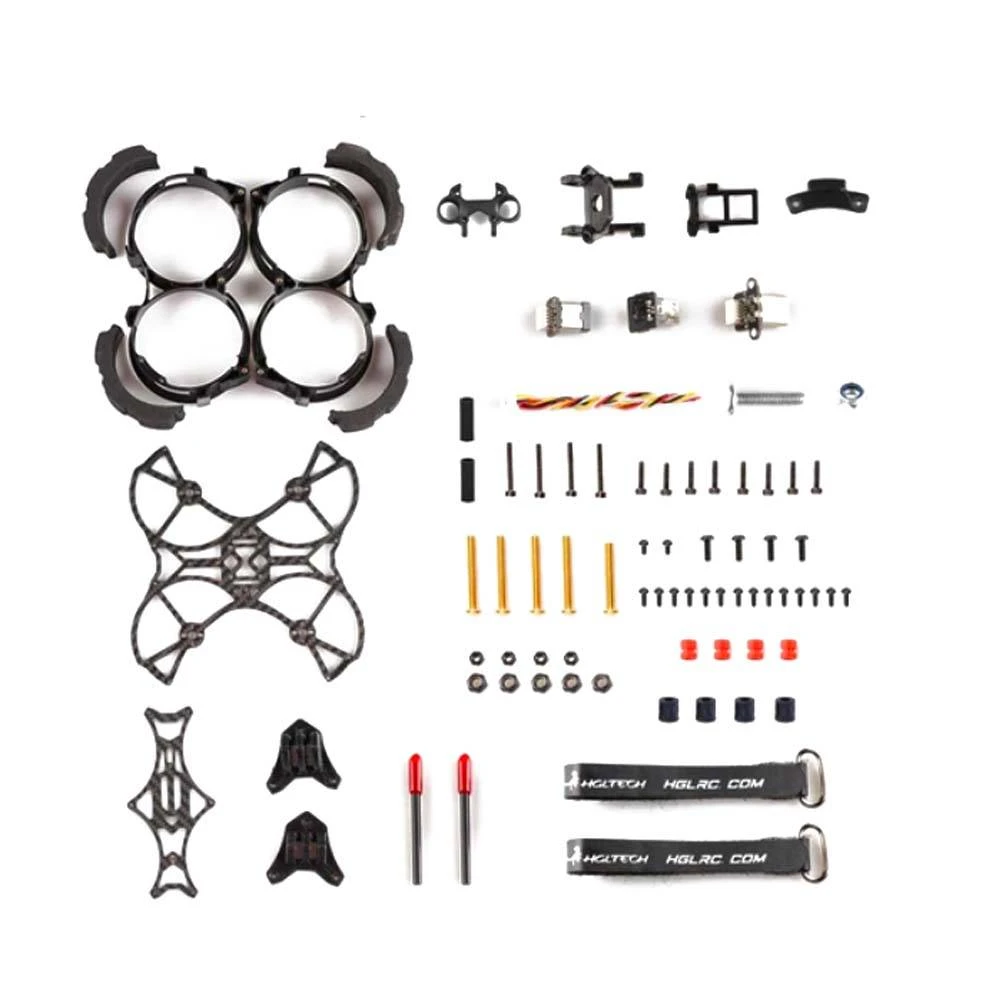

Includes

• 1x 1.5mm top plate
• 1x 2mm bottom plate
• 2x Mold Ducts
• 4x protection half EVA Foam
• 1x 4P cable
• 1x Type C female
• 1x Type C male
• 1x Micro male
• 1x round head screw M5*20
• 4x round head screws M3*25
• 1x round head screw M3*20
• 4x round head screws M2*20
• 8x cup head screws M2*7
• 14x round head screws M2*6
• 2x round head screws M2*4
• 4x Round head screw M2*5
• 2x M2*8 Nylon columns
• 1x M5 self-locking nut
• 5x M3 self-locking nuts
• 4x M2 self-locking nuts
• 4x M3*8 shock absorbing balls
• 4x M2*4 shock absorption columns
• 2x battery straps 15x200mm
• 1x battery non-slip pad
• 1x TPU GoPro fixing mount
• 1x TPU naked GoPro fixing mount
• 1x TPU antenna base
• 1x TPU black LED fixing mount
• 1x TPU black landing protector
