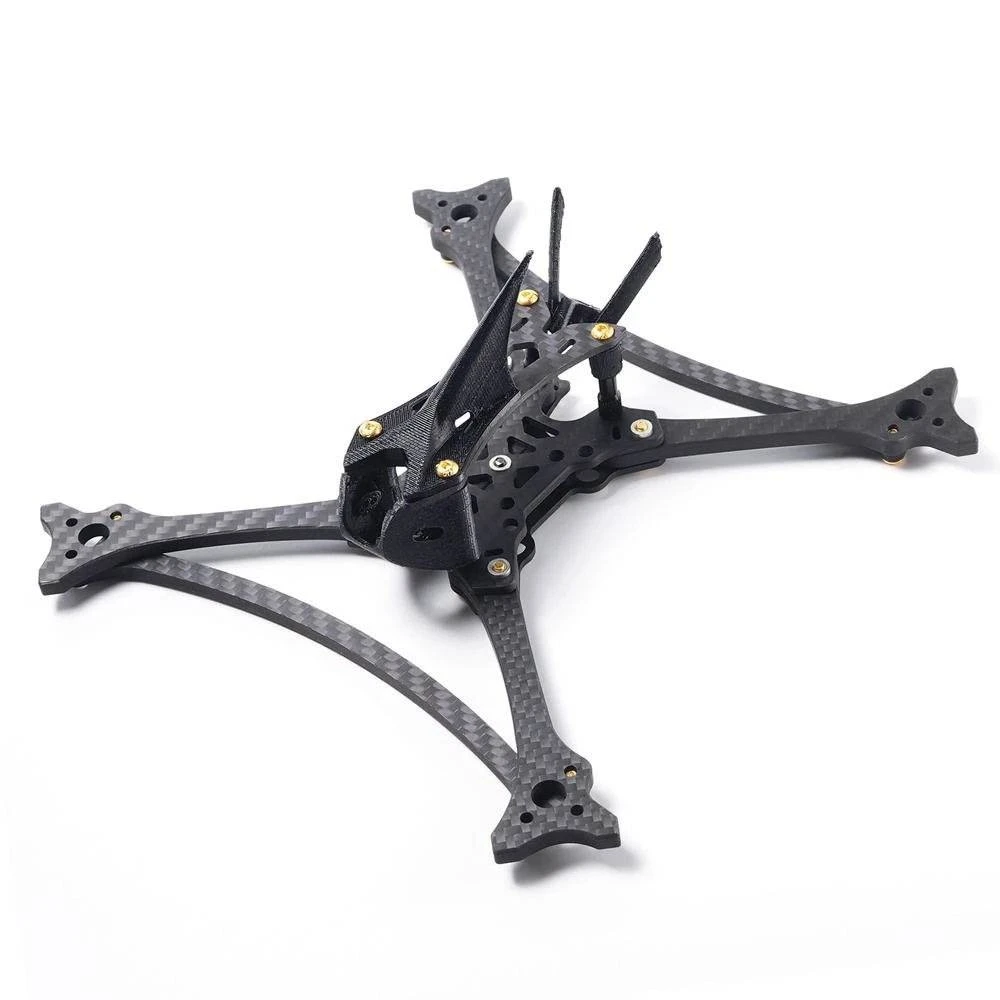

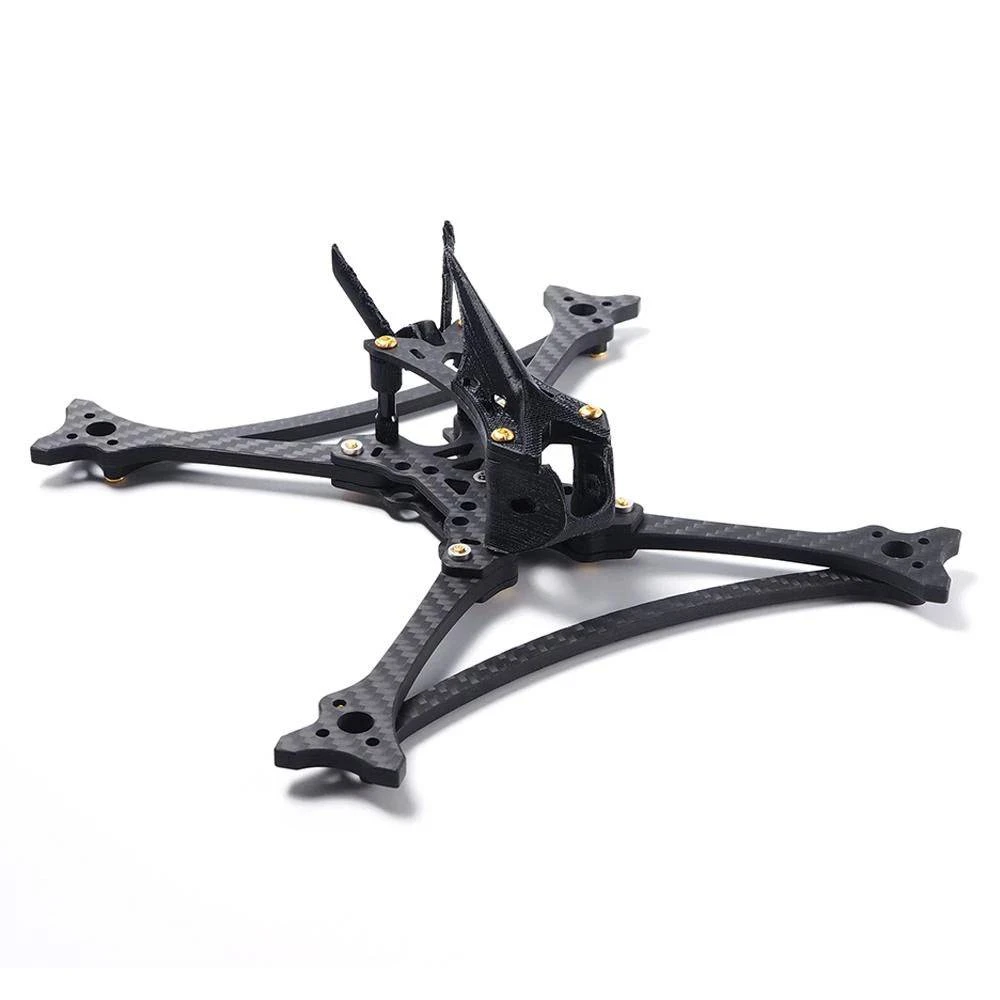

HGLRC Wind5 Lite True X 5" Racing Frame – Analog

A well-thought-out racing frame from HGLRC. Very light with many quality features like an FC damping system, anti-turtle fin, and even comes with multiple 3D-printed parts.

Features

• Flight control installation damping system
• 4mm protective bar
• SMA antenna Mount
• Camera Mount
• Anti-turtle Shark Fin

Specifications

• Model: Wind5 Lite Frame Kit Analog Version
• Material: 3K Carbon Fiber
• Type: 5″ racing frame
• Wheelbase: 208mm
• Size: 148*148mm
• Top plate thickness: 2mm
• Bottom plate thickness: 2mm
• Middle plate thickness: 2.5mm
• Arm Thickness: 5mm
• Top and middle plate spacing: 25mm
• Installation holes: 20×20/30.5×30.5mm
• Support camera: 14mm
• Weight: 80g

STL files for the TPU parts on the Wind5 Lite.

Includes

• 1x 2mm top plate
• 1x 2mm bottom plate
• 1x 2.5mm middle plate
• 4x 5mm arm
• 2x 4mm protective bar
• 4x M3*25mm black aluminum column
• 4x round head screw M3*25
• 4x round head screw M3*16
• 12x round head screw M3*12
• 1x Sink head screw M3*10
• 8x round head screw M3*8
• 2x round head screw M2*4
• 4x M3 Self-tightening nut
• 4x M3*6.6 shock absorber ball
• 4x M3*8 shock absorber ball
• 1x Battery cable tie 15x250mm
• 1x Battery cable tie 20x250mm
• 1x Battery Anti-slip tape
• 2x strap
• 1X Anti-turtle Shark Fin
• 1X SMA Antenna Mount
• 1X Camera Mount

Recommended Parts: ( Not Included )

• Motor: 2207.5 / 2306.5 / 2408
• ESC: 35A-65A
• Camera: 14x14mm size
• Propeller: 5-5.2 Inch
• Battery: 4S 1300mAh ~ 6S 1800mAh
