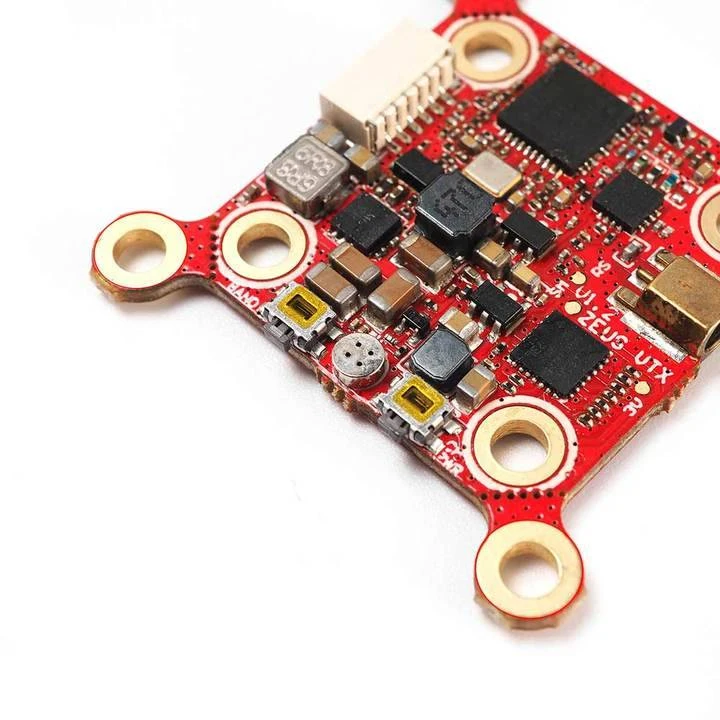

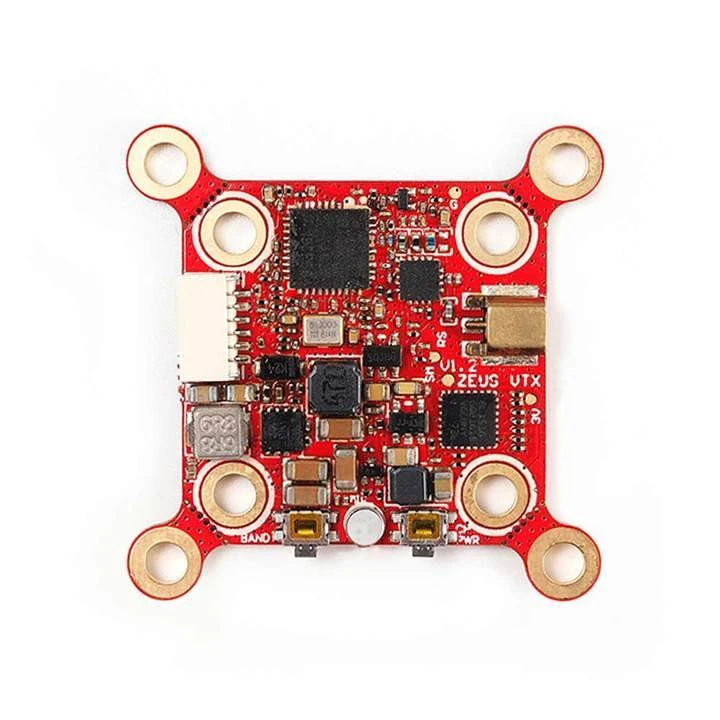

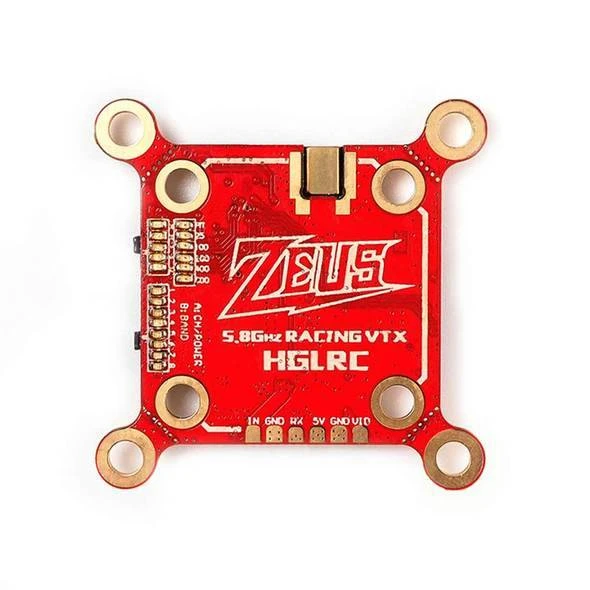

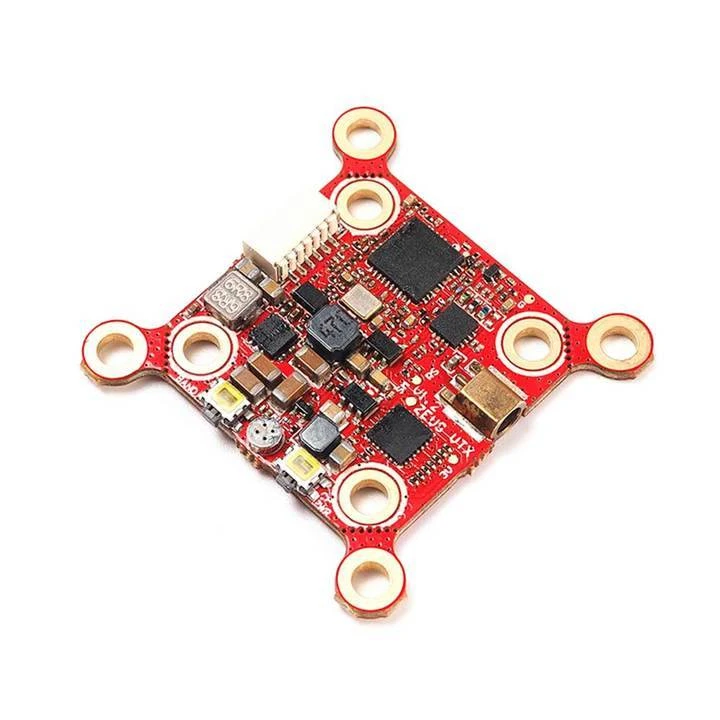

HGLRC Zeus 800mW Smart Mounting 20×20 / 30×30 VTX
Original price was: $35.99.$25.19Current price is: $25.19.
- Nature-friendly materials, for a better planet.
- SSL encryption, absolutely safe shopping
- Expertly Sourced, Quality Guaranteed
- Shop with Peace of Mind
The HGLRC Zeus 800mW Smart Mounting VTX gives you rock-solid performance in a 20x20mm and 30×30 video transmitter. It offers a selectable 5/100/200/400/800mW output power for extreme range FPV flight and features enhance filters, to give you a clear image, built-in microphone, and other features!
Specifications
- Model:Zeus VTX 800mW
- Built-in Microphone
- Input voltage:DC 6-26V
- Output voltage:5V/2A
- PIT@94mA
- 25mW@169mA/14dBm
- 100mW@199mA/20dBm
- 200mW@216mA/23dBm
- 400mW@279mA/26dBm
- 800mW@387mA/29dBm
- Antenna interface:MMCX
- Output power:PIT/25/100/200/400/800mW
- Frequency:5.8GHz 5 bands, 40 channels
- Installing Hole:20X20/30X30mm.M3
- Size:37mm x 37mm x 5mm
- Weight:4.8g

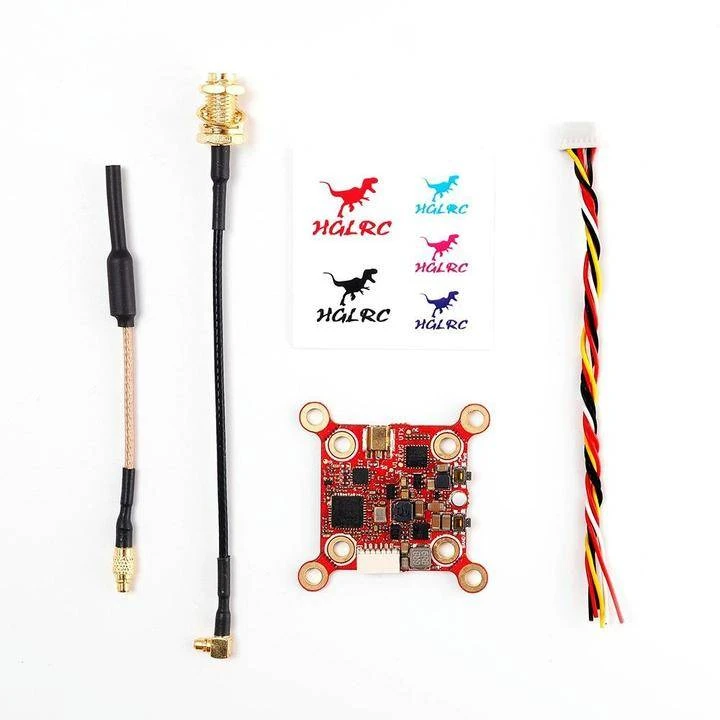

Includes
- 1 x Zeus VTX 800mW
- 1 x 80mm 5.8G MMCXLinear Brass Antenna
- 1 x SH1.0 6Pin 100mm Cable
- 1 x MMCX to SMA-KY Adapter Cable
FPV Regulatory Notice
The use and operation of this type of product in the USA and many other countries may require a license and some countries may forbid its use entirely. In the USA, you will need a “HAM” amateur radio license. Learn more about HAM licenses, and find a HAM license exam session in your area. It is your responsibility to ensure that the use of this product meets the requirements imposed by your government’s rules and regulations for RF devices. Do not purchase this product if you are unsure of the government requirements or are not able to comply with them. GetFPV cannot be held responsible for your actions if you purchase and/or use this product in violation of your government’s regulations. By agreeing to our terms and conditions during the check-out process, you also agree to have read and to understand this notice.
| SKU | 14877 |
|---|---|
| Manufacturer | HGLRC |
| Mounting Pattern | 30.5×30.5mm (Mini) |
| Frequencies | 5.8GHz |
| UPC (GTIN) | 789862856030 |
| Item Returns | This item can be returned |
