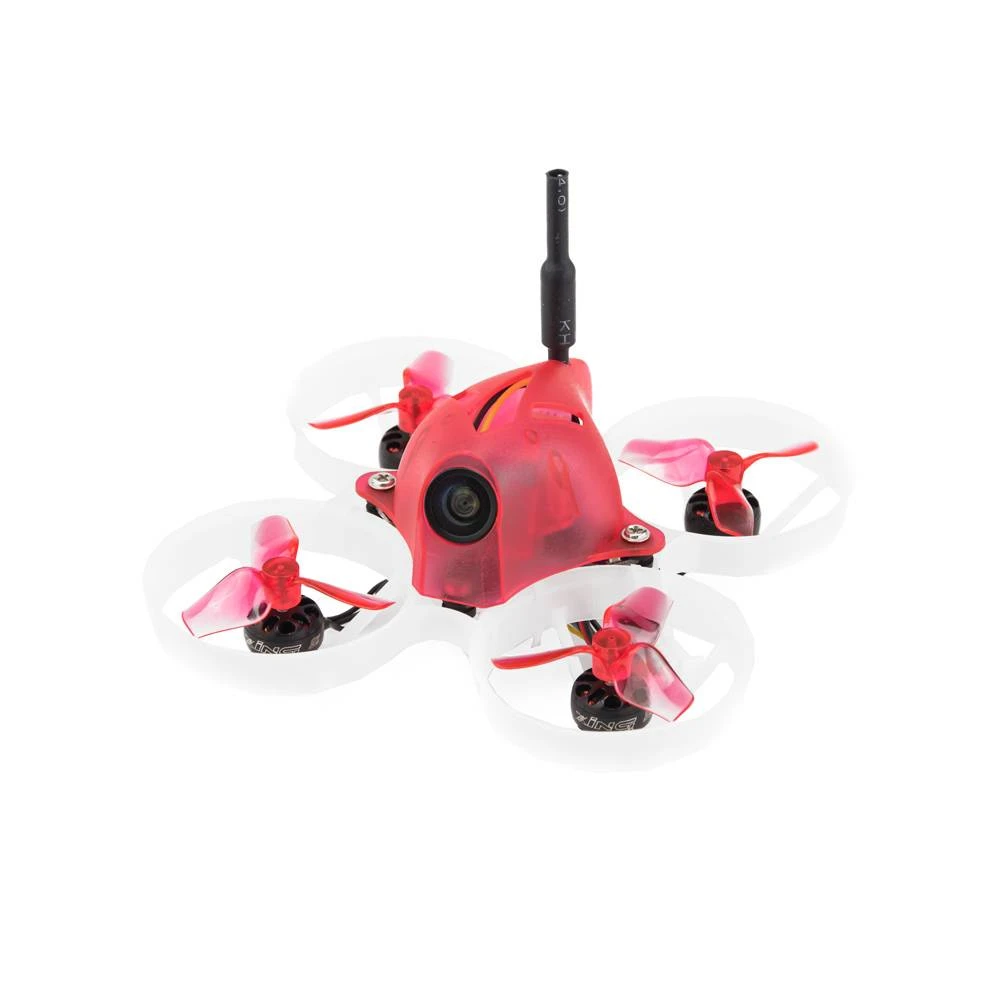

IFlight Alpha A65 Drone – Christmas Edition

Let’s welcome the iFlight Alpha series, a new way to fly FPV. The Alpha A65 is an even smaller size 65mm lightweight 24.5g whoop. Stuffed with our newest electronic components and technology, this thing will guarantee hours of practice or racing across even the smallest spaces. This is the Christmas version.

The Alpha A65 is our answer to the problem of flight time efficiency while maintaining sufficient power.

Features

• 24.5 grams (without battery)
• Butter smooth XING 0802 (more torque and efficiency with longer flight times)
• Ducts to protect the sensitive environment or yourself
• Pre-tuned with smooth cinematic settings

Specifications

• SucceX F4 1S 5A AIO Whoop Board w/VTX
• XING 0802 FPV Micro Motor
• Wheelbase: 65mm
• Body size: 46*46mm
• Ducted propeller size: 31mm
• FC pattern: 25.5*25.5mm
• Weight: 24.5g (without battery)
• Flight time: 3-4 min cruising (1S 300mAh)

FACTORY SETUP and WIRING DIAGRAM

This BNF comes pre-built and setup with all necessary parameters to bind-and-fly. We also added a basic filter and PID tuning as well as some Betaflight tweaks to enhance the flight experience.

Reflashed your drone but didn’t backup the setup? Messed up the whole tune and want our factory tune back?
No need to worry! All Factory Dumps and Wiring Diagrams can be found on our Google Drive: LINK

FC // SucceX F4 1S 5A AIO Whoop Board

• Size：29*29mm
• Mounting pattern: 25.5*25.5mm/φ3mm （half-hole)
• Connector：Micro-USB
• Weight: 5.4g (with power cable, vtx, and vtx antenna)
• MCU：STM32F411
• Gyro：MPU6000
• Blackbox：no
• BEC output：5V 1.2A
• INA pad：n uart2
• Barometer：no
• FC Firmware：MatekF411RX
• ESC Firmware：O-H-30 BLS 16.8

ESC // 5A

• Current: 5A continuous and peak 6A
• Current scale: 400
• Input：1S
• Signal Support: Dshot，Oneshot，Multishot
• Current sensor：yes
• BLHeli：BLHeli-S
• ESC Telemetry：no

FPV Camera

• Power DC: 5V
• Size: 14*12.2*12mm
• Net weight: 1.6g
• 800TVL 150°

VTX

• Input voltage: 5V
• Channels: 48CH
• Power: PIT/25/50mW
• Connector: UFL/IPEX

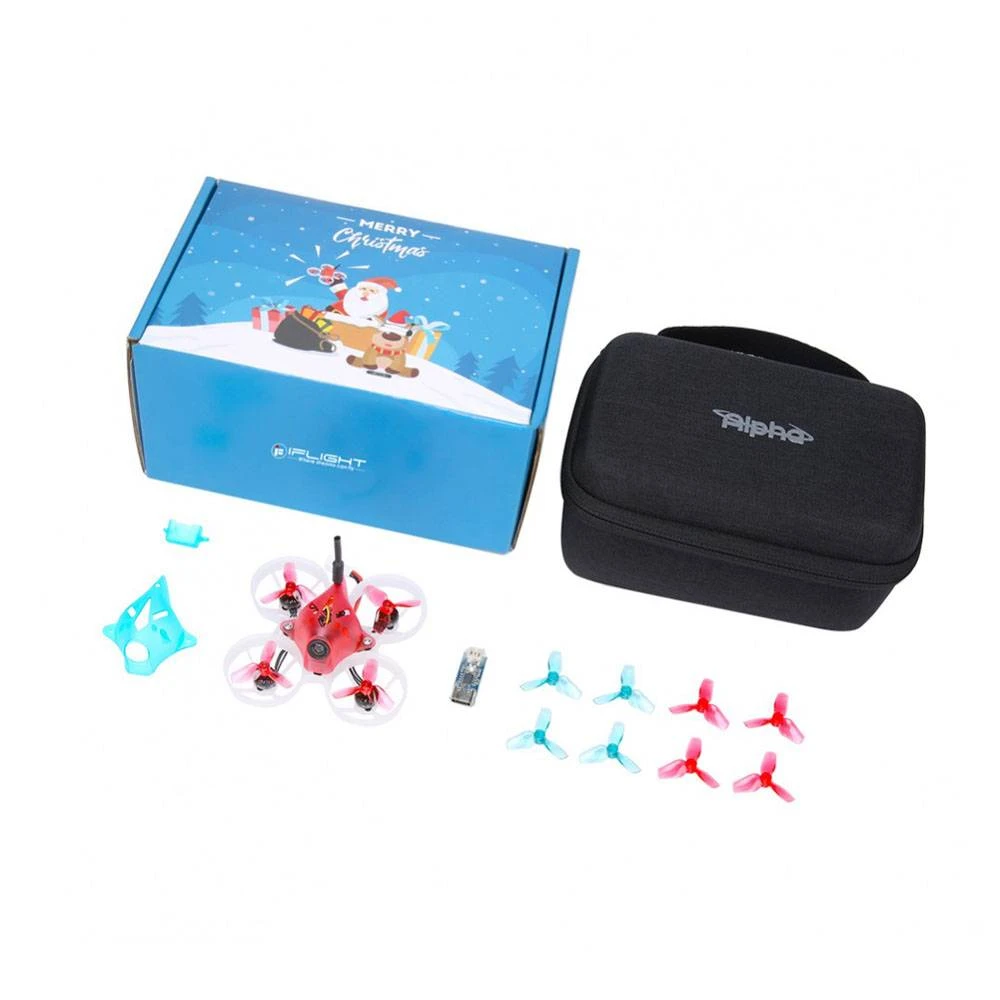

Includes

Alpha A65 w/800TVL 150° Camera Quad BNF Included Components and Parts

• Prebuilt and tested Quadcopter
• 1 x Alpha 65mm Frame
• 1 x 800TVL 150° Camera
• 1 x SucceX F4 1S 5A AIO Whoop Board (MPU6000) w/VTX
• 1 x Whip antenna
• 3setsx HQ 31mmx3 1mm (Set of 4 – Color May Vary)
• 1 x Carrying case
• 1 x spare canopy

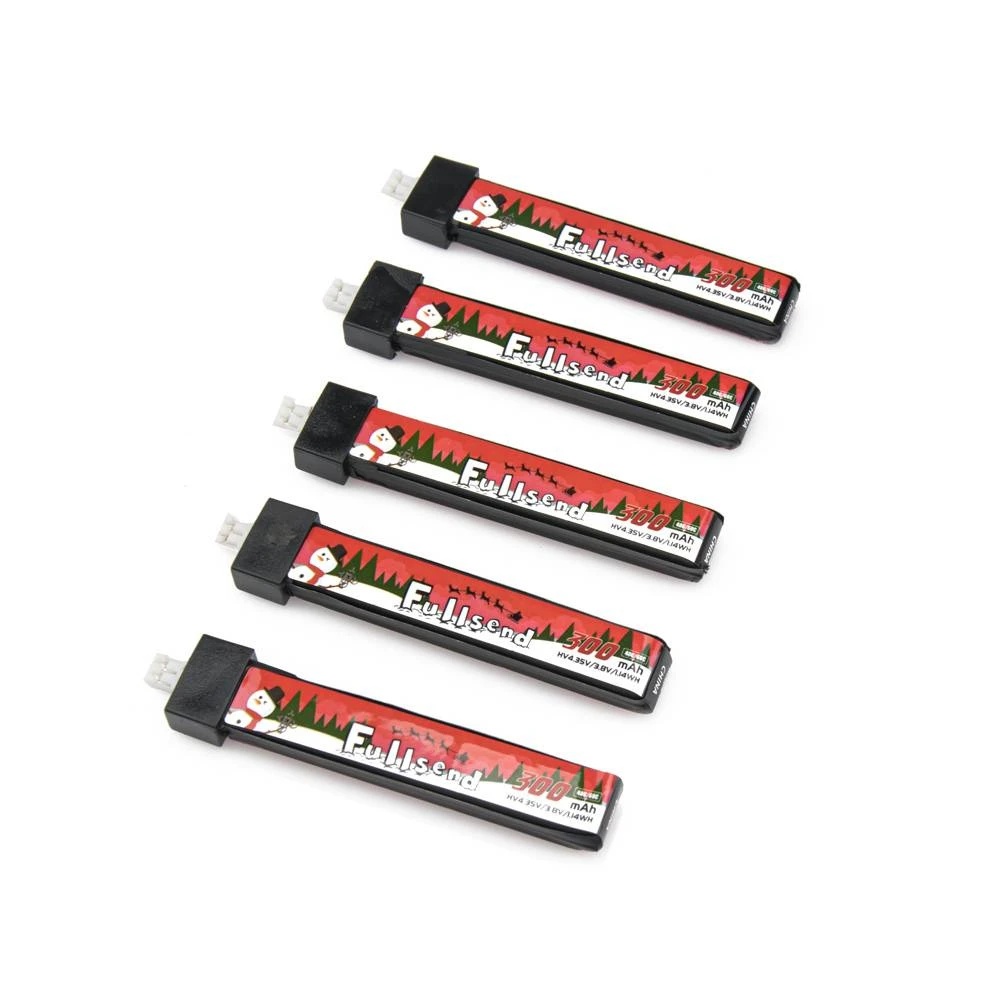

• 5 x Fullsend 1S HV 300mAh 40C Lipo Battery
• 1 x Replacement Canopy – Blue
