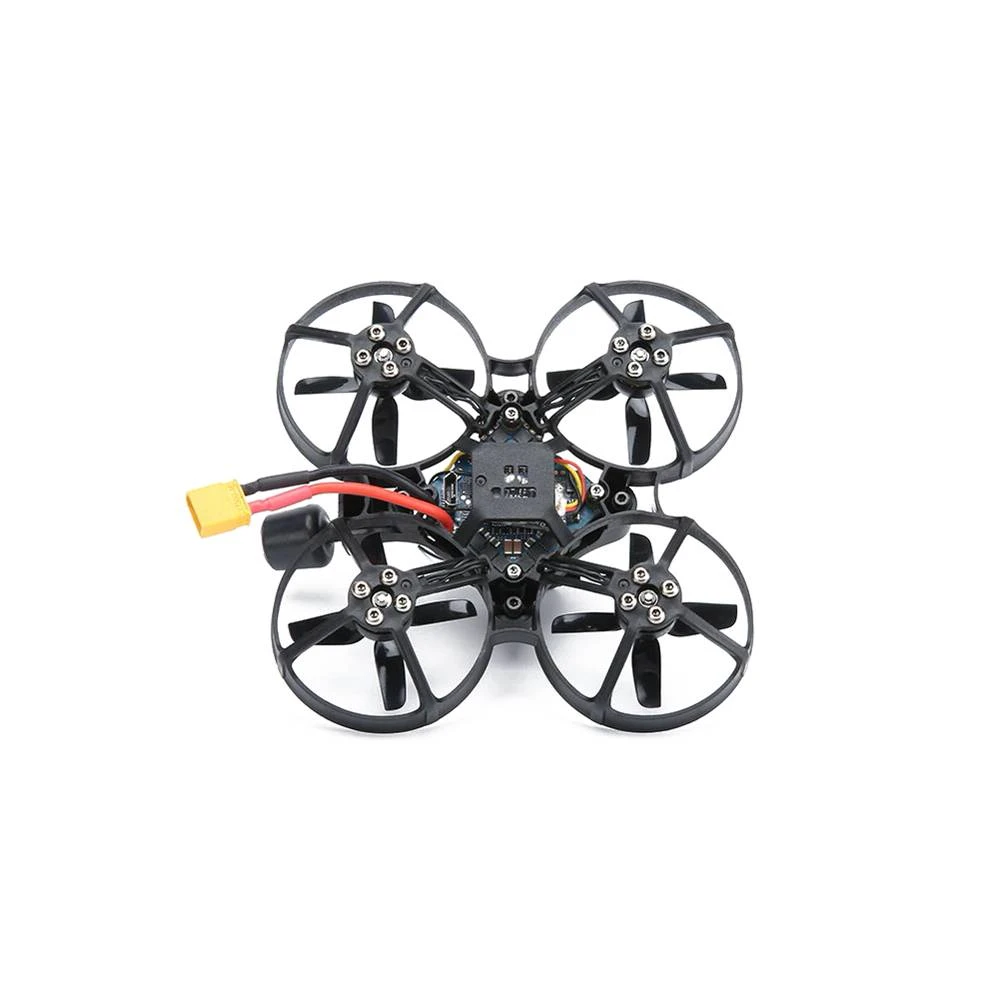

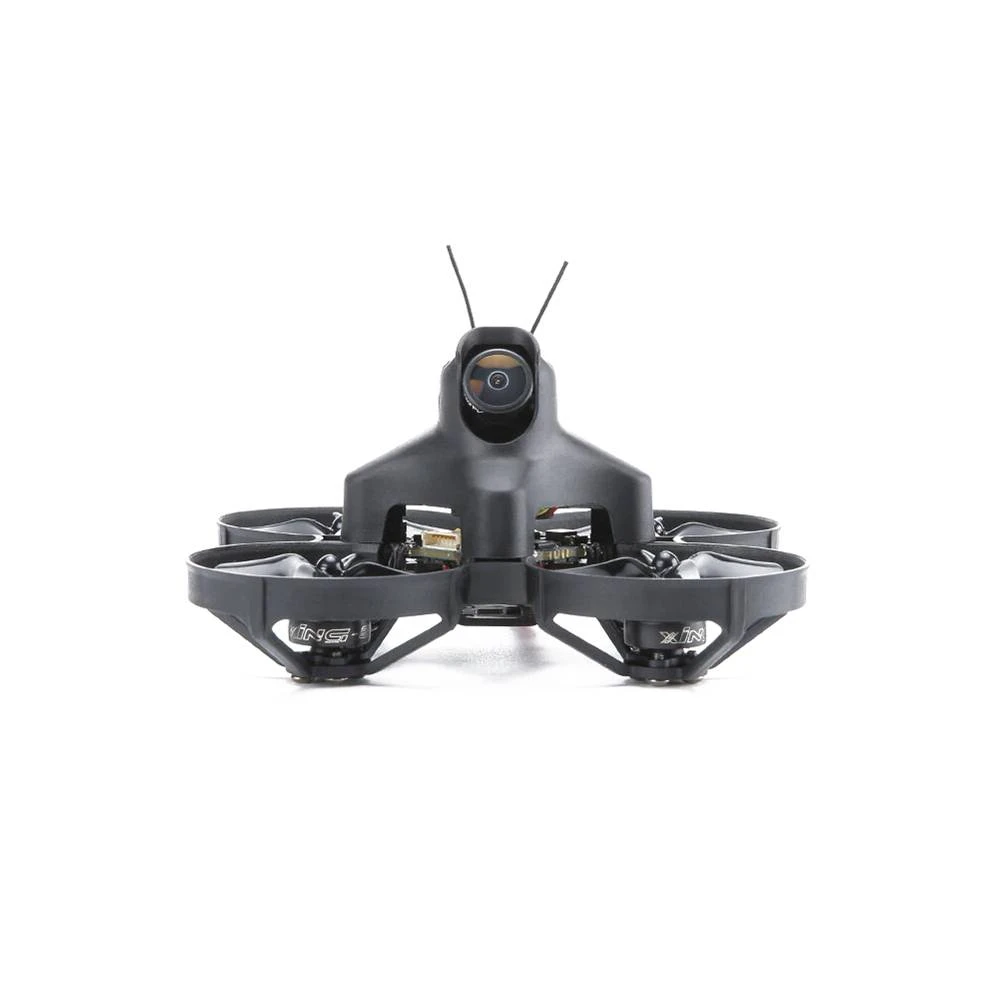

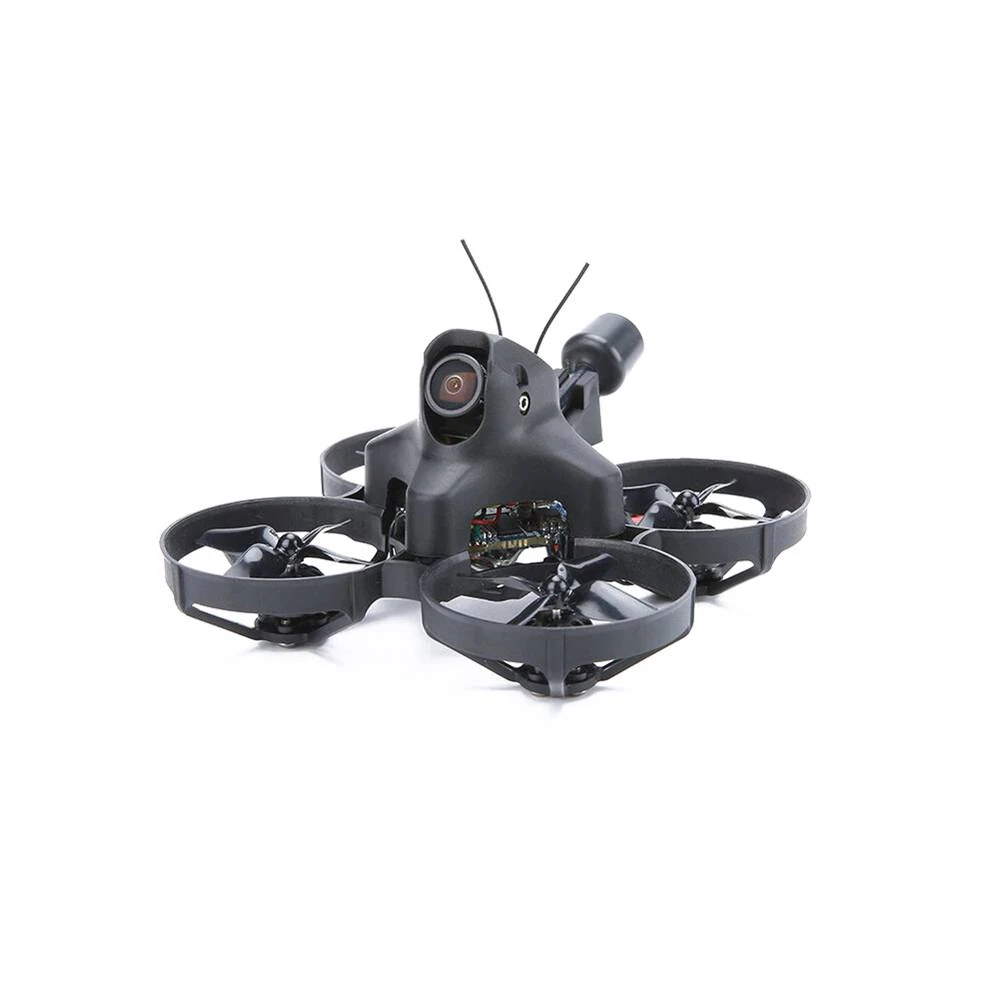

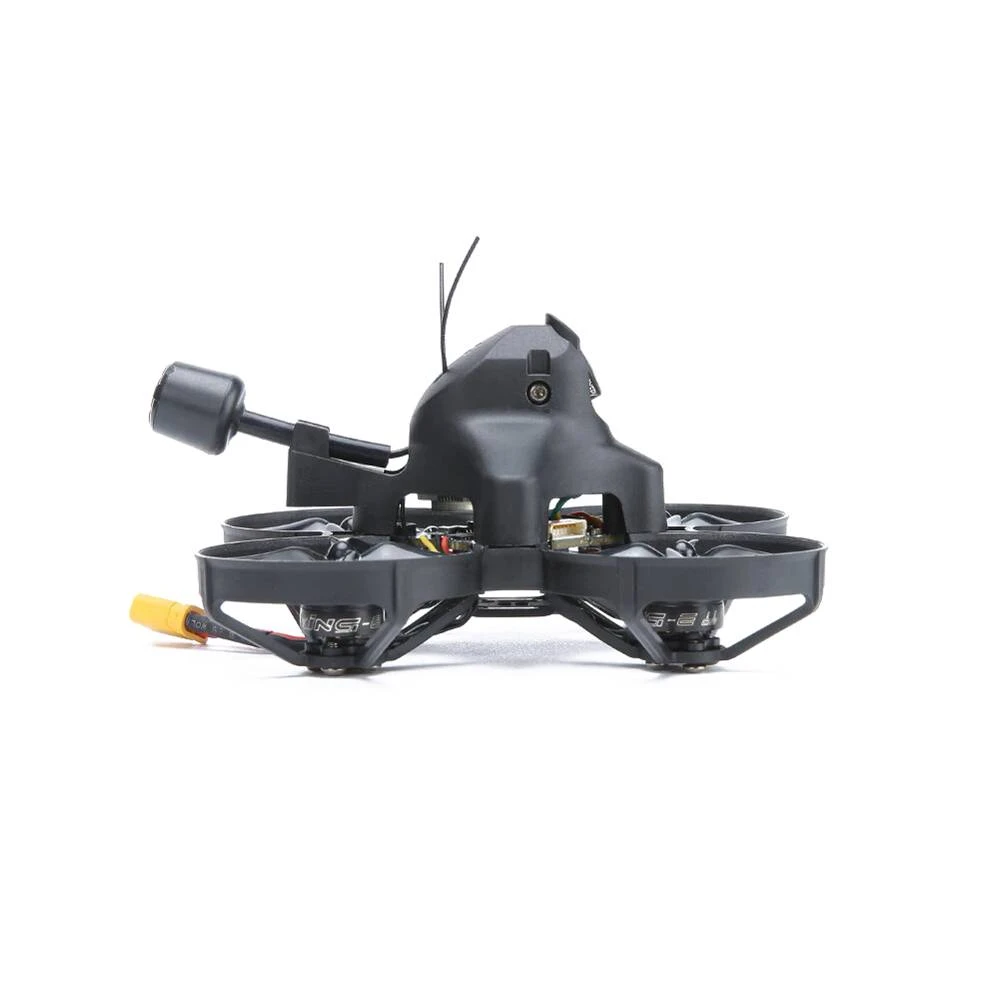

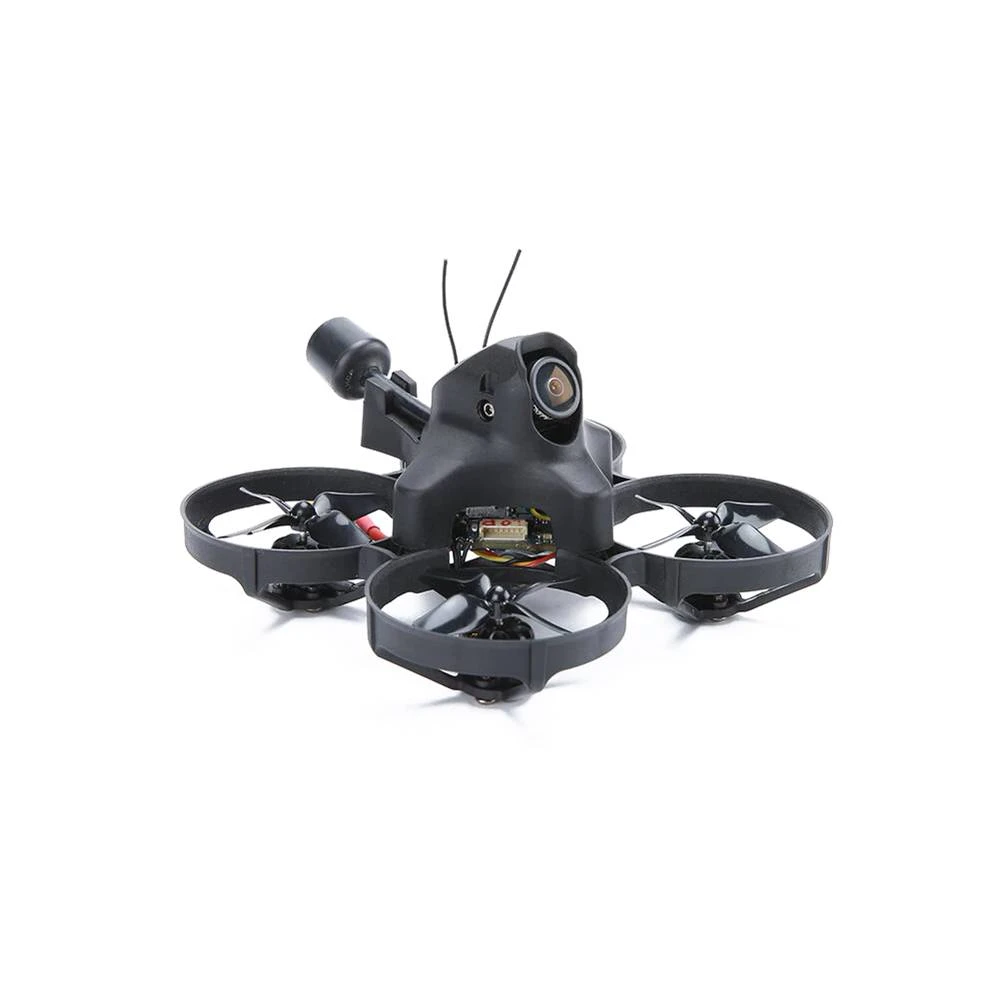

IFlight Alpha A75 Whoop – Analog W/ RaceCam R1

You’ve seen the A65 and the A85. Well, it would make sense for iFlight to release the A75 to fill the gap in size!

Let’s welcome the iFlight Alpha series… a new way to fly FPV! This 40mm quad is the analog version of the Alpha A75 Whoop. The A75 Whoop is equipped with a SucceX-D 20A Whoop F4 AIO Board and XING NANO 1303 5000KV Motors.

Features

• 66.9 grams (without battery)
• Butter smooth XING 1103 8000KV，more torque and efficiency
• Ducts to protect the sensitive environment or yourself
• Pre-tuned with smooth cinematic settings
• iFlight Albatross 5.8G light antenna upgrade (included)

PRE-TUNED & PRE-SETUP:

• Don’t worry about tuning, we did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!
• To restore lost tunes or updates, please check the linked article on “Firmware/Factory Dumps”
• Angle-Mode (self-balancing level mode) is enabled by default to make sure your first flight doesn’t end in a mess!
• Please check the linked article on “How to disable Angle-Mode, activate Acro-Mode”

Specifications

• SucceX-D 20A Whoop F4 AIO Board
• XING 1103 8000KV FPV Micro Motor
• Wheelbase: 78mm
• Body size: 102.9*102.9mm
• Ducted propeller size: HQ 40mm 1.6 inch
• FC pattern: 25.5*25.5mm
• FPV cam spacing: 14mm
• Weight: 52.1g (without battery)
• Battery: 3S 450mAh (not included)

FC // SucceX-D 20A F4 Whoop AIO

• Size：30.5*30.5mm
• Mounting pattern：25.5*25.5mm/φ3mm
• Connector：Micro-USB
• MCU：STM32F411
• Gyro：MPU6000
• Blackbox：8MB
• BEC output：5V 2A/10V 2A
• INA pad：UART2 (nR2)
• Barometer：no
• Constant current：20A，25A（Burst）
• Input：2-4S
• Current sensor：yes
• BLHeli：BLHeli-S
• ESC Telemetry：no
• Target：IFLIGHT_F411_PRO
• ESC Firmware：G-H-30 BLS

5.8GHz SucceX Micro 300mW VTX

• Power: PIT/25/100/200mW/300mW
• Antenna interface: IPEX (UFL)
• VTX protocol: IRC Tramp
• Size: 13.5×14.5mm
• Weight: 1.4g
• Mini VTX size: 20x20mm, 2mm hole, total weight (incl. VTX): 3.4g

Note: VTX is set to 25mW by default! Power levels above 25mW require a HAM license or have to be approved by local authorities! Please ensure you’re flying legal frequencies and use our prepared Betaflight VTX tables according to your region.

Includes

Alpha A75 Analog BNF Included Components and Parts

• 1x Alpha A75 Analog Quadcopter w/ RaceCam R1 Camera (Prebuilt and Tested)
• 1x Gemfan 40mm 1.6inch 1635 3-blades (Set of 2 – Color May Vary)
• 2x 10*130mm iFlight Lipo Strap
• 1x 90 Degree Charger Adapter w/ Cord
• 1x Hardware Set
