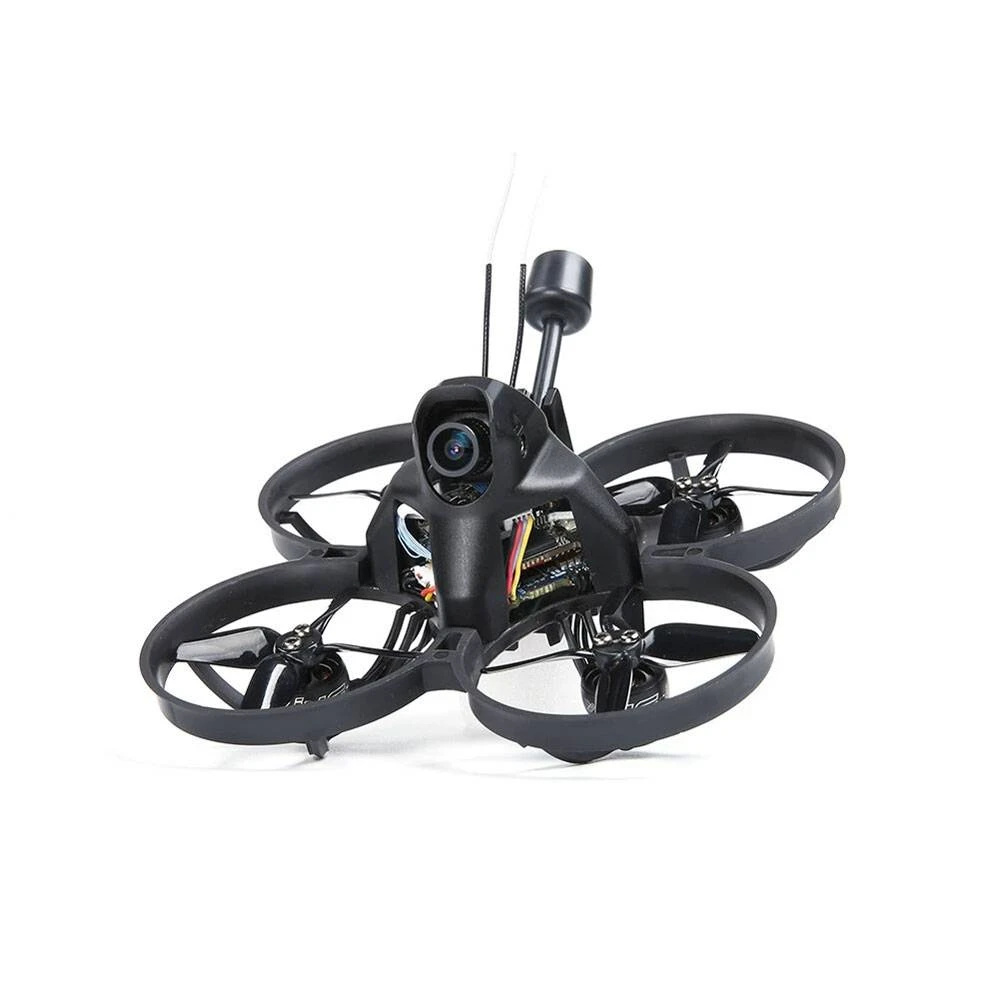

IFlight Alpha A85 Whoop – HD W/ Caddx Polar Nano

Let’s welcome the iFlight Alpha series, a new way to fly FPV!

The iFlight Alpha A85 Whoop is the next step in FPV flight! Ever wanted to try Digital FPV on the smallest possible whoop size quad? iFlight stuck the Caddx Vista and the Caddx Polar Nano camera on one of their new 2″ whoop frames and did some tuning to find the optimal ratio between weight and power.

The Alpha A85 is our answer to the problem of flight time efficiency while maintaining sufficient power on a Digital HD whoop.

VIDEO: WOW! iFlight ALPHA A85 Digital Whoop

Features

• Butter smooth XING1303 5000KV, more torque and efficiency with longer flight times compared to 1105 motors
• iFlight Albatross 900mhz light micro antenna upgrade (included with every Crossfire Nano RX)
• iFlight Albatross 5.8G light antenna upgrade (included)
• Ducts to protect the sensitive environment or yourself
• Pre-tuned with smooth cinematic settings
• 84.5 grams (without battery)

Specifications

• Flight time: 5-7 min cruising (4S 450mAh)
• Antenna: Albatross LHCP Ipex 5.8g light
• XING 1303 5000KV FPV Micro Motor
• SucceX-D 20A Whoop F4 AIO Board
• Weight: 84.5g (without battery)
• Ducted propeller size: 2 inch
• Camera: Caddx Polar Nano
• FC pattern: 25.5×25.5mm
• FPV cam spacing: 14mm
• Body size: 125x125mm
• Wheelbase: 85mm

FACTORY SETUP and WIRING DIAGRAM

This BNF comes pre-built and set up with all necessary parameters to bind and fly. We also added a basic filter and PID tuning as well as some Betaflight tweaks to enhance the flight experience.

Reflashed your drone but didn’t back up the setup? Messed up the whole tune and want our factory tune back?
No need to worry! All Factory Dumps and Wiring Diagrams can be found on our Google Drive: LINK

Additional Suggested Parts

• Radio Controller – Based on Receiver Choice
• DJI HD FPV Goggles
• Battery 4S 450mAh

Important

The DJI Remote Controller is recommended for beginners since you won’t need to set up another receiver, but it is also optional in this BNF drone because it is NOT required in order to use the FPV system. If you don’t choose to use the DJI Remote Controller, you can choose a receiver option for your transmitter and then bind to your own radio as usual.

Includes

• 1x iFlight Alpha A85 Whoop – HD w/ Caddx Polar Nano (Pre-built and Tested)
• 2x  HQ 2 inch 4-blades (Set of 4 – Color May Vary)
• 1x iFlight Lipo Strap
