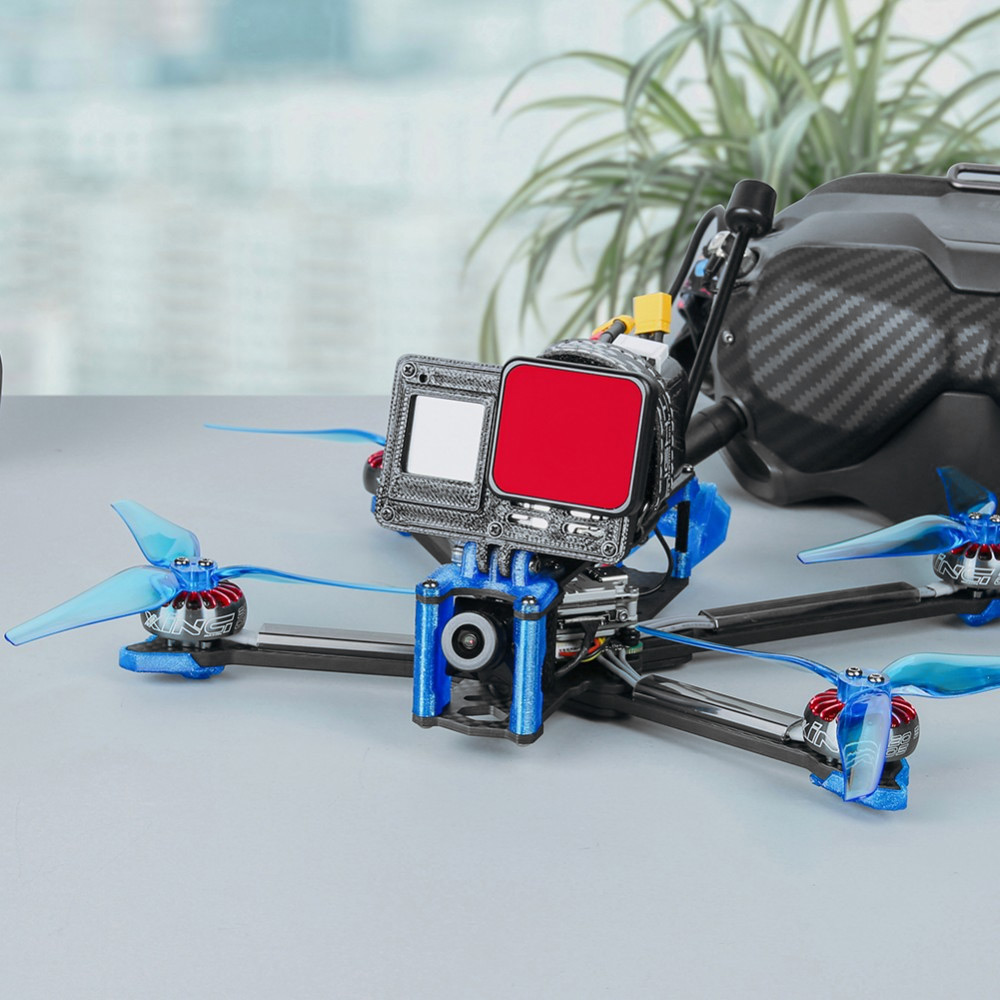

IFlight Chimera5 DeadCat 5" LR HD Quadcopter W/ Caddx Polar Vista – 4S

Introducing the Chimera5 DeadCat! iFlight’s first DeadCat ultra-light Long Range 5″ BNF.

The Chimera5 is equipped with the Beast F7 AIO on board coupled with the XING 2005 motors, GPS, Caddx Polar Vista Digital HD System, and more!

GPS Rescue is ready for easy recovery in case of signal loss, or even if you’ve been surfing those mountains and suddenly can’t find the way back home. Betaflight OSD pre-setup GPS elements will show you the way! Custom iFlight 150mm LR antenna for best signal coverage even at long distances.

Go crazy and get a flight time above 25 minutes by using 4S Li-On 3000mAh packs!

VIDEO: iFlight Chimera5 DC // Cloud Surfing

Features

• XING 2005 2550KV Ultralight motors (Prop mount pattern currently only compatible with iFlight Nazgul Props)
• Naked GoPro and Full GoPro ready (included TPU base mounts)
• 360° TPU protection, Vista cam protection, and antenna mounts
• DC (DeadCat geometry) bottom plate, No props in view
• GPS pre-installed for more safety at a distance
• Caddx Polar Vista Digital HD System
• Beast F7 45A AIO board
• Mini long-range quad

Specifications

• Camera/VTX: Caddx Polar Vista Digital HD System
• Motors: XING 2005 2550KV Ultralight
• Board: Beast F7 45A AIO board

FRAME // ：Chimera5

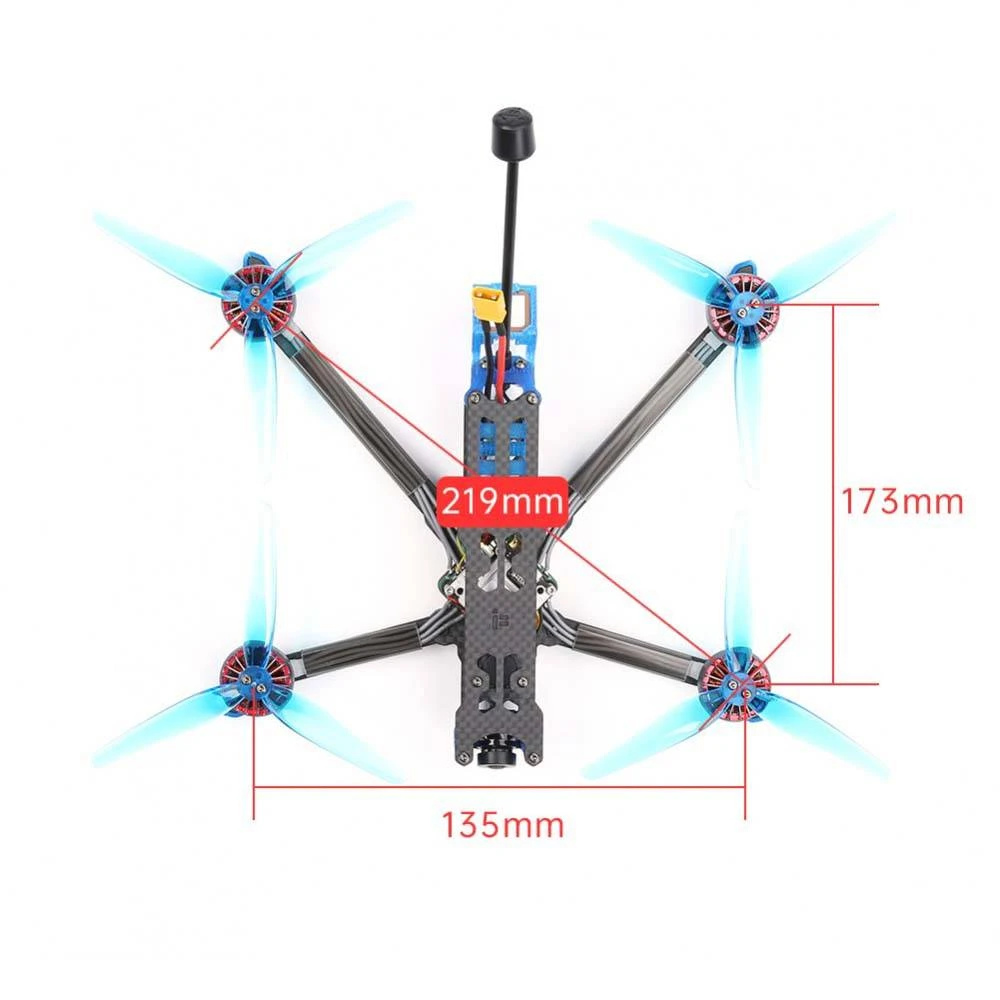

• Main body dimension: 135*173mm
• FPV Cam: 19mm Micro / 20mm
• Middle Plate thickness: 2.5mm
• Bottom to top distance: 28mm
• Bottom plate thickness: 2mm
• FC: 25.5*25.5mm/20*20mm
• Top plate thickness: 2mm
• Arm thickness: 4mm
• Wheelbase: 219mm

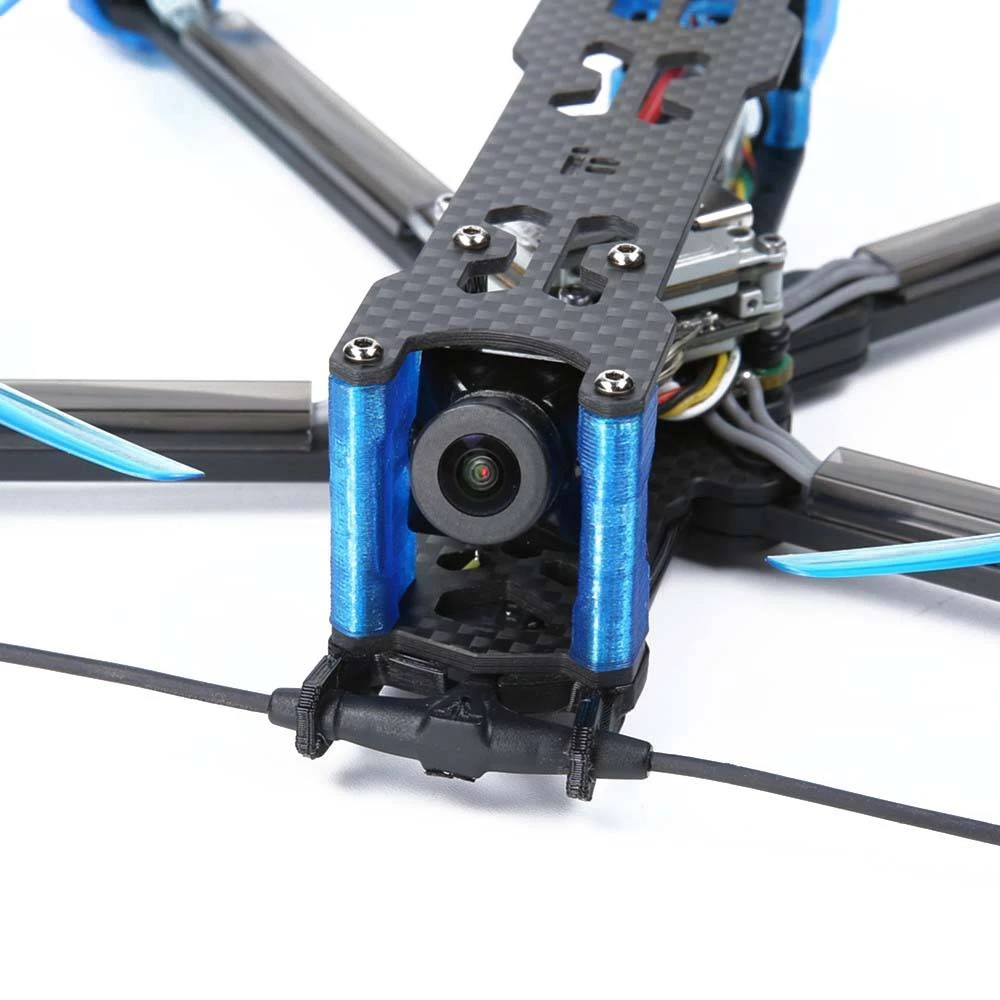

• TPU Camera plate

FC // Beast F7 AIO

• Mounting pattern: 25.5×25.5mm /3mm
• FC Firmware: IFLIGHT_F745_AIO
• Blackbox: 8Mb Onboard Flash
• Dimensions: 32.5*32.5mm
• MCU: BGA-STM32F745
• Connector: Micro-USB
• BEC output: 5V 2.5A
• Barometer: BMP280
• Gyro: MPU6000
• OSD: AT7456E
• Weight: 8.5g

ESC // 45A 2-6S

• Mounting pattern: 25.5×25.5mm/3mm
• ESC Firmware: BlheliS G-H-30
• Dimensions: 32.5*32.5mm
• Constant: 45A / Burst: 50A
• Current Sensor: Yes
• Current scale: 200
• BLHeli: BLHeli-S
• Input: 2-6S LIPO
• Telemetry: no
• Uarts: 5

ULTIMATE RANGE with full GoPro: 4S 4000mAh, 13-16min (iFlight FULLSEND INR21700, iFlight 5V BEC instead of GoPro battery)

CAUTION: Flying LIPOs like 850mAh and below might exceed your battery’s max power output on the high throttle, might overheat the battery cells, and shorten the battery lifespan drastically. Please fly with care!

CAUTION: Li-ion battery packs offer longer flight times (more capacity with less battery weight) but don’t have as much current output as LiPo batteries and tend to get hot if overloaded! Please read the specs and stay within limits!

Recommended ( Not Included)

• Recommended battery: 4S 1300mAh and above!
• Without GoPro: 11-13min // 4S 1300mAh, 14-15min // 4S 3000mAh Lion pack, 22-24min
• With naked GoPro: 4S 1300mAh, 12-13min // 4S 3000mAh Lion pack, 20-22min
• With full GoPro Hero8: 4S 1300mAh, 4-6min
• Naked GoPro Hero8 Case
• DJI HD FPV Goggles V2

Includes

• 1x iFlight Chimera5 5″ DeadCat LR HD Quadcopter w/ Caddx Polar Vista Digital HD System – 4S
• 1x 20x200mm Microfiber PU Leather Battery Strap (Color May Vary)
• 1x 20x250mm Microfiber PU Leather Battery Strap (Color May Vary)
• 2x Nazgul 5030 inch 3-blades (Set of 4 – Color may vary)
• 1x Naked GoPro TPU base mount (installed)
• 1x Albatross LHCP RP-SMA 5.8g antenna
• 1x Full GoPro TPU base mount
• Note: GoPro not included
