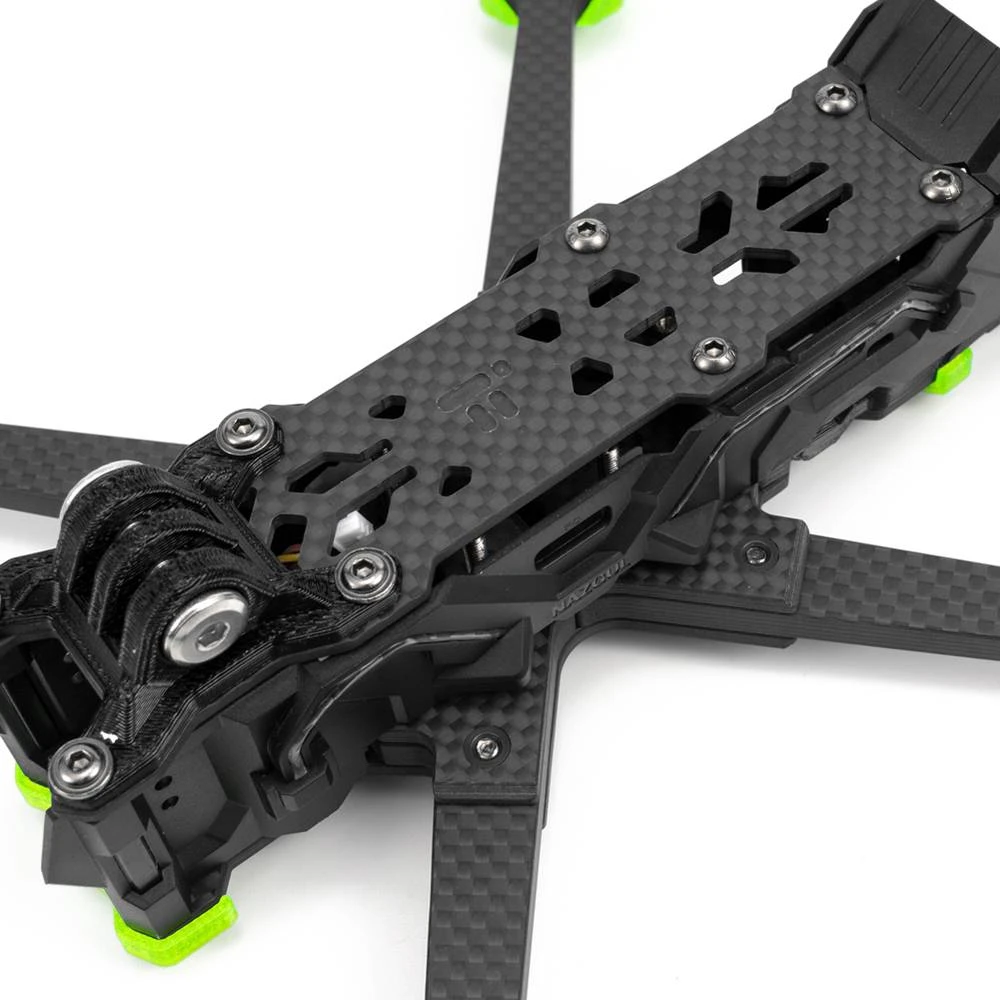

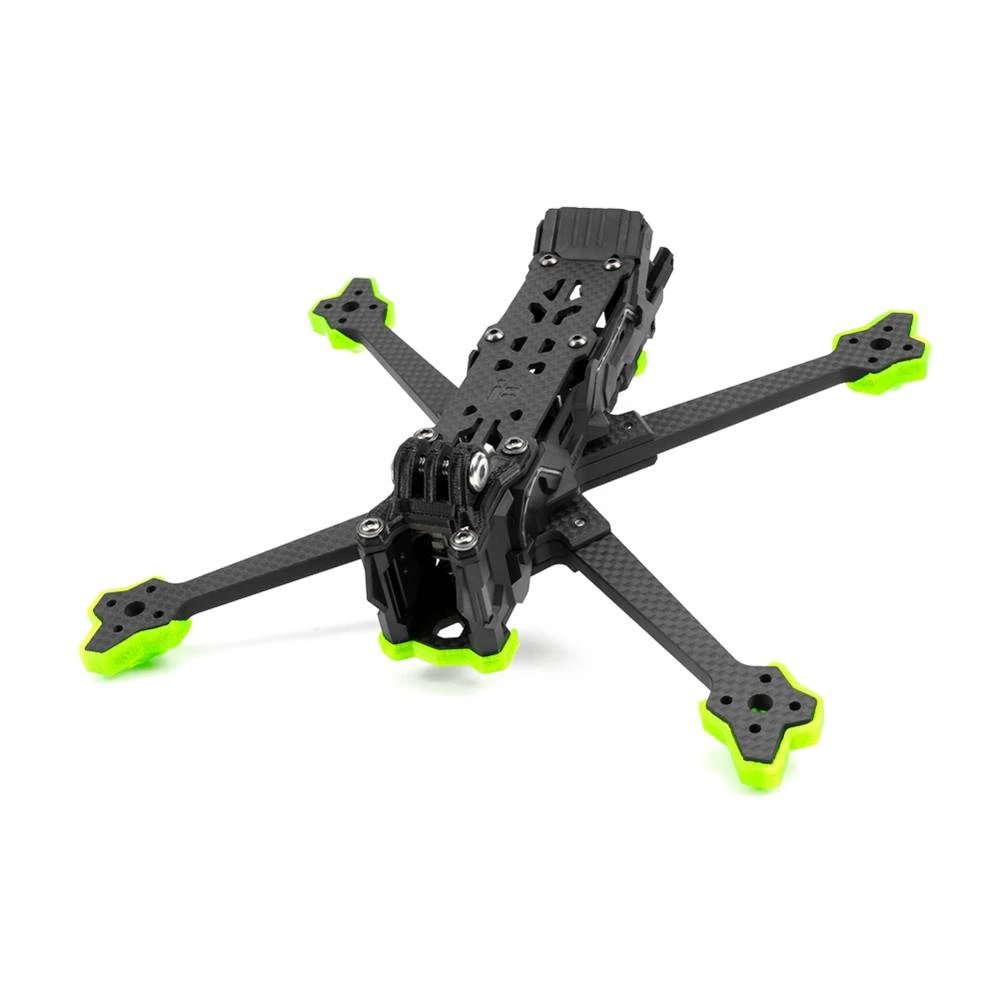

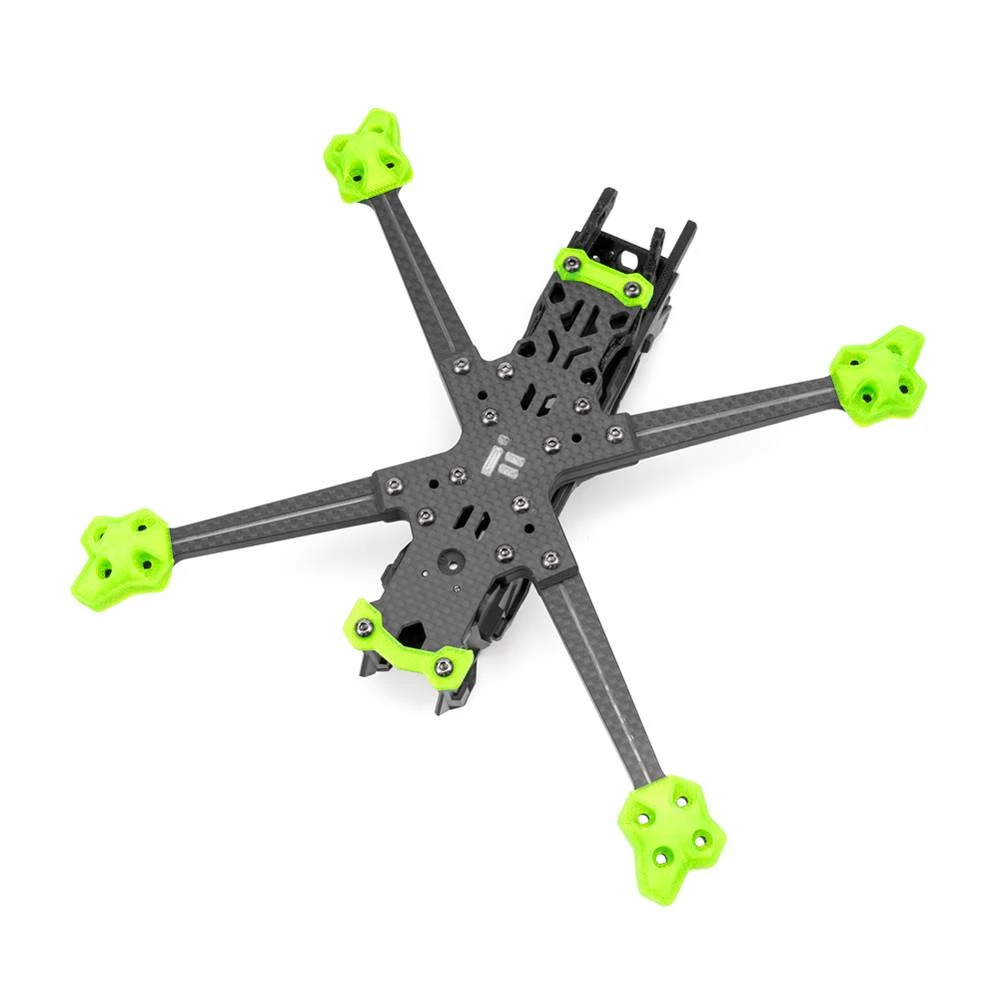

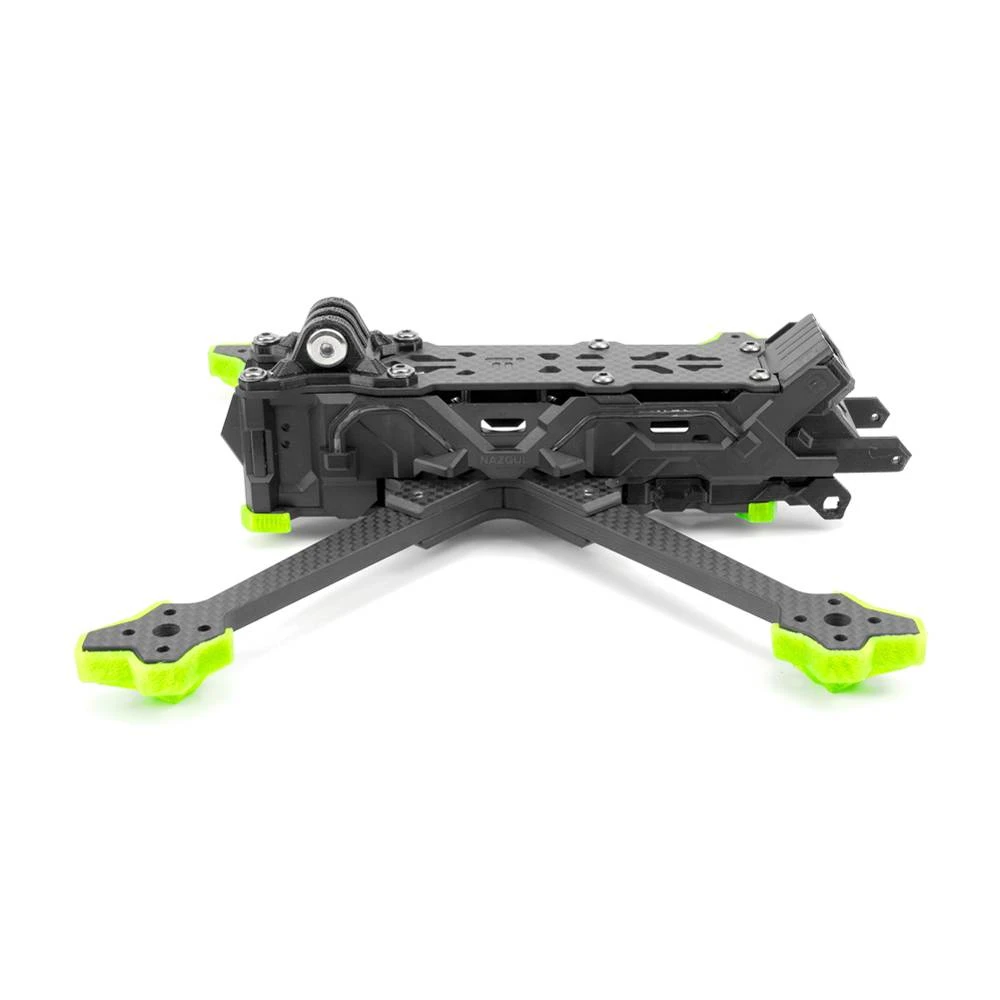

IFlight Nazgul Evoque F5 HD/Analog Frame Kit – F5X Squashed X

Introducing.. the iFlight Nazgul Evoque F5 HD/Analog Frame Kit with F5X Squashed X configuration!

The Secret Of Ultimate Performance Is Passion.

That was the slogan for iFlight’s newest approach to creating this piece of art! Fully protected electronics, fully illuminated, coupled with all the latest and greatest electronics to be offered. Months of engineering went into this BNF and all the lessons learned before, making sure that beginners, as well as experienced pilots, would fully enjoy using the new Nazgul Evoque from the first second they use it.

Note: This is the frame kit only. All other parts are not incuded. Assembly required.

VIDEO: iFlight Nazgul F5 Evoque: Flying 4s on the 6s Version Flight Times? Good for Beginners?

Features

• 3mm Carbon Frame Thickness with 6mm Arms
• Great for Both Beginners and Experienced Pilots
• F5X Sqaushed X Configuration
• Secured XT60 Battery Plug
• Fully Protected Electronics
• Lightweight Side Panels

THE SECRET OF ULTIMATE PERFORMANCE IS PASSION

That was iFlight’s slogan for their newest approach to creating this piece of art! Fully protected electronics, fully illuminated, coupled with all the latest and greatest electronics to be offered. Months of engineering went into this BNF and all the lessons learned before, making sure that beginners, as well as experienced pilots, would fully enjoy using the new Nazgul Evoque from the first second they use it.

LIGHTWEIGHT SIDE PANELS – KEEP YOUR RIG CLEAN

Ever felt like a lawnmower cutting through the grass in your early days, props cutting and throwing wet grass all over and inside your flight stack? Well… These days are over! The new side panels will not only protect from wetness but also protect the internals from any strikes hitting off little components from your flight controller.

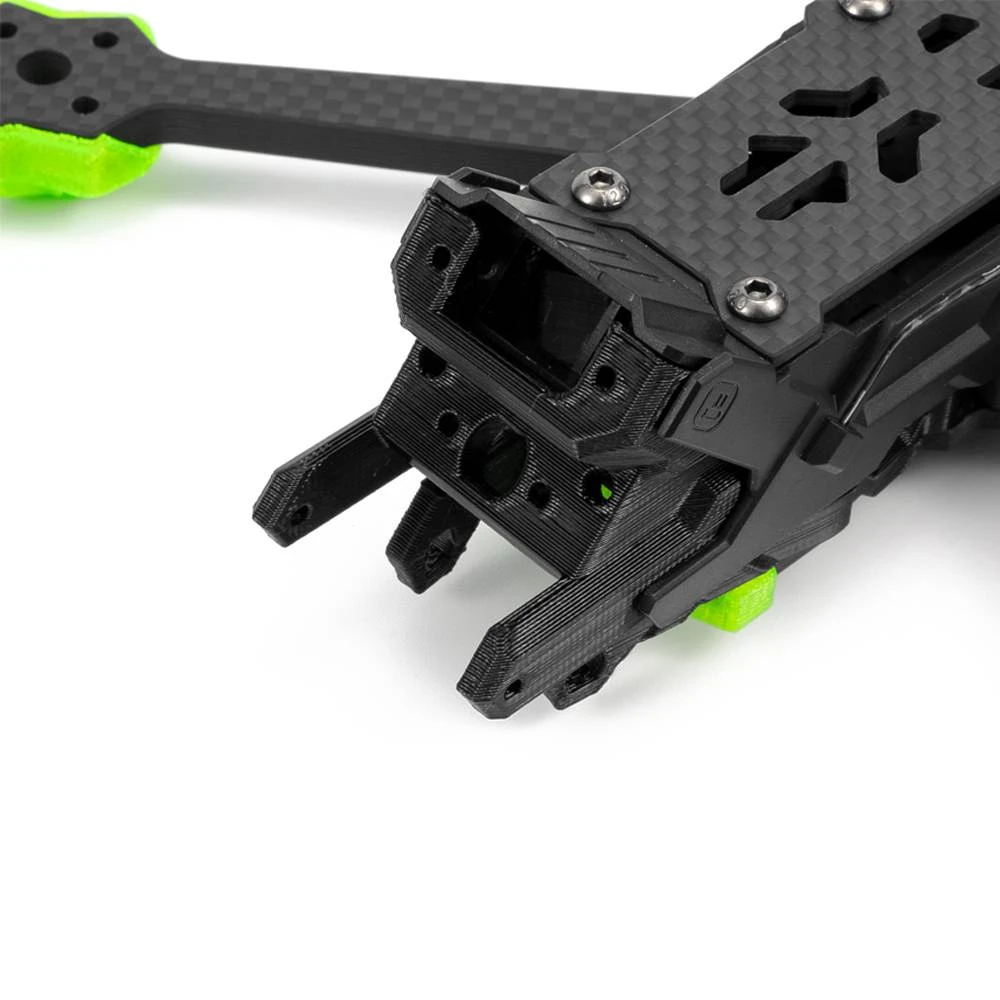

SECURED INTEGRATED XT60 BATTERY PLUG – AS AS IT CAN BE

Dangling battery plugs will ALWAYS find a way in your props, there’s always that one time you forgot to secure it properly and almost cut off the cable while flying. There was only one way to get rid of that and iFlight has found a solution. The integrated XT60 connector on the back lets you securely plug in your battery leading all cables away from your props.

Specifications

• Upper(middle) plate thickness: 3mm
• FPV cam spacing: 19mm/20mm
• Total Dimensions: 145x172mm
• Bottom to top distance: 28mm
• Bottom plate thickness: 3mm
• Top plate thickness: 3mm
• Stack options: 20x20mm
• Arm Thickness: 6mm
• Wheelbase: 225mm
• Weight: 187.9

Recomended (Not Included)

• Propellers: Nazgul F5 Tri-blades CW CCW Propellers
• Flight Controller: BLITZ Mini F7 Flight Controller
• Motors: XING2 2207 Motor
• ESC: BLITZ Mini 55A ESC

Includes

• 1x iFlight Nazgul Evoque HD/Analog Frame Kit – F5X Squashed X
• 1x 20x200mm Battery Strap (Color May Vary)
• 1x 20x250mm Battery Strap (Color May Vary)
• 2x Anti-Slip Battery Pads
• 1x TPU Parts Set
