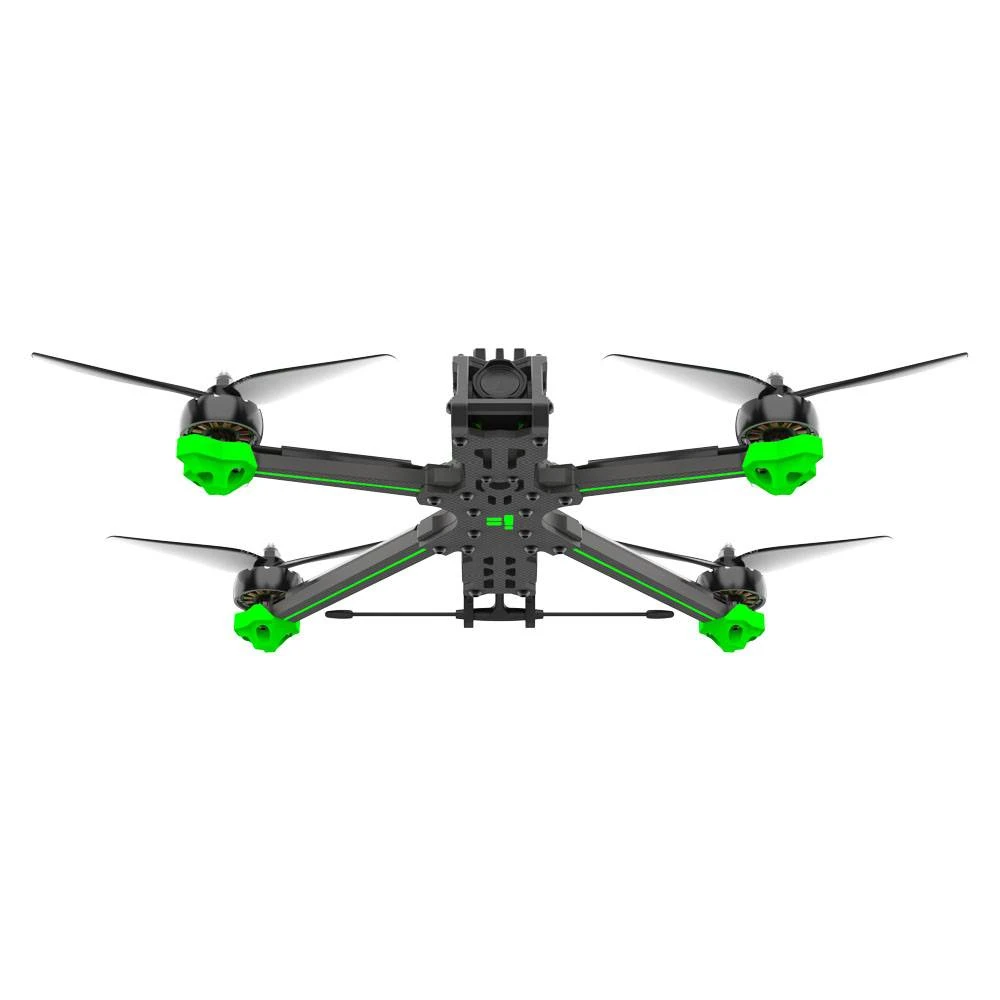

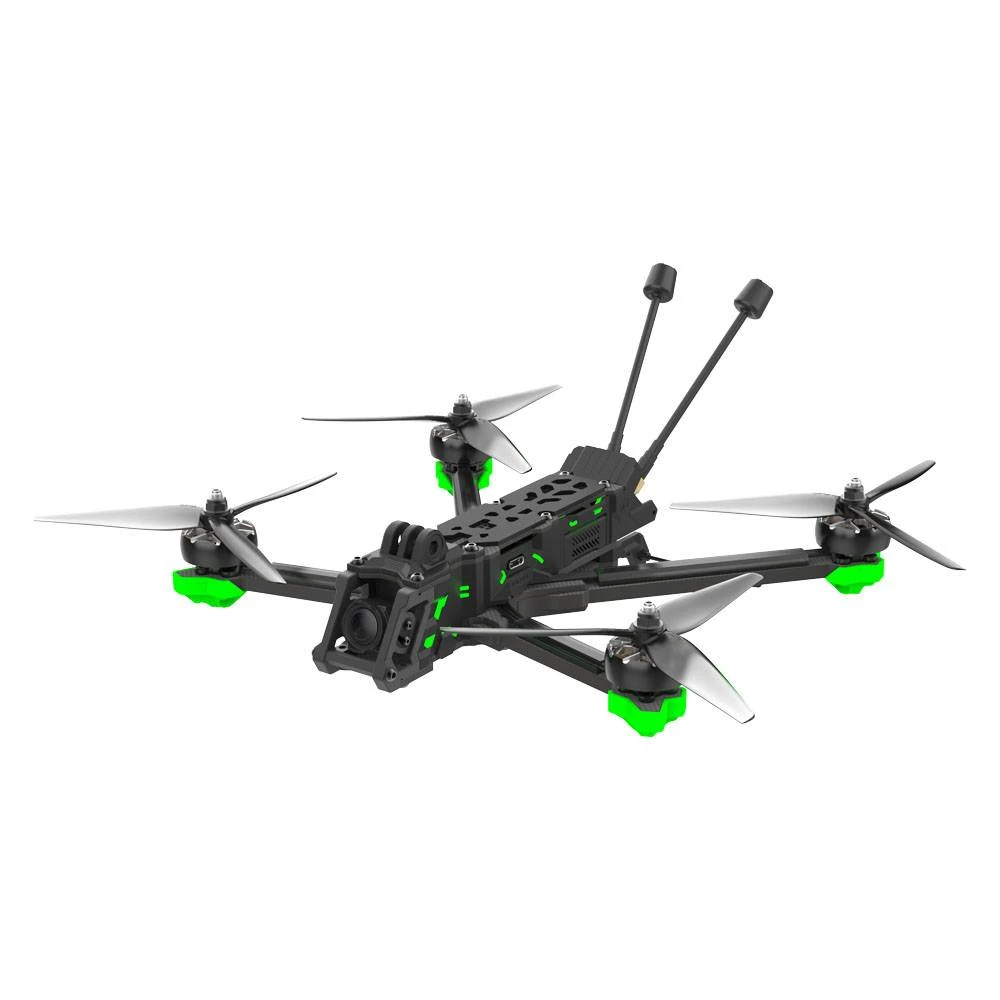

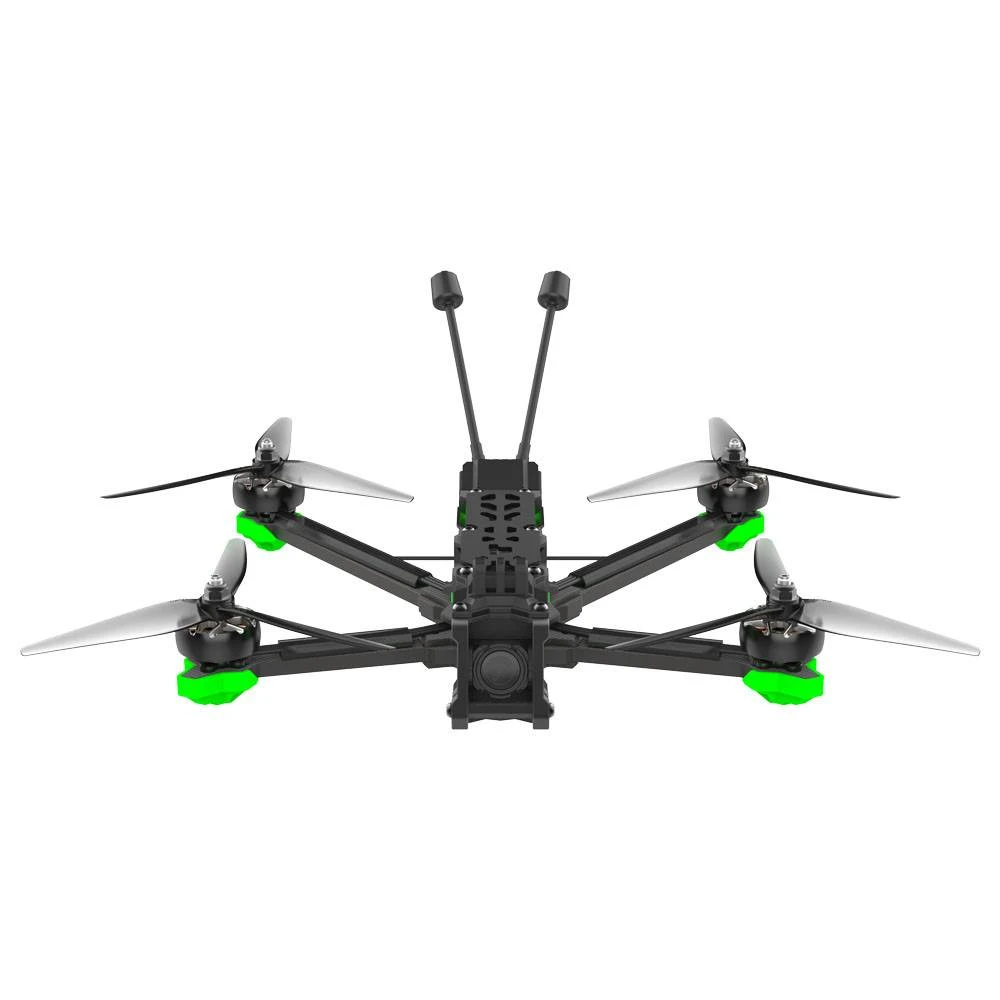

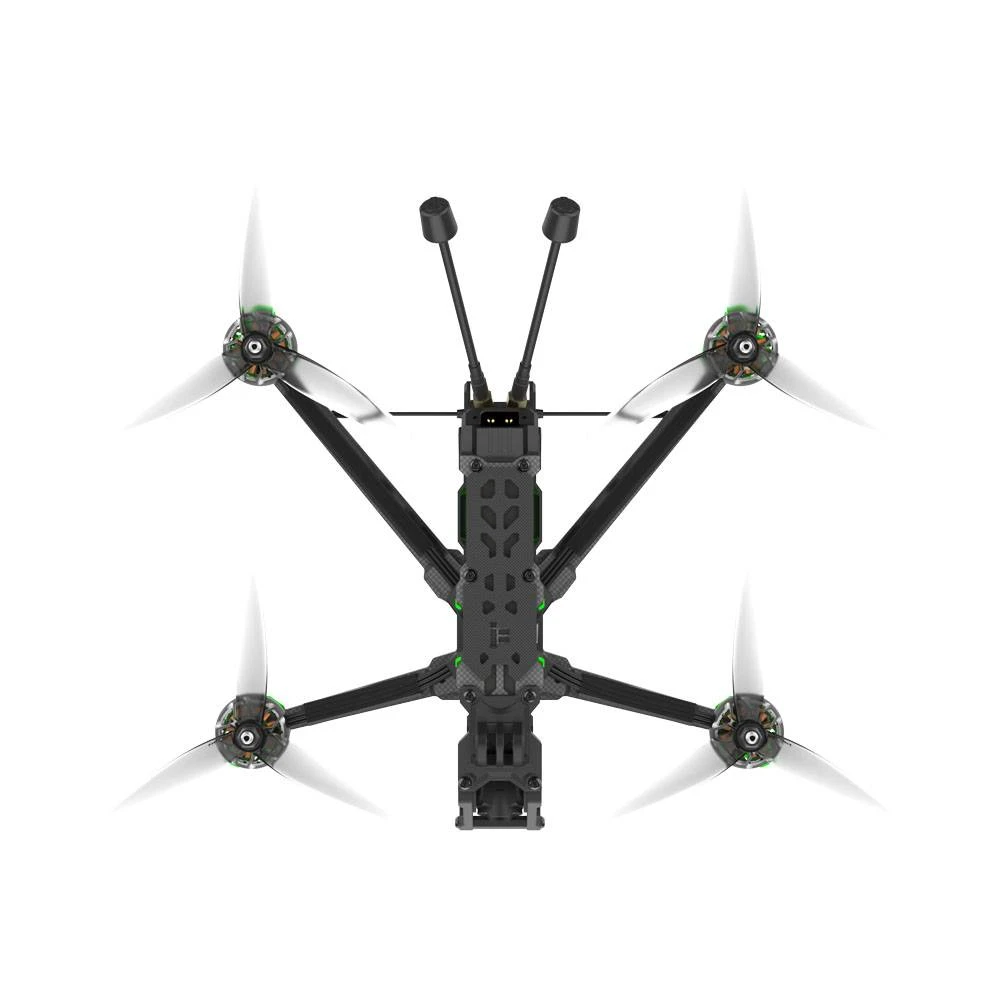

IFlight Nazgul Evoque F6D HD O3 V2 – 6S

Our best pre-built drone just got better! Another breakthrough in FPV visuals from DJI with our upgraded frame and electronics. A new standard of Bind-And-Fly drones that are simple to get started with but the durability and performance for enthusiasts. Welcome to the iFlight experience!

A 6 inch drone features longer flight time with bigger battery and more efficiency with the lower KV motors.

Deadcat Arm Geometry.

Note: (Insert any product notes here in Red BOLD Italic. Example: “First Shipment expected January 2022” or “Electronics are Not Included”.)

VIDEO: (Insert Video Title here in bold.)

Smooth and Powerful XING2 Motors

The latest upgrade of our bestseller XING motors, no compromises taken! Durable unibell (one-piece bell) technology, strong titanium alloy shaft with reinforced bell joint, crash resistant 7075 aluminum bell, smooth and long-lasting Japanese NSK bearings, center slotted N52H curved arc magnets, and our XING O-ring bushing gap protection.

Latest Nazgul Frame for Maximum Protection

The old days are over, getting your electronics full of dirt and wet grass every time you crash. Our latest frame reduces contamination that could build up on your flight controller or ESCs, preventing failure or short circuits. Strategic airflow to keep your components cool and clean without taking any shortcuts in weight or performance. Illuminated side panels and 360-degree TPU protective parts.

DJI O3 HD Air Unit Low-Latency digital transmission

Up to 10 km video transmission range, enjoy a crisp and smooth real-time view in your goggles, even in environments with interference. (Source DJI)

4K Stabilized Video with 155° Ultra-Wide Angle

Together with high-grade imaging performance, it delivers exceptional visuals that will keep your audience on the edge of their seats. (Source DJI)

Secured Battery Plug with Anti-Spark Filter

Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We’ve added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.

Specially Designed Heatsink for DJI O3 HD Air Unit

Improved cooling performance for the high power draw of the DJI O3 video transmitter. We’ve added a custom CNC heatsink for excellent heat dissipation without overheating, even on high power levels.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

PRE-TUNED AND PRE-SETUP

This RTF is fully built and test-flown by build technicians at our Florida facility.

• Product Name: Evoque F6 V2
• FC: BLITZ Mini F722 Flight Controller
• ESC: BLITZ Mini E55 4-IN-1 2-6S 55A ESC
• Video Transmission: DJI O3 Air Unit
• Frame wheelbase: 255mm (Squashed X) / 262 mm (DeadCat)
• Motor: XING2 2506 motors
• Prop: Nazgul 6 inch propellers
• Weight: 475grams
• Takeoff Weight: Approx. 680 g
• Dimensions (L×W×H): 209×162×36 mm
• Diagonal Distance: 120 mm
• Max Speed: 135 Km/h (Manual Mode)
• Maximum Takeoff Altitude: 5000 m
• Max Hover Time: Approx. 8 mins
• Max Flight Distance: 5 km
• Max Wind Speed Resistance: 10.7 m/s (Level 5)
• Operating Temperature Range: -10° to 40° C (14° to 104° F)
• Antennas: Dual Antennas
• GNSS： GPS+Galileo

Video Transmission System

• Product Name: DJI O3 Air Unit
• Weight: Approx. 290 grams（headband included）
• Dimensions (L×W×H): L167 * W1039 * H 813mm
• Screen Size (single screen): 0.49-inch
• Resolution (single screen): 1920×1080
• Refresh Rate: Up to 100 Hz
• Interpupillary Distance Range: 56-72 mm
• Diopter Adjustment Range: -8.0 D to +2.0 D
• FOV (single screen): 51°
• Communication Frequency: 2.400-2.4835 GHz；5.725-5.850 GHz
• Transmission Power (EIRP):
• 2.4 GHz:
• 5.8 GHz [4]:
• Max Video Transmission Bitrate : 50 Mbps
• Operating Temperature Range: 0° to 40° C (32° to 104° F)
• Power Input: 7-9 V (1.5 A)

IMPORTANT NOTES

• The DJI Remote Controller is recommended for beginners but NOT required to use the FPV System, since you won’t need to set up another receiver. If you don’t have the DJI Remote Controller, you will need a receiver for your transmitter. and then bind to your own radio as usual.
• If you do not have the frsky transmitter, please downgrade the version lower than 2.X.X, www.frsky-rc.com for more details.
• Our current frsky receivers default version in 2.XX, requires us to use of the same version of frsky transmitter.

•  (Insert recommended products here. Example: “Battery: Lumenier 10000mAh 6s 25c Lipo Battery”)

•   (Insert links such as manuals, firmware, etc)

• 1 x Evoque F6 6S HD BNF
• 2 x Antennas
• 1 x Battery pad
• 2 x Propeller pairs
• 2 x Battery strap
