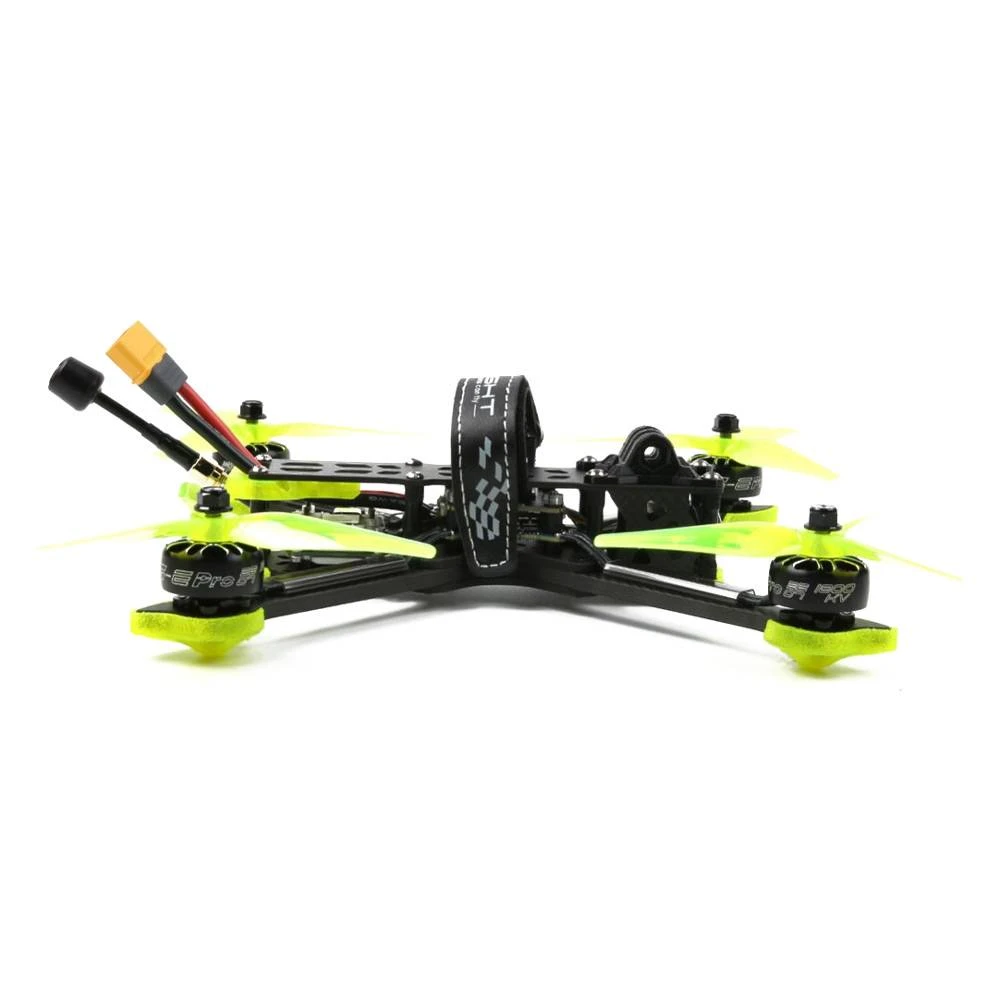

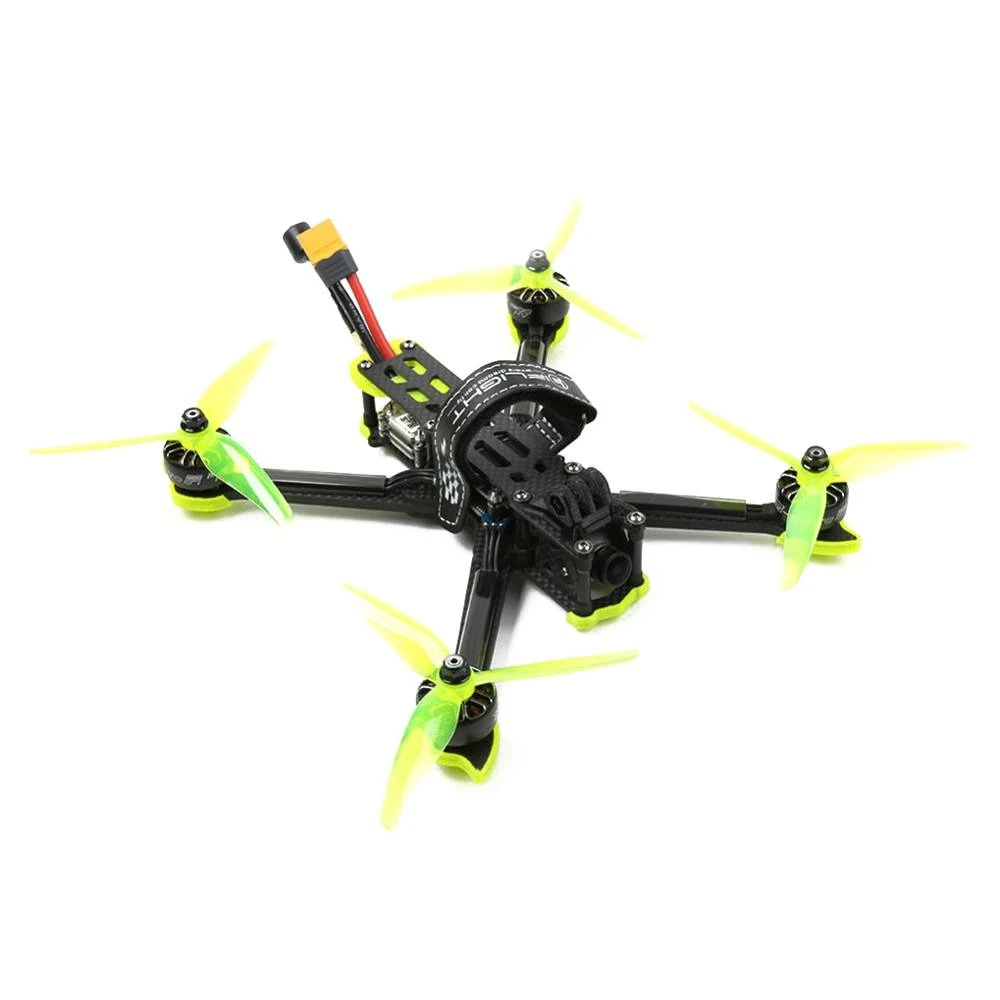

IFlight Nazgul5 HD 5" FPV Freestyle BNF W/Caddx Polar Vista Digital HD System – 4S

This iFlight Nazgul5 HD is a 5″ RTF/ BNF (Bind-and-Fly) quadcopter that comes with the Caddx Polar Vista Digital HD System, and Nazgul 5″ 3-Blade propellers. This quad is the updated version of the XL5 V5 FPV frames. The Nazgul5 HD has been pre-tuned and set up with everything you need, all you need to do is bind-and-fly! Loaded with lots of power; it comes with the XING-E 2207 4S 2750KV motors, SucceX-E F7 Flight Controller, and the SucceX-E 45A 2-6S BLHeli_S 4-in-1 ESC, which make this quad a must-have!

Note: The color of propellers and LiPo straps may vary, GoPro and GoPro Case are NOT included.

VIDEO: Nazgul 5 HD Best Drone Of 2020

Features

• XING-E 2207 motors and NAZGUL 5140 props
• 5″ version also fits 5.1″ style propellers
• Fits both 30.5×30.5 and 20×20 stacks
• Caddx Polar Vista Digital HD System
• 5mm arm design for more durability
• Popular True-X configuration
• LED illuminated Logo
• TPU crash-guards
• Easy-Swap arms

FACTORY SETUP and WIRING DIAGRAM

This BNF comes pre-built and set up with all necessary parameters to bind-and-fly. We also added a basic filter and PID tuning as well as some more software tweaks to enhance the flight experience.

Reflashed your drone but didn’t backup the setup? Messed up the whole tune and want our factory tune back?
No need to worry! All Factory Dumps and Wiring Diagrams can be found on iFlight’s Google Drive.

Specifications

• Receiver: PNP , FrSky XM+, or TBS Crossfire Nano Rx
• Camera: Caddx Polar Vista Digital HD System
• Antenna: Albatross LHCP RP-SMA 5.8g
• XING-E 2207 4S 2750KV FPV Motors
• FC pattern: 30.5×30.5/20×20 mm
• Weight: 393.4g (without battery)
• Propeller size: 5 inch /5.1 inch
• SucceX-E F7+ 45A flight stack
• Wheelbase: 240mmx240mm
• FPV cam spacing: 19mm
• Body size: 170x170mm

SucceX-E 45A 2-6S BLHeli_S 4-in-1 ESC

• Supports: DShot150/300/600/1200/MultiShot/OneShot etc.
• STM32F051 MCU, 48Mhz Runs BLHELI 16.X Firmware
• Mounting Holes: 30.5*30.5mm/Φ3mm
• Supports 2-6S Lipo input
• Target: G-H-30 BLS 16.7
• Dimension: 40*43mm
• Current sensor: YES
• Weight: 14.4g
• BEC: NO

Caddx Polar Vista Digital HD System

• Transmitter Power(EIPP): FCC/SRRC: <30dBm; CE: <14dBm
• Max.Transmission Distance: FCC/SRRC:4km;CE:0.7km
• Operating Temperature Range: 0°to 40°C（32°to 104°F）
• Image Sensor: 1/1.8″ Inch 2.3Mega starlight sensor
• Supported Flight Control System: BetaFlight
• Min.Latency(end-to-end): 720p 60fps<32ms
• Polar vista kit Weight (Include camera): 28g
• Operating Frequency: 5.725-5.850GHz
• I/O Interface: USB-C,IPEX,3-in-1 port
• FOV: 162°(D); 138°(H); 75°(V)
• Min. Illumination: 0.00003Lux
• Antenna Weight: 1.5g(IPEX)
• Polar cam: 24×19×19mm
• Input Power: 7.4-26.4V
• Coaxial Cable: 120mm
• LENS: F/1.6 & 8Mega
• Vista: 30×29×13.5mm
• Aspect Ratio: 16:9
• Antenna: 105mm

SucceX-E F7 FC

• Baro: DSP310 (Barometer can only be used with Betaflight 4.3.0 and above)
• UART1 for VTX HD (for 4-6S Vista, for 4S DJI Air Unit) /AnalogTelemetry
• Smartaudio & IRC Tramp VTX protocol supported
• Outer Size: 36*36mm / 30.5*30.5/φ4 mounting
• Uart: 4 (UART1, UART2, UART4, UART5)
• Firmware: IFLIGHT_SUCCEX_E_F7

• MCU: STM32F22RET6 216MHz

• OSD: iFlight OSD (AT7456E)
• UART5 for ESC Telemetry
• 4×Dshot/PWM outputs
• WS2812 led Strip: Yes
• UART2 for Receiver
• BlackBox: 16MB
• UART4 for Free
• BEC: 5V 2.5A
• Weight: 6.9g
• Gyro: 20689
• Bepper: Yes

Controller Compatibility
The DJI Remote Controller is recommended for beginners since you won’t need to set up another receiver, but it is also optional in this BNF drone because it is NOT required in order to use the FPV system. If you don’t choose to use the DJI Remote Controller, you can choose a receiver option for your transmitter and then bind to your own radio as usual.

Firmware
Our Frsky receivers come with the latest factory default firmware ACCST 2.XX. Please ensure using a compatible transmitter firmware! Using Multiprotocol receivers (Radiomaster, Jumper, etc) please select the radio protocol 2X or X2.
Please check our article “How do I bind my Transmitter” or contact www.frsky-rc.com for more details.

Recommended Parts (Not Included)

• iFlight TPU Adjustable GoPro Hero 9 Camera Mount (0~40°) (Yellow + Black)
• Lumenier N2O Feather-Lite 1550mAh 6s 150c Lipo Battery (XT-60)
• DJI FPV Remote Controller
• DJI FPV Goggles V2

Includes

• 1x iFlight Nazgul5 HD 5″ FPV Freestyle BNF w/Caddx Polar Vista Digital HD System – 4S (PNP or TBS Crossfire options)
• 2x iFlight Nazgul FPV 5140 3-Blade Propeller (Set of 4)
• 1x Albatross LHCP RP-SMA 5.8g antenna
• 1x 25cm LiPo Battery Strap
• 1x 20cm LiPo Battery Strap
• 1x GoPro Bolt + Allen Key
• 1x USB-C Charging Cord
• 1x USB Charging Cord
• 1x Hardware Kit
• 2x Battery Pads
• 4x Prop Nuts
