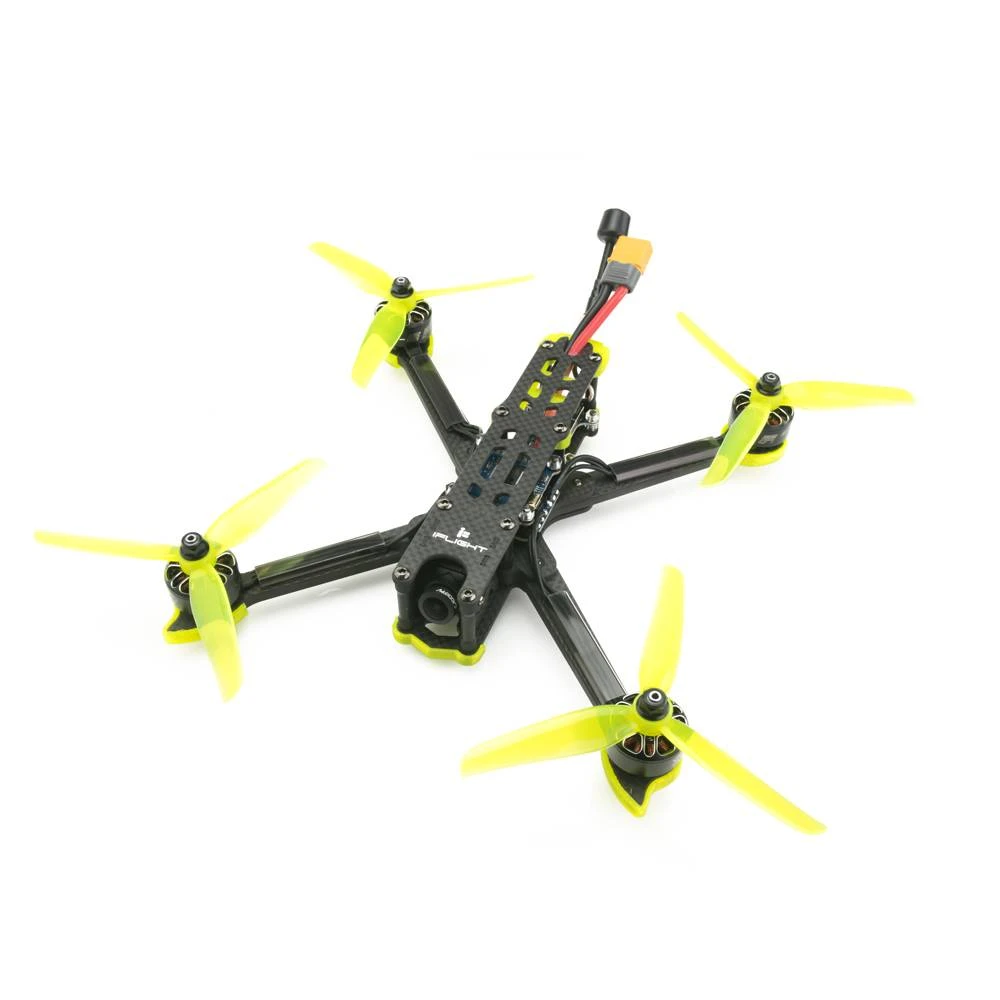

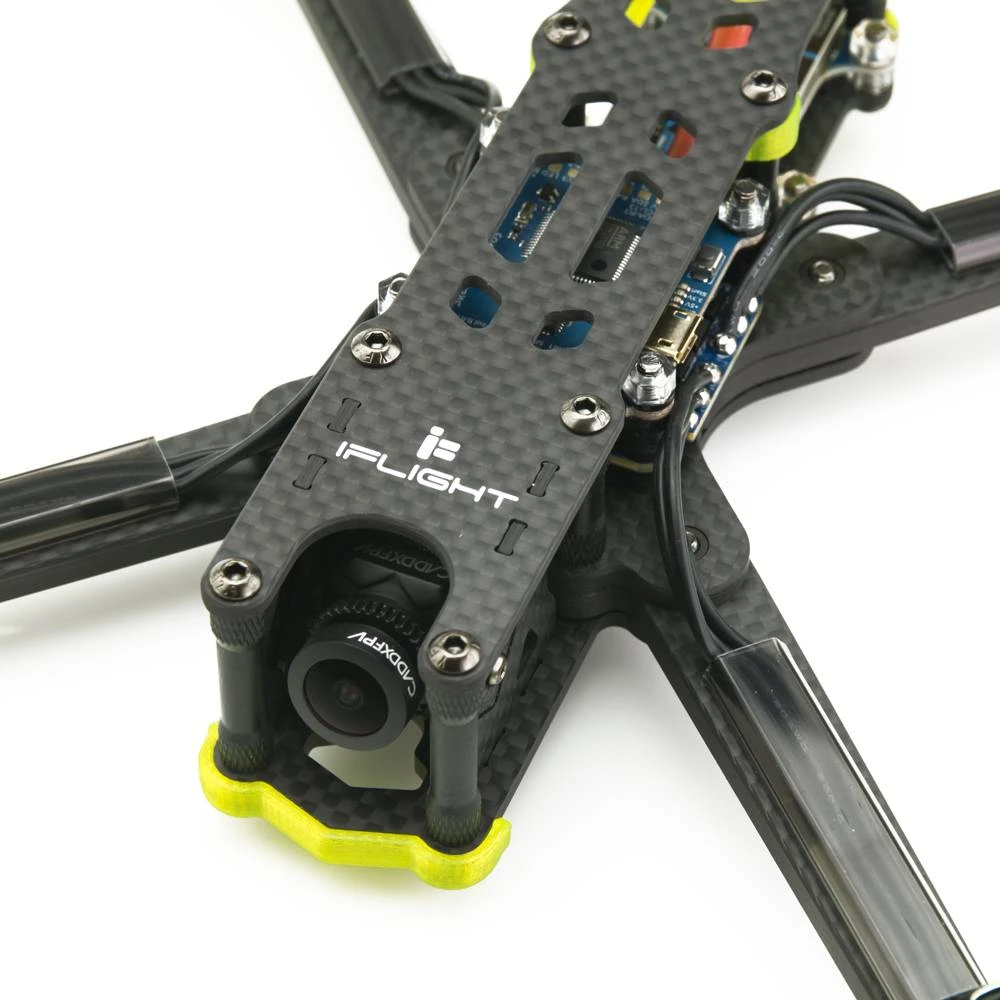

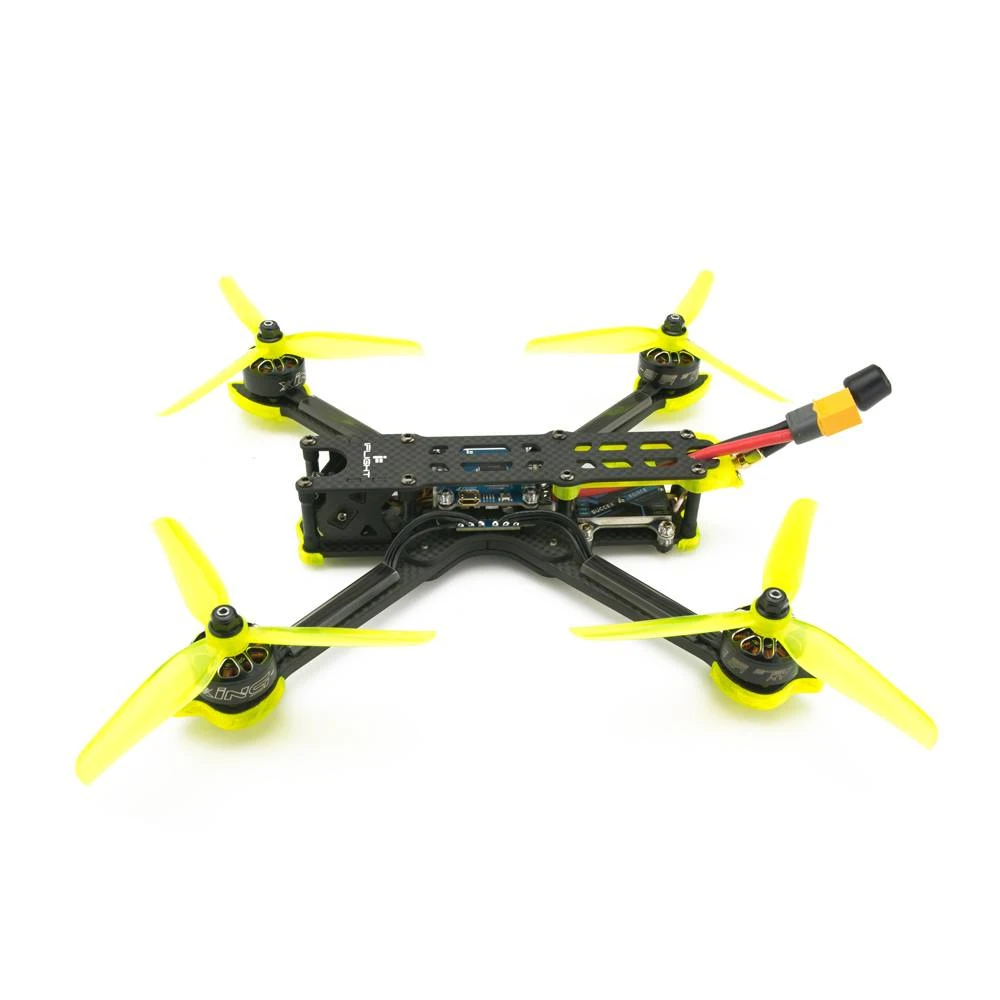

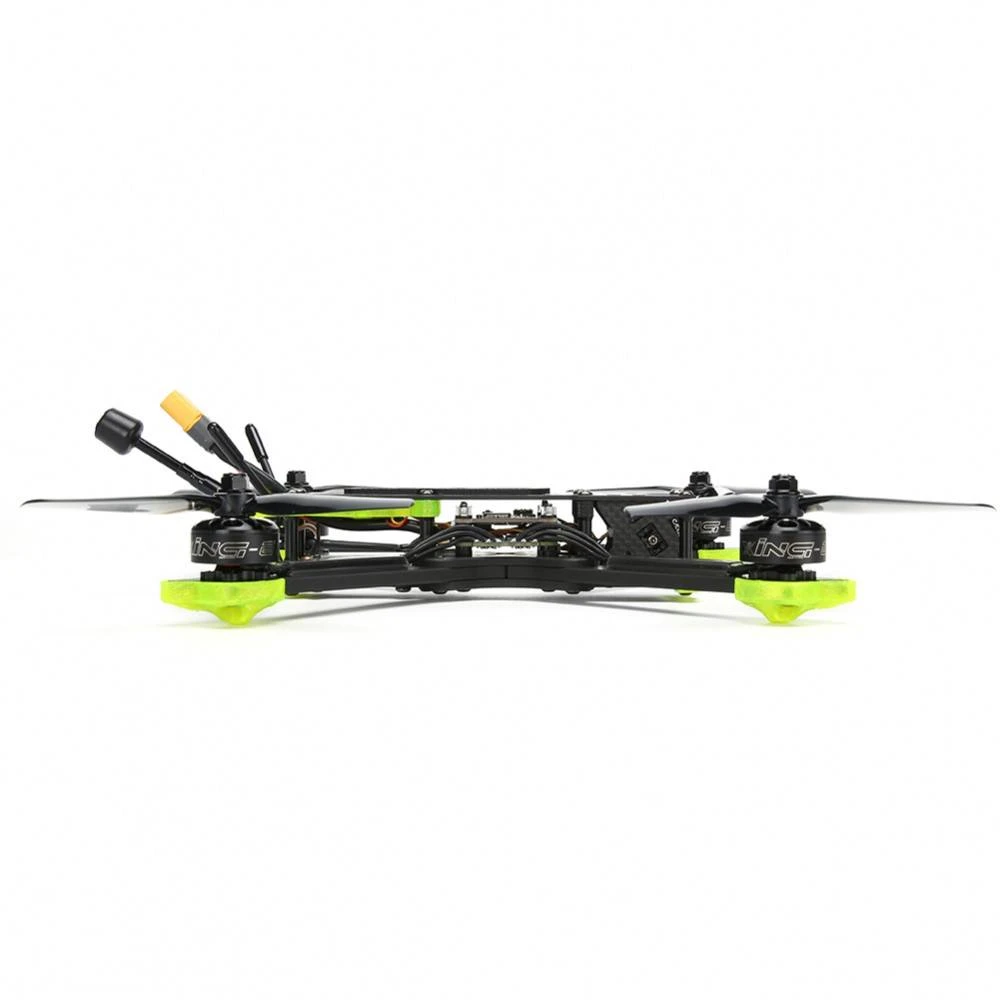

IFlight Nazgul5 V2 Analog 5" FPV Freestyle Drone – BNF

The iFlight Nazgul5 V2 is a 5″ size BNF (Bind-and-Fly) quadcopter that comes with the RaceCam R1 FPV Camera and Nazgul 5″ 3-blade propellers. This quad is the updated version of the XL5 V5 FPV frame.

The Nazgul5 V2 has been pre-tuned and set up with everything you need, all you need to do is bind-and-fly! The Nazgul5 V2 is loaded with lots of power; it comes with the XING-E 2207 (6S 1800KV / 4S 2750KV) motors, SucceX-E F7 Flight Controller, SucceX Force 5.8g 800mW VTX Adjustable, SucceX-E 45A 2-6S BLHeli_S 4-in-1 ESC, which makes this quad a must-have!

Note: The color of propellers may vary, the color strap may vary, GoPro and GoPro mount NOT included

Features

• 5mm arm design for more durability
• Easy-Swap arm

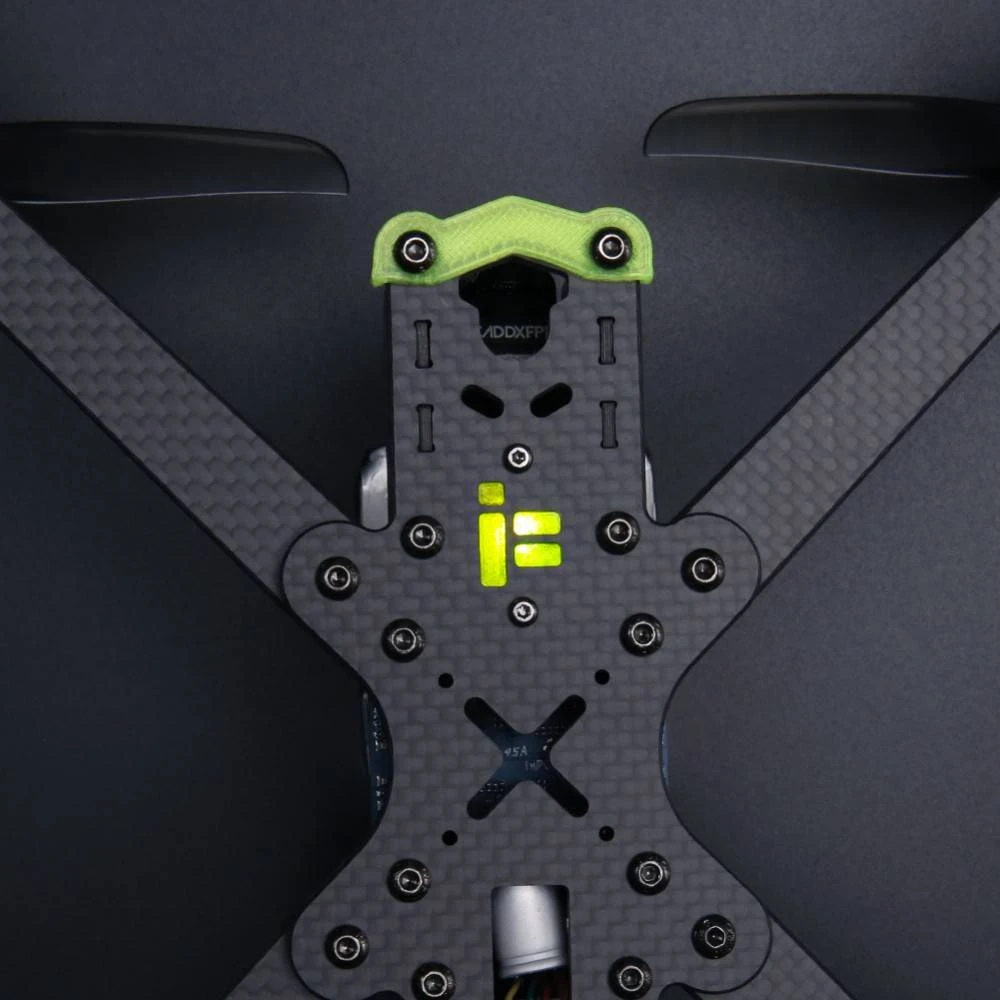

• LED illuminated Logo
• XING-E 2207 motors and NAZGUL 5140 props
• 5″ version also fits 5.1″ style propellers
• Popular True-X configuration
• TPU crash-guards
• Fits both 30.5x and 20x stacks

Specifications

• SucceX-E F7 45A flight stack

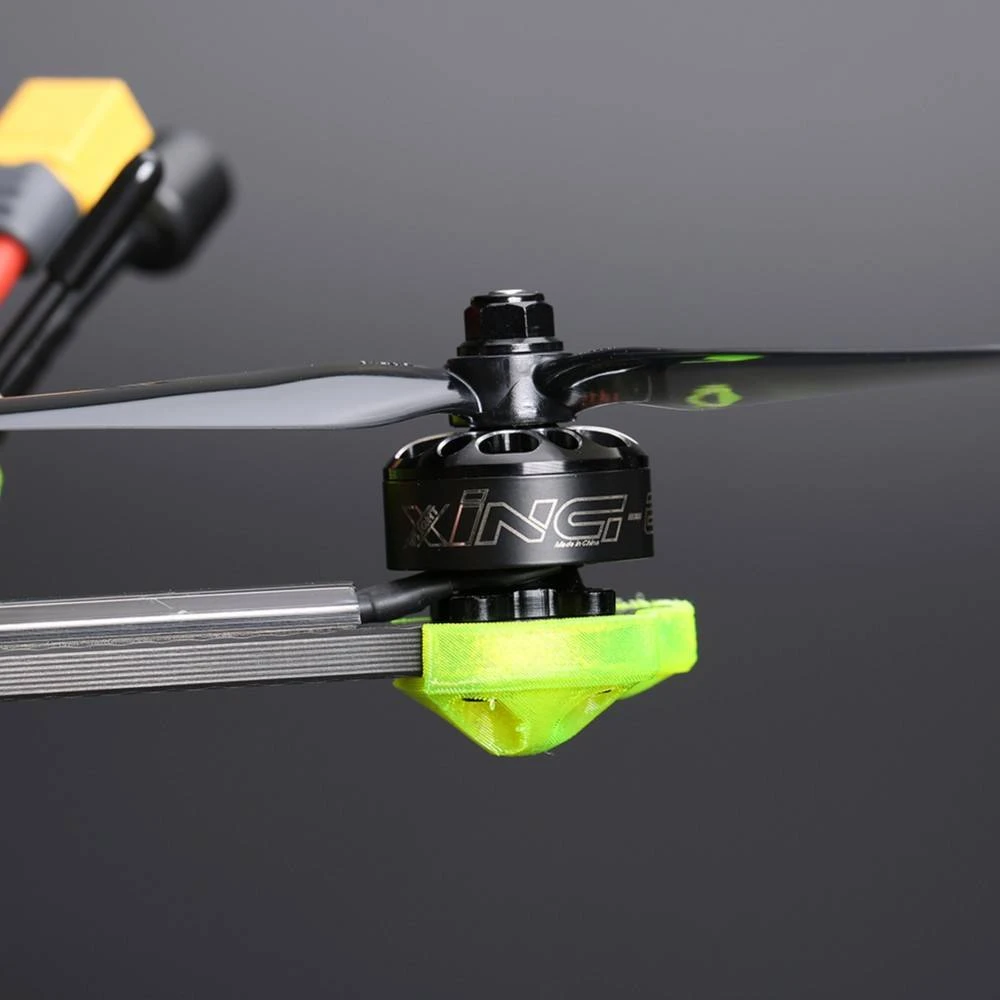

• XING-E 2207 FPV Motor（6S 1800KV / 4S 2750KV)

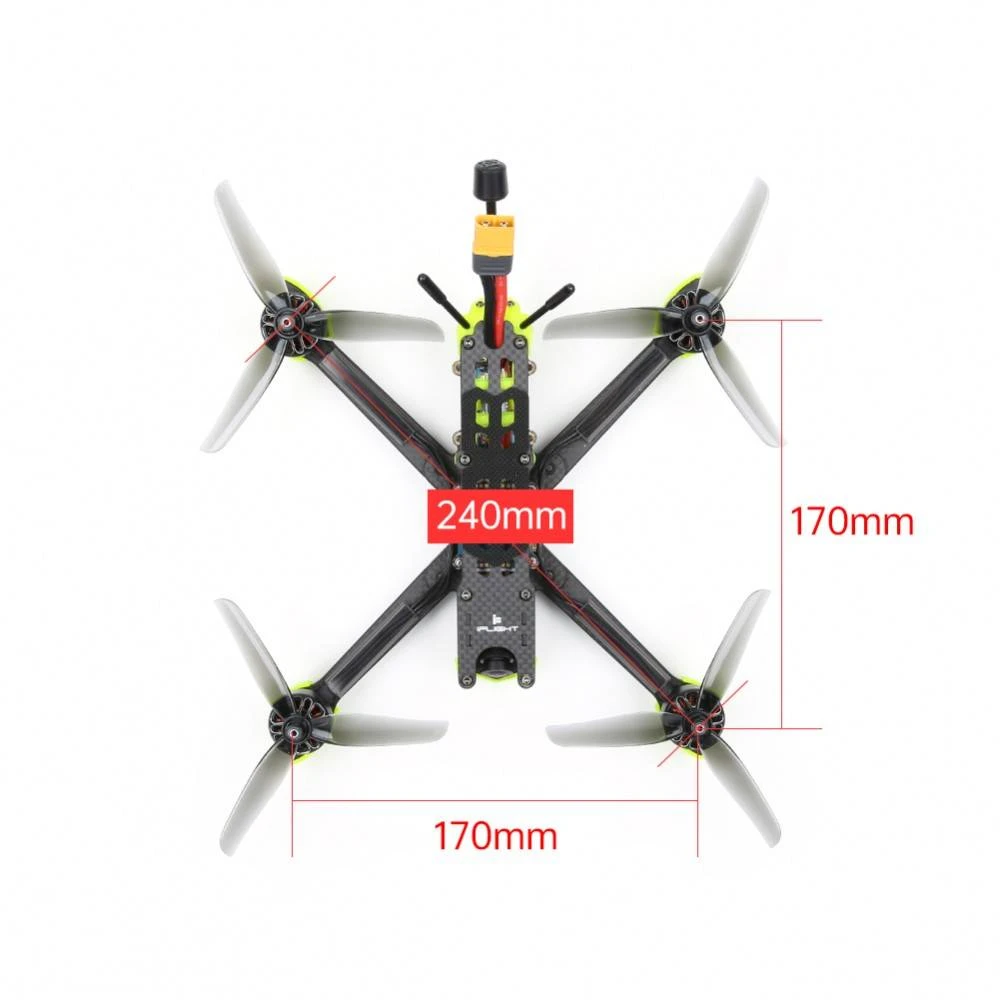

• Wheelbase: 240mm*240mm
• Body size: 170*170mm
• Propeller size: 5 inch /5.1 inch
• FC pattern: 30.5*30.5/20*20 mm
• FPV cam spacing: 19mm

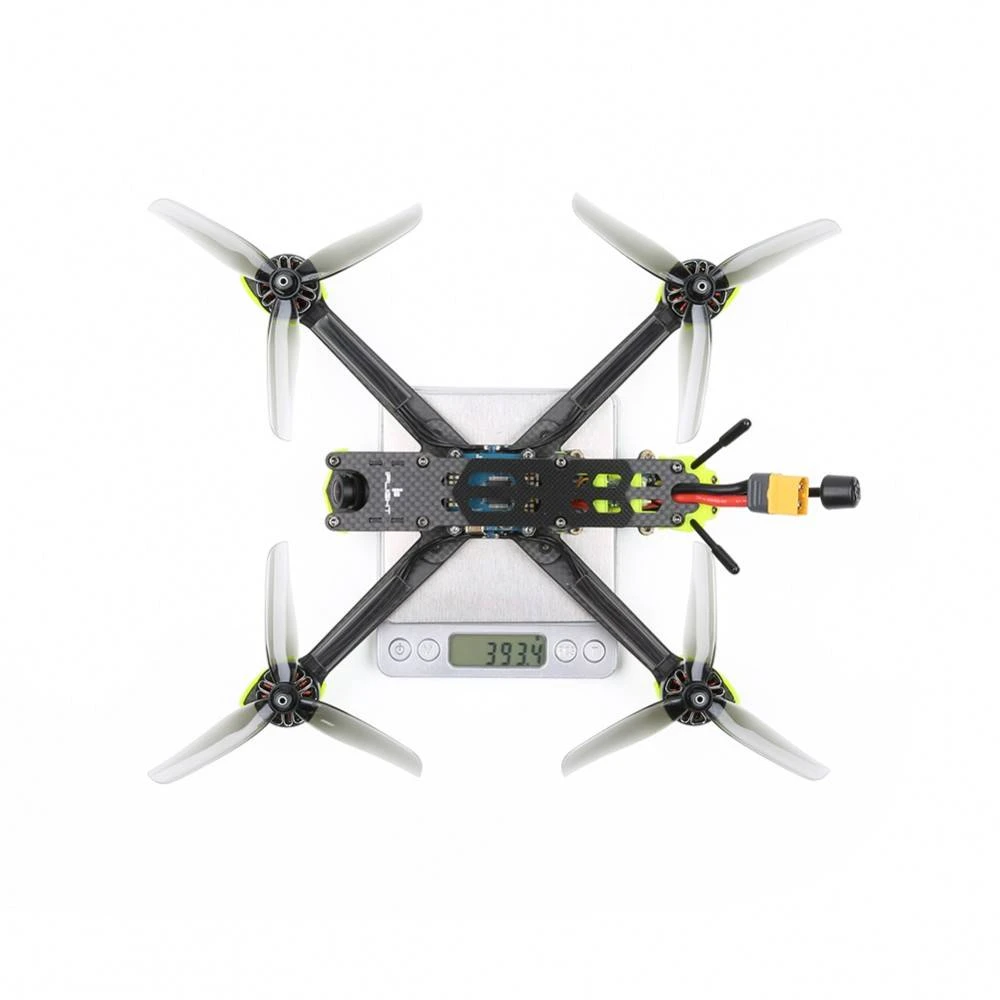

• Weight: 393.4g (without battery)

Changelog

• May 2021: SucceX-E F4 Stack changed to SucceX-E F7 Stack.
• June 2021: Caddx Ratel camera changed to RaceCam R1 Mini camera.

FACTORY SETUP and WIRING DIAGRAM

This BNF comes pre-built and set up with all necessary parameters to bind-and-fly. We also added a basic filter and PID tuning as well as some more software tweaks to enhance the flight experience.

Reflashed your drone but didn’t back up the setup? Messed up the whole tune and want our factory tune back?
No need to worry! All Factory Dumps and Wiring Diagrams can be found on our Google Drive: LINK

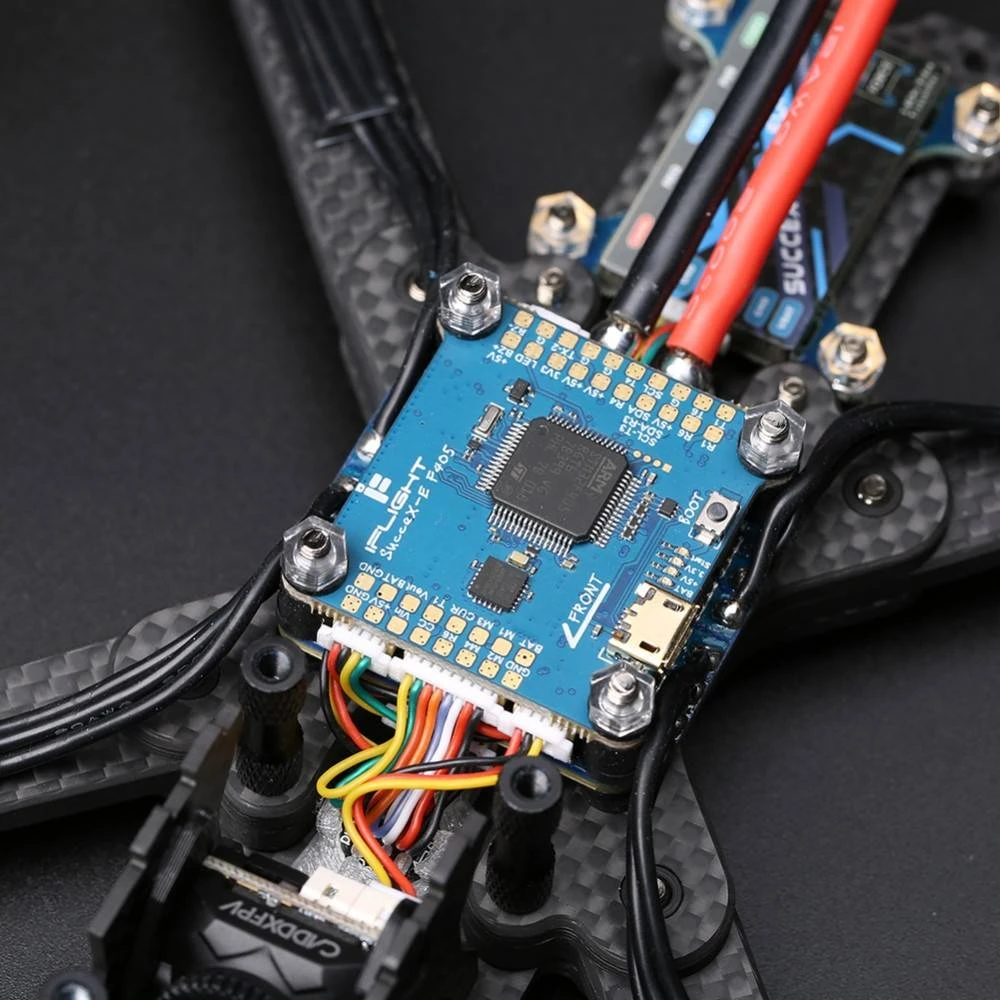

FC // SucceX-E F7 Flight Controller

• MCU: STM32F22RET6 216MHz
• Gyro: MPU6000
• Baro: DSP310 (Barometer can only be used with Betaflight 4.3.0 and above)
• OSD: IFLIGHT OSD （AT7456E）
• BEC: 5V 2.5A
• BlackBox: 16MB
• Uart: 4*UART(UART1、UART2、UART4、UART5)
• UART1 for VTX HD（for 4-6S Vista，for 4S DJI Air Unit）/AnalogTelemetry
• UART2 for Receiver
• UART4 for Free
• UART5 for ESC Telemetry
• 4×Dshot/PWM outputs
• Smartaudio & IRC Tramp VTX protocol supported
• WS2812 led Strip: Yes
• Bepper: Yes
• Firmware: IFLIGHT_SUCCEX_E_F7
• Outer Size: 36*36mm / 30.5*30.5/φ4 mounting
• Weight: 6.9g

ESC // SucceX-E 45A 2-6S BLHeli_S 4-in-1 ESC

• Dimension: 40*43mm
• Mounting Holes: 30.5*30.5mm/Φ3mm
• Weight: 14.4g
• Supports 2-6S Lipo input
• STM32F051 MCU, 48Mhz Runs BLHELI 16.X Firmware
• Current sensor: YES
• BEC: NO
• Supports: DShot150/300/600/1200/MultiShot/OneShot etc.
• Target: G-H-30 BLS 16.7

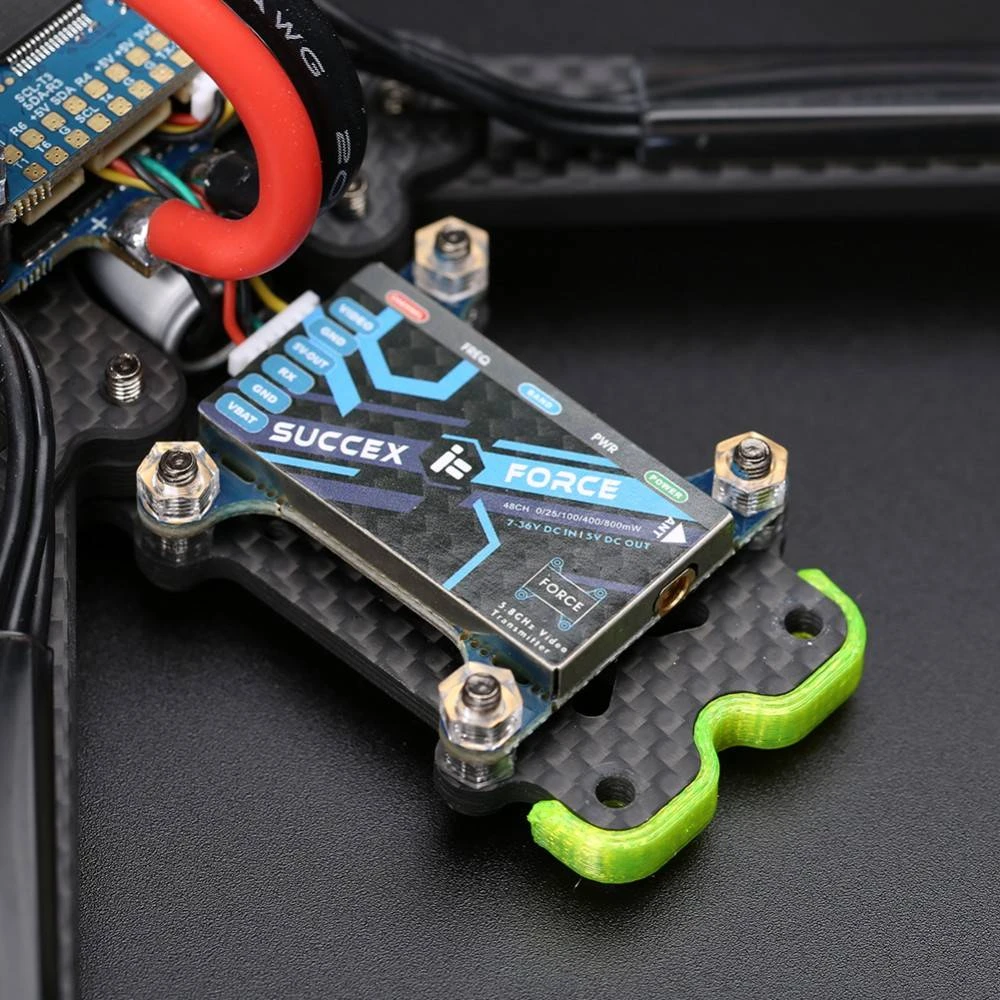

VTX// SucceX Force 5.8g 800mW VTX Adjustable

• The output power is stable;
• Transmit power 4 gear switch: 25mW/200mW/400mW/800mW;
• Output 48 frequency points,
• Frequency lock fast, the boot does not interfere with companions;
• Built-in output power self-check function;
• Full format video format: NTSC /PAL;
• Wide input voltage range. low power consumption:
• 7V～36V，+12V/380mA@800mW;
• -Small size:36*36*3mm
•  Mounting holes 4-M3
• Lightweight: 7.2g(excluding antenna)

VTX Specifications

• Item: SucceX-Force 800mW adjustable VTX
• Input Voltage:
• Output voltage/ Max current: 5V 1A
• 12V input current: 40mA@PIT MODE, 95mA@25mW, 185mA@200mW，250mA@500mW, 380mA@800mW
• Output 48 frequency points,
• size:36*36*3mm
• PIT/25mW/200mW/400mW/800mW

Recommended Parts (Not Included)

• Battery 4S 1550mAh
• Battery 6S 1300mAh
• GoPro Mounts

Includes

• Prebuilt and tested Quadcopter
• 1 x XL5 V5 Frame

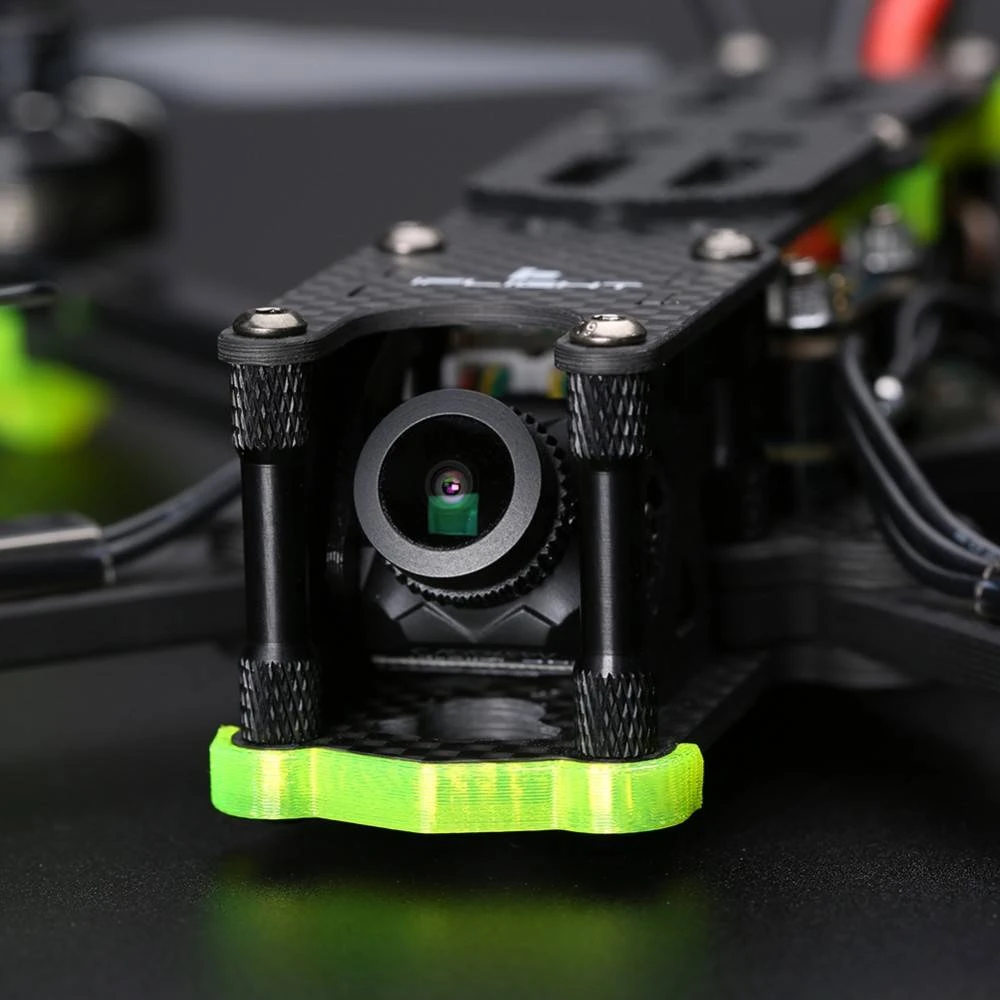

• 1 x RaceCam R1 FPV Camera
• 1 x Albatross RHCP SMA 5.8g antenna
• 2 sets x Nazgul 5 inch 3-blades (Set of 4 – Color may vary)
• 1 x 20*200mm Microfiber PU Leather Battery Strap (Color May Vary)
• 1 x 20*250mm Microfiber PU Leather Battery Strap (Color May Vary)
