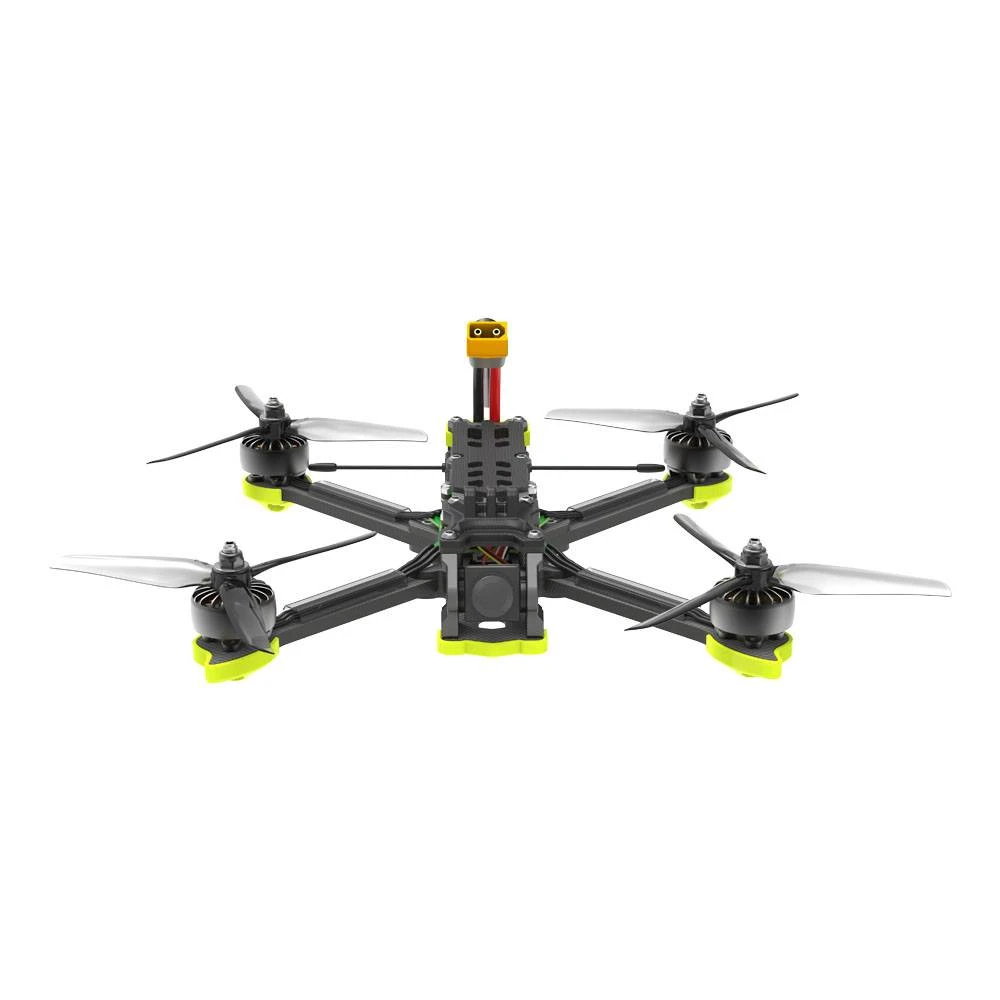

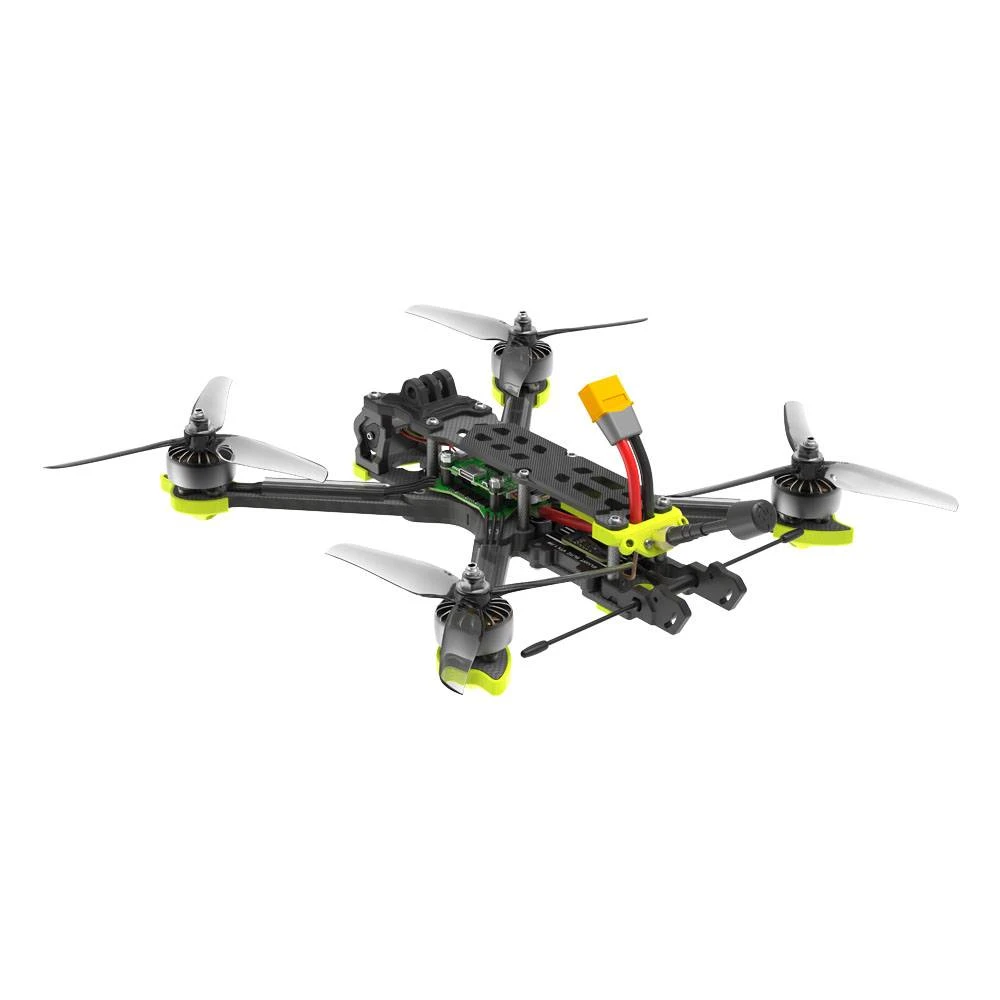

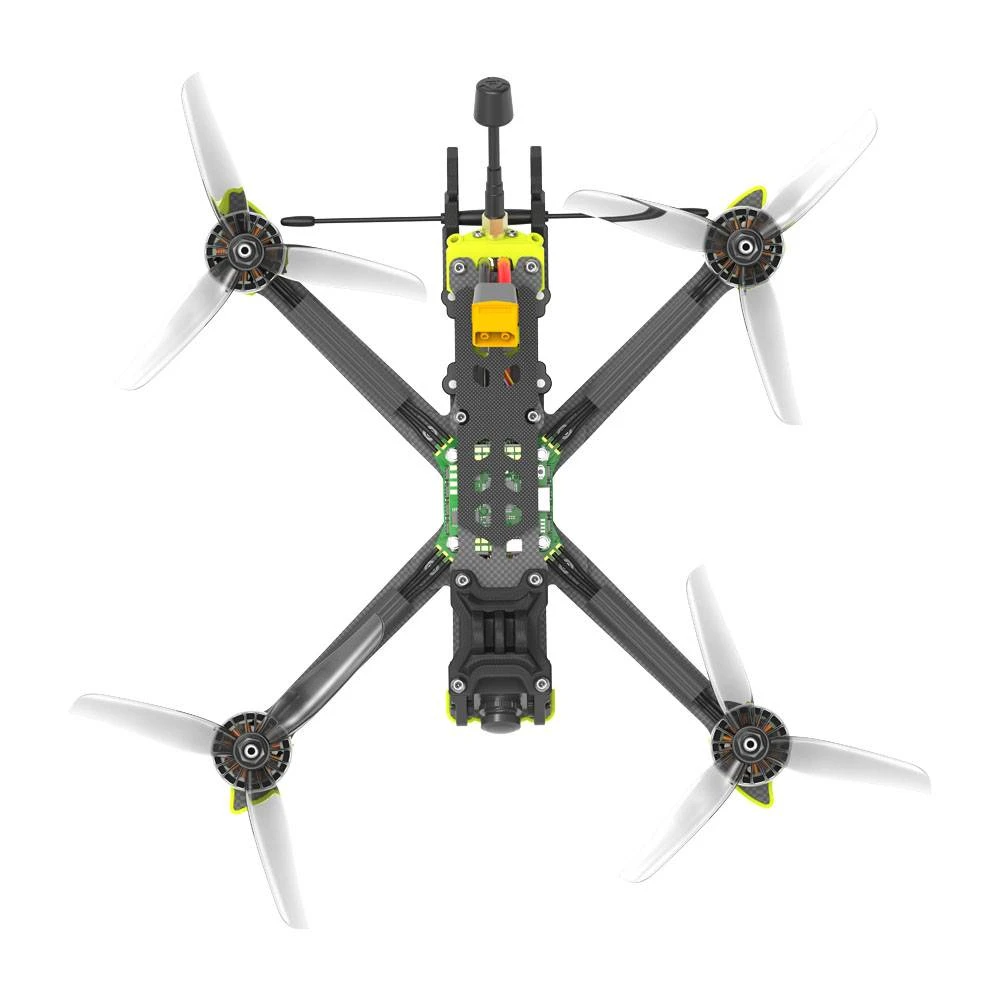

IFlight Nazgul5 V3 Analog 5" FPV Freestyle BNF – 6S

This Nazgul5 V3 is a 5″ RTF/ BNF (Bind-and-Fly) quadcopter that comes with RaceCam R1 FPV Camera and Nazgul 5″ 3-blade propellers. Loaded with lots of power; it comes with the XING-E Pro 2207 motors, BLITZ F7 Flight Controller, BLITZ 1.6W VTX, and the BLITZ E45S 2-6S 45A BLHeli32 4-in-1 ESC.

Note: (Insert any product notes here in Red BOLD Italic. Example: “First Shipment expected January 2022” or “Electronics are Not Included”.)

VIDEO: (Insert Video Title here in bold.)

• XING-E Pro 2207 motors and NAZGUL F5 props
• 5″ version also fits 5.1″ style propellers
• Fits both 30.5×30.5 and 20×20 stacks
• 5mm arm design for more durability
• Popular True-X configuration
• LED illuminated Logo
• TPU crash-guards
• Easy-Swap arms

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

PRE-TUNED AND PRE-SETUP

This RTF is fully built and test-flown by build technicians at our Florida facility.

• Product Name：Nazgul5 V3 6S Analog
• FC: BLITZ F722 FC
• ESC: BLITZ E45S 45A 4-IN-1 ESC
• Video Transmission: BLITZ 1.6W VTX
• Frame: 245 ±2 mm wheelbase
• Motor: XING-E Pro 2207 motors
• Prop: Nazgul 5 inch propellers
• Takeoff Weight: Approx. 435g / 660±10g (With 6S 1400mAh Battery)
• Dimensions (L×W×H): 173×173×34±2 mm
• Diagonal Distance: 245mm
• Max Speed: 190 Km/h (Manual Mode)
• Maximum Takeoff Altitude: 3200 m
• Max Hover Time: Approx. 7.5 mins (No Load with 6S 1400mAh Battery)
• Max Flight Distance: 5 km
• Max Wind Speed Resistance: Level 7
• Operating Temperature Range：-10° to 40° C (14° to 104° F)
• Antennas: Single Antenna

Video Transmission System

• Product Name: BLITZ Whoop 1.6W VTX
• Input voltage: 7V～34V
• Interface: MMCX
• Power levels: PIT/25mW/400mW/800mW/1600mW
• Channels: 40 (including Raceband)
• Mounting pattern: 30.5×30.5mm/Φ3
• Lightweight: 18.9g (excluding antenna)
• VTX telemetry: IRC Tramp
• Betaflight IRC Tramp Configuration: Please download the attached VTX table for Betaflight!
• RC Tramp VTX table values: 25mW/400mW/800mW/1600mW

IMPORTANT NOTES

• The DJI Remote Controller is recommended for beginners but NOT required to use the FPV System, since you won’t need to set up another receiver. If you don’t have the DJI Remote Controller, you will need a receiver for your transmitter. and then bind to your own radio as usual.
• If you do not have the frsky transmitter, please downgrade the version lower than 2.X.X, www.frsky-rc.com for more details.
• Our current frsky receivers default version in 2.XX, requires us to use of the same version of frsky transmitter.

•  (Insert recommended products here. Example: “Battery: Lumenier 10000mAh 6s 25c Lipo Battery”)

•   (Insert links such as manuals, firmware, etc)

• 1 x Nazgul5 V3 6S Analog BNF
• 1 x Antennas
• 2 x Battery pads
• 2 x Nazgul F5 Prop(Pairs)
