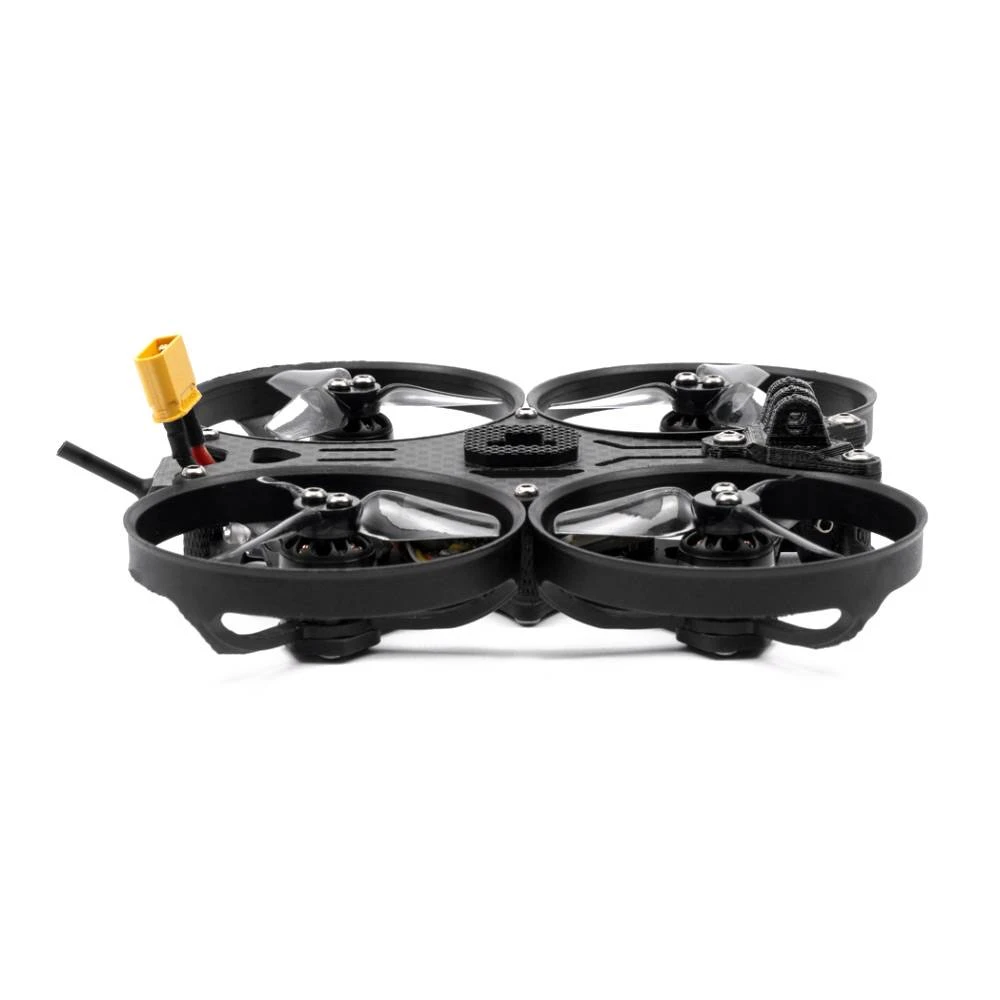

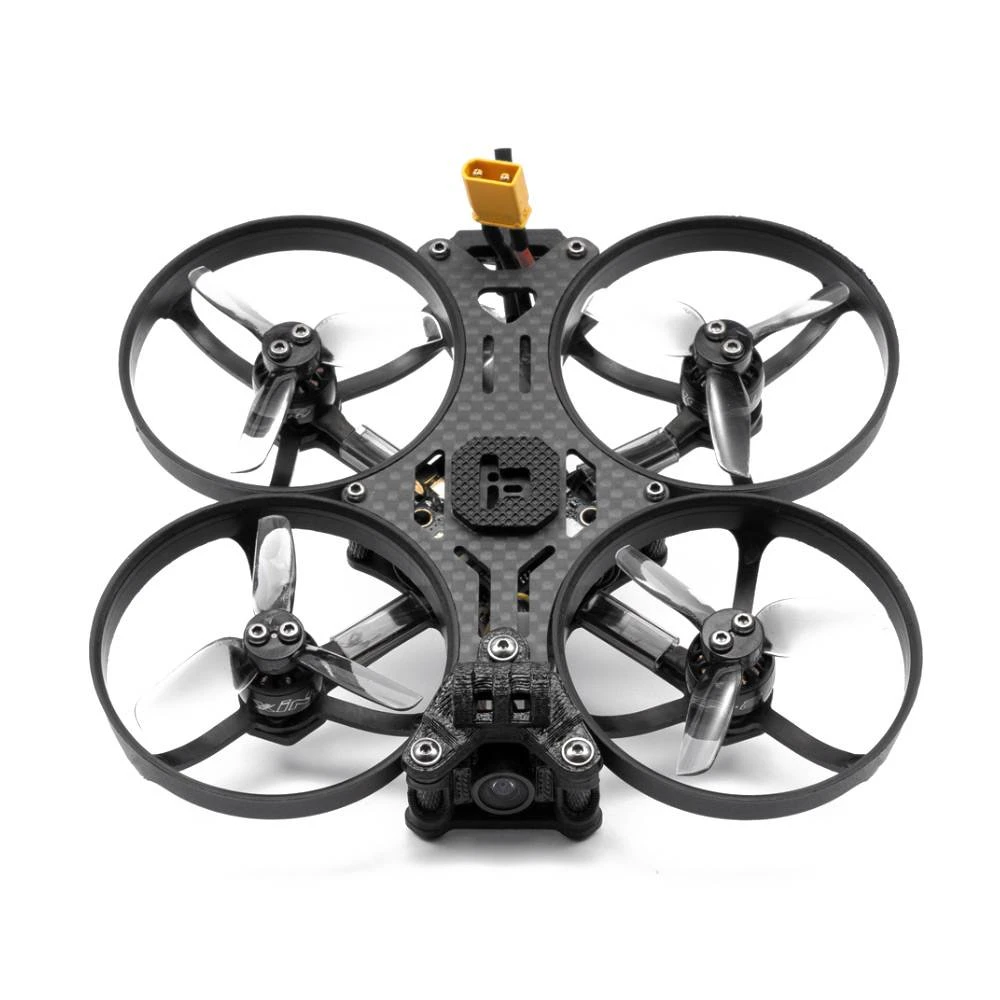

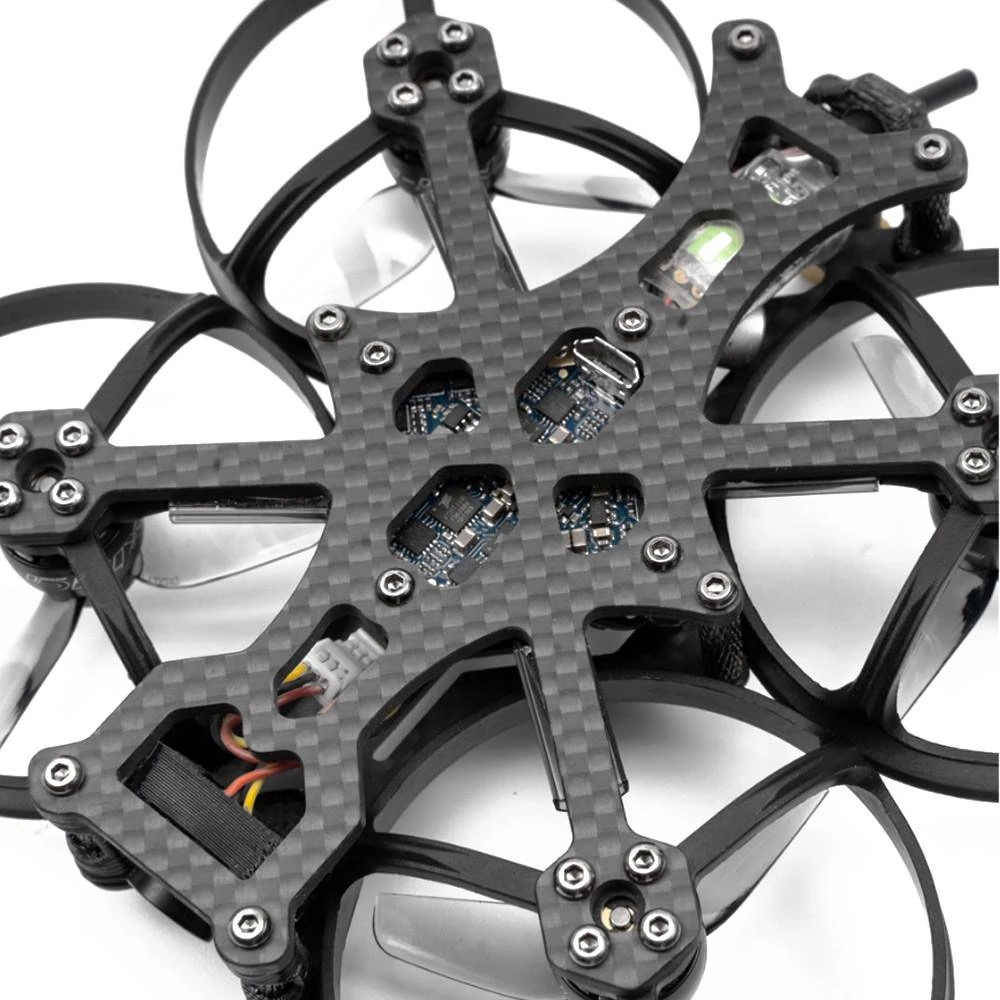

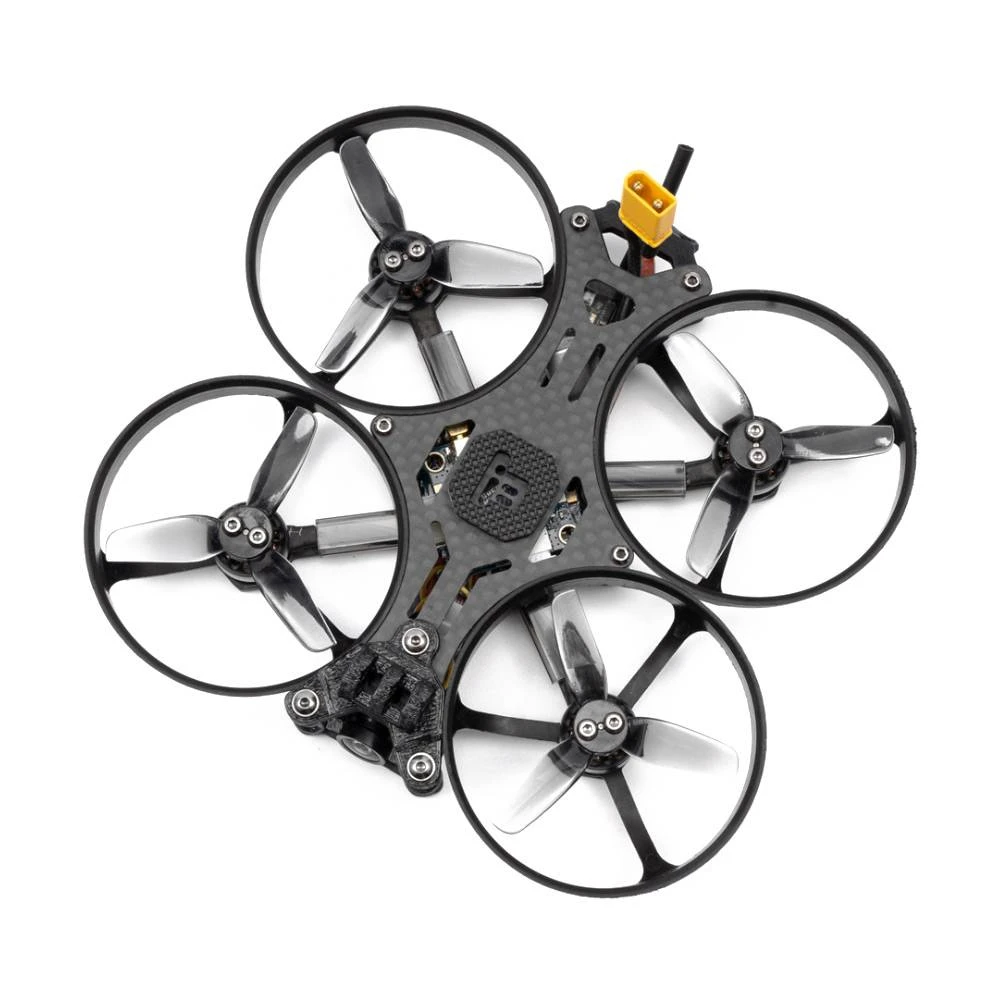

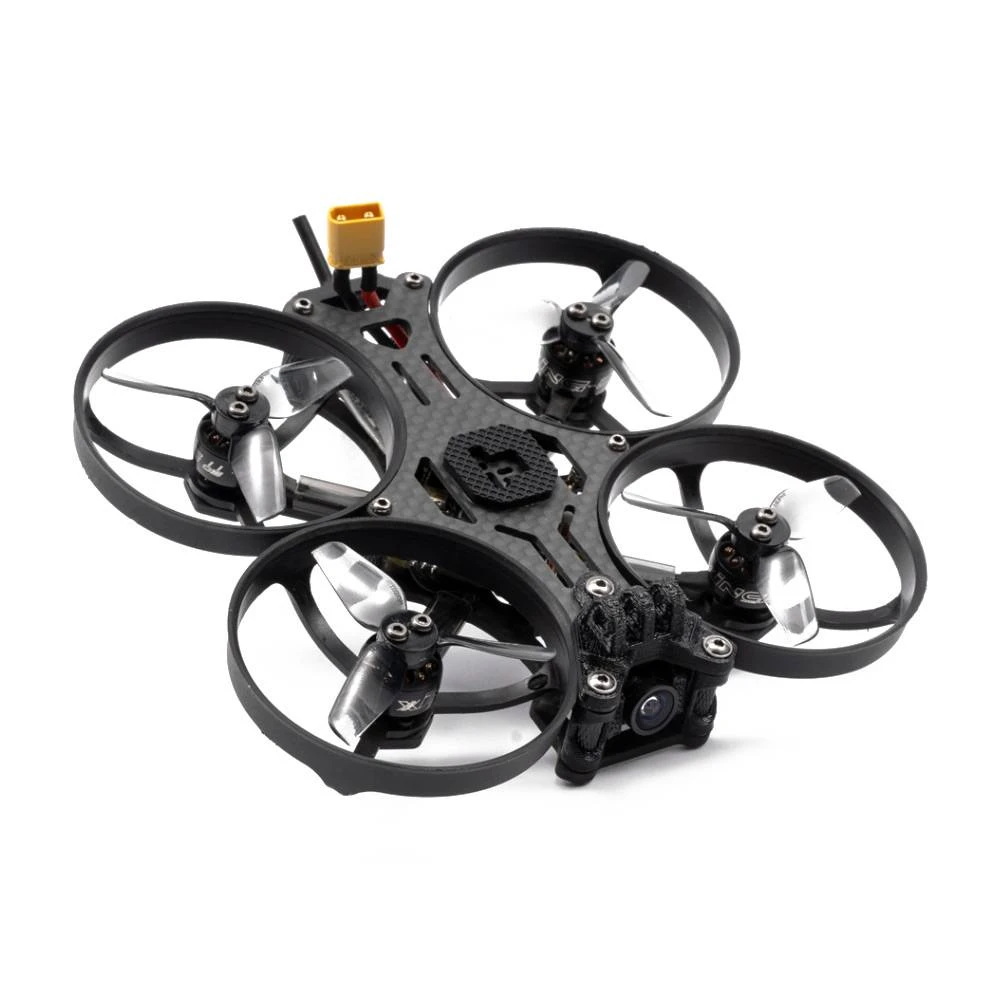

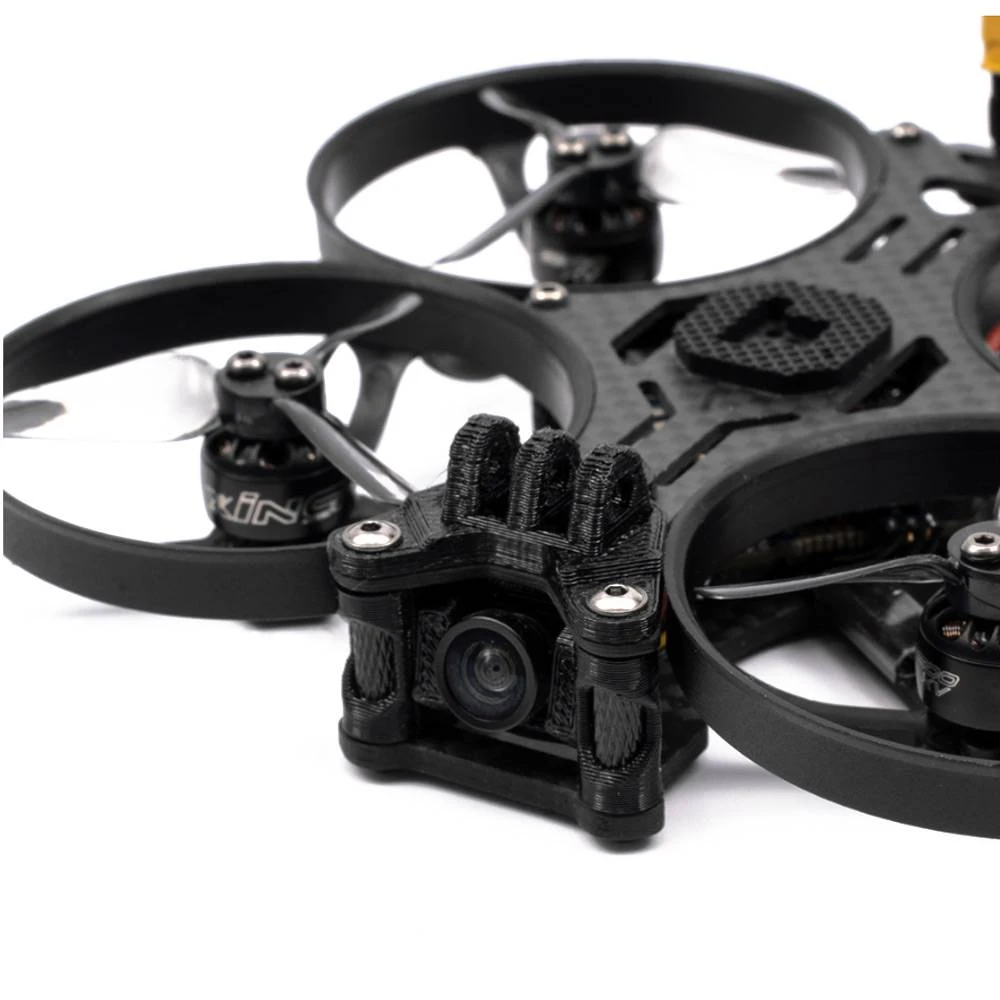

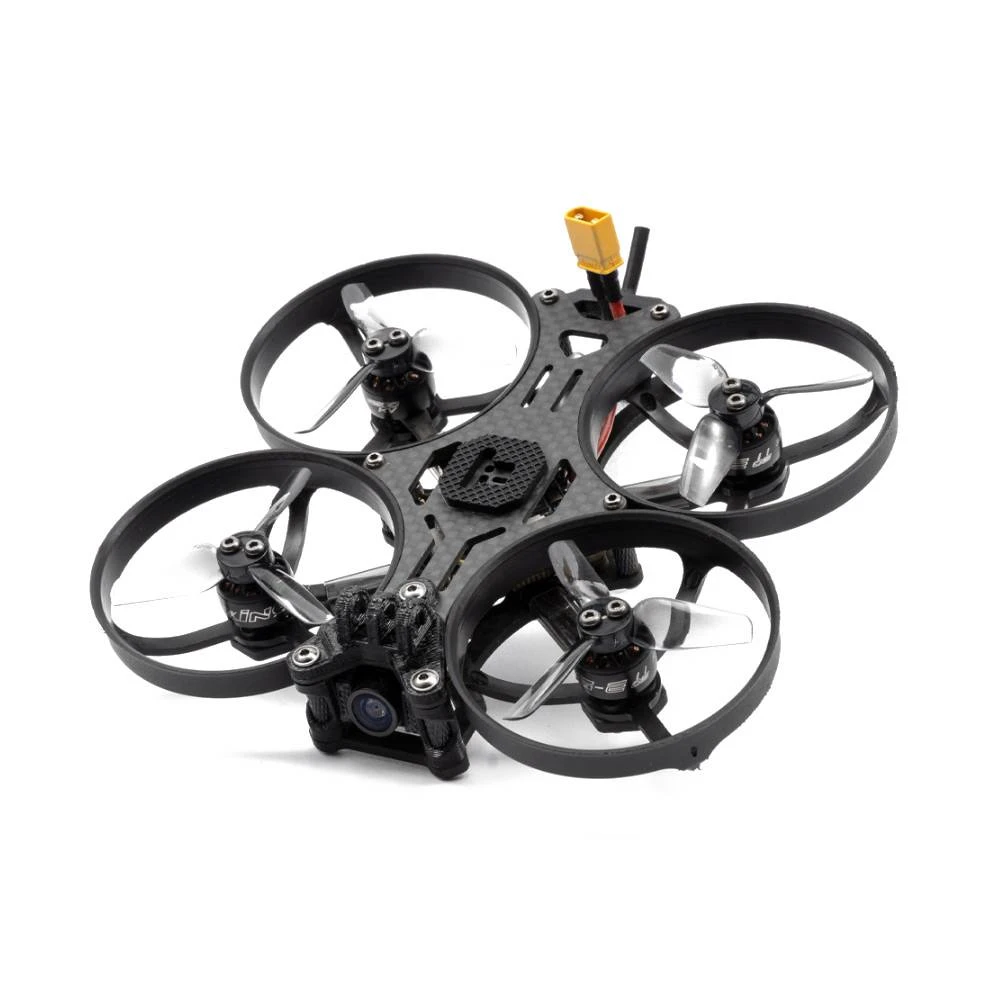

IFlight Protek R20 BNF Cinewhoop Analog – ELRS 2.4GHz

The iFlight Protek R20 BNF Cinewhoop Analog – ELRS 2.4GHz comes pre-tuned and pre-setup. Simply Bind n’ Fly! Basic PID- and Filter tuning was applied for a great flight experience! Angle-Mode (self-balancing level mode) is enabled by default to make sure your first flight doesn’t end in a mess! To restore lost tunes or updates, please check this article on “Firmware/Factory Dumps”. You can also check out “How to disable Angle-Mode, activate Acro-Mode”.

Note: (Insert any product notes here in Red BOLD Italic. Example: “First Shipment expected January 2022” or “Electronics are Not Included”.)

VIDEO: (Insert Video Title here in Bold)

• Angle-Mode (self-balancing level mode) enabled
• Comes with basic PID- and Filter tuning
• Pre-tuned and pre-setup

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

• VTX: SucceX Mini Force 5.8GHz 600mW VTX Adjustable
• Weight: 89.2g (without battery)
• Bottom plate thickness: 2.5mm
• Motor: XING-E 1105 6500KV
• Top plate thickness: 1.5mm
• Body Size: 132mm*122mm
• FC pattern: 25.5*25.5mm
• FPV cam spacing: 14mm
• Whoop F4 AIO 1.1(LINK)
• Arm Thickness: 2.5mm
• Propeller size: 2 inch
• Wheelbase: 94mm

iFlight SUCCEX-D F4 V1.1 WHOOP AIO

• Mounting pattern: 25.5*25.5mm/φ3mm
• Firmware Target: IFLIGHT_F411_PRO
• Constant current: 20A，25A (Burst)
• Config：IFLIGHT_F411_PRO.config
• Connector: Micro-USB
• ESC Firmware: Q-H-50
• Current sensor: yes
• BEC output: 5V 2A
• ESC Telemetry: NO
• Size: 30.5*30.5mm
• MCU: STM32F411
• BLHeli: BLHeli-S
• Barometer: NO
• Blackbox: 8MB
• Gyro: BMI270
• INA pad: nR2
• Weight: 7.4g
• Input: 2-4S

iFlgiht SucceX Mini Force 5.8GHz 600mW VTX Adjustable

• Mounting pattern: 20*20Φ3/25*25 mmΦ2
• Power: PIT/25/200/400mW/600mW
• Antenna interface: MMCX
• VTX protocol: IRC Tramp
• Output: 40 channels.
• Size: 29*29mm
• Weight: 4g



IMPORTANT NOTES

• Insert important warnings or notes here. Example: “Do not overheat.” or “Always use the included charger for best performance.”

• Battery: Lumenier 450mAh 3S 80c Micro HV LiPo Battery XT30

• “How to disable Angle-Mode, activate Acro-Mode”
• “Firmware/Factory Dumps”
• www.frsky-rc.com

• 1x iFlight Protek R20 BNF Cinewhoop Analog – ELRS 2.4GHz
• 1x iFlight Lipo Strap 10*150mm (Color May Vary)
• 2x HQProp 2*2*3 (Set of 4 – Color May Vary)
