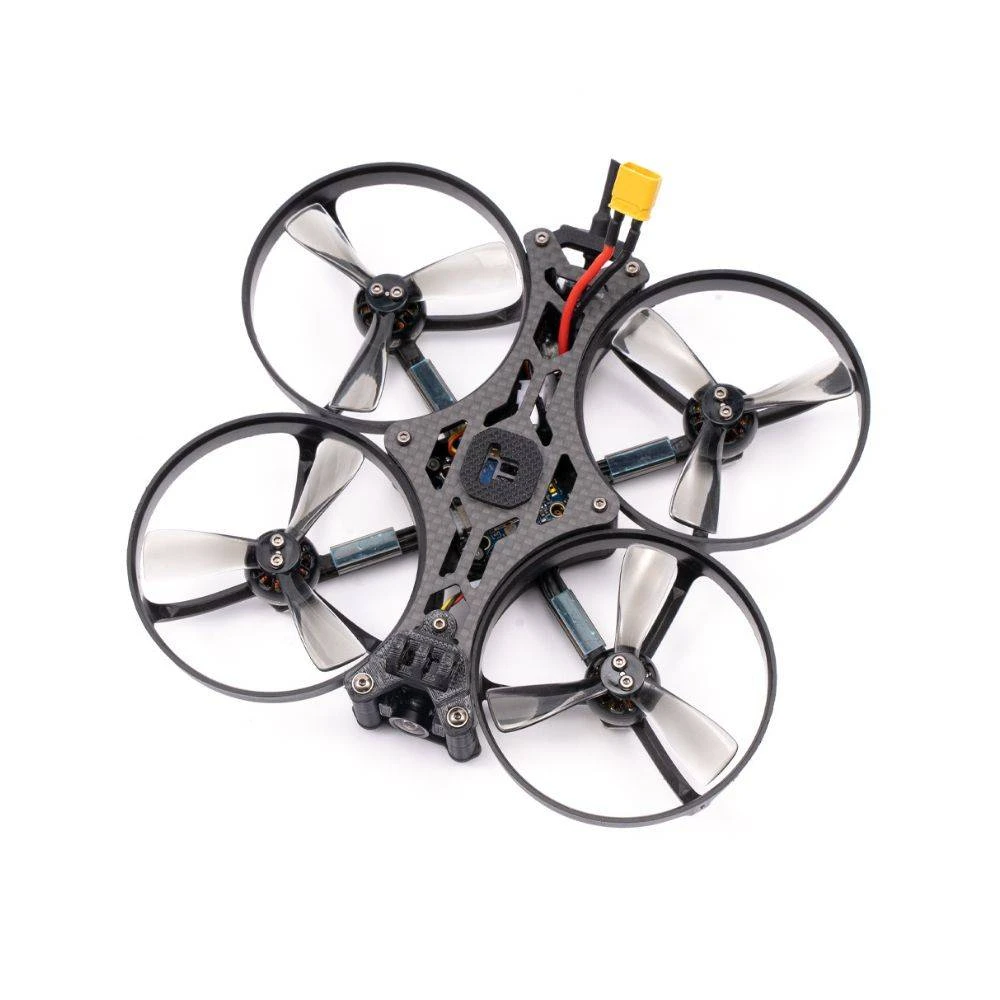

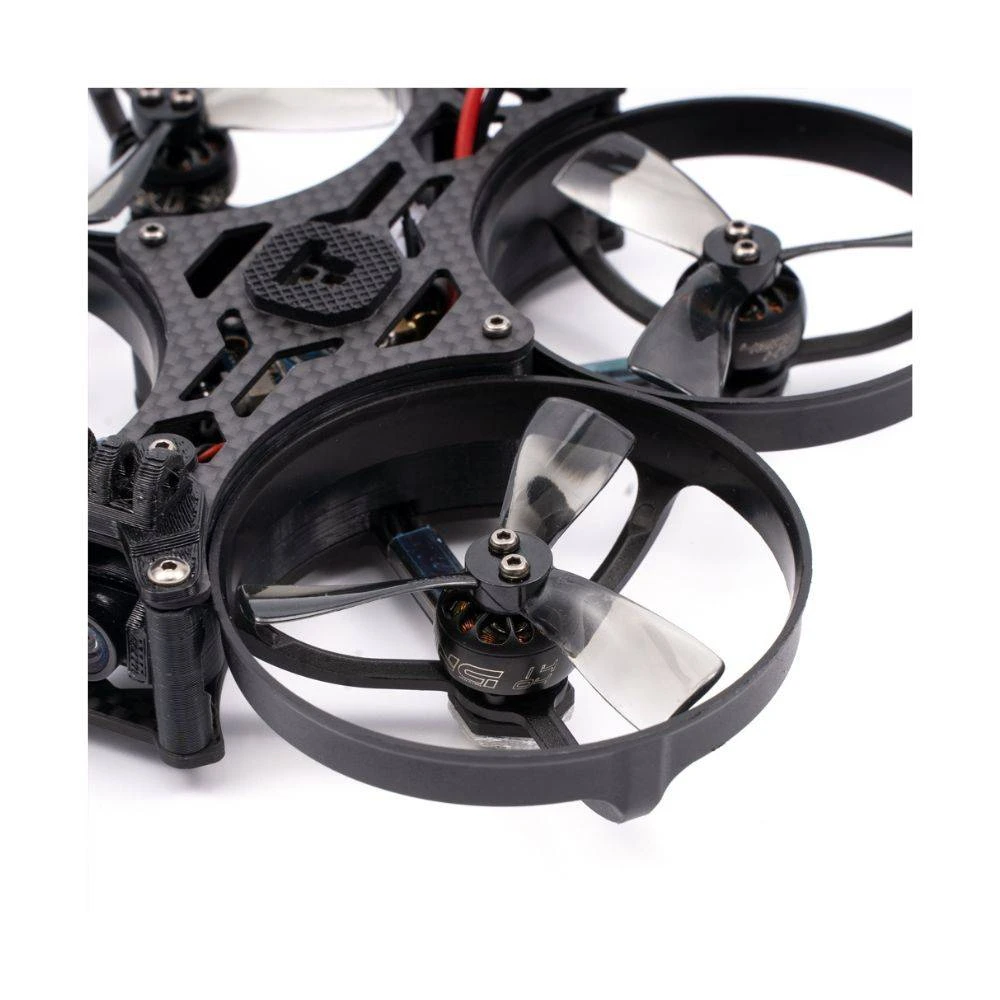

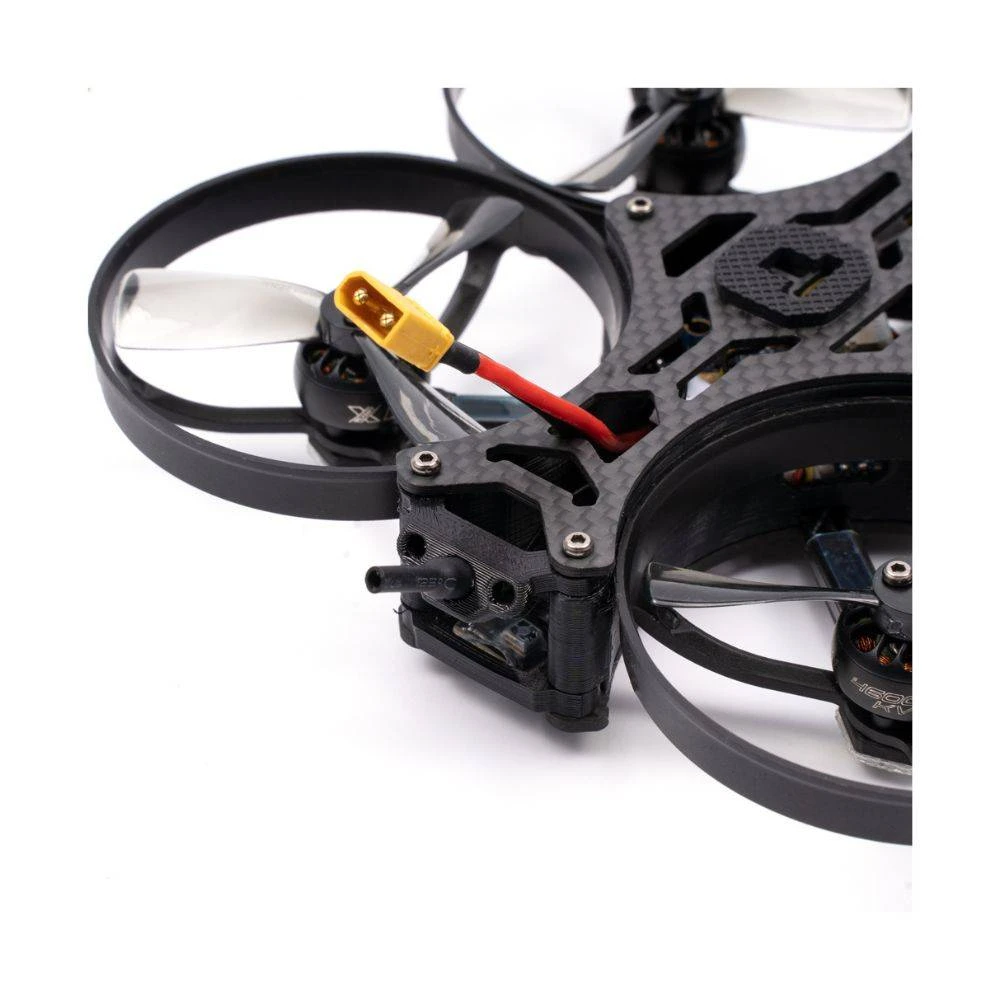

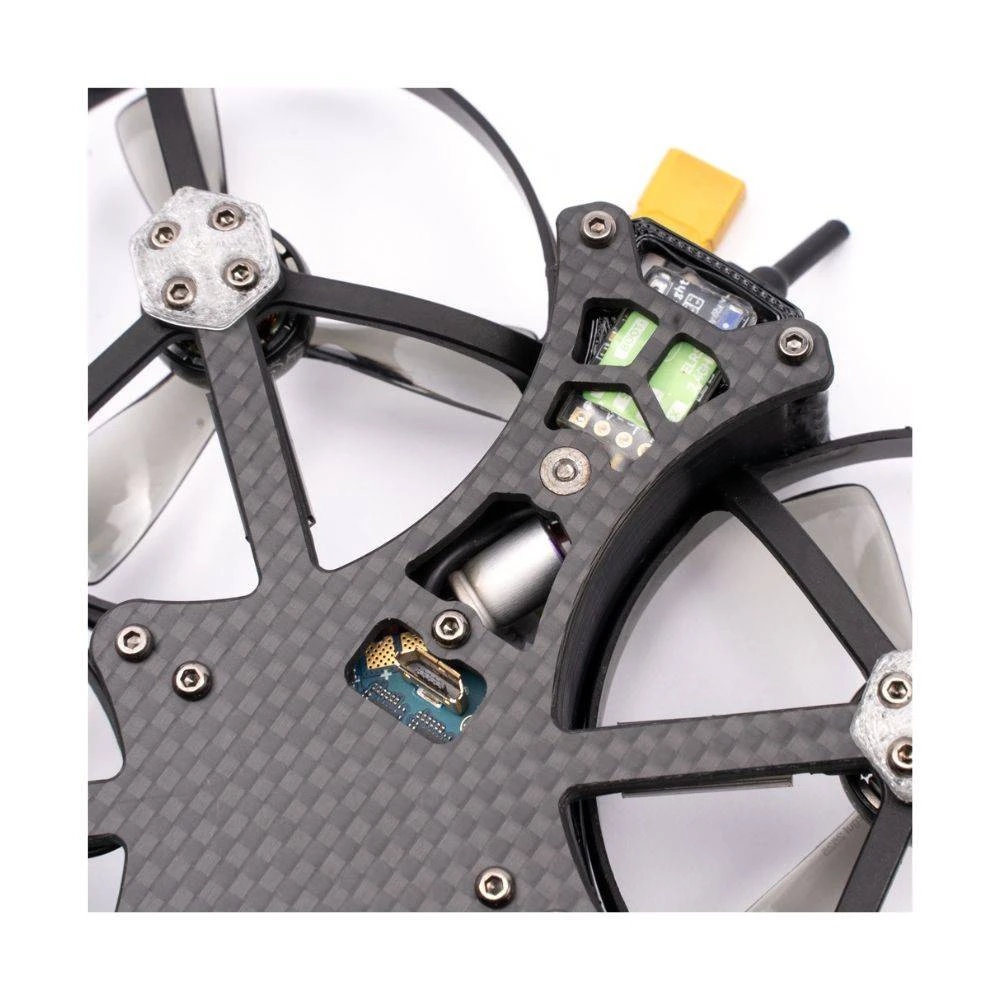

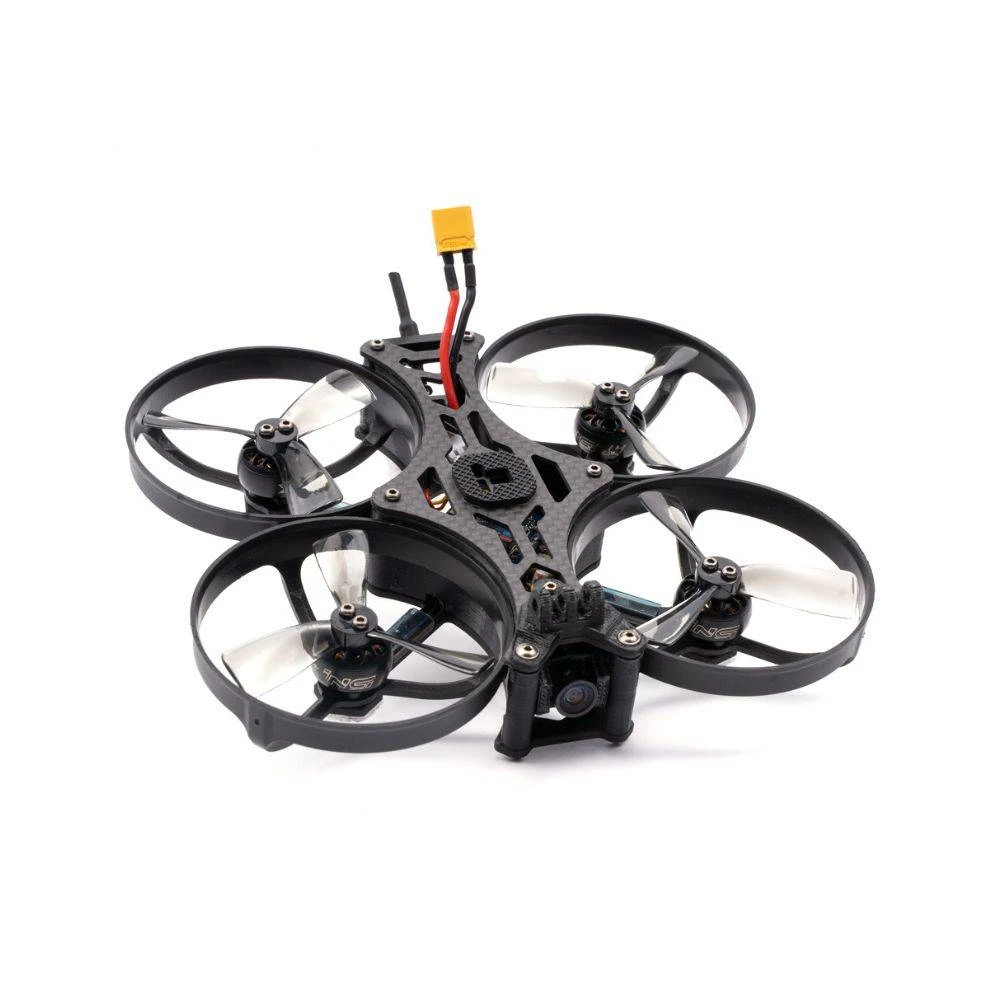

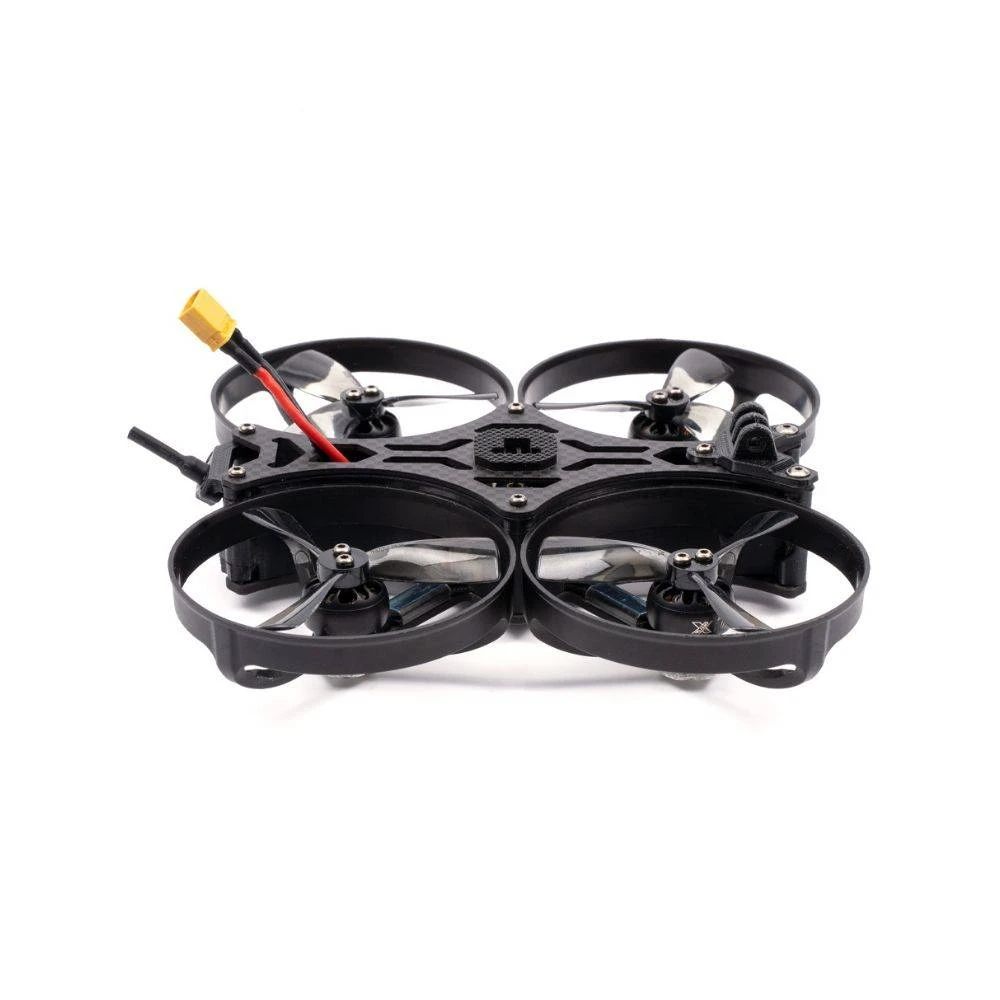

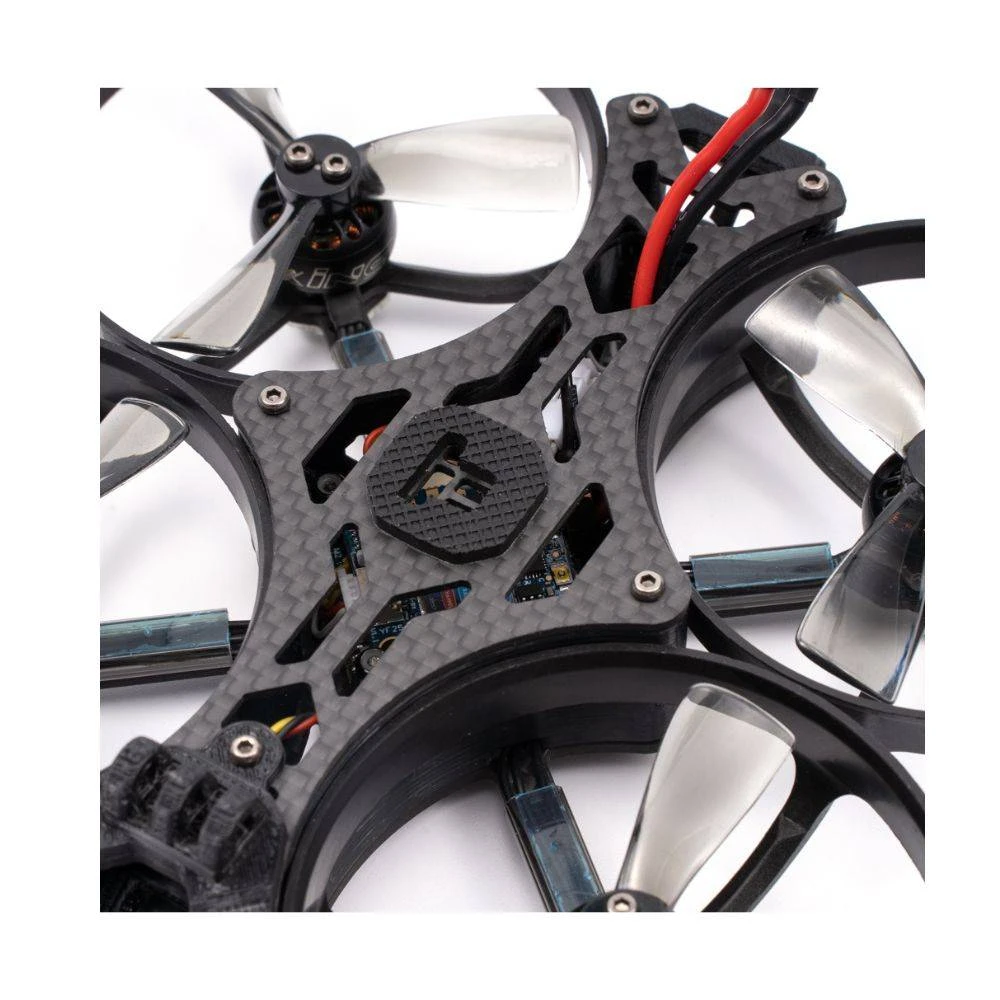

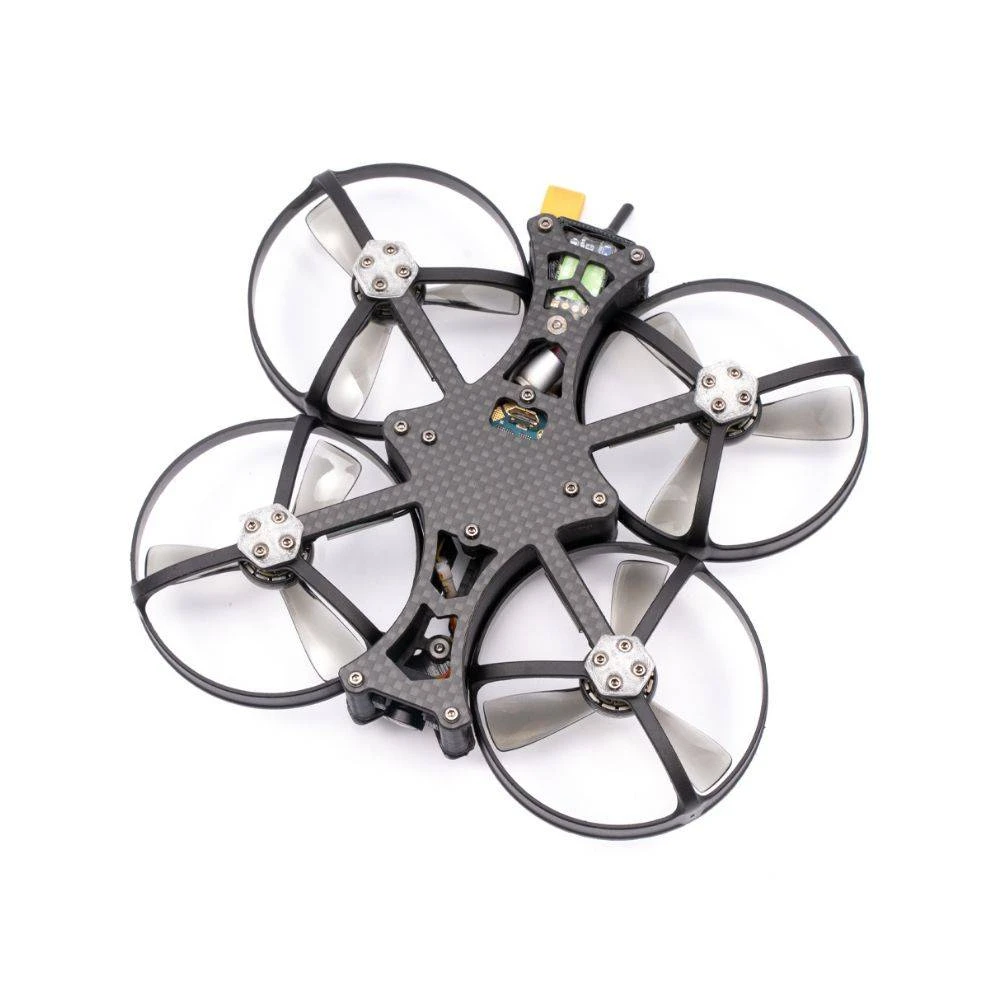

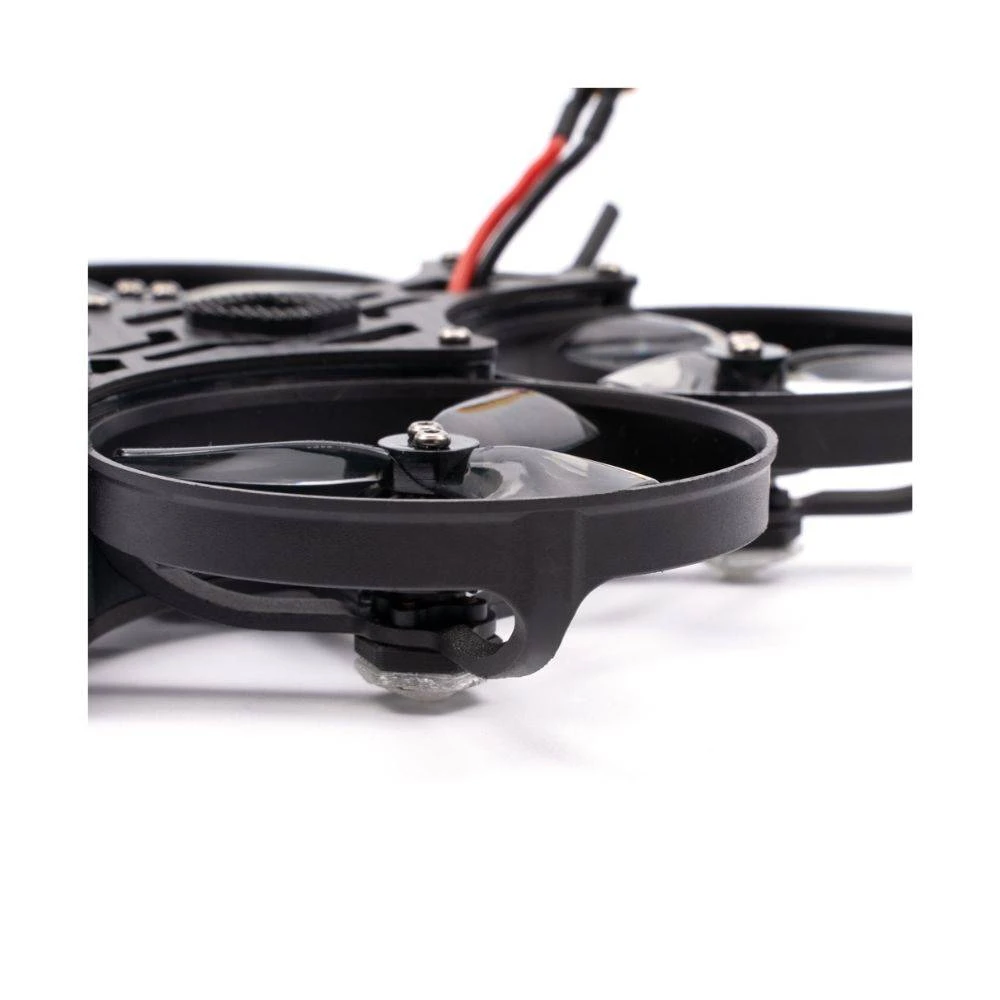

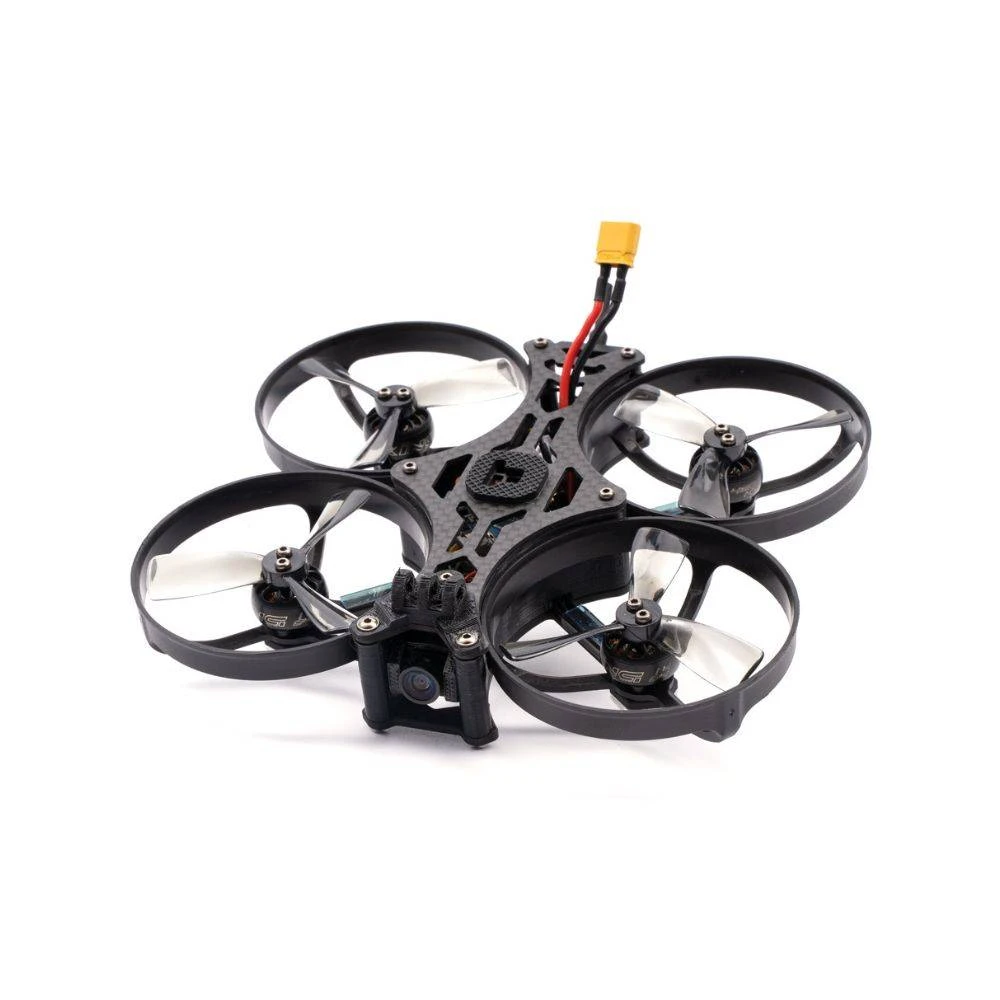

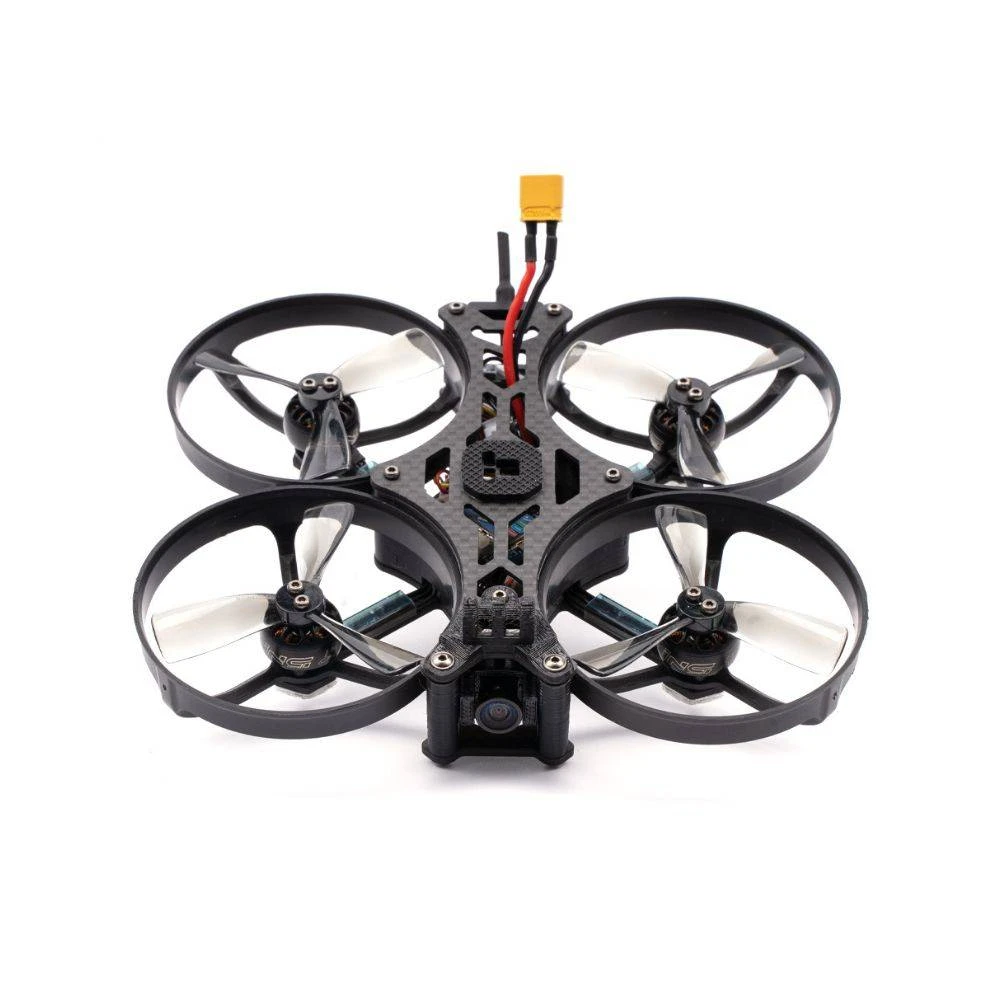

The iFlight Protek R25 HD BNF Cinewhoop w/ Polar Nano – ELRS 2.4 comes pre-tuned and pre-setup. Simply Bind n’ Fly! Basic PID- and Filter tuning was applied for a great flight experience! Angle-Mode (self-balancing level mode) is enabled by default to make sure your first flight doesn’t end in a mess! To restore lost tunes or updates, please check this article on “Firmware/Factory Dumps”. You can also check out “How to disable Angle-Mode, activate Acro-Mode”.
Note: (Insert any product options here in black text with options in bold.)
Example: “Choose from two KV’s: 1800KV (4S) or 2500KV (6S).”
Note: (Insert any product notes here in Red BOLD Italic. Example: “First Shipment expected January 2022” or “Electronics are Not Included”.)
VIDEO: iFlight ProTek R25 – The BEST ProTek FPV Drone yet – Review
Features
- Angle-Mode (self-balancing level mode) enabled
- Comes with basic PID- and Filter tuning
- Pre-tuned and pre-setup
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
PRE-TUNED AND PRE-SETUP
This RTF is fully built and test-flown by build technicians at our Florida facility.
Specifications

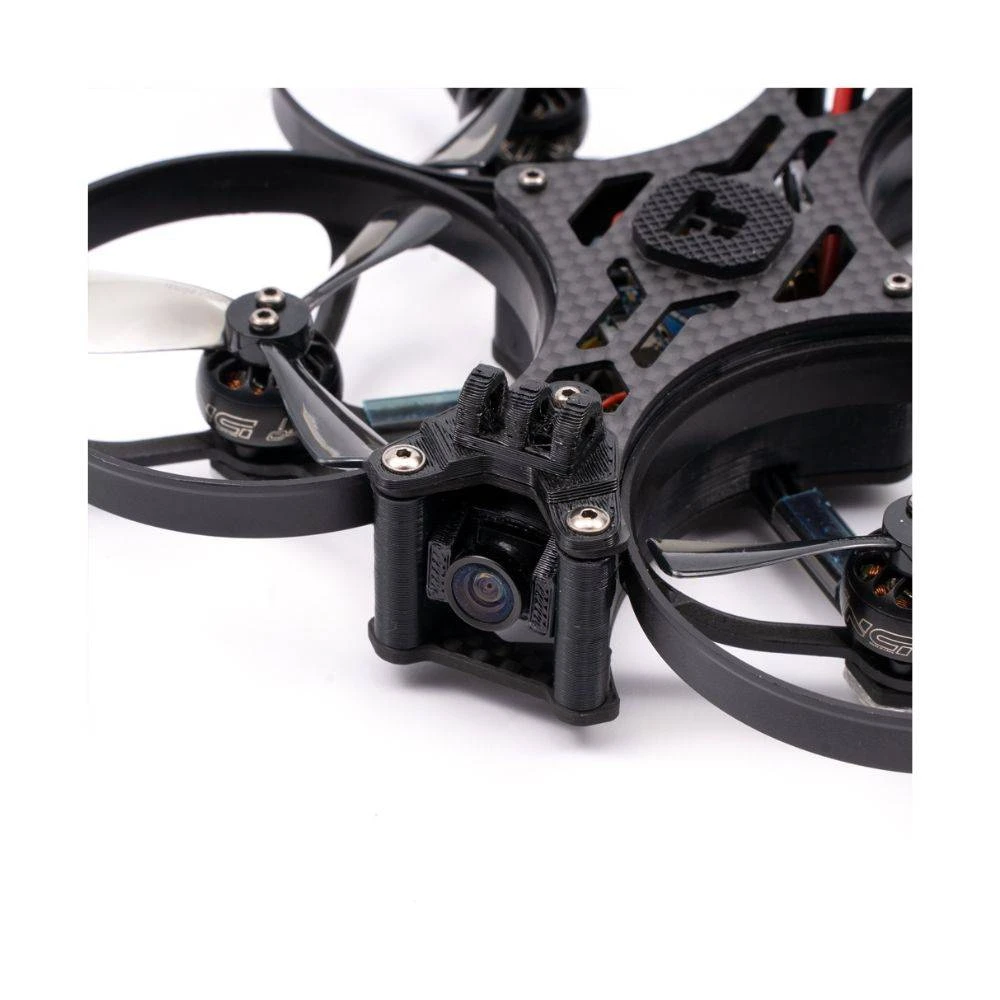

- VTX/Camera System: Caddx Polar Nano Starlight Camera Vista Kit
- AIO: iFlight SUCCEX-D F4 V1.1 WHOOP AIO

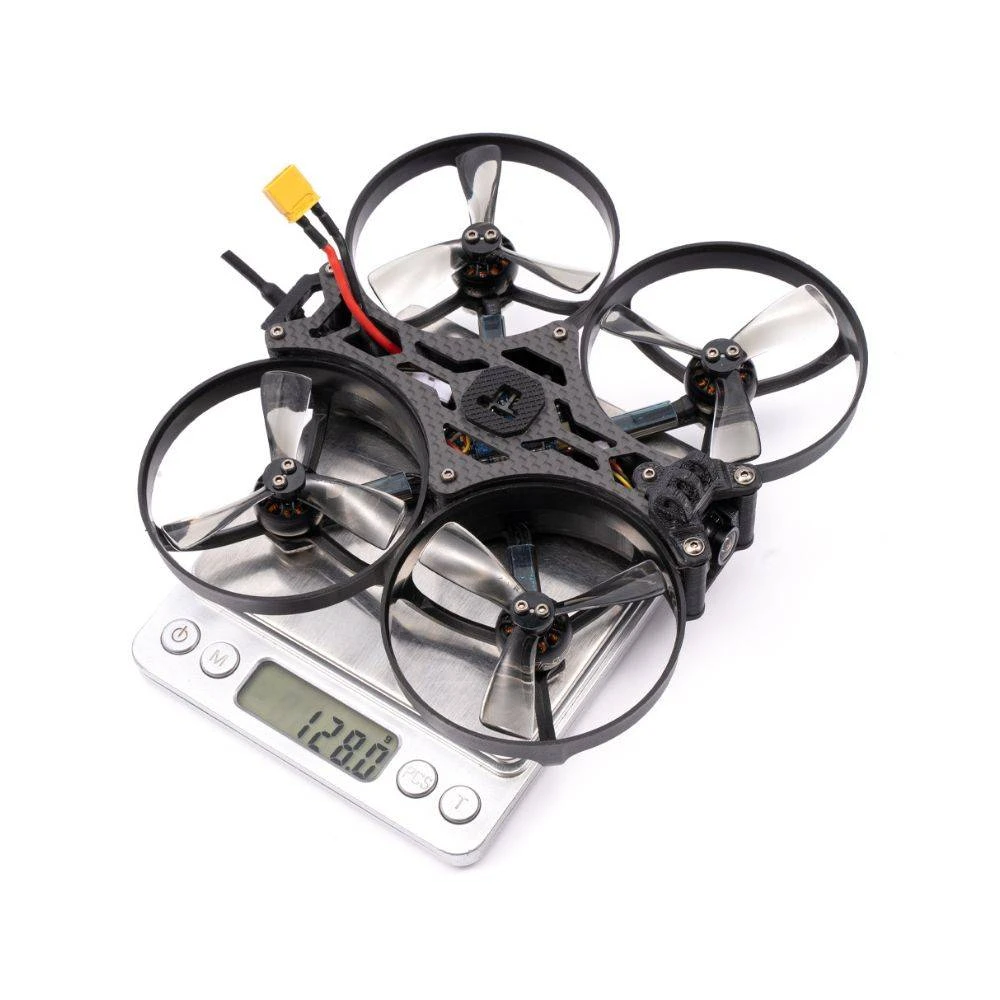

- Weight: 147.5g (without battery)
- Propellers: 2.5 inch Nazgul 2525
- Bottom plate thickness: 2.5mm
- Frame: iFlight Protek R25 HD
- Body Size: 143mm*158mm
- Top plate thickness: 1.5mm
- Motor: XING 1404 4600KV
- FC pattern: 25.5*25.5mm
- FPV cam spacing: 14mm
- Arm Thickness: 2.5mm
- Wheelbase: 113mm
iFlight SUCCEX-D F4 V1.1 WHOOP AIO
- Mounting pattern: 25.5*25.5mm/φ3mm
- Firmware Target: IFLIGHT_F411_PRO
- Constant current: 20A,25A (Burst)
- Config:IFLIGHT_F411_PRO.config
- Connector: Micro-USB
- ESC Firmware: Q-H-50
- Current sensor: yes
- BEC output: 5V 2A
- ESC Telemetry: NO
- Size: 30.5×30.5mm
- MCU: STM32F411
- BLHeli: BLHeli-S
- Barometer: NO
- Blackbox: 8MB
- Gyro: BMI270
- INA pad: nR2
- Weight: 7.4g
- Input: 2-4S
IMPORTANT NOTES
- The DJI Remote Controller is recommended for beginners since you won’t need to set up another receiver, but it is also optional in this BNF drone because it is NOT required in order to use the FPV system. If you don’t choose to use the DJI Remote Controller, you can choose a receiver option for your transmitter and then bind it to your own radio as usual.
- Our current FrSky receiver’s default version in 2.XX. If you have a radio transmitter other than FrSky, please downgrade the version lower than 2.X.X. See www.frsky-rc.com for more details.
Recommended (Not Included)
- Battery: Lumenier 850mAh 4s 75c Lipo Battery (XT-30)
Links
- “How to disable Angle-Mode, activate Acro-Mode”
- “Firmware/Factory Dumps”
- www.frsky-rc.com
Includes
- 1x iFlight Protek R25 HD BNF Cinewhoop w/ Polar Nano – ELRS 2.4
- 2x Nazgul 2525 propeller (Set of 4 – Color May Vary)
- 1x iFlight Lipo Strap 15*180mm (Color May Vary
- 1x Albatross ipex LHCP 5.8g 75mm antenna
