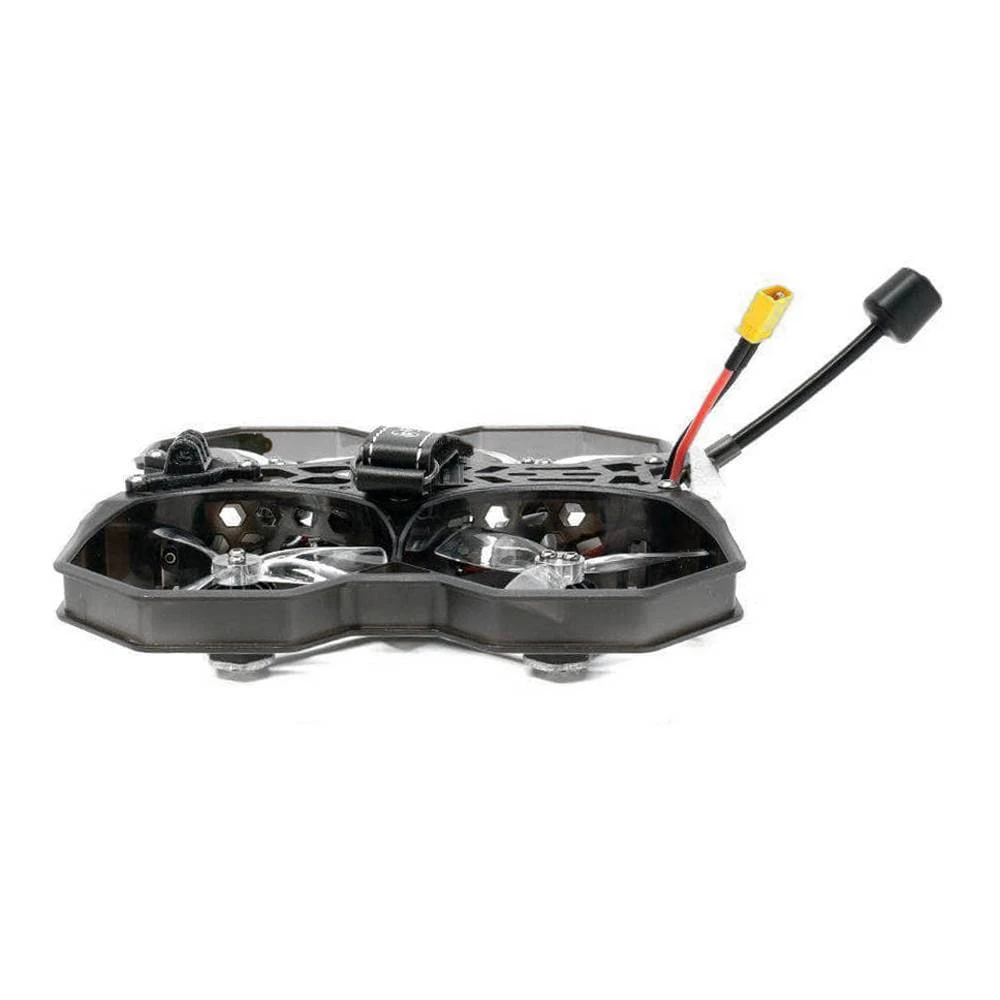

IFlight ProTek25 2.5" 4S HD CineWhoop BNF W/ Caddx Polar Vista Digital HD System – PNP

The iFlight Protek25 HD CineWhoop is now equipped with the Caddx Polar Vista Digital HD System! After the very popular 3-inch Cinematic EVA bumper BumbleBee and Green Hornet CineWhoop series release, iFlight continues to strive to increase performance by coming up with their master Protek series. The Protek CineWhoop has a longer flight experience and weighs less than the previous cinewhoops!

ProTek is not necessarily just a Cinewhoop series but far more. Equipped with the popular XING 1404 motors in a higher kv class will give you all the power you need to get good speed, do some freestyle or carry a full GoPro through tiny gaps.

Thie whoop features durable plastic protectors with copper standoffs, portable compact design, easily accessible USB port without disassembly, LED battery status, lost model buzzer, and a universal GoPro TPU for a full size or naked GoPro.

iFlight was able to increase the speed and thrust by 50% compared to its 3-inch predecessor which gives a lot more room for a lot more fun; as a result, the ProTek25 HD is equipped with XING 1404 5500KV Motors. It also features the Vista/Caddx Polar System, SucceX-D 20A F4 Whoop AIO, and the Nazgul 2525 propellers.

Now with UPGRADED DPROP GUARDS – V2.0!

Note: Battery, GoPro, and GoPro mount NOT included

VIDEO: CINEWHOOP RACER? iFlight PROTEK25 HD

Features

• High-performance True-AIO Board Beast Whoop F7 AIO 45A to save weight and space
• T700 Quality Carbon (40% more tensile strength compared to common 3K carbon)
• Lightweight one-piece frame design (Less flexibility, more Rigid, more Durable)
• Low Resonance frame construction (Less Jello, more Cinematic footage)
• UPGRADE DPROP GUARDS V2.0 (Material optimized)
• Pre-tuned with smooth freestyle settings
• Butter smooth XING 1404 5500KV (4S)
• Caddx Polar Vista Digital HD System
• No Props or frame in view!
• Angle-Mode/Acro-Mode

Pre-Tuned & Pre- Setup

• Don’t worry about tuning, iFlight did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!
• Angle-Mode (self-balancing level mode) is enabled by default to make sure your first flight doesn’t end in a mess!
• To restore lost tunes or updates, please check out this  linked article: “Firmware/Factory Dumps”
• Please check out this linked article on “How to disable Angle-Mode, activate Acro-Mode”

Specifications

• FC pattern: 25.5×25.5mm / 20x20mmmm
• Top and bottom plate spacing: 24mm (aluminum standoff height)
• Camera/VTX: Caddx Polar Vista Digital HD System
• Weight: 194.3g (without battery)
• Bottom plate thickness: 3mm
• Receiver: PNP (No receiver)
• SucceX-D 20A Whoop AIO
• Motor: XING 1404 5500KV
• Top plate thickness: 2mm
• FPV cam spacing: 20mm
• Body Size: 91×68.7mm
• Propeller size: 2.5 inch
• Wheelbase: 114mm

FC // SucceX-D 20A F4 Whoop AIO

• Mounting pattern：25.5*25.5mm/φ3mm
• Constant current：20A，25A（Burst）
• Target：IFLIGHT_F411_PRO
• ESC Firmware： G-H-30 BLS
• BEC output：5V 2A/10V 2A
• INA pad： UART2 (nR2)
• Connector： Micro-USB
• Current sensor： yes
• Size：30.5*30.5mm
• ESC Telemetry： no
• MCU：STM32F411
• BLHeli： BLHeli-S
• Gyro： MPU6000
• Blackbox：8MB
• Barometer： no
• Input：2-4S

Recommended Parts (Not Included)

• DJI Remote Controller (Mode 2)
• Lumenier 4S 850mAh Battery
• DJI HD FPV Goggles

Includes

• 1x iFlight Protek25 2.5″ 4S HD CineWhoop BNF w/ Caddx Polar Vista Digital HD System (Pre-built and tested)
• 1x Naked GoPro TPU bottom stand black (Naked GoPro Protector not included)
• 2x Nazgul 2525 propeller (Set of 4 – Color May Vary)
• 2x iFlight Lipo Strap 15*200mm (Color May Vary)
• 1x Albatross LHCP RP-SMA 5.8g antenna
