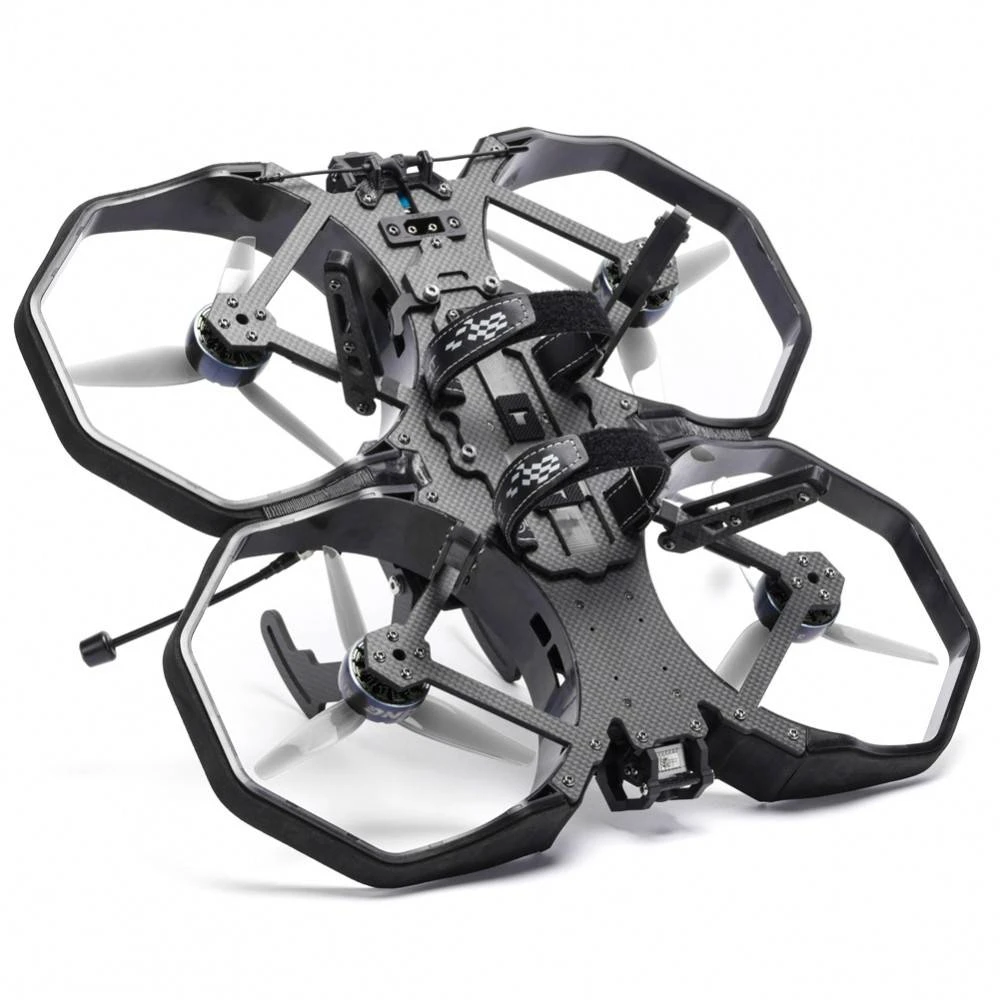

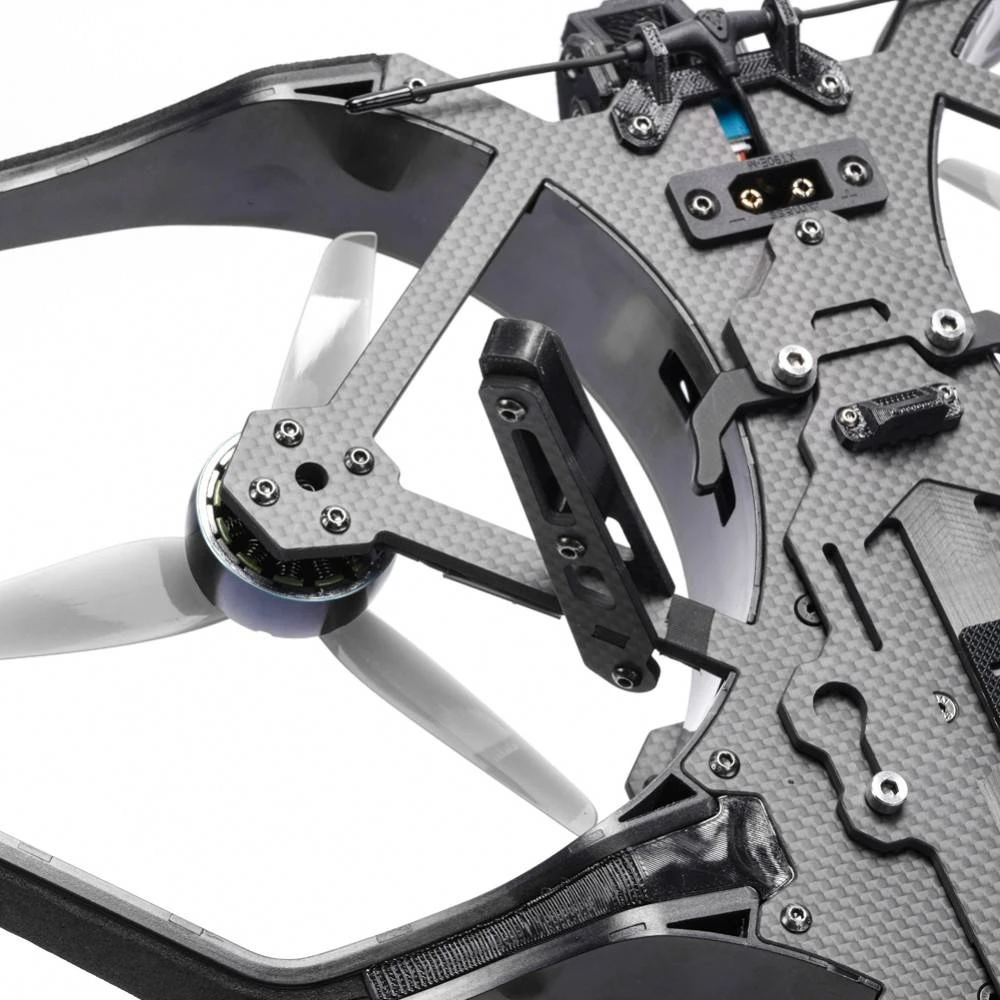

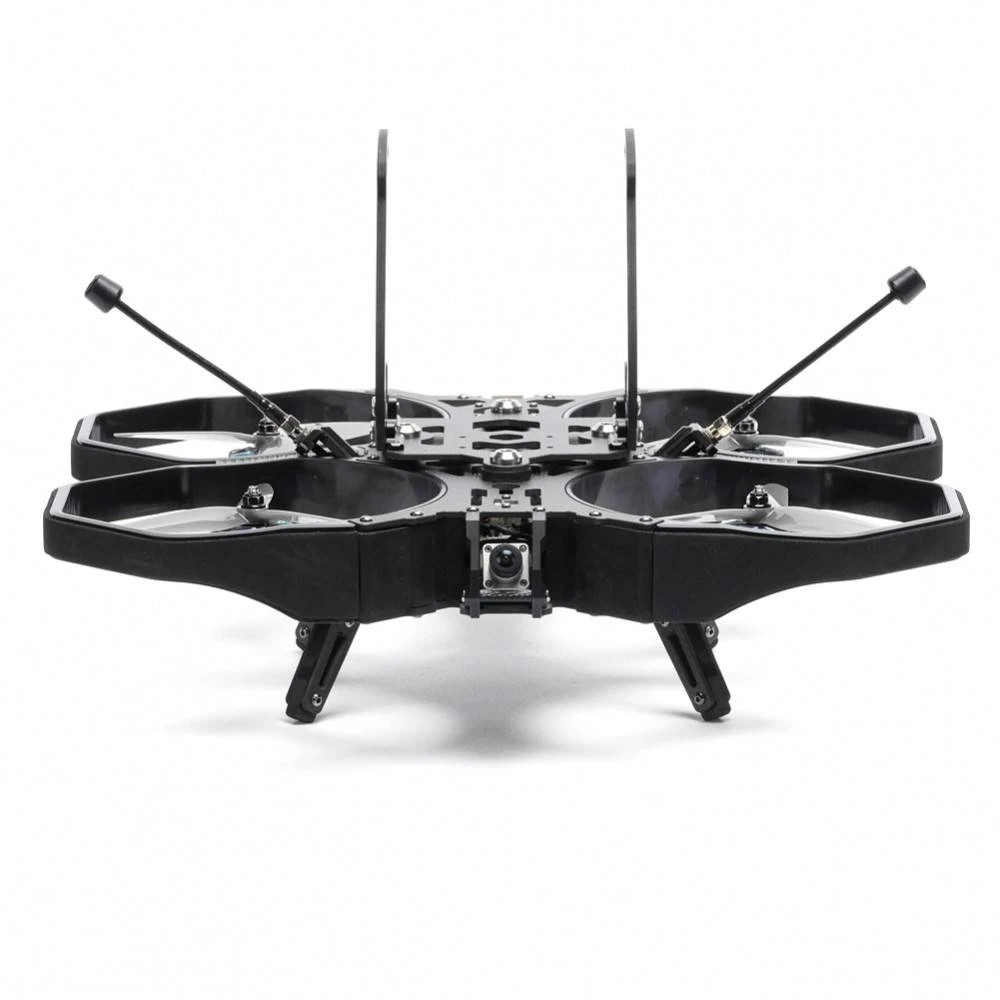

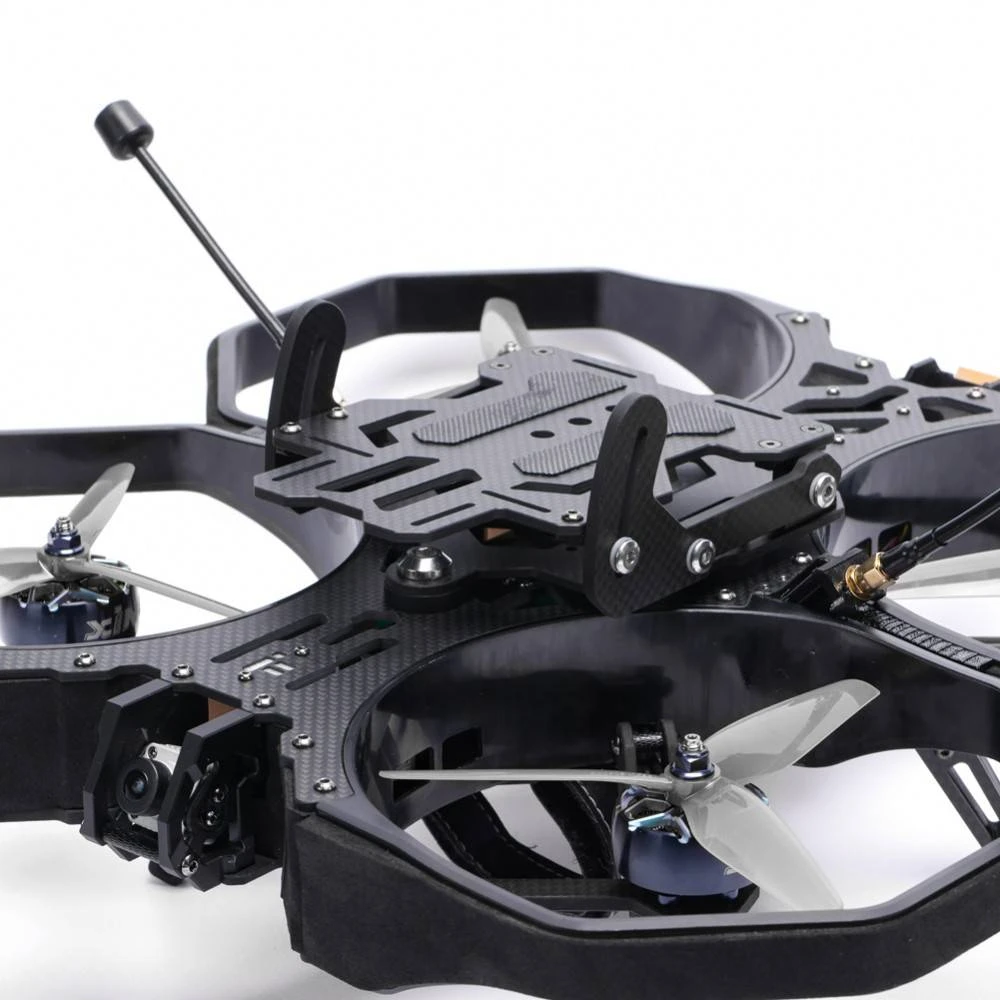

IFlight Protek60 Pro HD BNF 6S Cinelifter – BMPCC, Universal Version

The Protek60 Pro is a cinelifter drone designed to carry cinematic cameras such as Komodo, Zcam, BMPCC, or even a GH5. Step up your game with the iFlight Protek60 Pro.

This version comes with the BMPCC camera mounting plate.

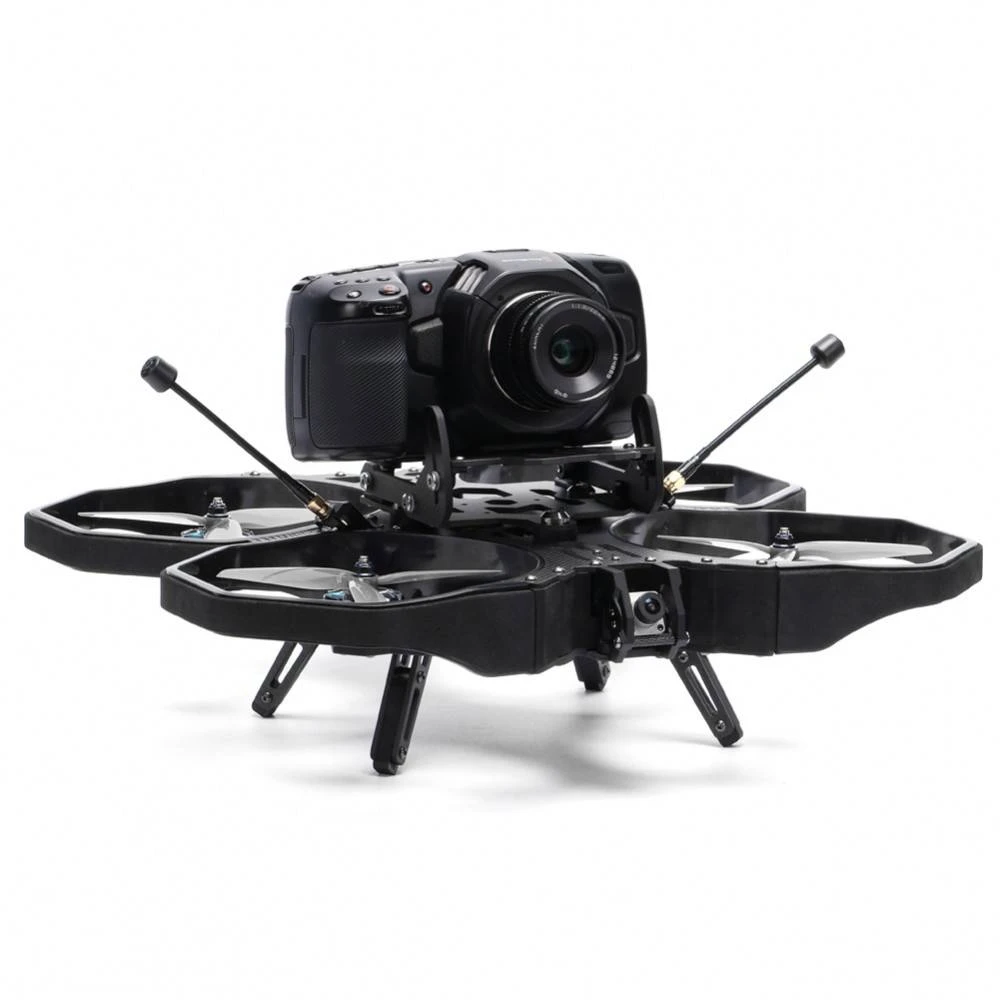

Does NOT include Cinema Camera shown in some photos.

Features

• Protected Propellers for indoor and outdoor use, protecting whatever you might bump into from nasty cuts
• Universal camera mount and accessories for a wide range of cameras to install
• iFlight ESC Commander PCB // Power distribution board with high capacitance and heat dissipation
• Single X-Class grade ESC motor drivers for more power and reliability
• Big size XING2 3110 // The power motors with extreme lift and flight performance
• GPS module pre-installed (BF GPS rescue or INAV GPS RTH feature available)
• Up to 110 km/h // 1.5 kg payload // Total liftoff weight up 3.5 kg (recommended max. MTOW)

ProTek60 Pro BNF Specs

• BLITZ F7 Flight Controller
• SucceX X80A X-Class ESC
• Motor: XING2 3110 1600KV
• GPS module: iFlight M8Q-5883-GPS & Compass V2.0 (LINK)
• Wheelbase: 282mm
• Body Size: 380*351mm
• Top and bottom plate spacing: 35mm (aluminum standoff height)
• Propeller size: 6 inch
• Weight: 1330g (without battery)

FC // BLITZ F7

• MCU: STM32 F722
• Gyro: MPU6000
• Baro: NO
• OSD: AT7456E
• BEC:5V 2.5A
• BlackBox:32MB
• UARTs: 6
• Smart audio / IRC Tramp VTX protocol supported
• WS2812ledStrip: Yes
• Bepper: Yes
• Firmware Target: IFRC-IFLIGHT_BLITZ_F722
• Mounting pattern: 30.5*30.5mm/φ4
• Dimensions: 36.5*35mm
• Weight: 7.8g

ESC // iFlight ESC Commander PCB (4x SucceX X80A)

• MCU: G071
• Capacitance per ESC: total 240UF Low ESR
• Current Sensor: Yes
• Input: 2-8S LIPO
• BlHeli32 telemetry: Yes
• BEC: No
• Supports up to DShot DShot150/300/600/1200/MultiShot/OneShot PWM Drive
• Firmware Target: iFlight-BL32-PRO
• Weight:8.1g
• Dimension: 40*17mm

Recommended battery size: 6S 3700mAh – 6S 4400mAh

Estimated flight time: 3-6 min (depending on battery and your take-off weight)

Includes

Does NOT include Cinema Camera shown in some photos.

• 1 x Protek60 Pro BNF Cinelifter Drone
• 1 x Fullsend X 6S 70C 4400mAh
• 1 x DJI FPV Air Unit Module + Camera
• 2 x Albatross LHCP 5.8GHz 100mm SMA FPV Antenna
• 4 x 6x4x3 Propellers (Color may vary)
• 2 x iFlight Lipo Strap 20*295mm (Black)
• 1 x Battery Quick Mount
• 1 x Prop Wrench
• 1 x XT90 Male to XT60 Female Adapter Wire
