IFlight Taurus X8 Pro 8S HD 8" BNF Cinelifter Drone W/ DJI FPV Air Unit

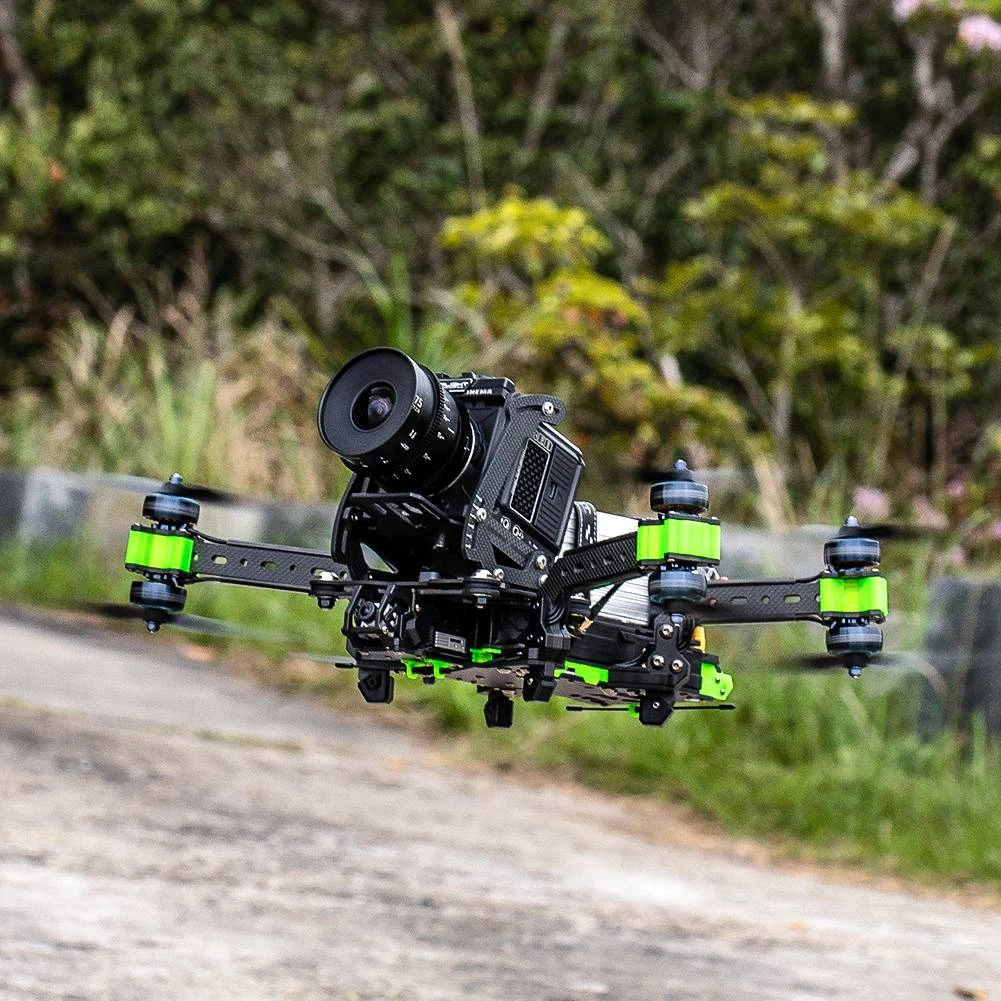

The iFlight Taurus X8 Pro BNF Cinelifter Drone is aimed toward carrying big payloads, offering a soft-damped universal platform for DSLR or cinema cameras (Red Komodo, Zcam, BMPCC, etc). Featuring DJI’s FPV HD transmission system with a redundant ESC and motor setup for maximum performance adding an additional safety factor. Even in case of an overload or failure, one remaining ESC and 4 motors will be able to carry your expensive camera back to you. In case you get troubles with signal interference, radio signal loss or complete FPV transmission fails the GPS rescue feature will automatically take over control, climb to max flight altitude, and descend directly towards your liftoff location until the signal transmission is regained (no automated landing). The integrated TPU landing gear provides sufficient height for most terrain and offers some protection on harder landings.

Note: Action Cameras are not included.

VIDEO: Introducing Taurus X8 Pro, The 8S Cinelifter

• The estimated flight time is 12 Minutes without a camera and 6-8 Minutes with the camera
• Universal camera mount and accessories for a wide range of cameras to install
• Optimized CG through the adjustable camera and battery mount
• Big XING2 3100 motors with extreme lift and flight performance
• 8x single X-Class grade ESC motor drivers for more reliability
• 2kg max payload for various cinema and DSLR cameras
• GPS flight data and rescue functionality pre-installed
• Redundant ESC and motor configuration
• 8S Power System

SUPPORTS LARGE PAYLOADS

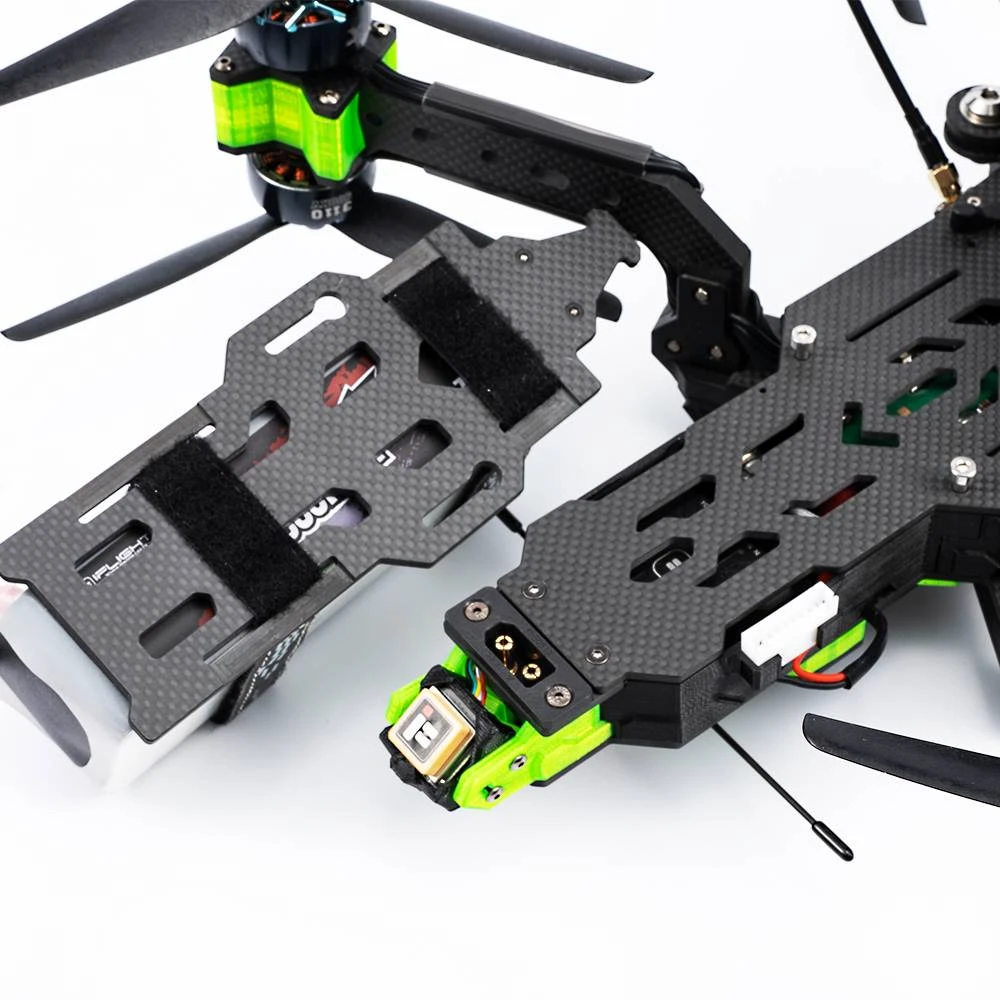

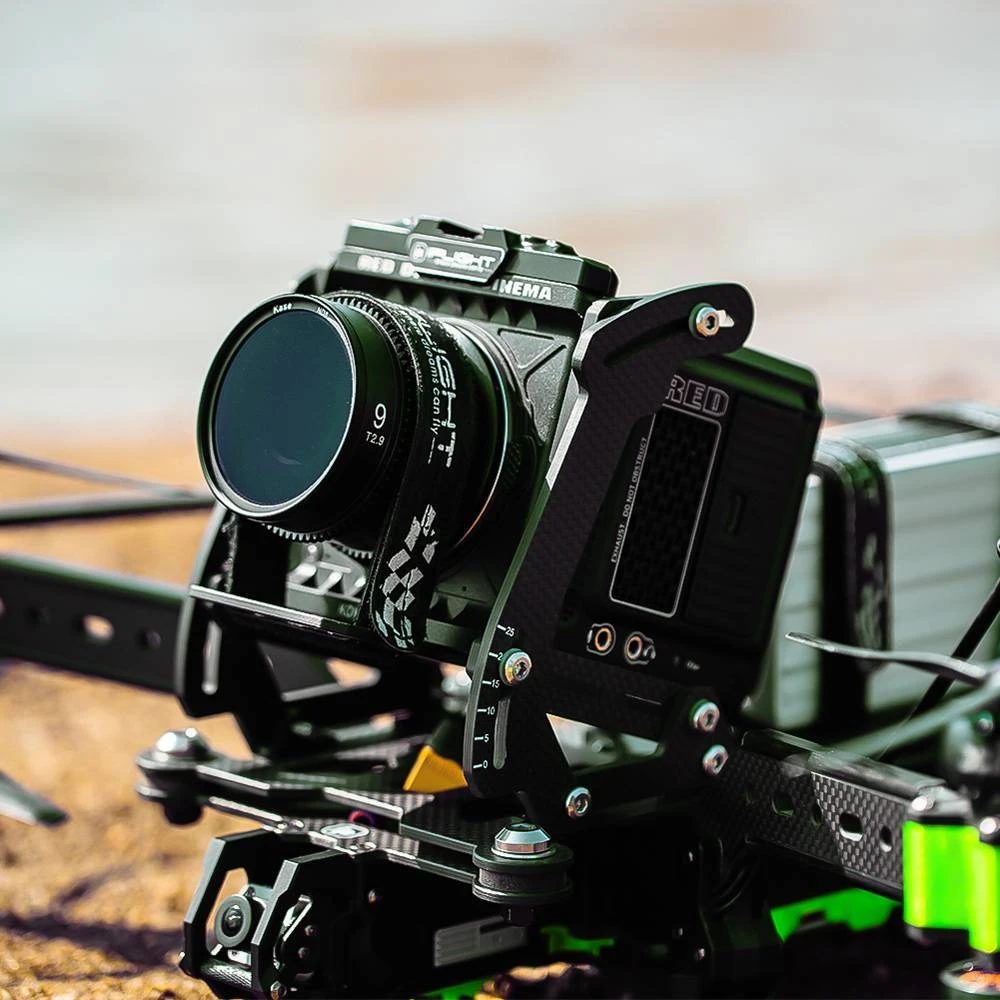

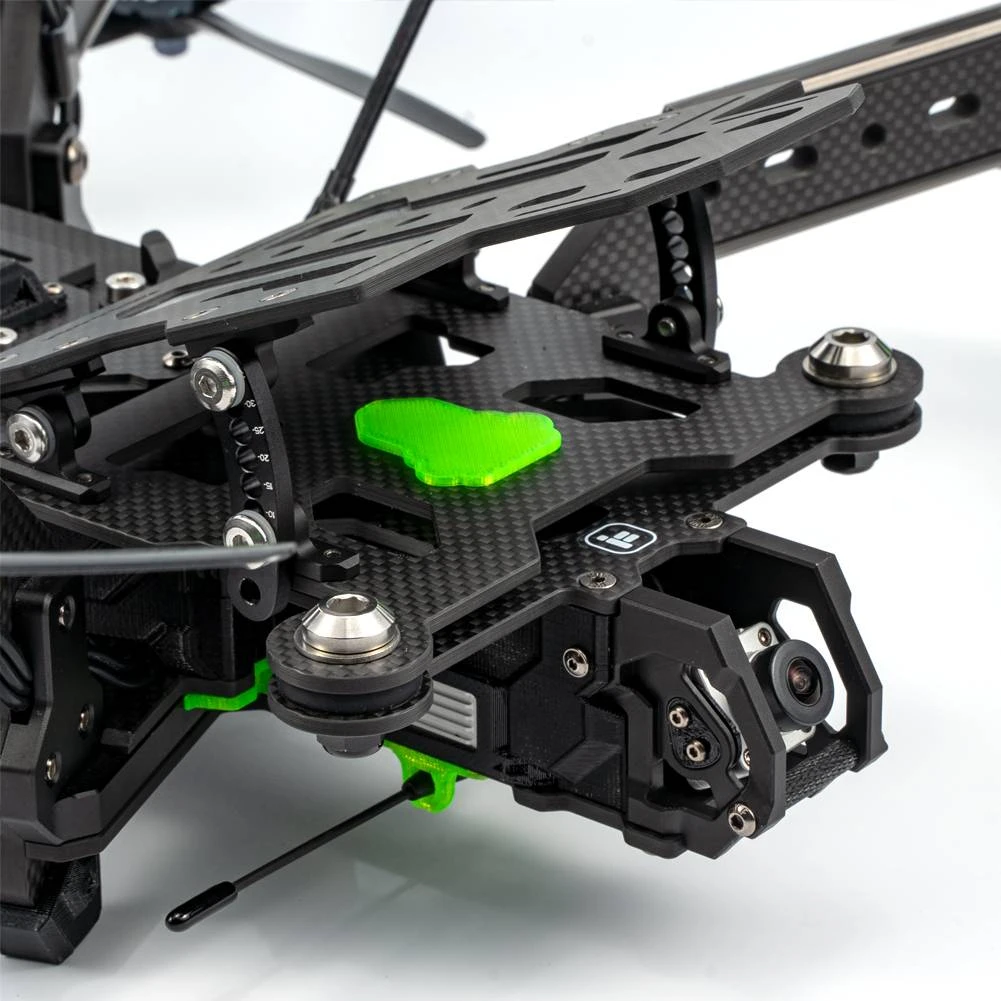

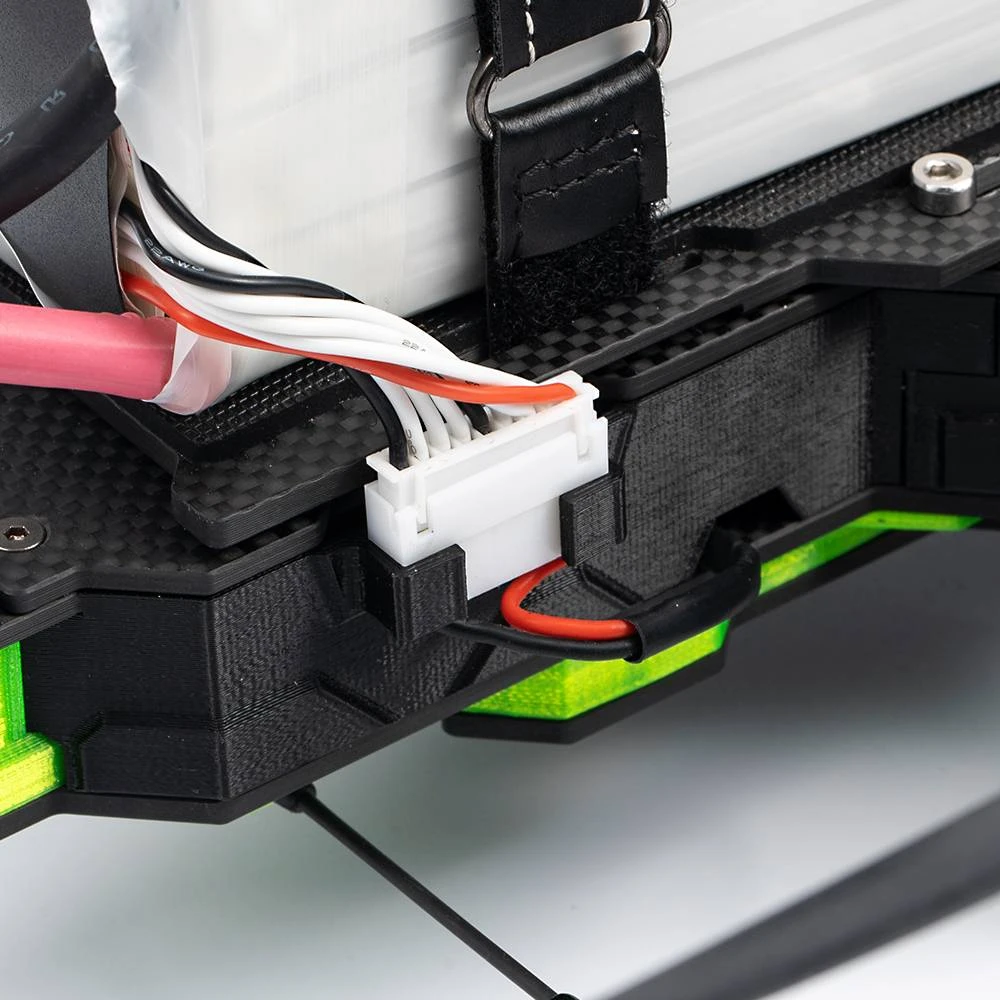

2kg maximum payload for a variety of top-mounted cameras and the ability to fine-adjust the stable mount for a perfectly balanced CG (Center of Gravity). The top mount 8S battery acts as a power source as well as a counterweight for most common cinema camera weights which can be easily exchanged with our iFlight battery quick-release mounting system. The adjustable CNC aluminum camera mount offers angles from 5 to 35 degrees and can be safely secured for reproducible outcomes. No jello, no jitter, no problem; Our silicon-ball dampened carbon camera base is decoupled from the rest of the frame to reduce the amount of vibration generated by motors and propellers. For the perfect cinematic shot, we recommend additional software stabilization in the post (Reelsteady, Gyroflow, etc.) or a hardware module (for example SteadXP).

PRE-TUNED AND PRE-SETUP

• Don’t worry about tuning, we did that for you already! A basic PID – and Filter tuning were applied for a great flight experience!
• Angle-Mode (self-balancing level mode) is enabled by default to make sure your first flight doesn’t end in a mess!
• To restore lost tunes or updates, please check our linked article on “Firmware/Factory Dumps”
• GPS Rescue is ON by default. Please check our linked article on “GPS Rescue Mode // Setup”
• Please check our linked article on “How to disable Angle-Mode, activate Acro-Mode”

• Receiver Options: DJI PNP or TBS Crossfire Diversity Nano RX

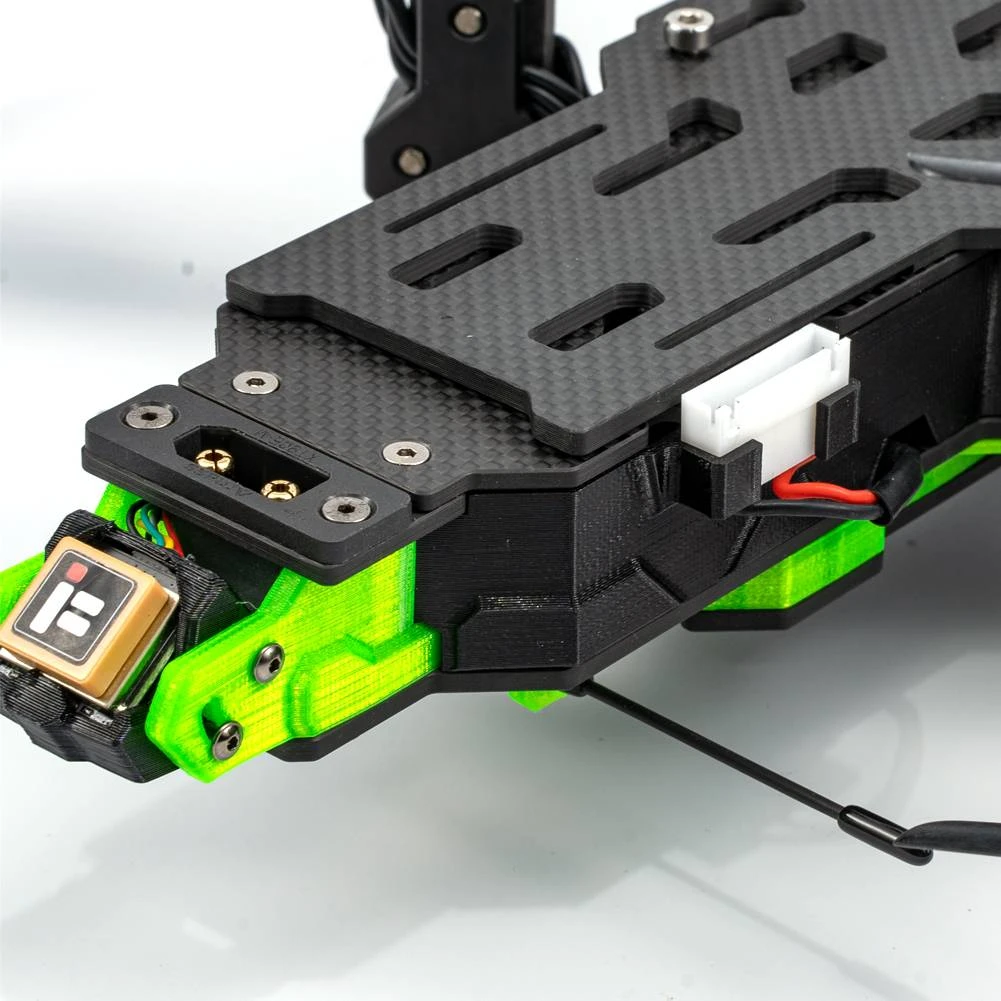

• GPS module: iFlight M8Q-5883-GPS & Compass V2.0 (LINK)
• Total Dimensions: 430mm*350mm (body dimension)
• Max Speed: 160km/h (13km/h with high payload)
• Flight Time: 6-8 Min (12 Min with no payload)
• Payload: 1-2kg (1-1.5kg is recommended)
• Upper(middle) plate thickness: 3.5mm
• Weight: 2.3kg±5g (without battery)
• Bottom plate thickness: 3.5mm
• BLITZ F7 Pro Flight Controller
• Motor: XING2 3110 900KV
• Top plate thickness: 3mm
• Arm Thickness: 8mm
• Propeller size: 8 inch
• Wheelbase: 450mm

BLITZ F7 PRO FLIGHT CONTROLLER

• Mount pattern: 35*35mm / 4mm PCB hole diameter
• Smart Audio / IRC Tramp VTX protocol supported
• Firmware target: IFLIGHT_BLITZ_F7_PRO
• BlackBox: 512MB Onboard
• Dimensions: 41*41.5mm
• BEC: 5V/2.5A, 12V/2A
• Barometer: DPS310
• OSD Chip: AT7456E
• LED controller: Yes
• MCU: STM32 F722
• Weight: 17g (±2)
• Beeper pad: Yes
• Gyro: MPU6000
• UARTS: 6

iFlight ESC COMMANDER PCB (8X SUCCEX X80A)

• Supports up to Dshot600, Proshot, Oneshot, Multishot
• Firmware Target: iFlight-BL32-PRO
• Up to 48kHz PWM frequency
• Mounting pattern: 40*17mm
• Constant: 80A / Burst: 100A
• Capacitance: 470uF/35V
• BlHeli32 telemetry: Yes
• Current Sensor: Yes
• Input: 2-8S LIPO
• Weight:8.1g
• MCU: F051
• BEC: No

IMPORTANT NOTES

• The DJI Remote Controller is recommended for beginners since you won’t need to set up another receiver, but it is also optional in this BNF drone because it is NOT required in order to use the FPV system. If you don’t choose to use the DJI Remote Controller, you can choose a receiver option for your transmitter and then bind it to your own radio as usual.
• iFlight takes no responsibility for issues with DJI or Caddx 3rd party gear (Video transmitters, Goggles, Radios, etc) and must be directly reported to www.caddxfpv.com/pages/contact-us or www.dji.com/support.
• All iFlight BNFs are tested before shipment to guarantee the highest quality.

• Lumenier 5200mAh 6S 120c CineLifter LiPo Battery – XT90
• Lumenier 4500mAh 6S 120c CineLifter LiPo Battery – XT90
• Lumenier 4000mAh 6S 120c CineLifter LiPo Battery – XT90

•   (Insert links such as manuals, firmware, etc)

• 1x iFlight Taurus X8 Pro 8S HD 8″ BNF Cinelifter Drone w/ DJI FPV Air Unit (Pre-built and Tested)
• 8x HQ 8X4X3 CW propeller + 8 x HQ 8X4X3 CW propeller (Color may vary)
• 2x Albatross LHCP 5.8GHz SMA FPV Antenna
• 1x XT90 Male to XT60 Female Adapter Wire
• 2x iFlight Lipo Strap 20*400mm (Black)
• 2x iFlight Lipo Strap 20*500mm (Black)
• 1x DJI FPV Air Unit Module + Camera
• 1x CNC Aluminum alloy cam mount
• 1x XT90 Smart Smoke Stopper
• 1x Prop Wrench
