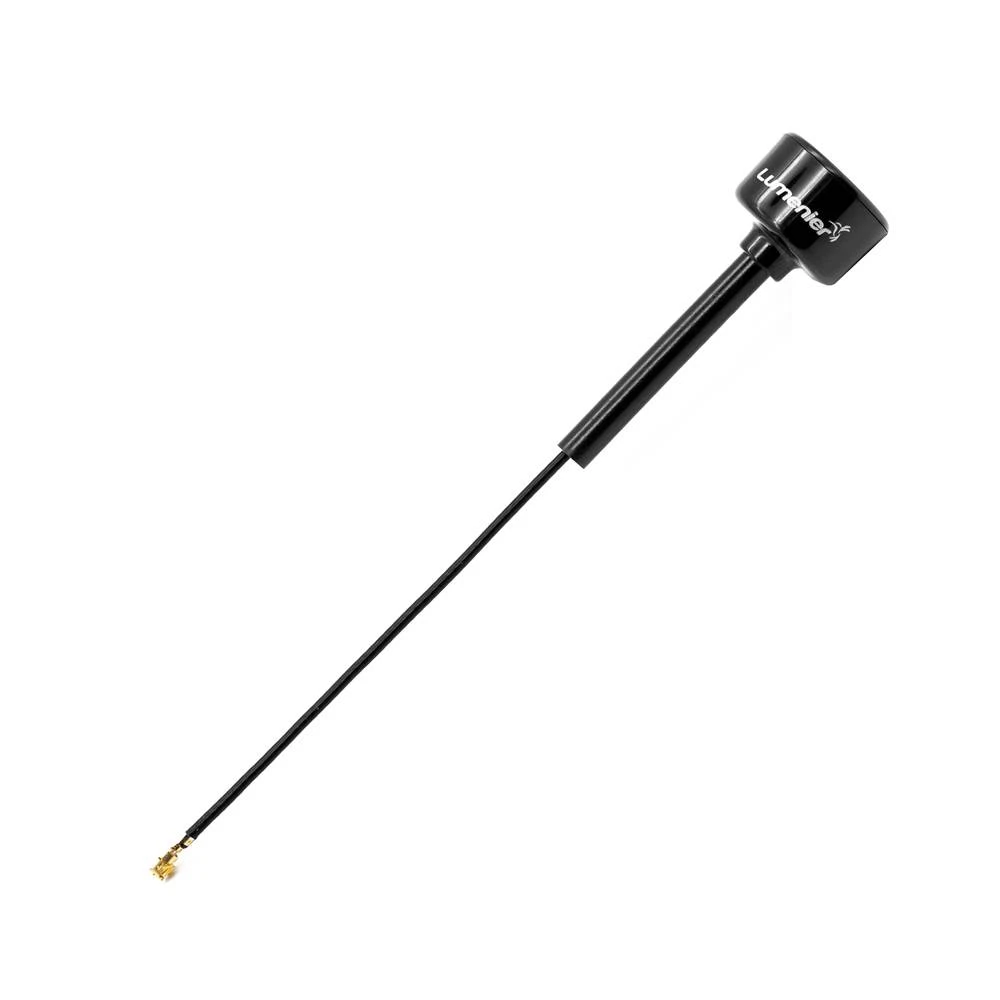

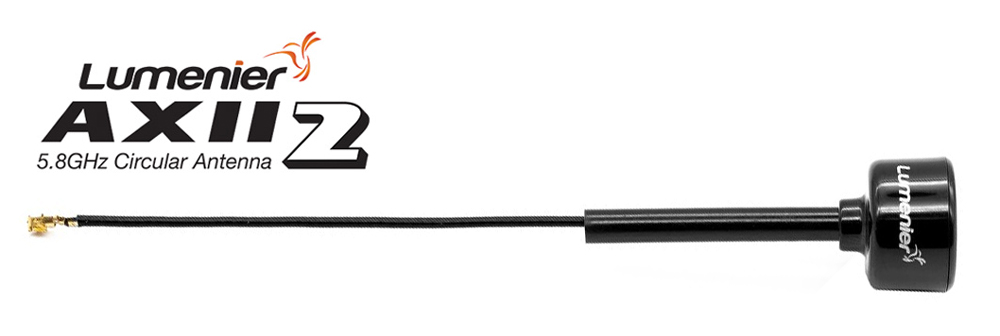

Lumenier AXII 2 U.FL 5.8GHz Antenna For Caddx Vista W/ Extended Wire – LHCP

The Lumenier AXII 2 U.FL 5.8GHz LHCP Antenna is an upgraded Vista version of the AXII 2… with extended wire!

The Lumenier AXII is known to be the most versatile and highest performing antenna line for FPV today. Lumenier has been able to improve on the best and make it even better!

The AXII 2 is still one of the smallest and lightest circular polarized antennas on the market, perfect for both lightweight racing builds and freestyle quads. Precision engineering has given this antenna a virtually perfect 1.0 Axial ratio resulting in a true circularity. On top of that, the AXII 2 has an amazing max gain of 2.2dBic, a true upgrade over the original AXII.

Features

• Significantly Improved Range with a Higher Gain (2.2dBic Gain)
• Compatible with other styles of 5.8GHz RHCP antennas
• Works great as both a transmitting or receiving antenna
• Cleaner Signal And Better Rejection to Interference
• More Durable – Improved Injection Molded Housing
• Upgraded Caddx Vista Version
• Wider Bandwidth (5.3-6.2GHz)
• Virtually Perfect Axial Ratio
• Extended Wire Length

Super Tough

Antennas take a lot of abuse, especially when put onto a quad. The AXII 2’s robust antenna housing is made out of injected molded polycarbonate, significantly improving durability compared to the original AXII housing. The flexible 45mm long RG178 cable allows for complete freedom in placement.

Specifications

• Axial ratio: 1.0 (near perfect)
• Bandwidth: 5.3GHz-6.2GHz
• Radiation Efficiency: 98%
• Cable: Flexible RG178
• Size: 96mm x 17mm
• Cable Length: 10cm
• Polarization: LHCP
• Connector: U.FL
• SWR: <=1.5:1
• Gain: 2.2dbic
• Weight: 2.2g

Note: When installing, secure the antenna via the SMA connector, do not twist the cap.

Includes

• 1x Lumenier AXII 2 U.FL 5.8GHz Antenna for Caddx Vista w/ Extended Wire – LHCP
