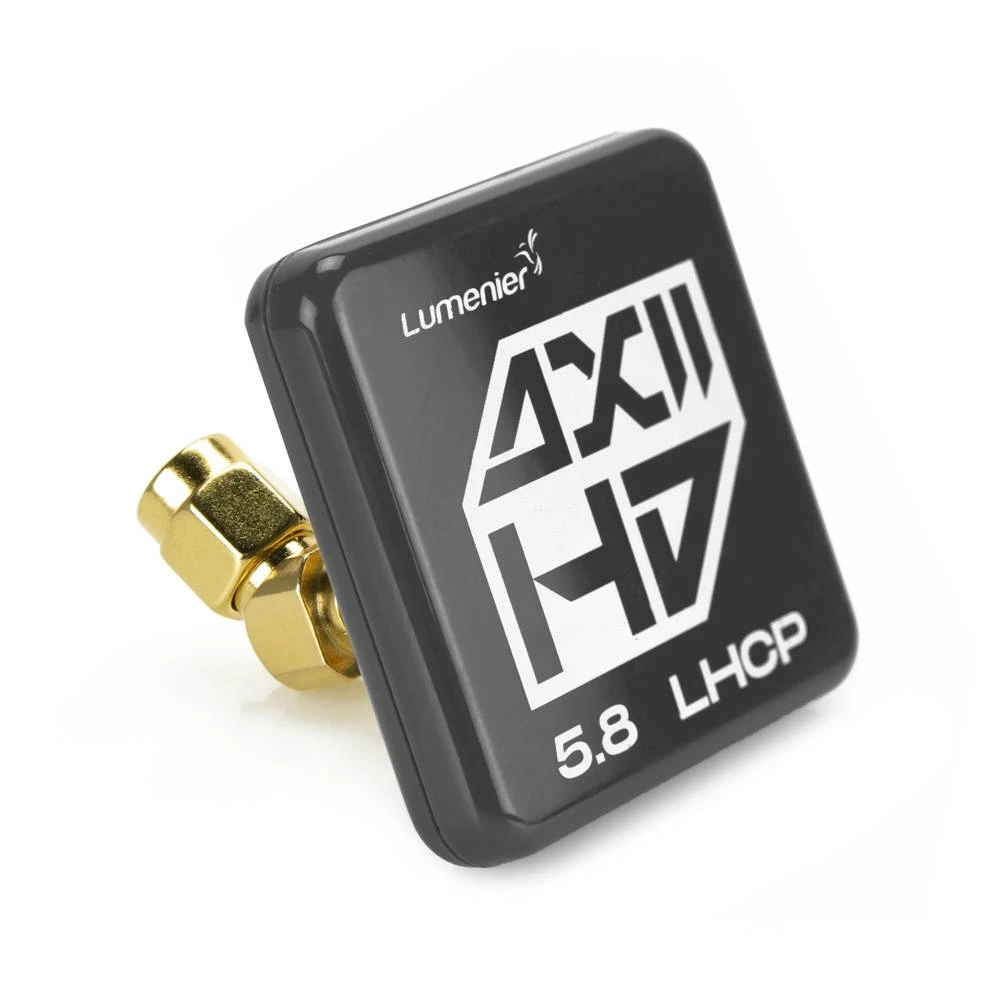

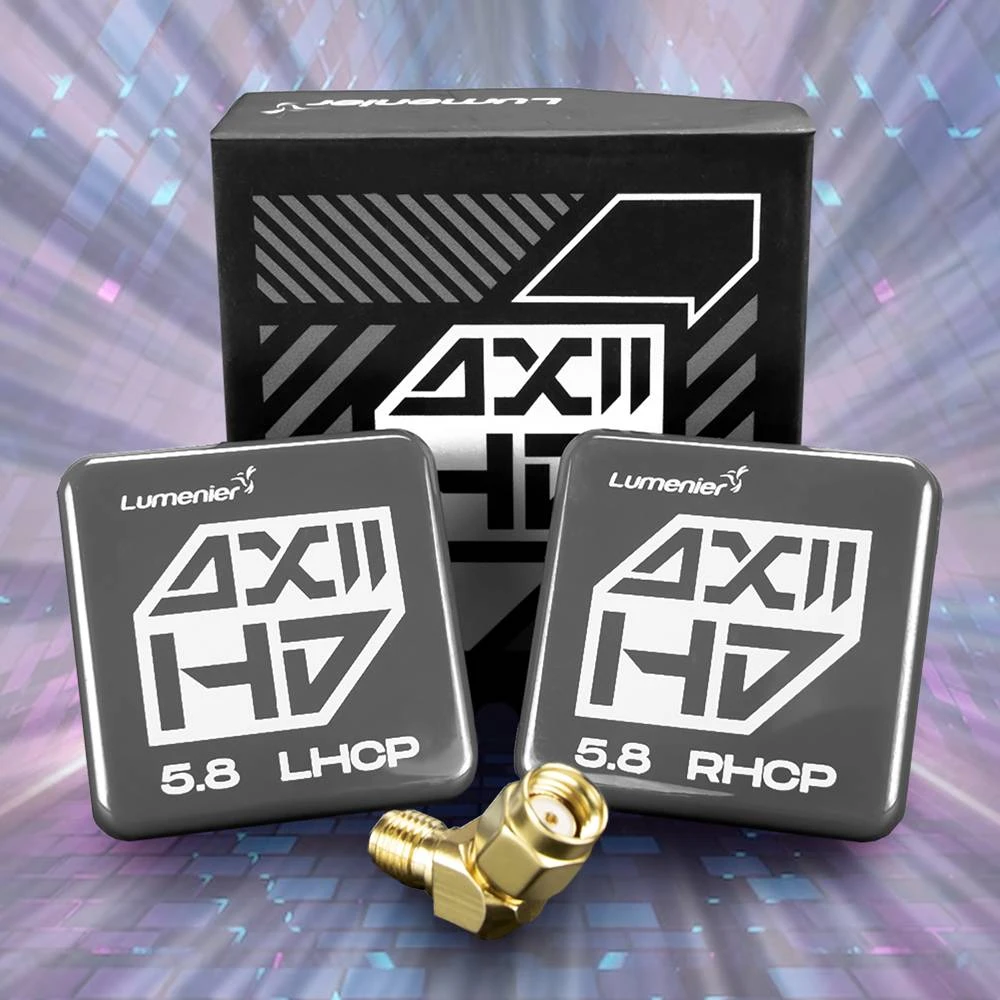

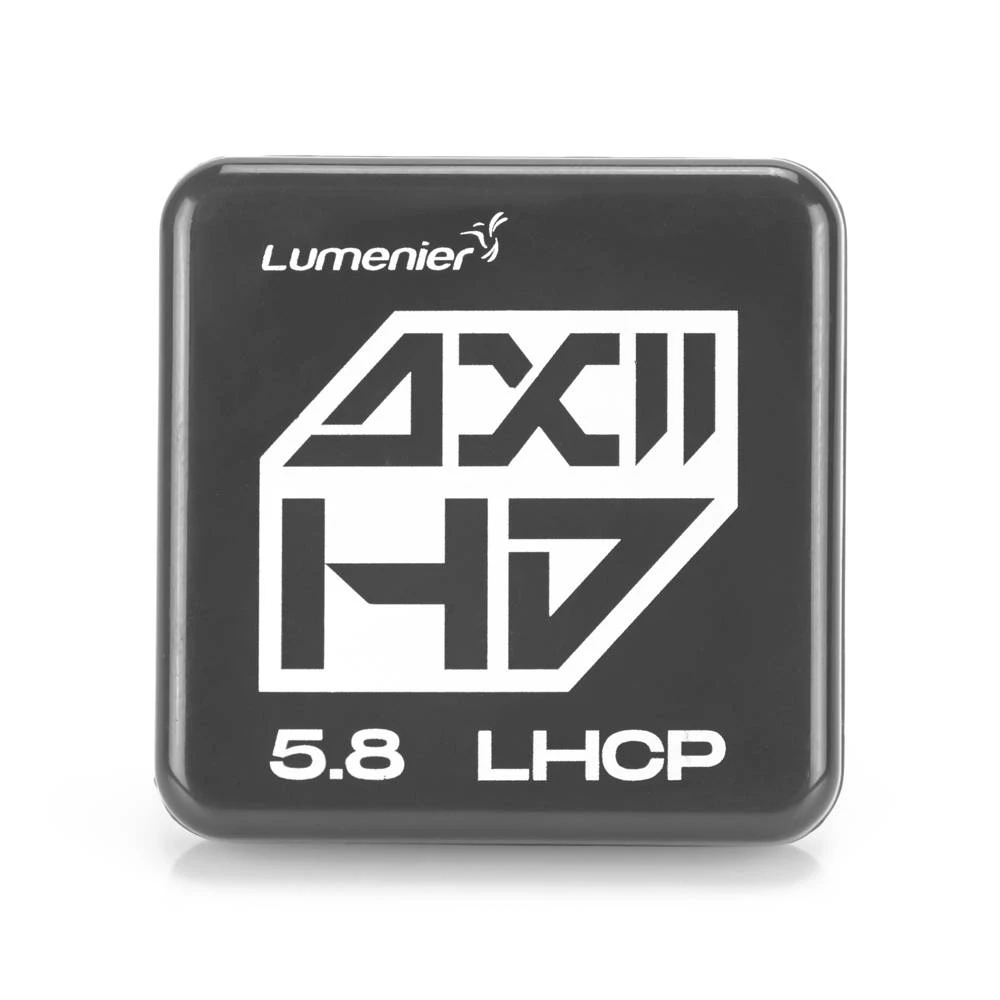

Lumenier AXII Patch HD 5.8GHz Antenna – LHCP

 The Lumenier AXII Patch HD 5.8GHz Antenna offers you the highest performance you can get from a mini patch antenna designed for FPV. The Lumenier AXII Patch HD has an industry-leading 8.4 dBiC gain for long-range flying and excellent penetration through objects compared to standard omnidirectional FPV antennas. It also features a best-in-class 95% efficiency (most mini patch antennas are below 75%), which means you get amazing performance and the best picture in your video goggles. Lumenier, designed in collaboration with renowned FPV antenna designer Hugo of TrueRC, brings you the Lumenier AXII HD 5.8GHz Patch Antenna.

The Lumenier AXII Patch HD Antenna features an ultra-thin active element suspended above the reflector, which allows for a higher velocity factor and lowers losses. This technology along with precision manufacturing results in a top-of-the-line receiving antenna. It works great on both video goggles or ground stations for 5.8GHz and is capable of receiving signals up to many miles away. The included 45° Adapter allows for better reception and the LHCP polarization is great for the DJI FPV Goggles V2.

Note: (Insert any product notes here in Red BOLD Italic. Example: “First Shipment expected January 2022” or “Electronics are Not Included”.)

VIDEO: (Insert Video Title here in Bold)

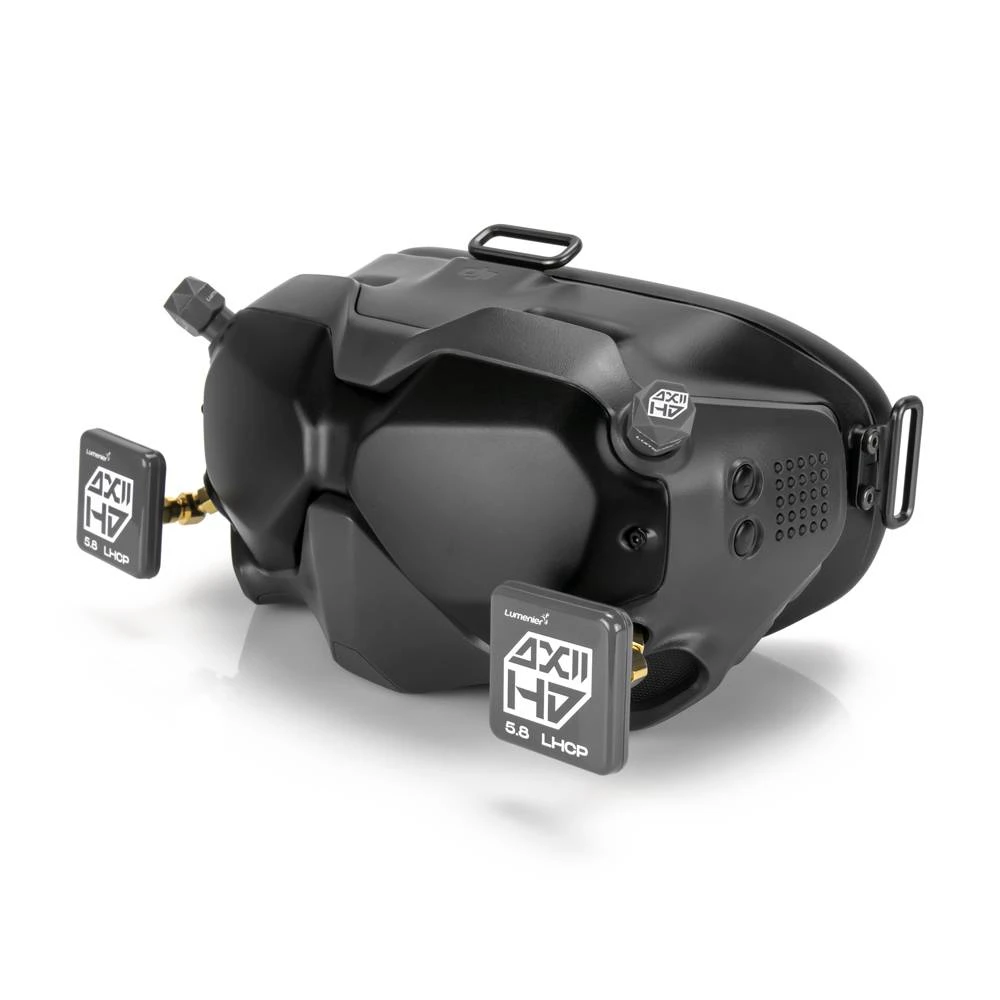

• RP-SMA Connector works with DJI FPV Goggles V2, Fat Shark Dominator Goggles, Walksnail Avatar Goggles, and more
• Compact low-profile design on your goggles
• Designed for goggles or base stations
• Left Hand Circularly Polarized

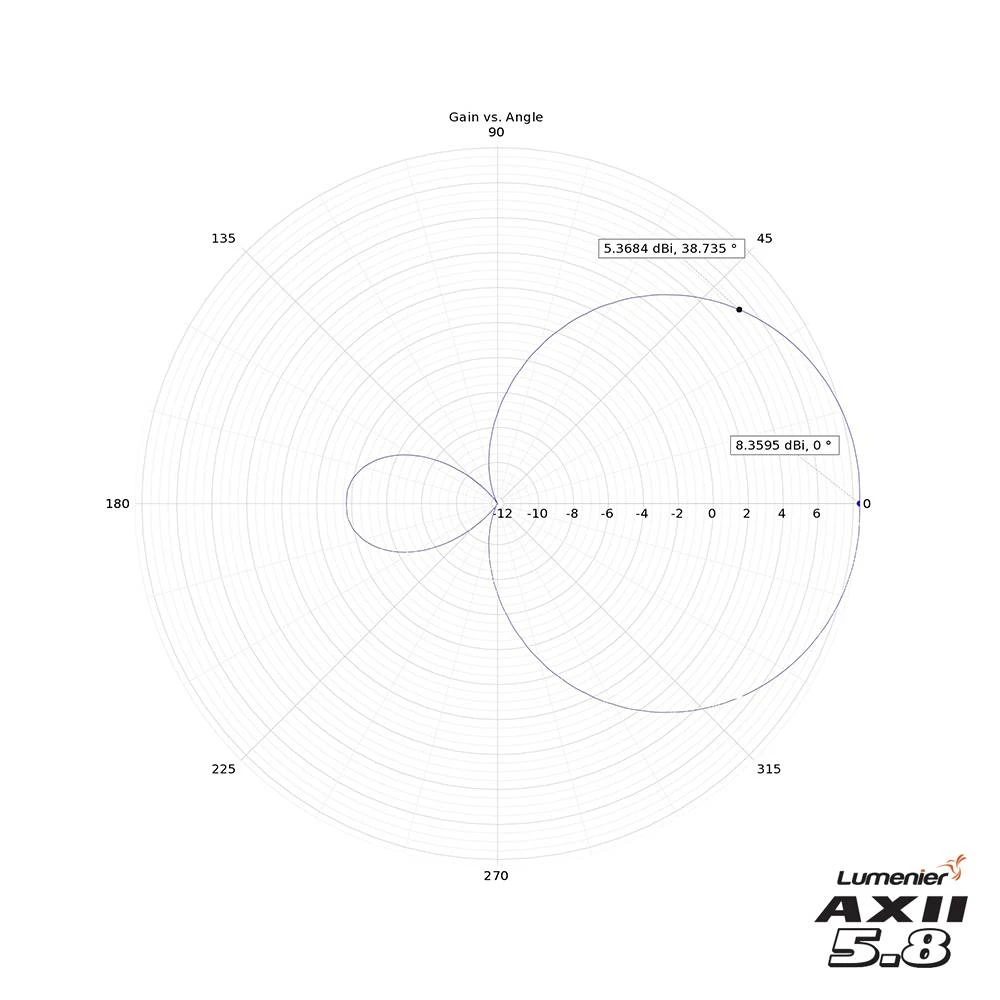

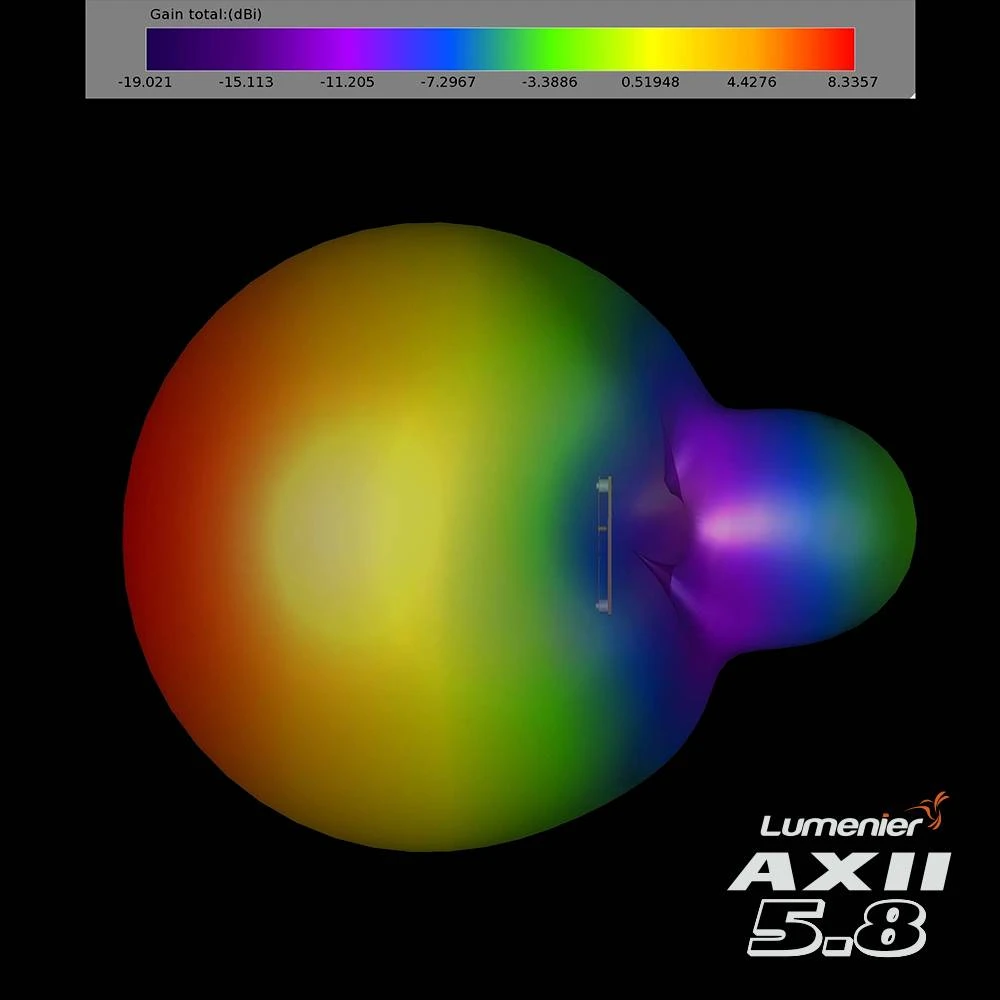

• Wide 76-degree beam width
• Incredible 95% efficient
• AXII Patch HD Antenna
• 45° Adapter included
• High 8.4 dBiC

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

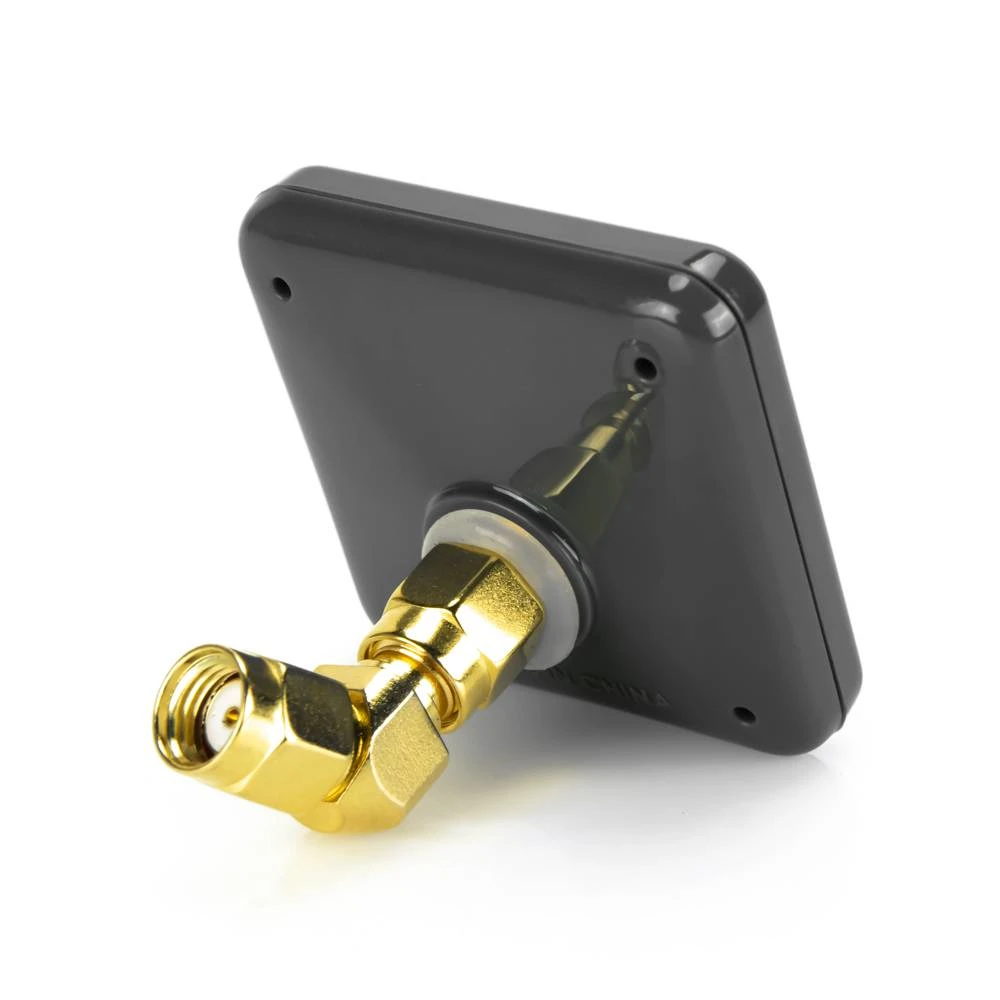

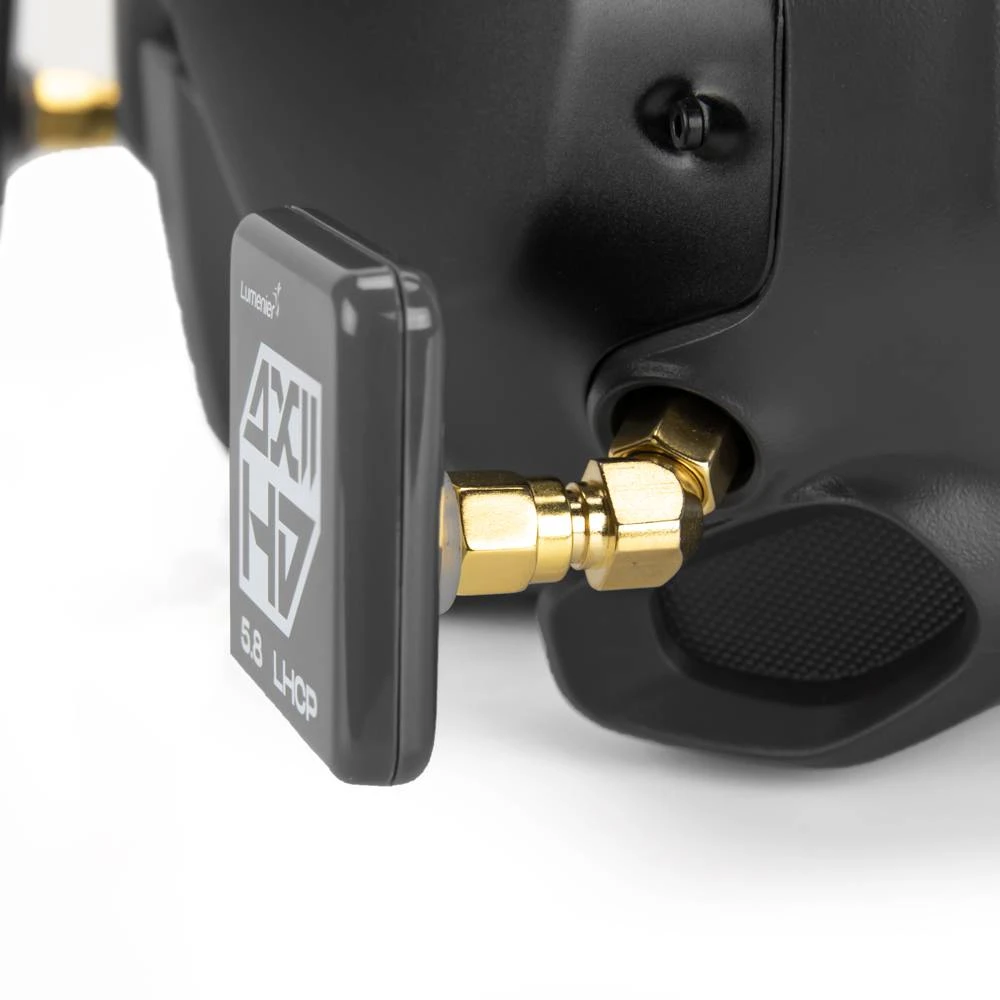

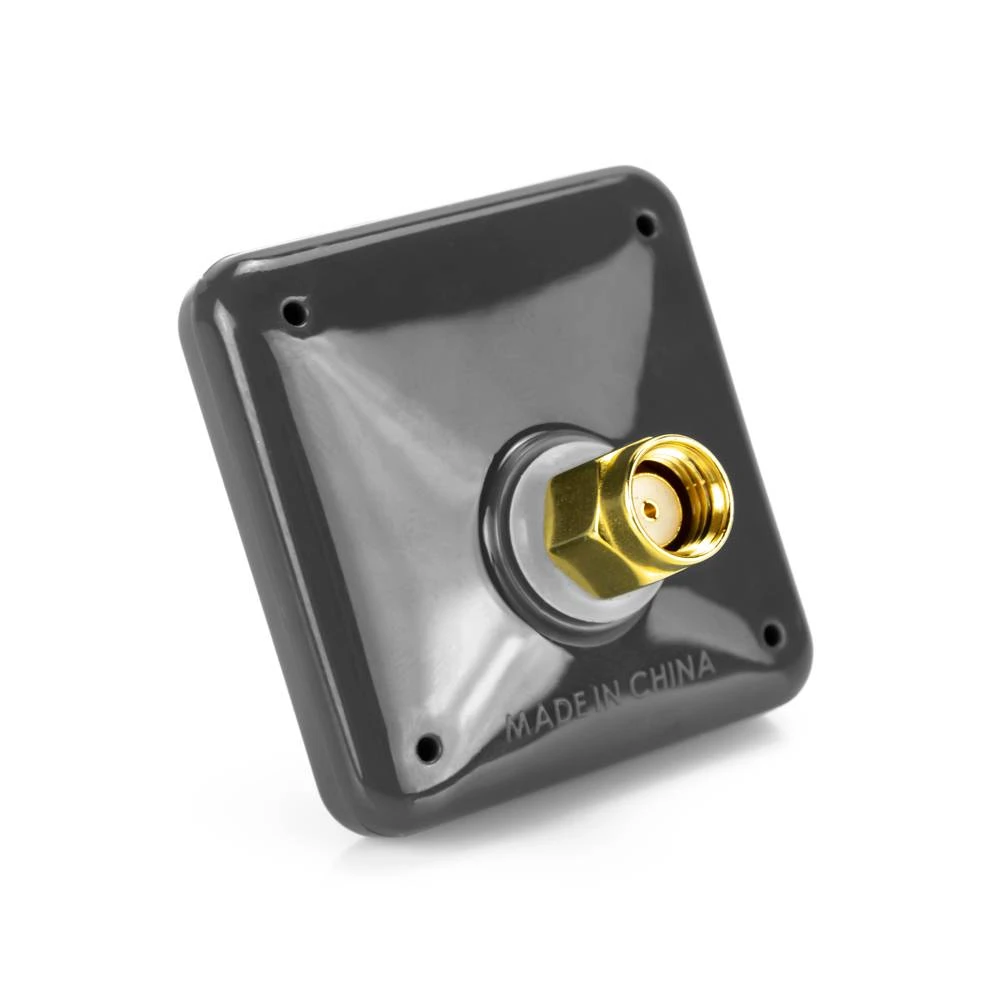

• Connector: RP-SMA Connector with 45° Adapter (Fits DJI FPV Goggles V2, Fat Shark Dominator, and others using RP-SMA)

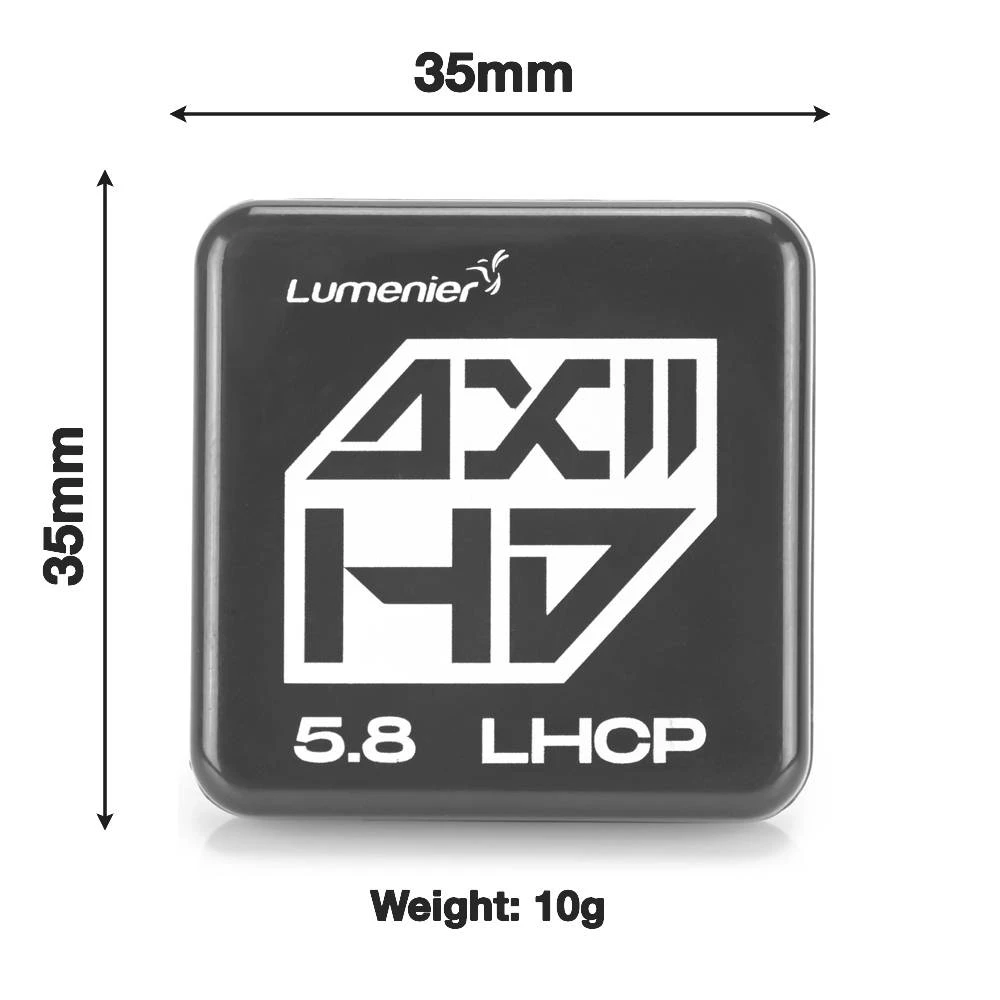

• Dimensions: 35mm x 35mm x 9mm (20mm with RP-SMA / 36mm with RP-SMA + Adapter)
• Polarization: Left Hand Circularly Polarized (LHCP)
• Weight: 10g without adapter/ 16g with adapter
• Model: AXII Patch HD
• Bandwidth: 220 Mhz
• Frequency: 5.8GHz
• Beam Width: 76°
• Gain: 8.4 dBiC
• Color: Gray

IMPORTANT NOTES

• Insert important warnings or notes here. Example: “Do not overheat.” or “Always use the included charger for best performance.”

•  (Insert recommended products here. Example: “Battery: Lumenier 10000mAh 6s 25c Lipo Battery”)

•   (Insert links such as manuals, firmware, etc)

• 1x Lumenier AXII Patch HD 5.8GHz Antenna  – LHCP

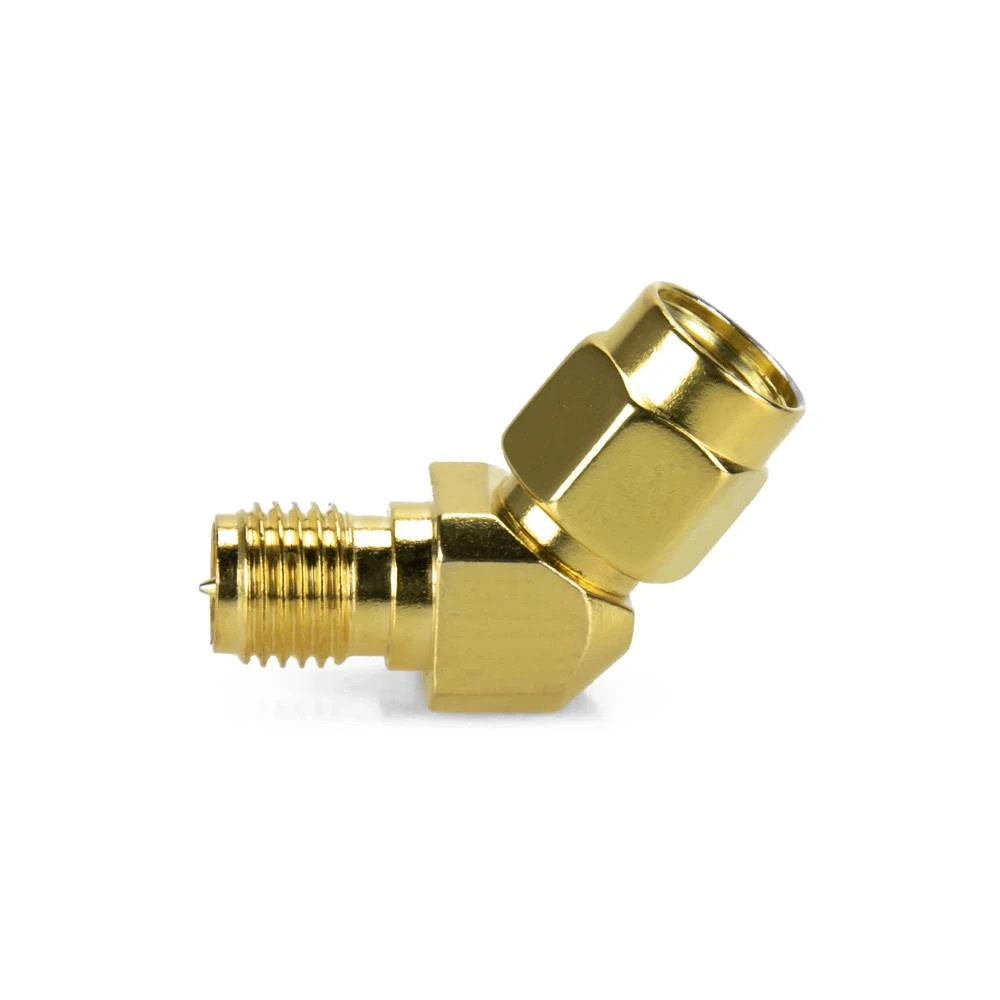

• 1x RP-SMA 45° Adapter
