Lumenier DX600 DVR

A small and compact Digital Video Recorder (DVR) for your FPV ground station. Record your flight video with ease with the Lumenier DX600 DVR, featuring a 1 button record mode, full color LCD screen and SD card recording.

Features

• Display: 2.5 TFT LCD
• Video Input: Supports both NTSC and PAL standards
• Video Recording Format: MPEG-4 CODEC in an AVI file container
• Video Resolution: 720 x 480 pixels at 30fps (NTSC) or 720 x 576 pixels at 25fps (PAL)
• Memory: Standard size SD cards up to 32G. “Class 10” cards are recommended for best performance
• Recording Time: Approximately 45 minutes of video for each 1 gig of SD storage space
• Audio Recording: The DX600 is capable of recording audio with a built in microphone
• Photo Mode: Yes (JPEG)
• Audio/Video out: RCA 3-in-1 AV output, one AV cable includes power supply for external camera or other device (Voltage: 5V max. current: 400 mA max)
• PC Interface: USB 2.0
• Operating Current: 180mA
• Battery Type: DC 3.6V/1Amp lithium-iron battery
• Battery Lifetime: Up to 3 hours (including external CCD power). Device consumes 200ma
• Vibration Alert: The DX600 features a vibration alert function which notifies you of a lost video signal, missing SD card, and Video recording “start” and “stop”
• Recording Max BPS: 10M
• Date based file names: File names are using time at which the file was created. Files are stored in folders named with the day’s date.
• Motion detection: Yes. Enables the DVR to start recording when camera motion is detected.

Specifications

• Dimensions: 78mm*51mm*22mm;
• Weight: 85g including battery

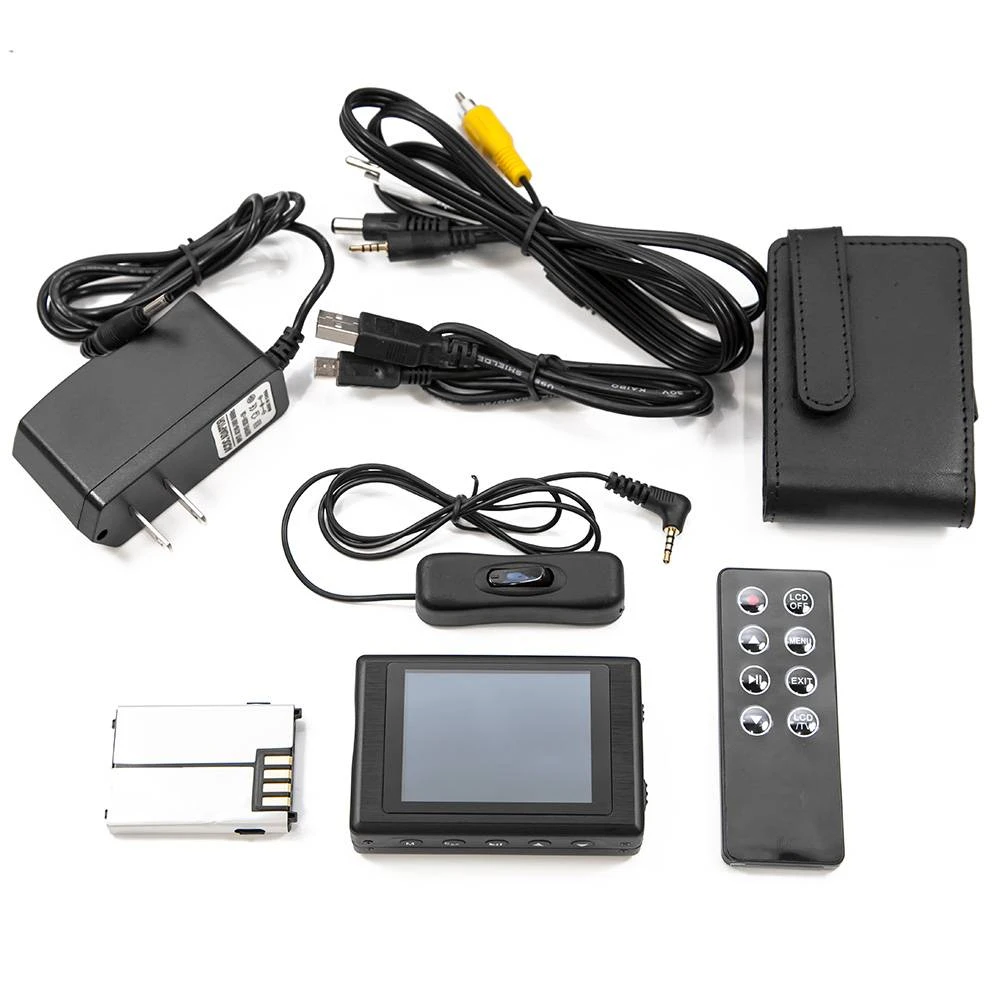

Includes

• Lumenier DVR Unit
• IR Remote Control
• AC Adapter
• Leather Case
• AV-IN/Out Cable
• USB Cable
• Wired recording switch cable
• 1000mAh Lithium Battery

Note: You will need an SD Memory Card to be able to record audio/video. We recommend a Class 10 SD card, anywhere from 1GB to 32GB. 45 minutes to 1 hour on a 1GB card.

The manual is available here.
