Lumenier LUX Mini 20×20 5.8GHz FPV Video Transmitter (25-800mW)
Original price was: $34.99.$24.49Current price is: $24.49.
- Nature-friendly materials, for a better planet.
- SSL encryption, absolutely safe shopping
- Expertly Sourced, Quality Guaranteed
- Shop with Peace of Mind

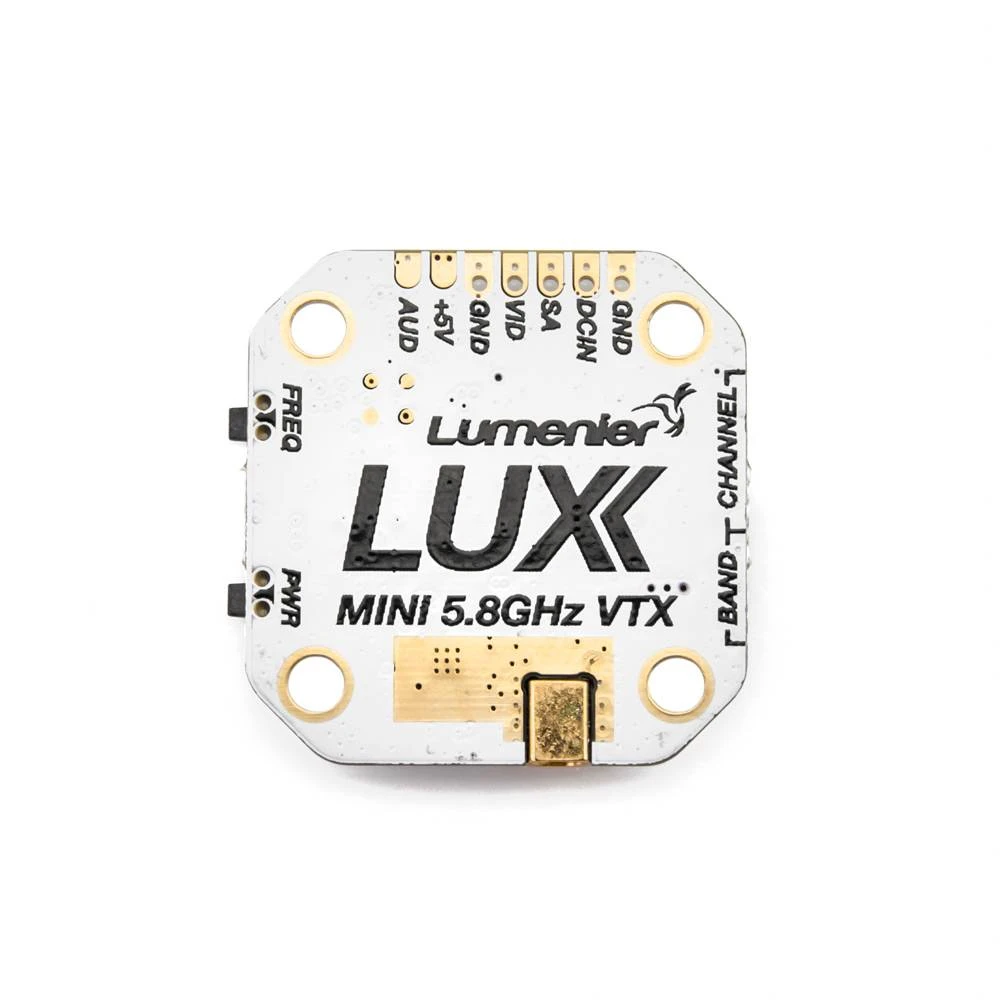

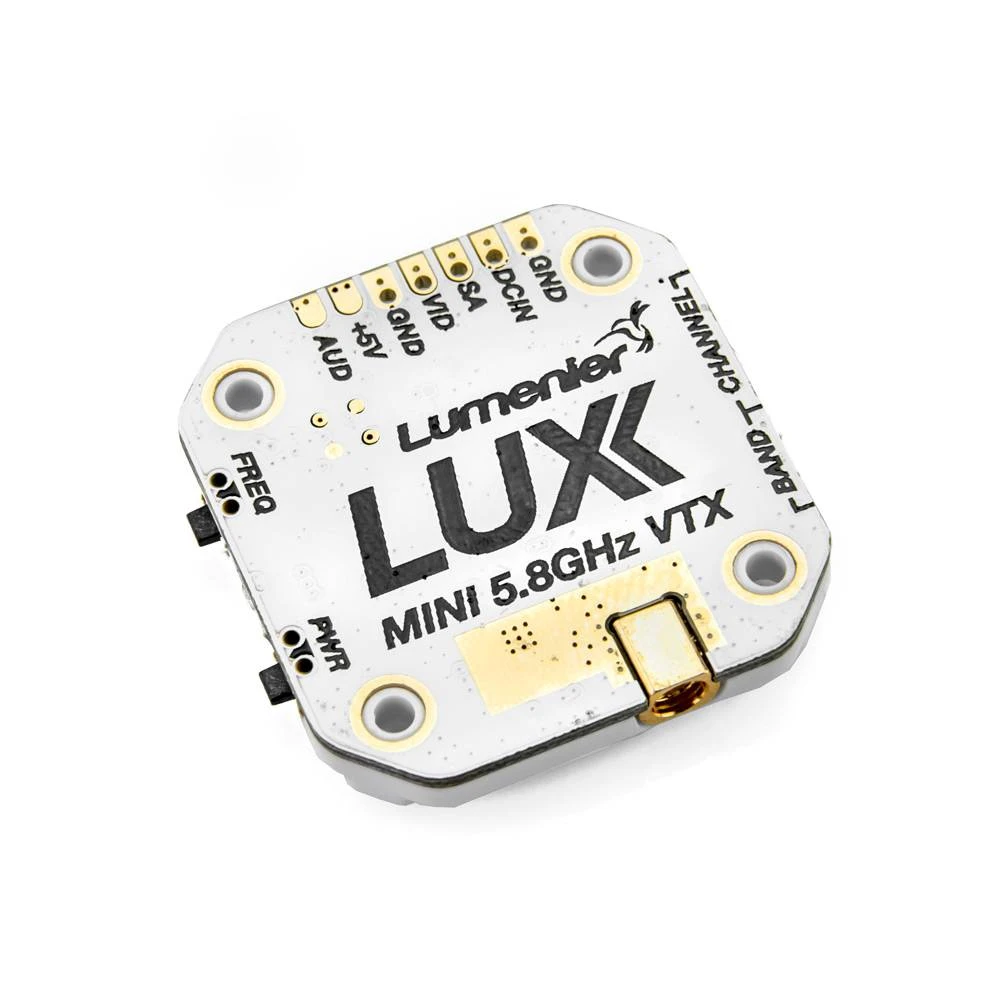

The Lumenier LUX Mini brings high-powered video transmission into a tiny 20×20 package. The LUX Mini is a 5.8GHz VTX with five adjustable levels of transmitting power: PIT/25/200/500/800 mW. The side of the VTX has an easy-to-see row of LEDs for quick band and channel visibility so you always know where you are transmitting.

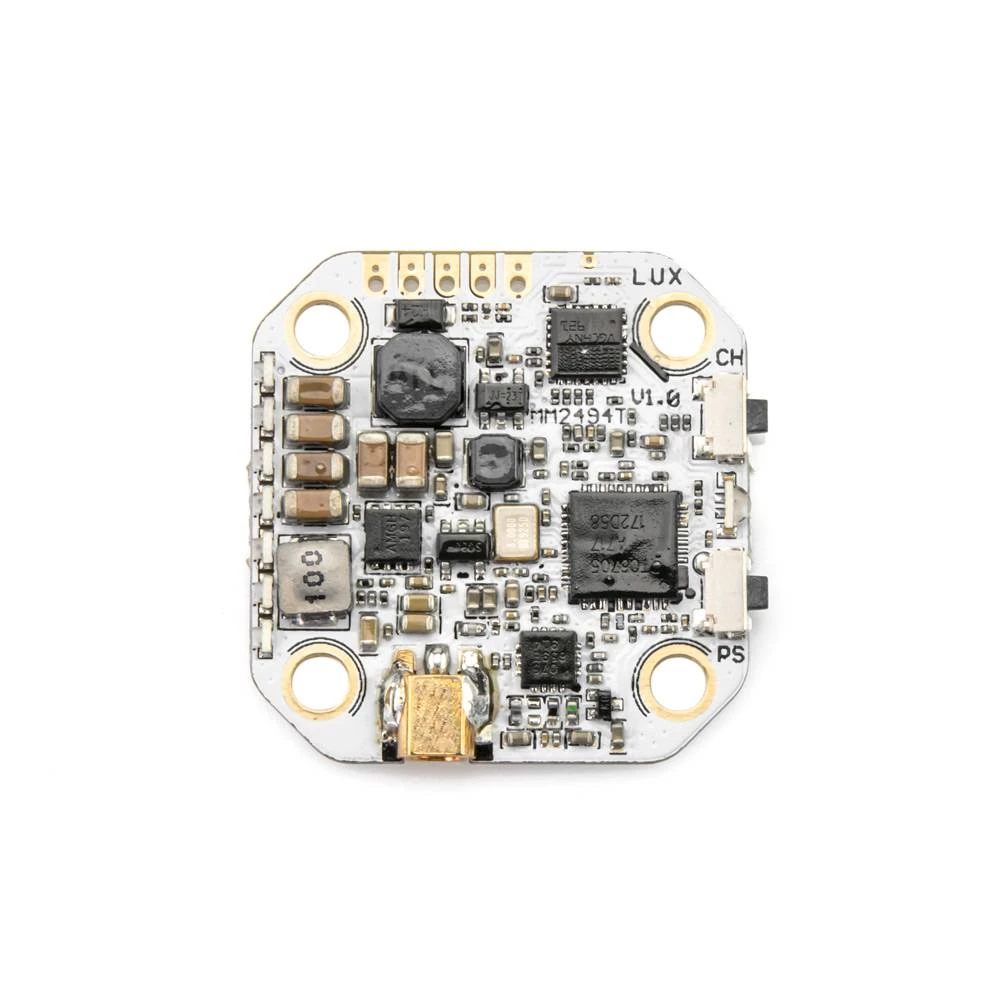

In addition to the incredible power output in such a small package the LUX Mini VTX has “Smart Audio” included, allowing you to remotely change settings on the VTX like power output, frequency and more via Betaflight OSD controls. The entire board is also conformal coated for added protection during operation.

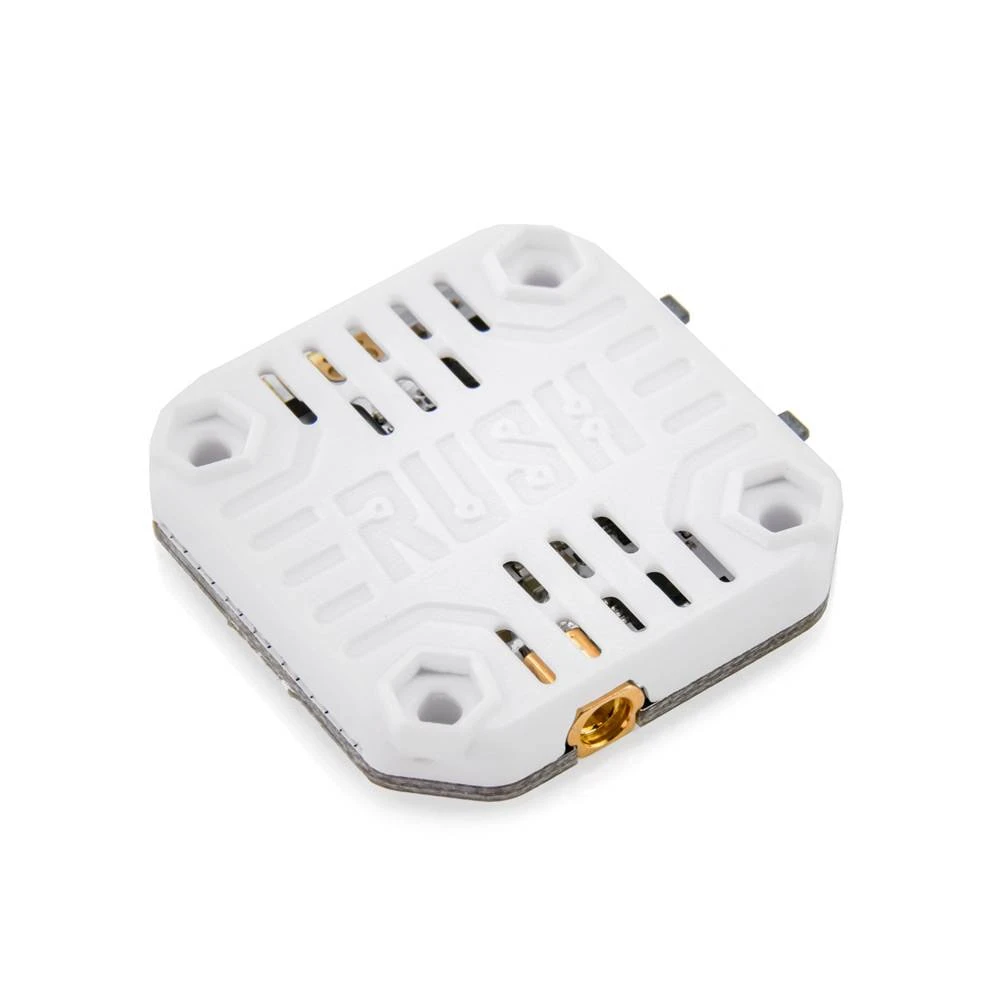

The LUX Mini Video Transmitter comes with a full set of mounting hardware, MMCX whip antenna and high quality silicone wire to solder to. The white plastic case acts as a protective cover to the VTX, and also reduces the mounting hole size from M3 to M2. This gives you 2 different ways to mount it with either full size M3 screws, or micro sized M2 screws. This video transmitter works perfectly on both micro and full sized builds!
And of course, it comes in white to match all your other LUX gear!
Features
- Compact 20×20 stackable design
- Variable power from 25mW to 800mW + Pit Mode
- Mounts with M3 or M2 hardware
- Conformal coated for added protection
- Licensed Smart Audio from TBS
- Optional protective cover included
Specifications
- Input Voltage: 7-36V DC
- Output Voltage: 5V 1A
- @12V Input Current: 40mA@Pitmode, 95mA@25mW, 185mA@200mW, 250mA@500mW, 380mA@800mW
- Channels: 48CH including RaceBand
- Power: PIT/25/200/500/800 mW
- Installation Hole: M3, (M2 with plastic cover) 20*20mm
- Dimensions: 28*28*3.3 mm
- Weight: 4.46g(without cover), 5.4g(with cover)
Downloads
Download the LUX Mini VTX User Manual here.
BETAFLIGHT VTX Table to enter in CLI (FCC):
vtxtable bands 5 vtxtable channels 8 vtxtable band 1 BOSCAM_A A FACTORY 5865 5845 5825 5805 5785 5765 5745 5725 vtxtable band 2 BOSCAM_B B FACTORY 5733 5752 5771 5790 5809 5828 5847 5866 vtxtable band 3 BOSCAM_E E FACTORY 5705 5685 5665 0 5885 5905 5925 0 vtxtable band 4 FATSHARK F FACTORY 5740 5760 5780 5800 5820 5840 5860 5880 vtxtable band 5 RACEBAND R FACTORY 5658 5695 5732 5769 5806 5843 5880 5917 vtxtable powerlevels 4 vtxtable powervalues 14 23 27 29 vtxtable powerlabels 25 200 500 800 save

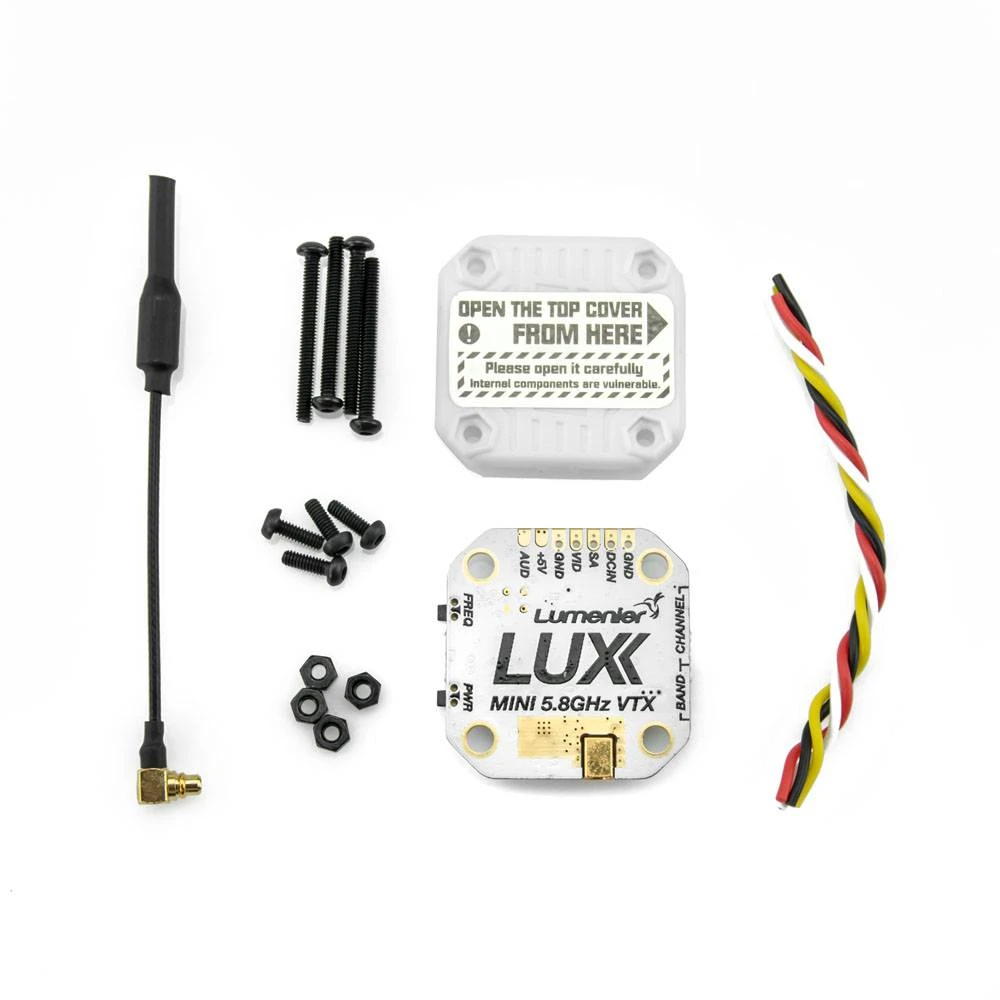

Includes
- 1 x LUX Mini VTX
- 1 x Protective Cover
- 1 x MMCX Dipole Antenna
- 1 x Wire Set
- 1 x Hardware Set
FPV Regulatory Notice
The use and operation of this type of product in the USA and many other countries may require a license and some countries may forbid its use entirely. In the USA, you will need a “HAM” amateur radio license. Learn more about HAM licenses, and find a HAM license exam session in your area. It is your responsibility to ensure that the use of this product meets the requirements imposed by your government’s rules and regulations for RF devices. Do not purchase this product if you are unsure of the government requirements or are not able to comply with them. GetFPV cannot be held responsible for your actions if you purchase and/or use this product in violation of your government’s regulations. By agreeing to our terms and conditions during the check-out process, you also agree to have read and to understand this notice.
| SKU | 11135 |
|---|---|
| Manufacturer | Lumenier |
| Mounting Pattern | 20x20mm (Micro) |
| Frequencies | 5.8GHz |
| UPC (GTIN) | 082652058158 |
| Item Returns | This item can be returned |
