Lumenier QAV-CINE 3" Quadcopter RTF W/ DJI Digital HD FPV System – 6S

Lumenier QAV-CINE 3″ Quadcopter RTF w/ DJI Digital HD FPV System – 6S

Features

• Equipped with Lumenier 1507.2 2400KV Turbine Motor (6S LiPo recommended)
• RTF is fully built and test-flown by our technicians at our Florida facility.
• Ultra-smooth resin printed propeller ducts for improved performance
• Advanced and future proof LUX MINI F7 Flight Controller
• Equipped with the advanced DJI Digital HD FPV System
• Pre-installed foam bumpers for incredible durability
• Pre-tuned with butter-smooth freestyle settings
• Lumenier Micro Razor 4-in-1 ESC
• Indestructible Kevlar battery strap

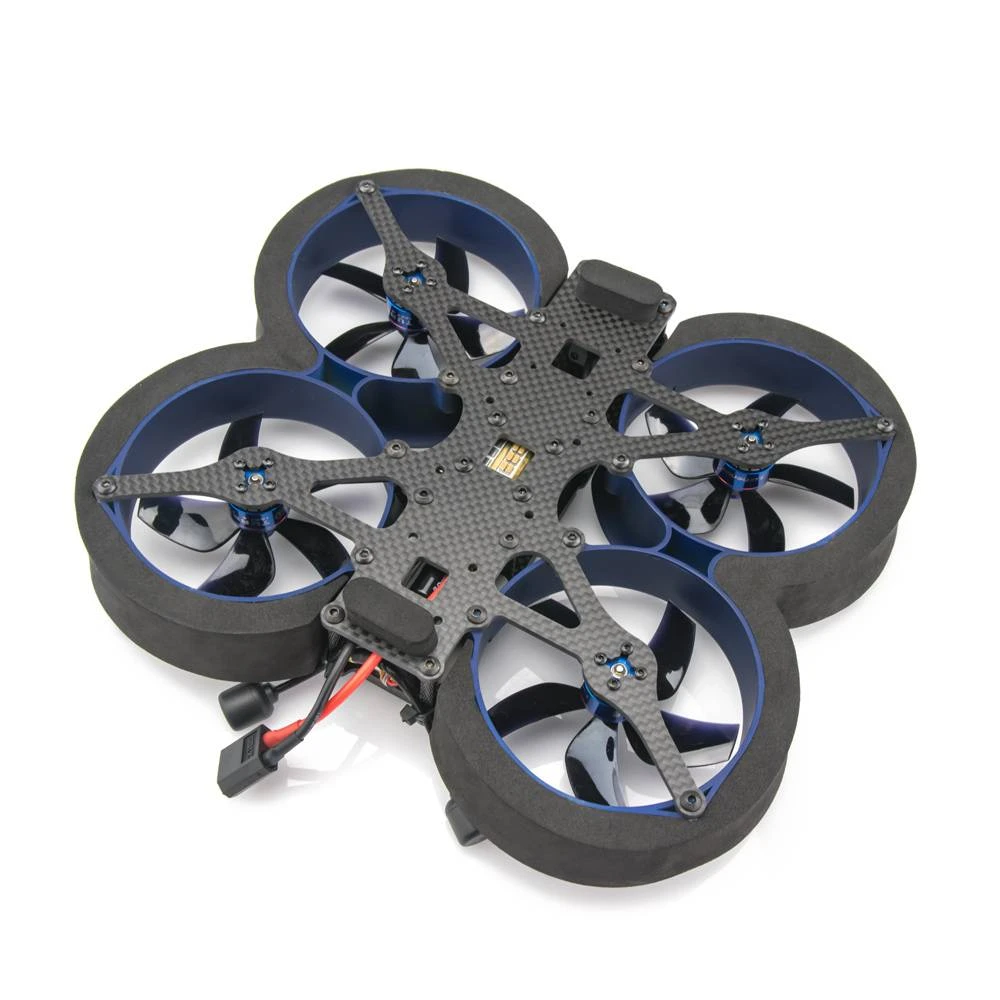

• Full 3K Carbon Fiber airframe
• Silicone non-slip battery pad

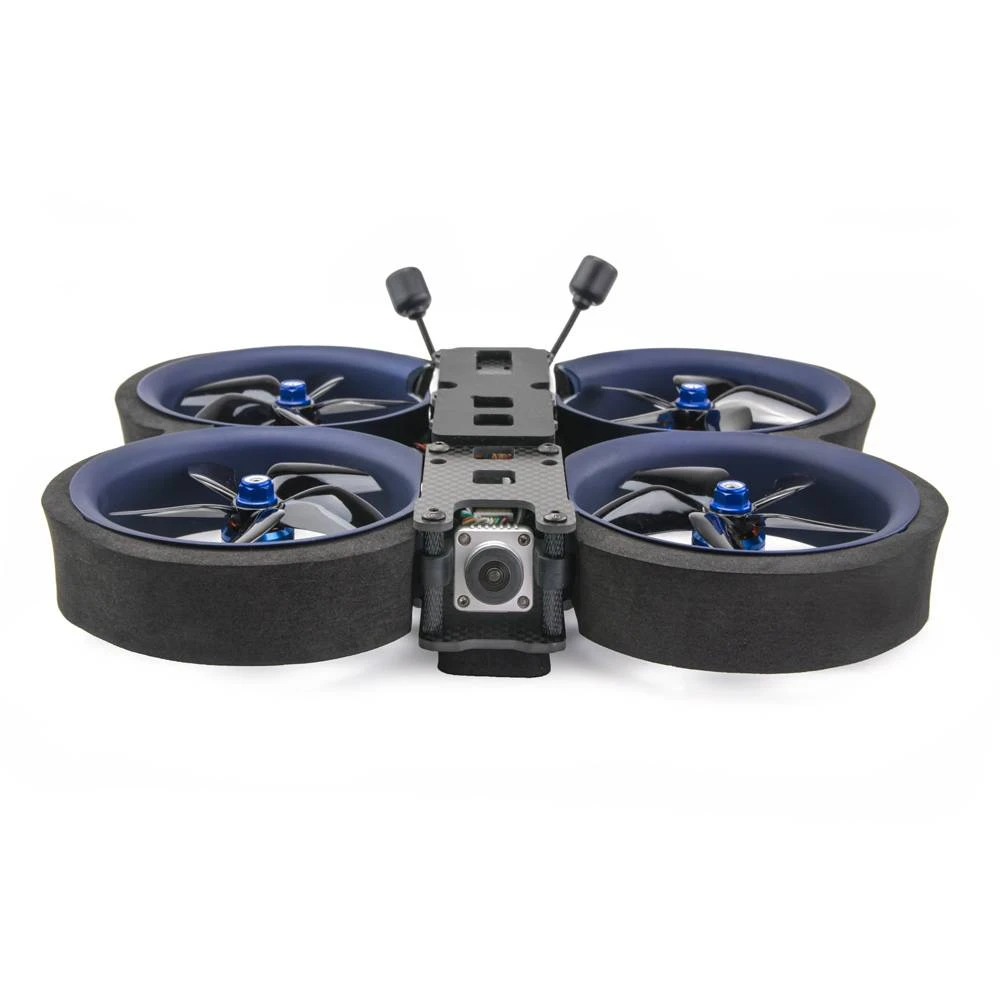

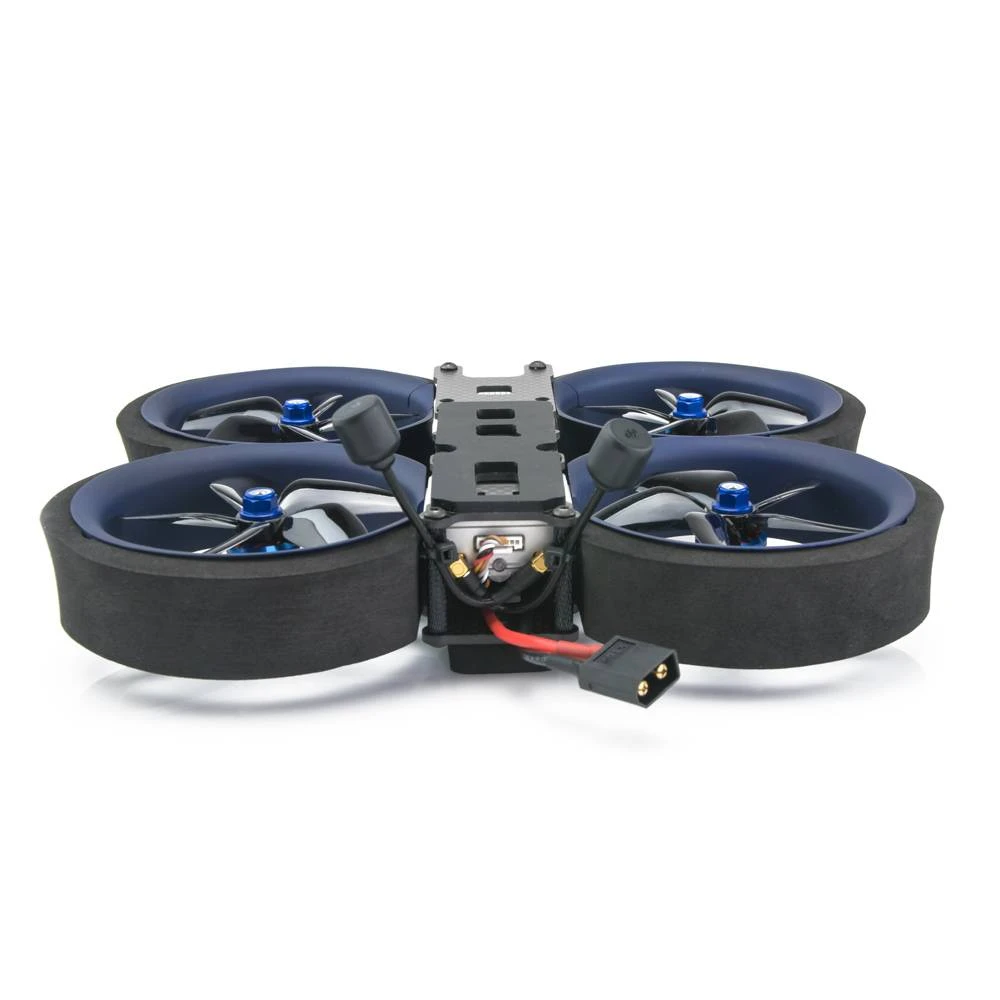

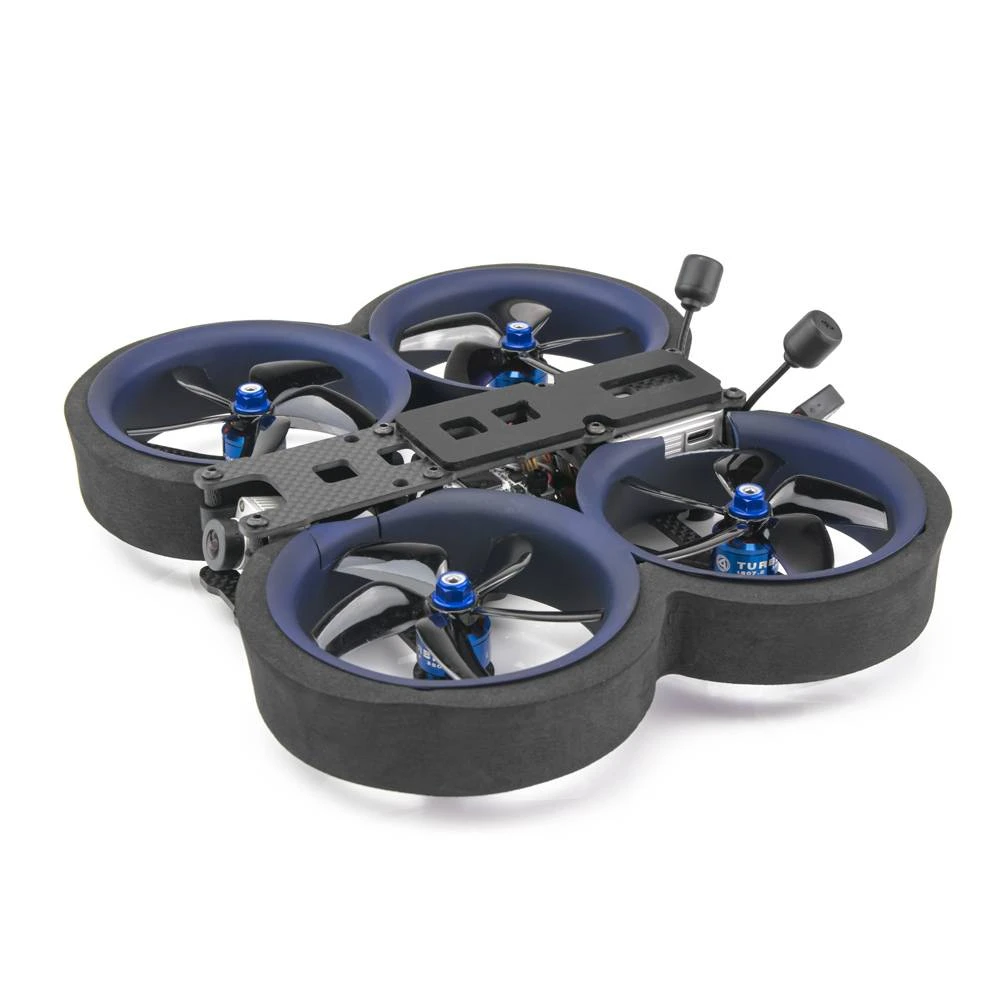

This is the Lumenier QAV-CINE 3″ Quadcopter RTF. Fully built, tuned, and ready to fly out of the box. Simply add your own radio, battery, and goggles, and go fly! This  QAV-CINE 3″ Quadcopter RTF features premium components like the DJI Digital HD FPV System, Lumenier 1507.2 2400KV Turbine Motor, Lumenier LUX MINI F7 Flight Controller, Lumenier Micro Razor 20×20 4-in-1 ESC, and the DJI FPV Air Unit Antenna (MMCX 90°).

About the Airframe

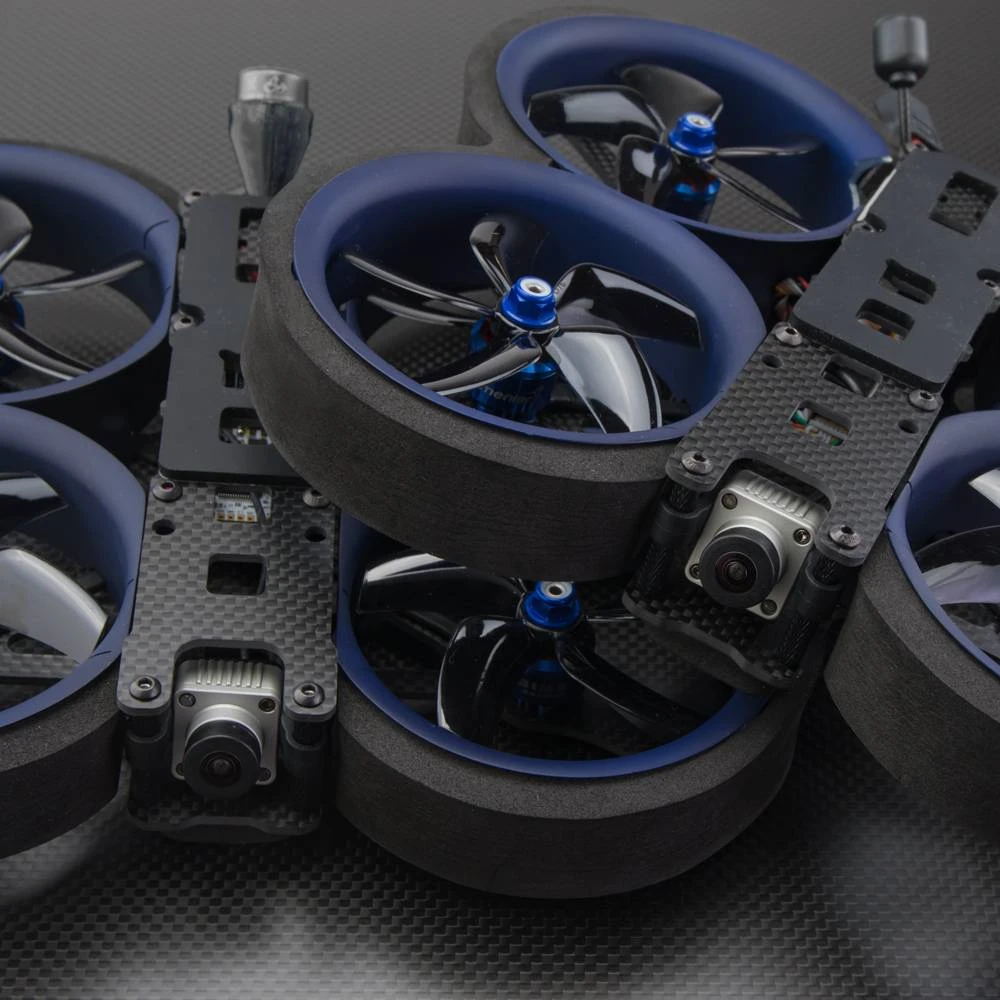

The Lumenier QAV-CINE Quadcopter is a high-quality ducted cinematic airframe designed for 3″ propellers. With integrated prop ducts and foam bumpers, you will have the confidence to fly in close proximity to objects that you normally would not.

The QAV-CINE is the ultimate 3″ ducted FPV quadcopter for many reasons such as flight performance, durability, versatility, and great looks to name a few! No matter your desired setup, the QAV-CINE airframe can support them all, like analog, DJI digital HD, Vista HD, FPV, 20×20, or 30.5×30.5 stacks.

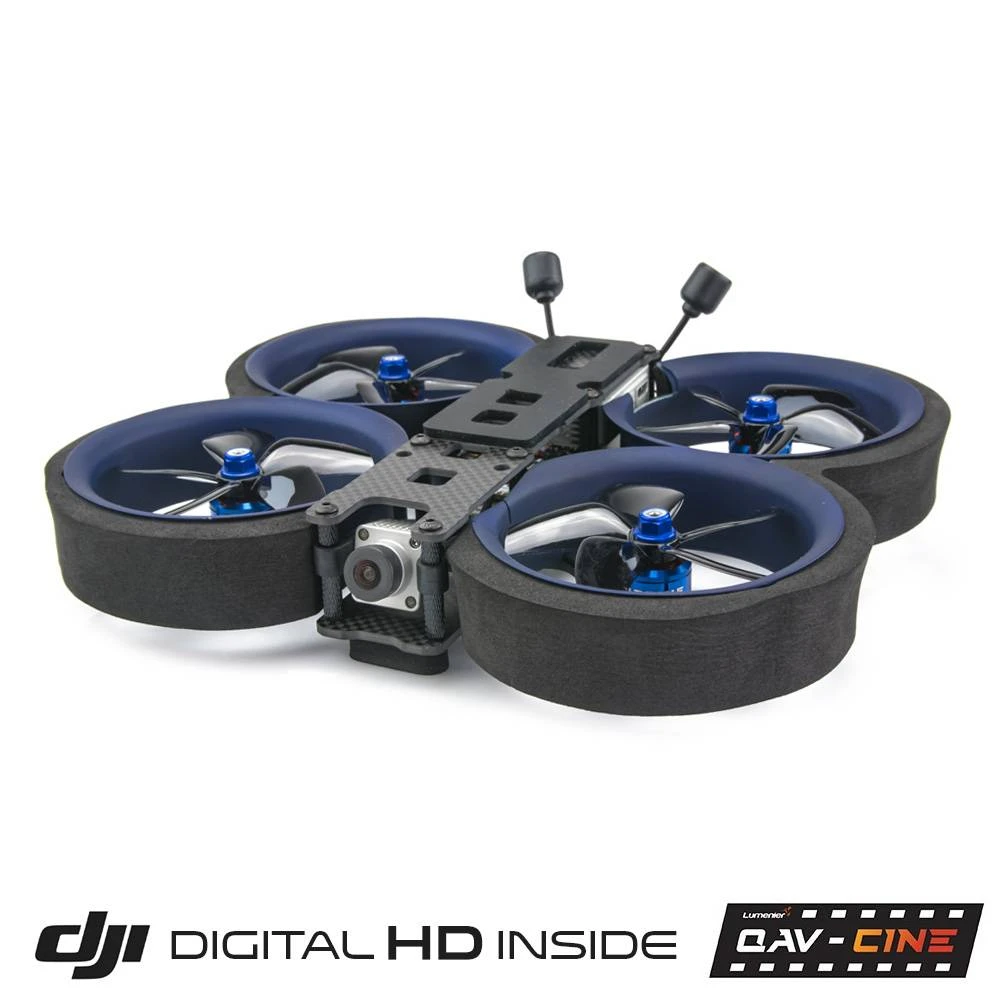

Digital HD Ready

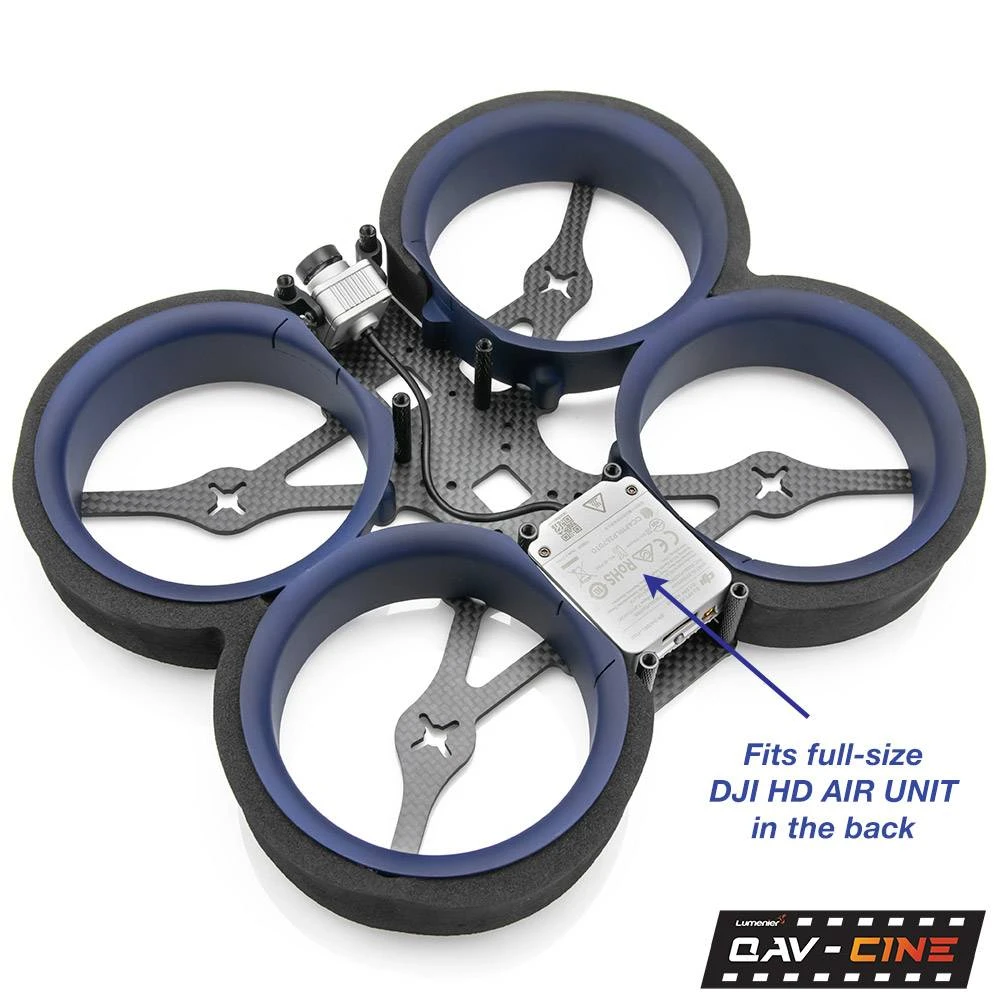

The Lumenier QAV-CINE is a perfect match for the new HD FPV systems as well, such as the DJI Digital HD System or the Caddx Vista Digital HD system. There is plenty of room to mount each digital system. With no props in view with the QAV-CINE, you can make a killer digital HD flying rig!

Versatility: Build it how you want!

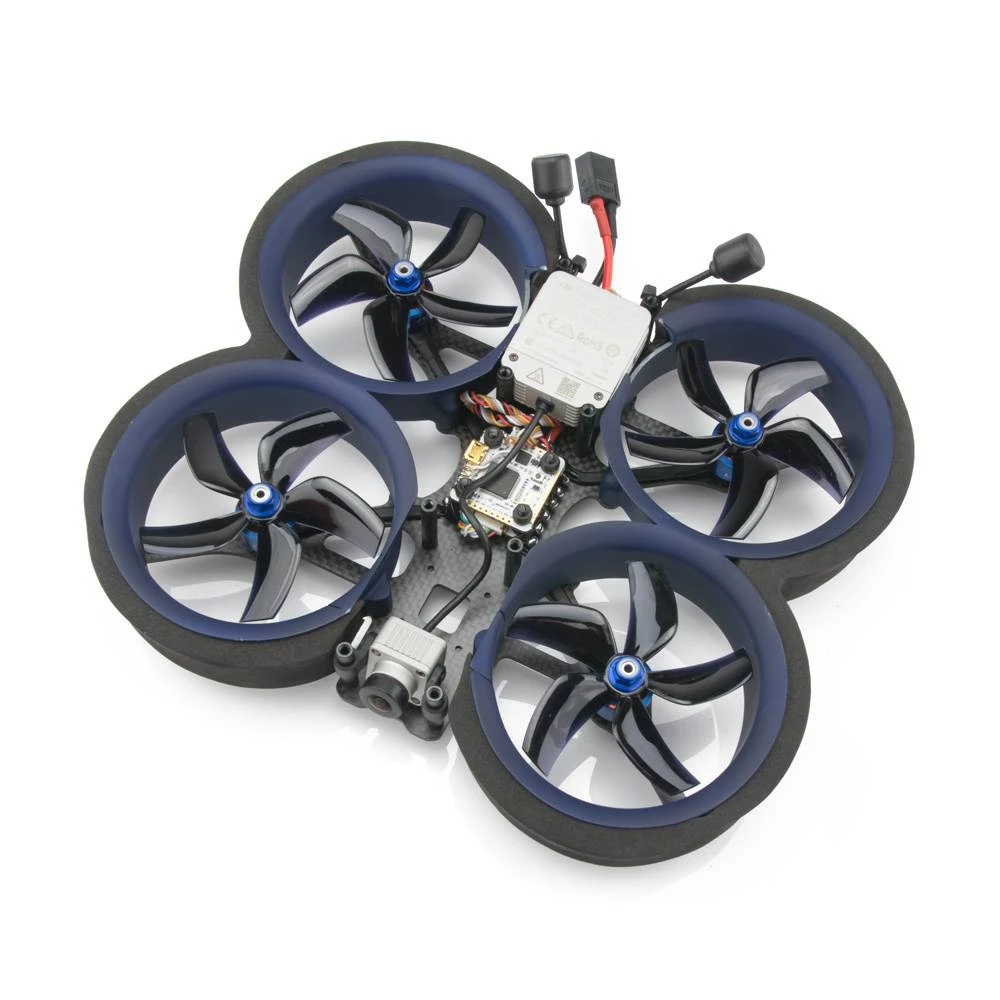

The QAV-CINE supports just about any type of stack, digital HD, analog, or system you can think of! This means you have more flexibility in the parts you choose to use as the QAV-CINE doesn’t lock you into just 1 type of system. You can build with a 20×20 stack or a larger 30.5×30.5 stack. It will support digital HD systems or more traditional analog FPV systems. Need a super robust, prop guarded system?… use the integrated ducts. Want a high-performance rocket without the need for prop guards?… simply remove the ducts and save over 100g of weight! The airframe is still very rigid even without the ducts.

High-Quality Ducts = Better Performance

Many similar airframes you’ll find on the market are 3D printed on traditional SLA printers which can leave ugly and rough bumps between each layer of the print. Not only does it not look as nice, but this rough finish also creates unwanted turbulence from the air your props are pushing. Dirty air means a loss of efficiency.

This is where the QAV-CINE is different than most by using a high-quality resin material to make the ducts. The result is an ultra-smooth, molded-like finish. It looks great and works even better! Oh, and yes they are very durable! With the added foam bumper you’ll have no fear of bumping off walls and objects without skipping a beat.

This RTF has been fully built and test-flown for you, so you can simply bind your radio and go! Our professional build team takes the guesswork out of the building and tuning for you by pre-programming the flight controller settings and using only high-quality Lumenier motors, ESCs, and FPV gear.

Specifications

• AUW Weight: Lumenier QAV-CINE 3″ Quadcopter RTF w/ DJI Digital HD FPV System has an AUW of 360g (excluding battery)
• Propellers: Gemfan Ducted Durable 5-Blade 76mm CineWhoop Propeller
• QAV-CINE Airframe Weight: Carbon Fiber: 55g / Ducts (2 sets): 105g
• ESC: Lumenier Micro Razor 4in1 20×20 F3 BLHeli_32 30A 2-6s ESC
• Antenna: DJI FPV Air Unit Antenna (MMCX 90° – Pair)
• Frame: Lumenier QAV-CINE Quadcopter Frame 3″
• Motors: Lumenier 1507.2 Turbine Motor – 2400KV
• FC; Lumenier LUX MINI F7 Flight Controller

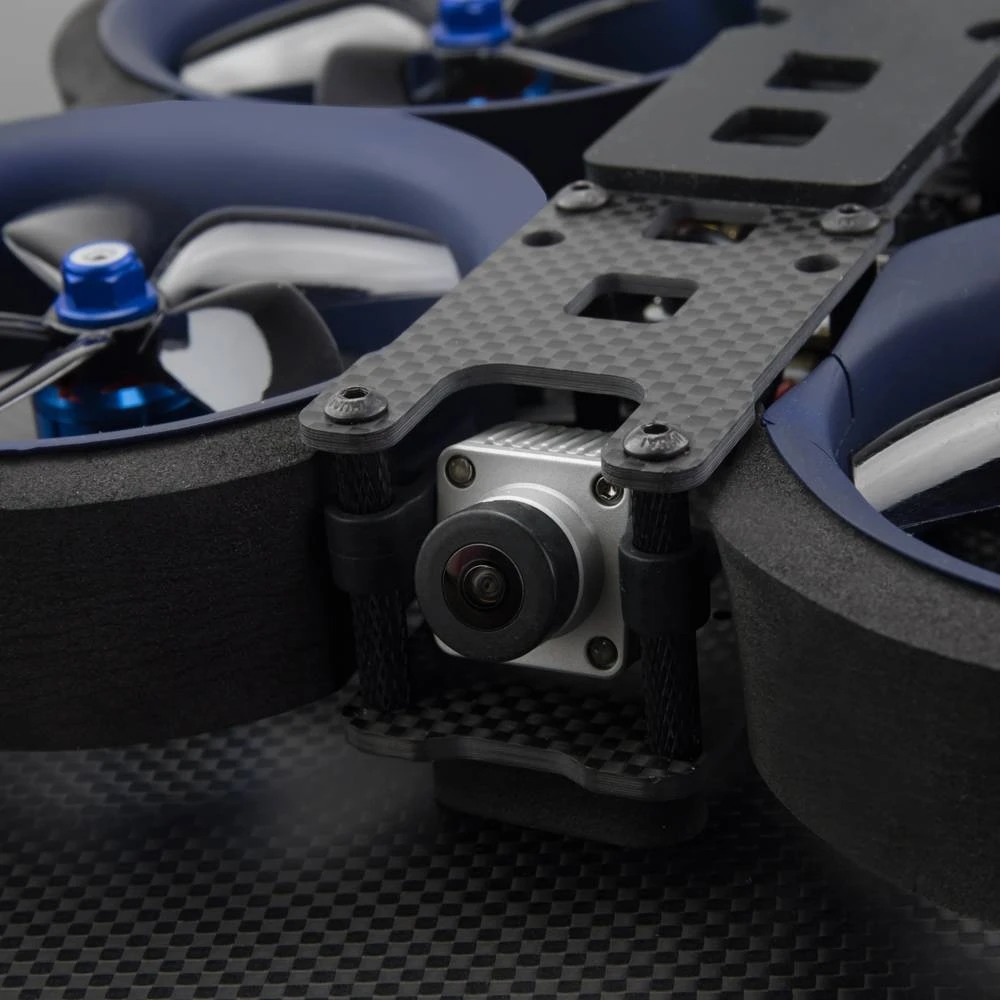

• VTX/Camera: DJI Digital HD FPV System

Note: The DJI HD FPV Air Unit is currently only compatible with the DJI FPV Goggles. IT IS REQUIRED to use the DJI FPV Goggles with the DJI FPV Air Unit on this quad. The DJI Remote Controller is recommended for beginners since you won’t need to set up another receiver; however, you can add a receiver yourself from FrSky, Spektrum, etc., and then bind to your own radio as usual.

Recommended (Not Included)

• FPV Goggles (required to use DJI Air Unit): DJI HD FPV Goggles 2
• Radio Controller: DJI Remote Controller (Mode 2)
• Batteries: 6S Flight Batteries

Includes

• 1x Lumenier QAV-CINE 3″ Quadcopter RTF w/ DJI Digital HD FPV System – 6S (Fully built and tested)
• 1x Lumenier Soft Zipper Case
