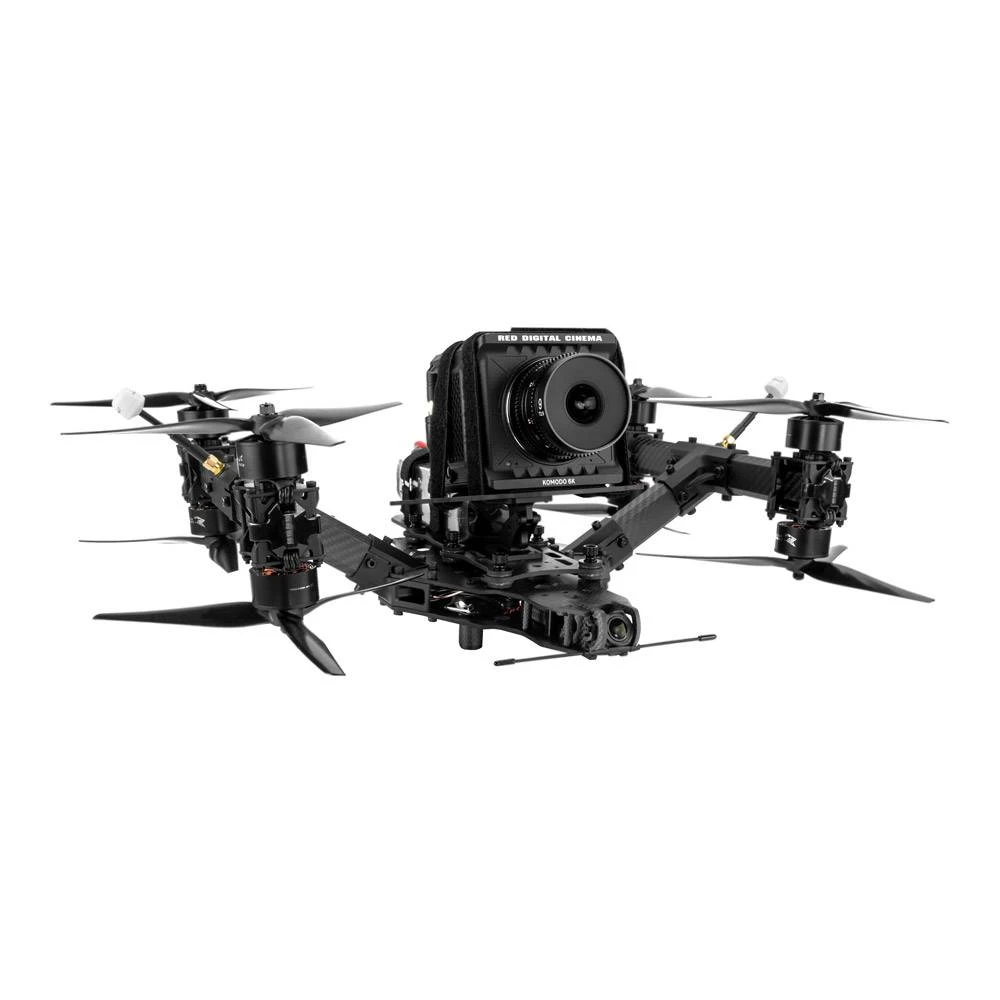

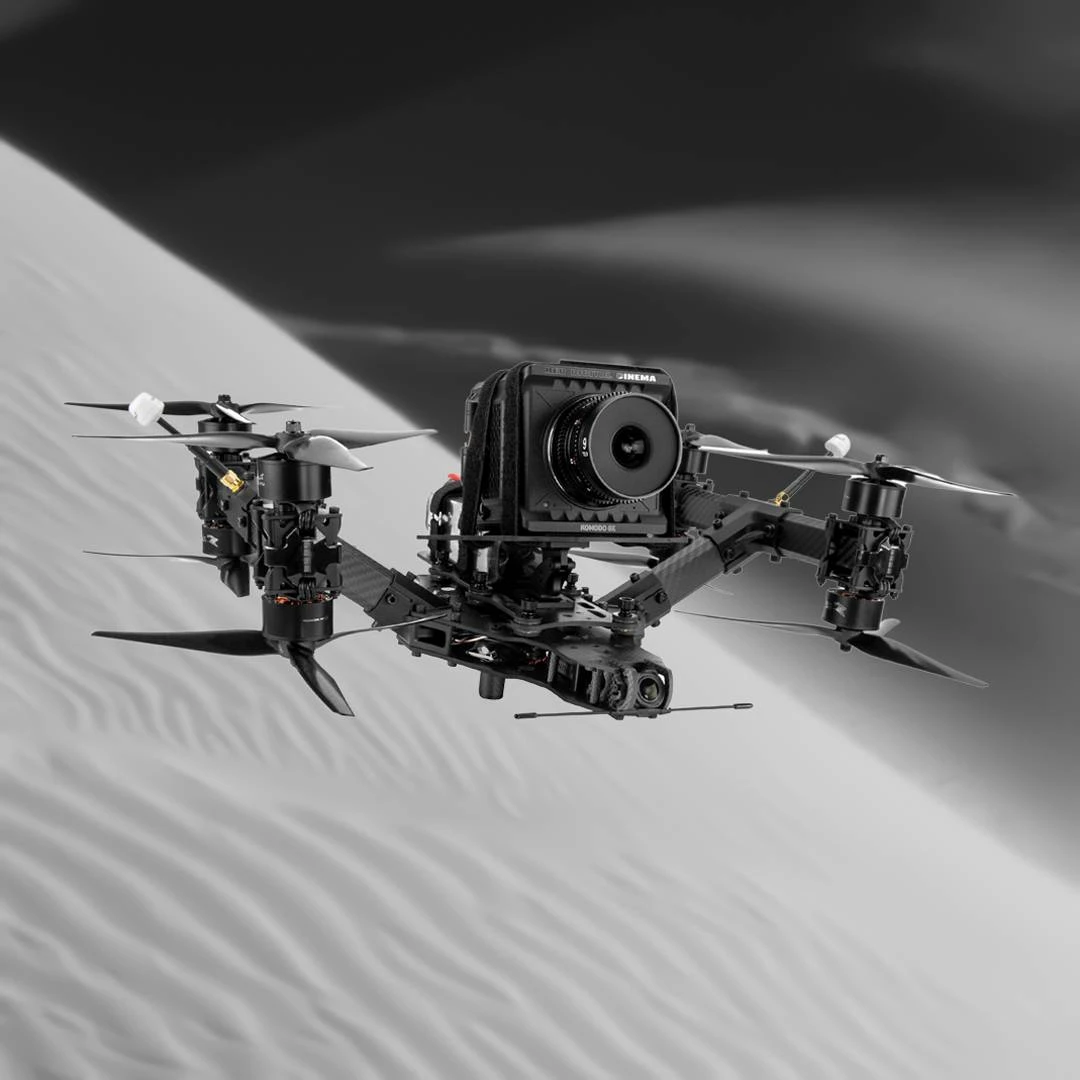

Lumenier QAV-PRO Lifter 9" Cinequads Edition W/ DJI 03 Air Unit – RTF

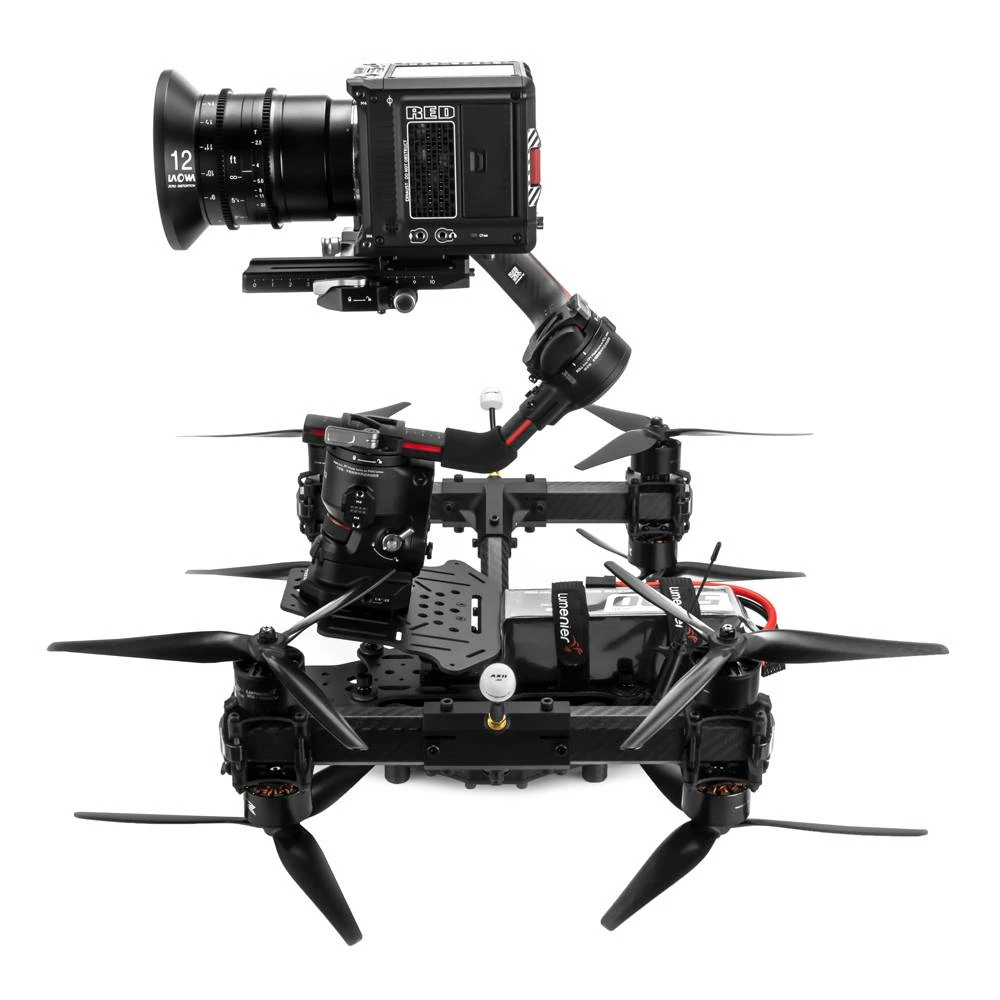

The Lumenier QAV-PRO Lifter Cinequads Edition RTF Drone is a revolutionary FPV X8 Cinelifter drone that is designed to carry professional grade Cinema Cameras while maintaining the speed and agility that characterizes a true FPV drone.

The QAV-PRO Lifter drone is engineered to take performance, versatility and creativity to the next level while making a statement with a modern and professional aesthetic. It is a must-have creative tool for every drone Cinematographer.

With the ability to carry cinema cameras at 86mph+, the QAV-PRO Lifter is the ultimate Cinema Drone when it comes to maneuverability of Heavy Cameras such as the RED KOMODO 6K, and it has outstanding performance under even the most challenging conditions.

With the QAV-PRO Lifter you can unleash your creativity and break the boundaries of conventional film making. Imagine diving down a skyscraper at breakneck speeds, pursuing a high-speed car chase closer than ever before, capturing the impossible shot or transition that you could only dream of! All of this is now possible with the Lumenier QAV-PRO Lifter drone as the performance platform behind your flying Cinema Camera.

Lumenier has teamed up with Cinequads, the world-renowned German FPV cinematography company known for their incredibly dynamic FPV Cinematic drone shots. Cinequad’s input and knowledge from having many years in the professional FPV industry have been crucial in the development of this platform. Over a year’s worth of testing and development has gone into the QAV-PRO Lifter, bringing innovation and reliability to the Cinematographic Industry.

QAV-PRO Lifter uses Lumenier´s experience in professional product development, tailoring the perfect high-performance setup. From the power train to the airframe, this Cinelifter uses top notch components and technology for a well-tuned rig, that translates into a locked-in feel and most importantly, clean footage.

O3 UPDATES

• Additional XT-30 regulated aux power outputs. 2x 12V power output for the Cinema Camera, 9V regulator onboard to power the digital DJI O3 air unit.
• DJI O3 Air Unit

Note: This RTF Drone does not include optional accessories like Gimbal, Cinema Camera, Batteries, FPV Goggles, Radio Controller, etc. These items will need to be purchased in addition to the RTF drone if needed.

Ready to fly your very own QAV-PRO Lifter?

Check out our Bundle page and get all the recommended accessories to fly your new Lumenier QAV-PRO Lifter setup!

Lumenier QAV-PRO Lifter 9″ Cinequads Edition Bundle

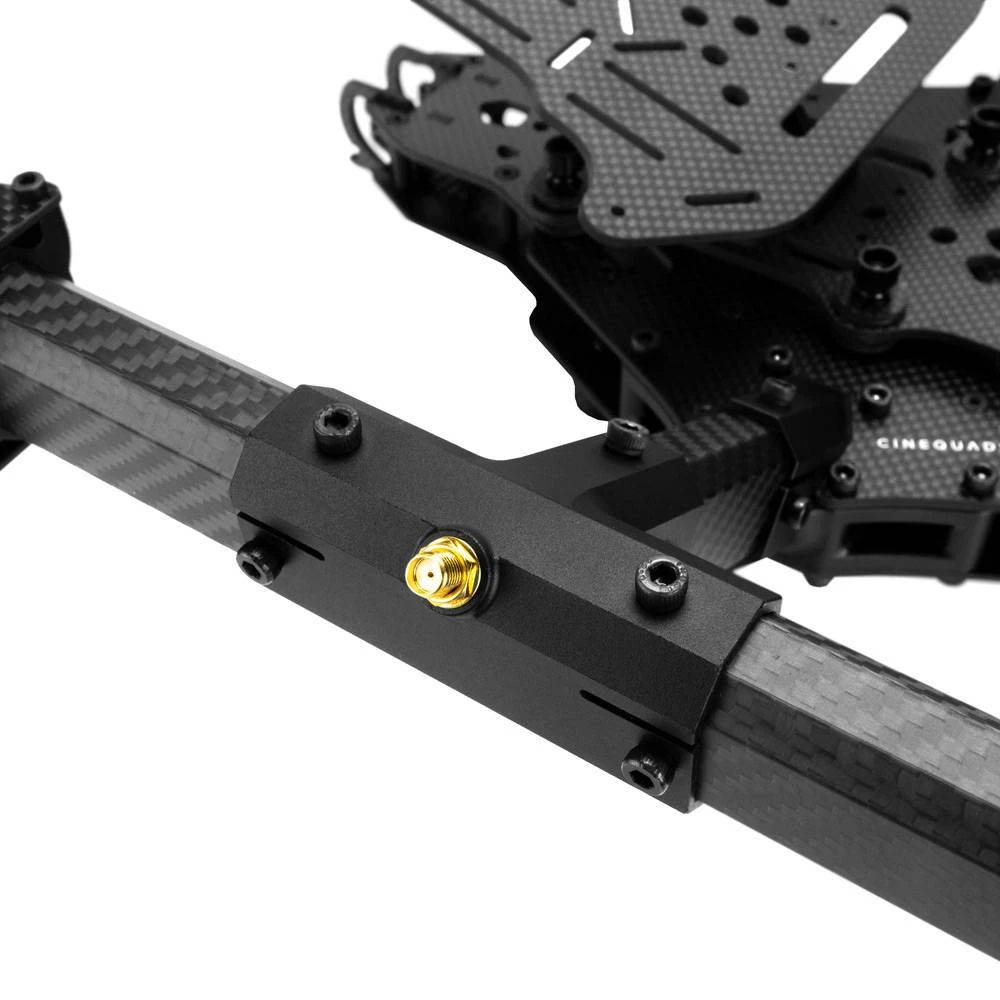

• Robust T-style arm design with dual CNC Aluminum mounts that reinforce the structure, octagonal carbon fiber tubes with aluminum mounts that secure them with strong clamping force, and hide internal motor and led wiring.

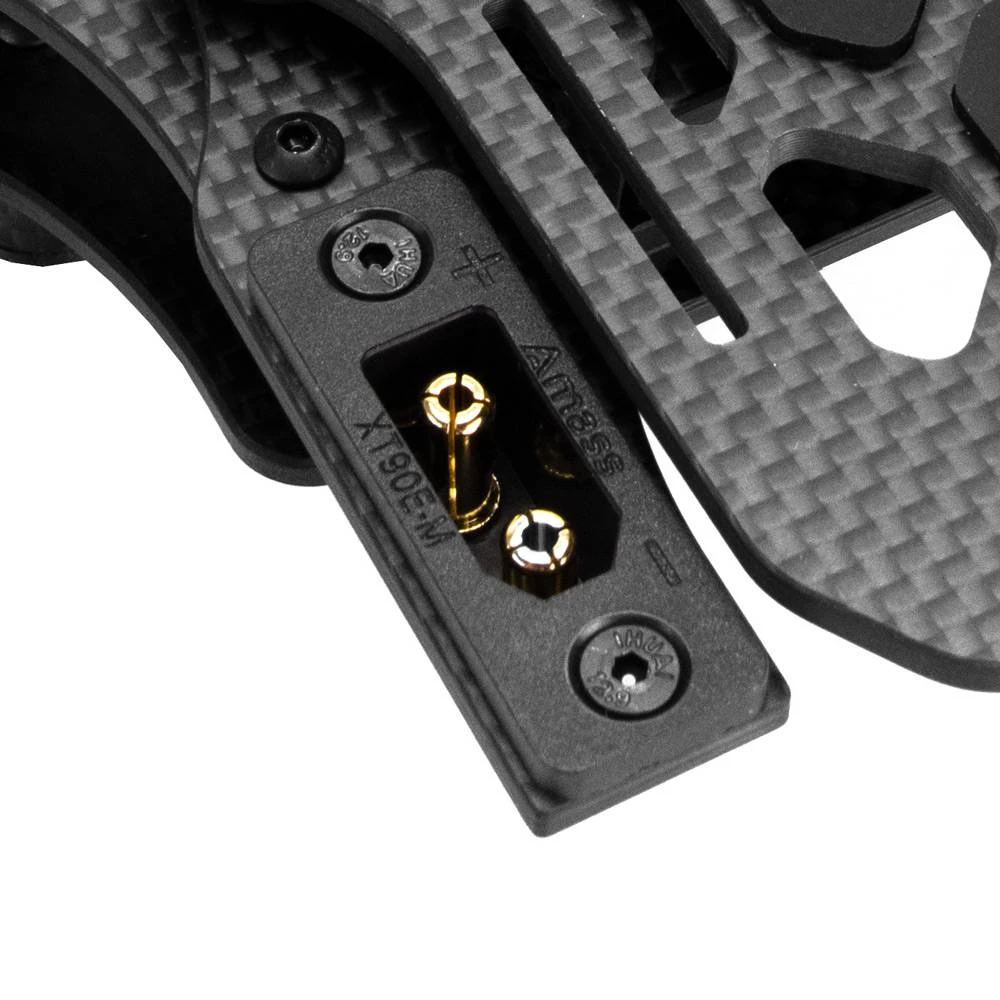

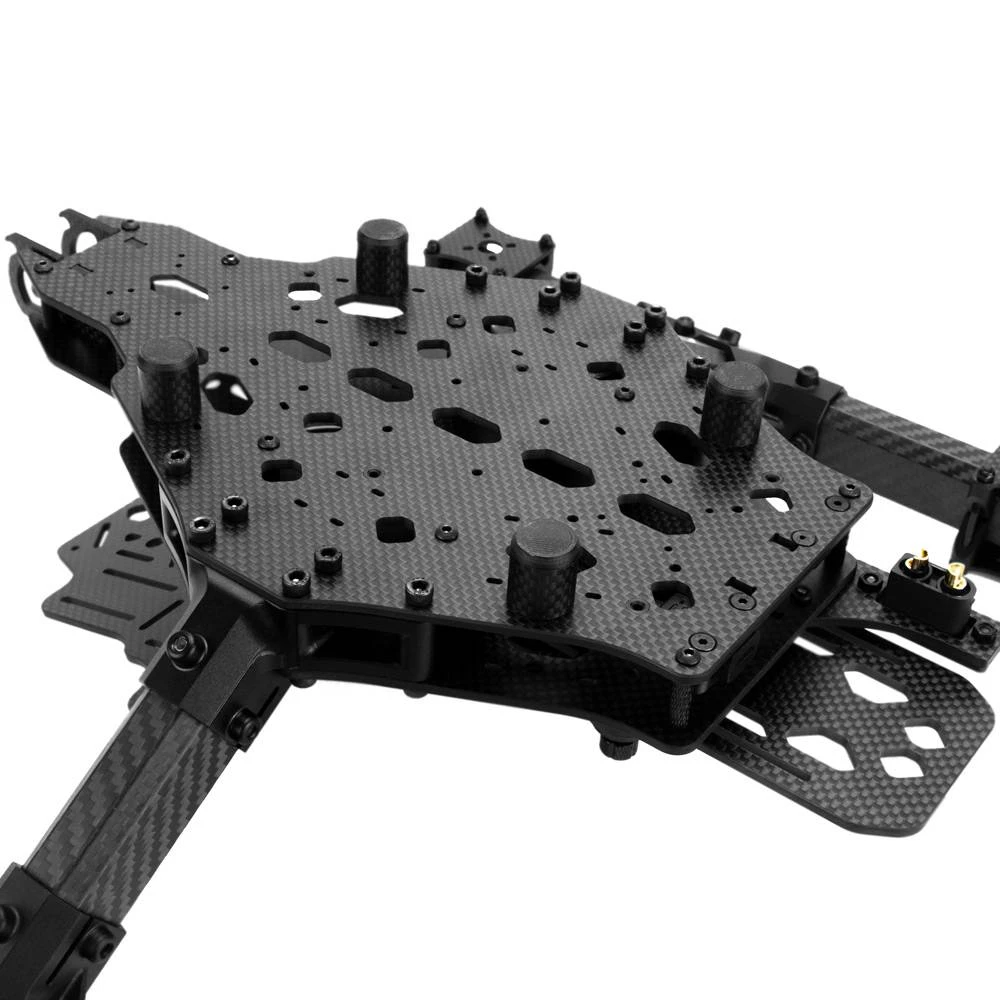

• Dedicated power management PDB for cleaner soldering to 4-in-1 esc and accessories, as well as redundancy connections to the power train system to prevent a crash during any type of malfunction.

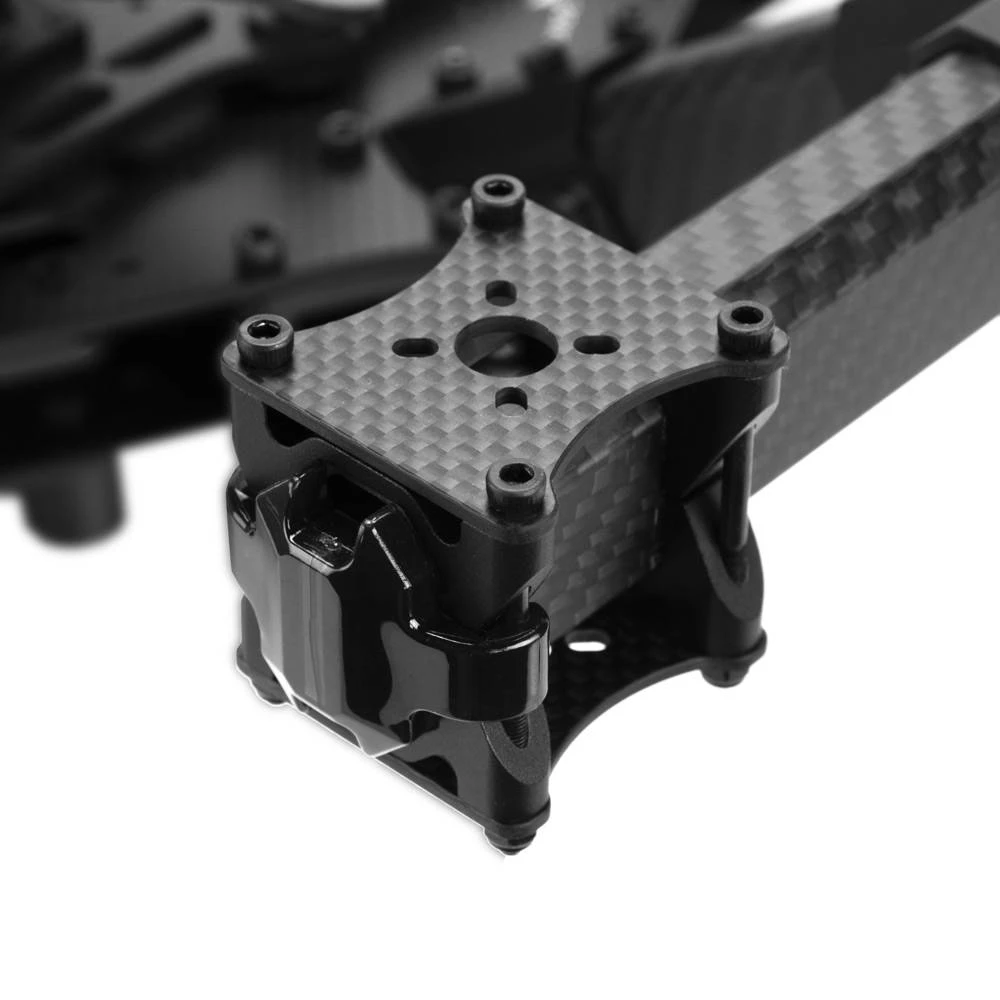

• A proprietary LED system located on the arm ends that works with Betaflight configuration, gives the option to program light codes as a safety feature and requirement when working on set.
• Optimized dual antenna placement provides maximum video performance by locating the receiving antennas away from the Cinema Camera body to guarantee signal strength.
• The cinema camera is fixed to an isolation plate with 6 alpha gel a-1 dampers, combined with the battery sitting on this plate, adding damping weight and reducing vibrations.

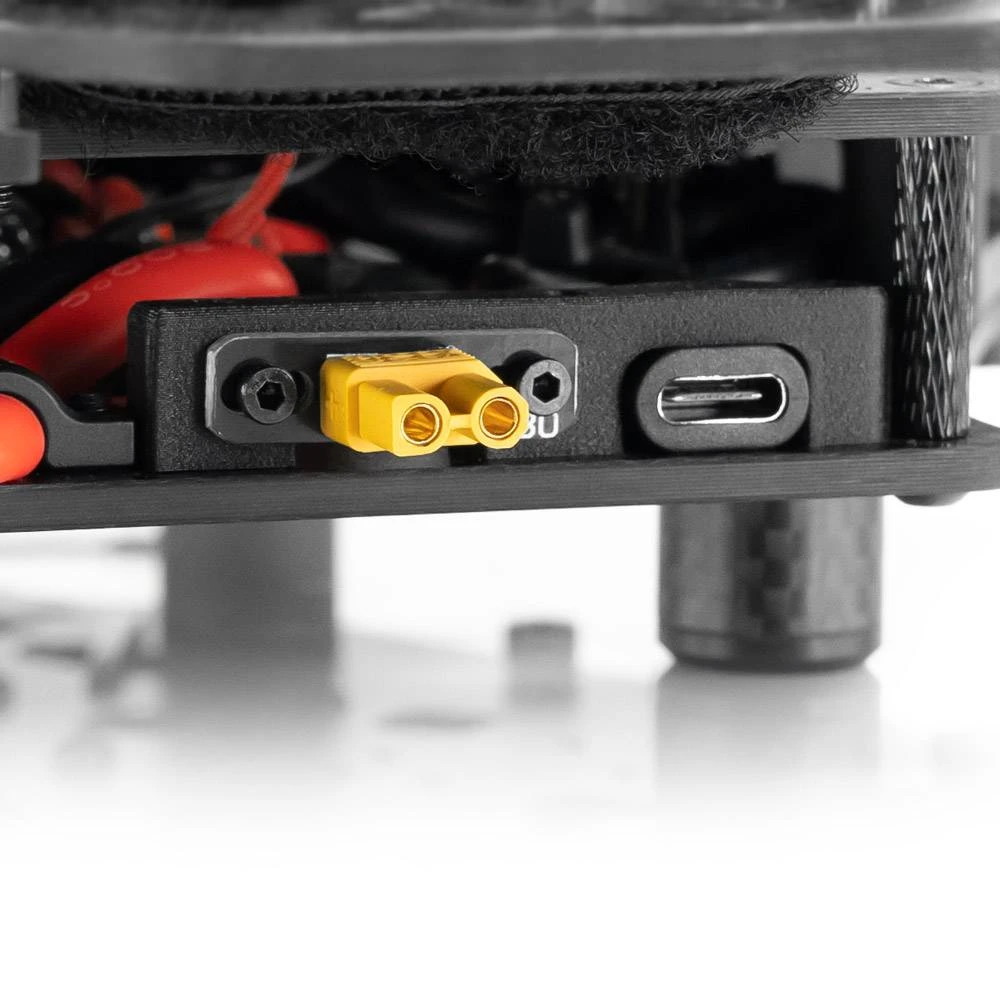

• Additional XT-30 regulated aux power outputs. 2x 12V power output for the Cinema Camera, 9V regulator onboard to power the digital DJI O3 air unit.
• Micro-USB or USB-C extension cables for easy access to the flight controller when needing to change settings without disassembling the drone.
• A Cinema camera has 60 degrees of motion in 7.5-degree increments, the tilt goes from 40 degrees to -20 degrees for any type of shot needed.
• Camera and battery position shift options, to be able to distribute the weight and balance the aircraft when using different lenses, gimbal, etc.

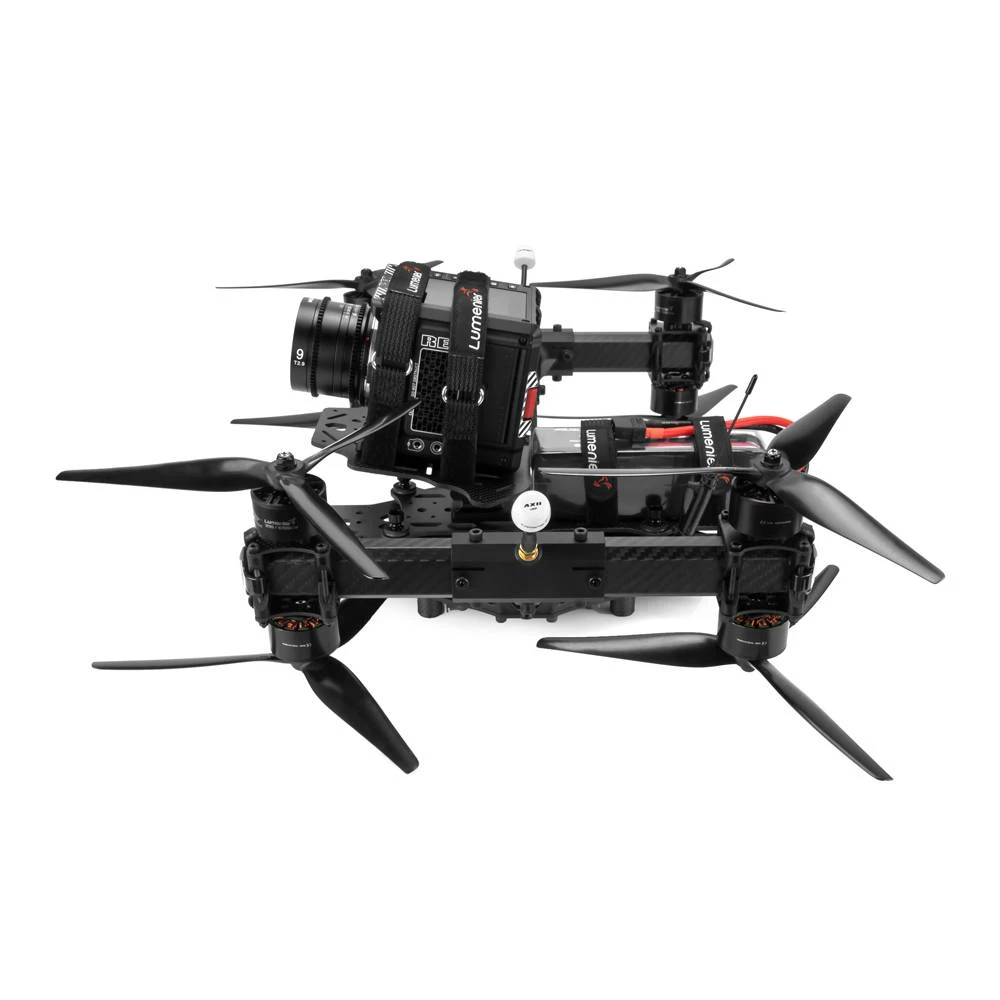

• 32-degree Angled arms lower the center of gravity to the cinema camera improving payload balance and flight performance.

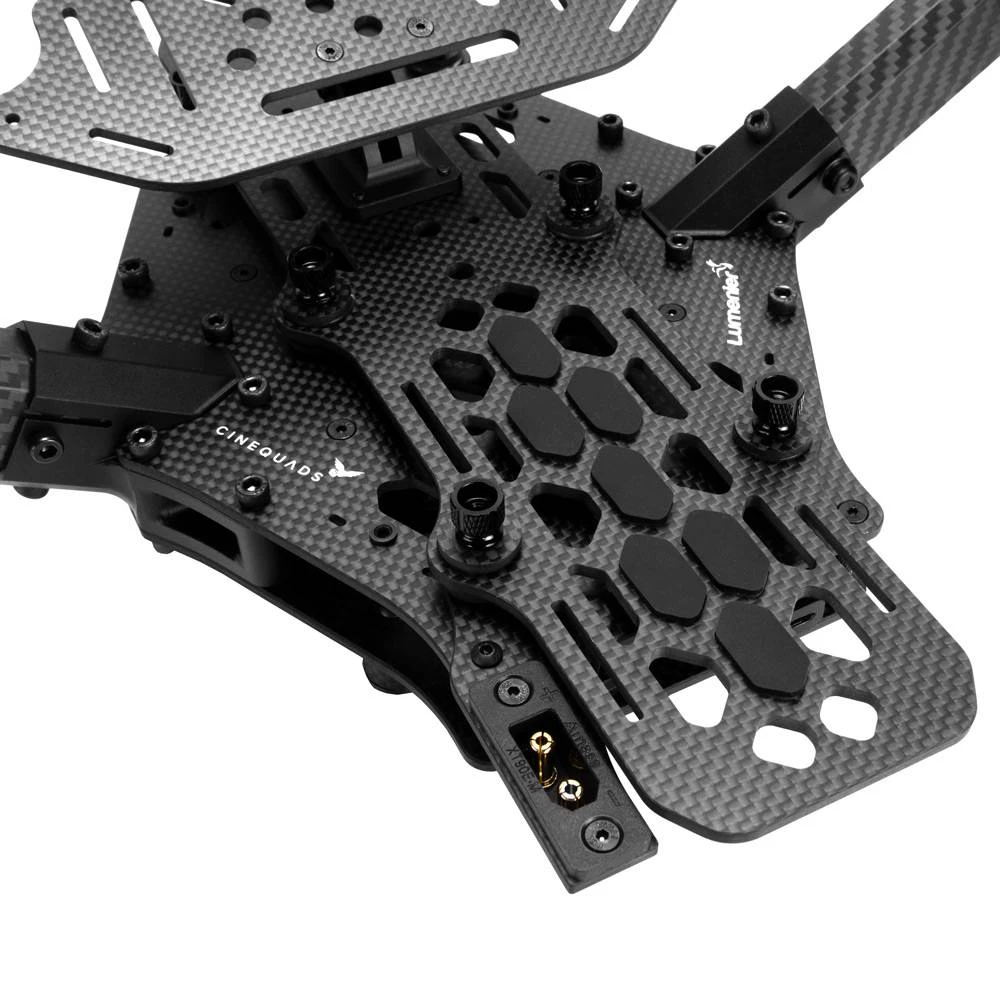

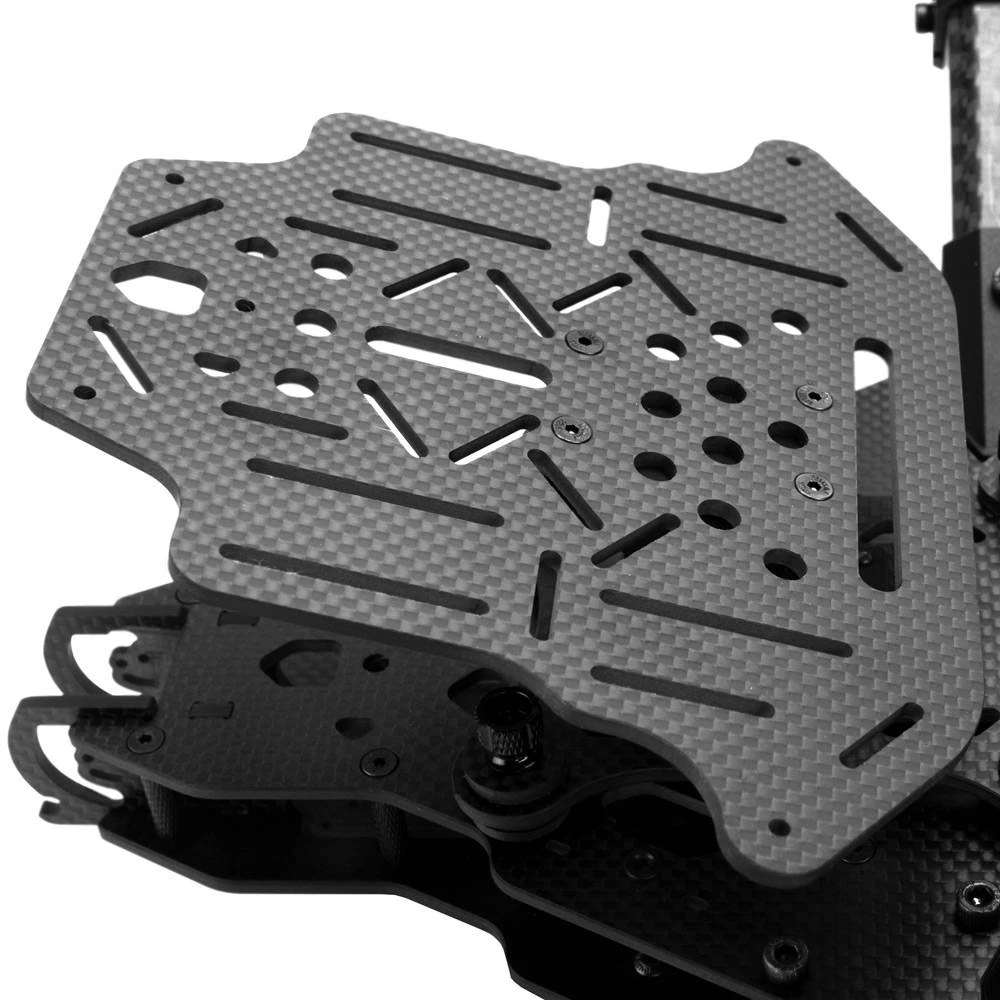

• The cinema camera is secured to a carbon fiber plate, which uses universal mounting slots and holes for camera versatility.
• A reversible isolation plate gives the option to have the cinema camera look back for any reverse shots.
• Motors mounted with -3 degrees of camber angle increase the authority and stability on the Yaw axis.
• DJI O3 Air Unit

• Propellers: HQProp MacroQuad 9X4.5X3R Glass Fiber Reinforced Nylon Propeller (CW+CCW)
• AUW Weight: Approx. 2.5Kg and 9” propeller (excluding battery and payload)
• Dimensions: 470mm (L), 600 (W), 155mm (H) (with propellers)
• Antennas:
  • TBS Crossfire Immortal T Antenna V2 – Extra Extended
  • TBS Crossfire Immortal T Antenna V2 – Extended
  • Lumenier AXII 2 5.8GHz Antenna (LHCP)
• ESC: Lumenier ELITE PRO 60A 2-6S BLHeli_32 4-in-1 ESC
• Motors: Lumenier ZIP V2 3115 Cinematic Motor – 1050KV
• Model: Lumenier QAV-PRO Lifter 9″ Cinequads Edition
• FC: Lumenier LUX H7 HD Ultimate Flight Controller
• Receiver: TBS Crossfire Diversity Nano RX
• Camera/VTX: DJI O3 Air Unit

The Lumenier QAV-PRO LIfter RTF is assembled in the USA by professional drone builders at GetFPV.

Each drone goes through a rigorous QC process and is individually tuned and test flown before shipment.

• Batteries: Lumenier 5200mAh 6S 120c CineLifter LiPo Battery or Lumenier 4500mAh 6S 120c CineLifter LiPo Battery
• Travel Hard Case – SE1220D Hard Case + Divider + Metal Latches for Lumenier QAV-PRO Lifter Drone
• Radio Controller: DJI Remote Controller (Mode 2) or TBS Tango 2 PRO FPV RC Radio Controller
• Battery Charger: iSDT K2 Smart Dual Charger AC200W / DC500W x2
• Cinema Camera: RED KOMODO 6k Camera + Laowa Lens
• FPV Goggles: DJI Goggles 2 or DJI Goggles Integra
• Gimbal: DJI RS2 or RS3 Gimbal

We highly recommend purchasing the SE1220D Hard Case below for your QAV-PRO Lifter. This will guarantee protection during shipping, and it is also incredibly useful to pack all your gear while traveling for professional jobs.

Limited Time Offer!

Save $100 instantly when you buy both the QAV-PRO Lifter RTF drone and the SE1220D Hard Case!! Just add both to the cart to see the instant discount.

• Download the QAV-PRO Lifter User Assembly / Build Guide

• 1x Lumenier QAV-PRO Lifter Cinequads Edition w/ DJI O3 Air Unit RTF (Pre-Built, Tuned, and Tested)
