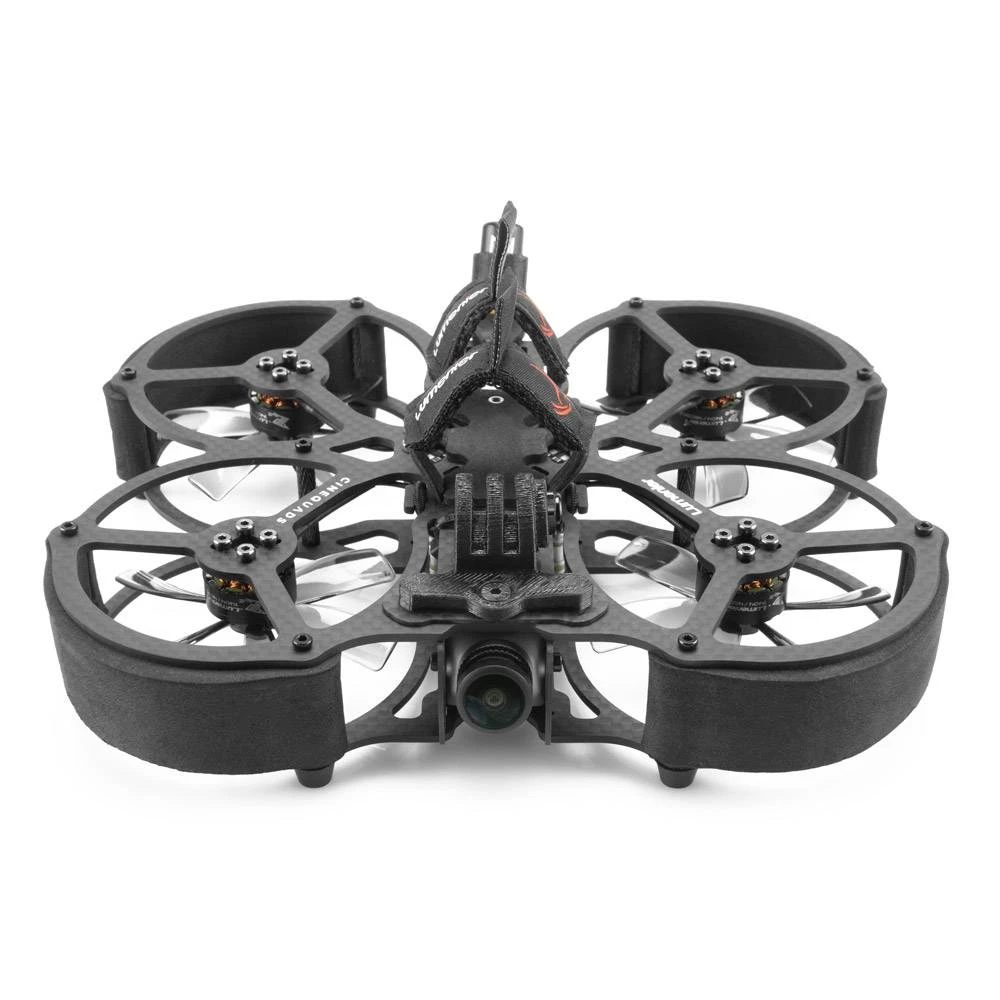

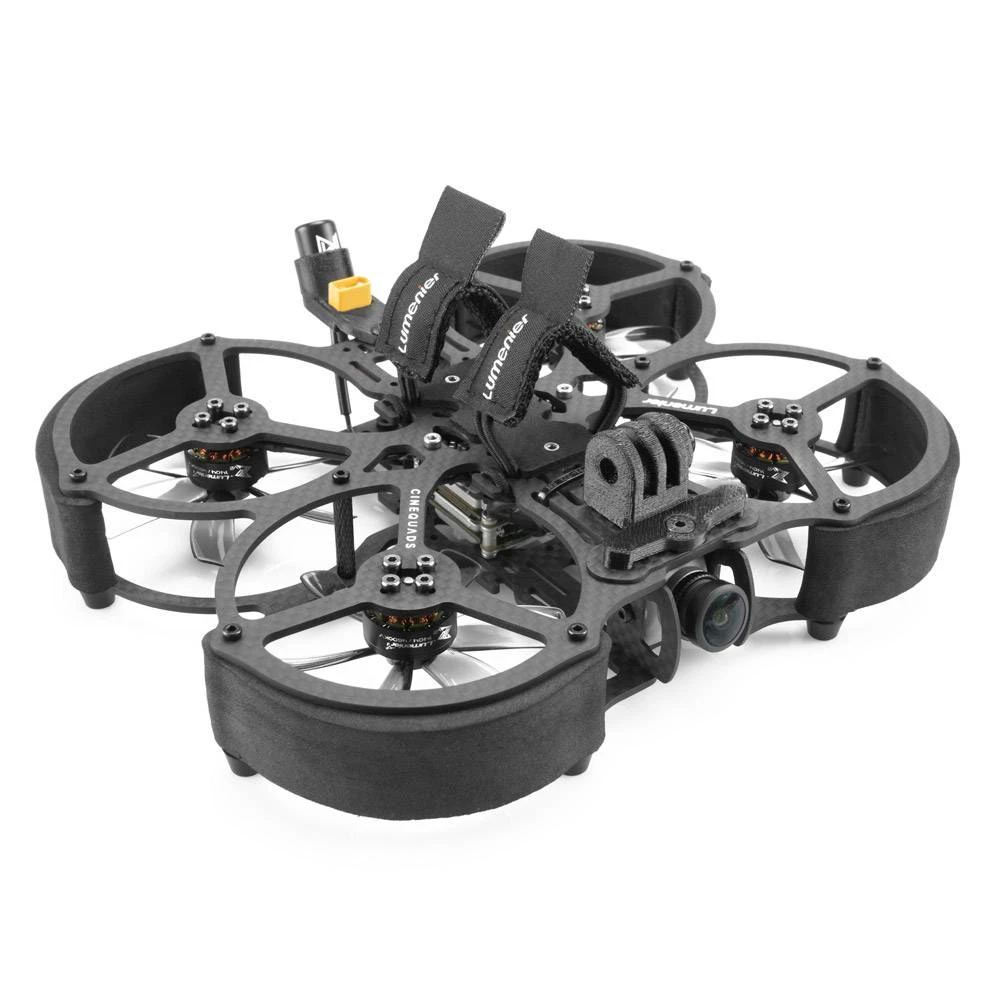

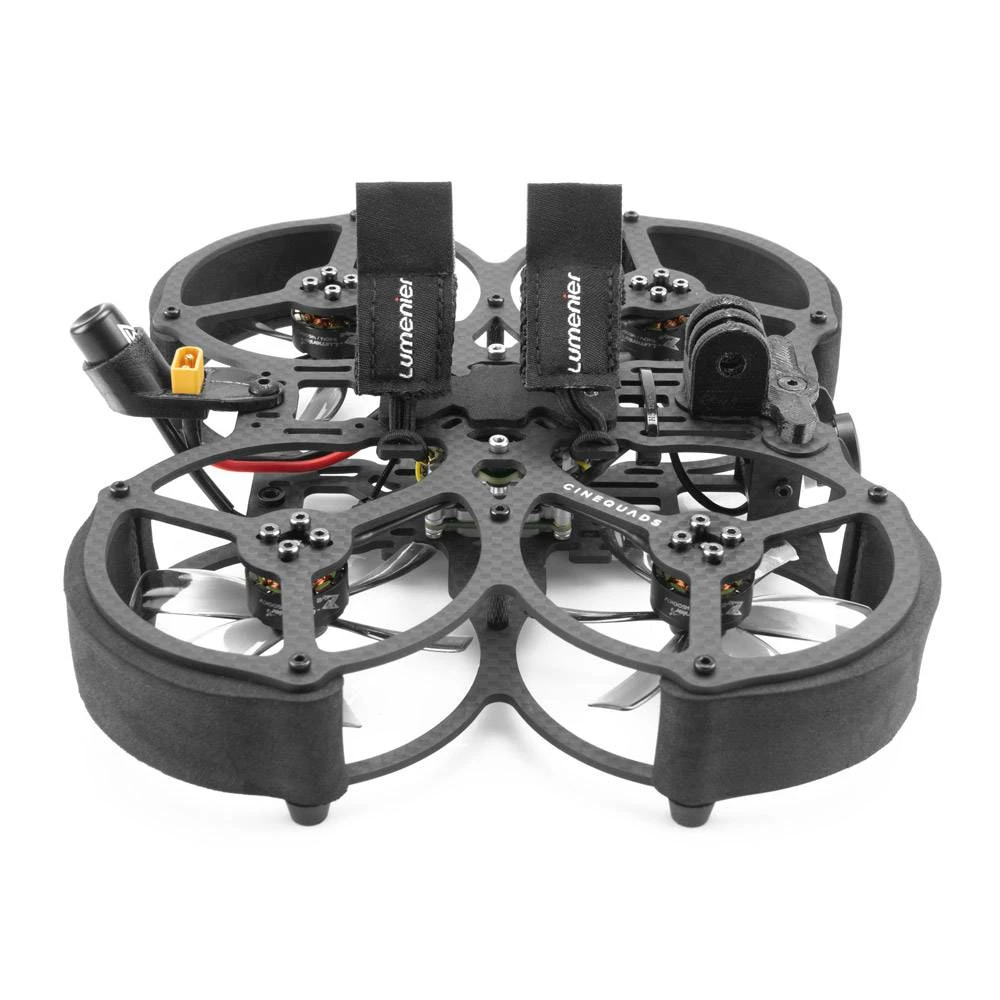

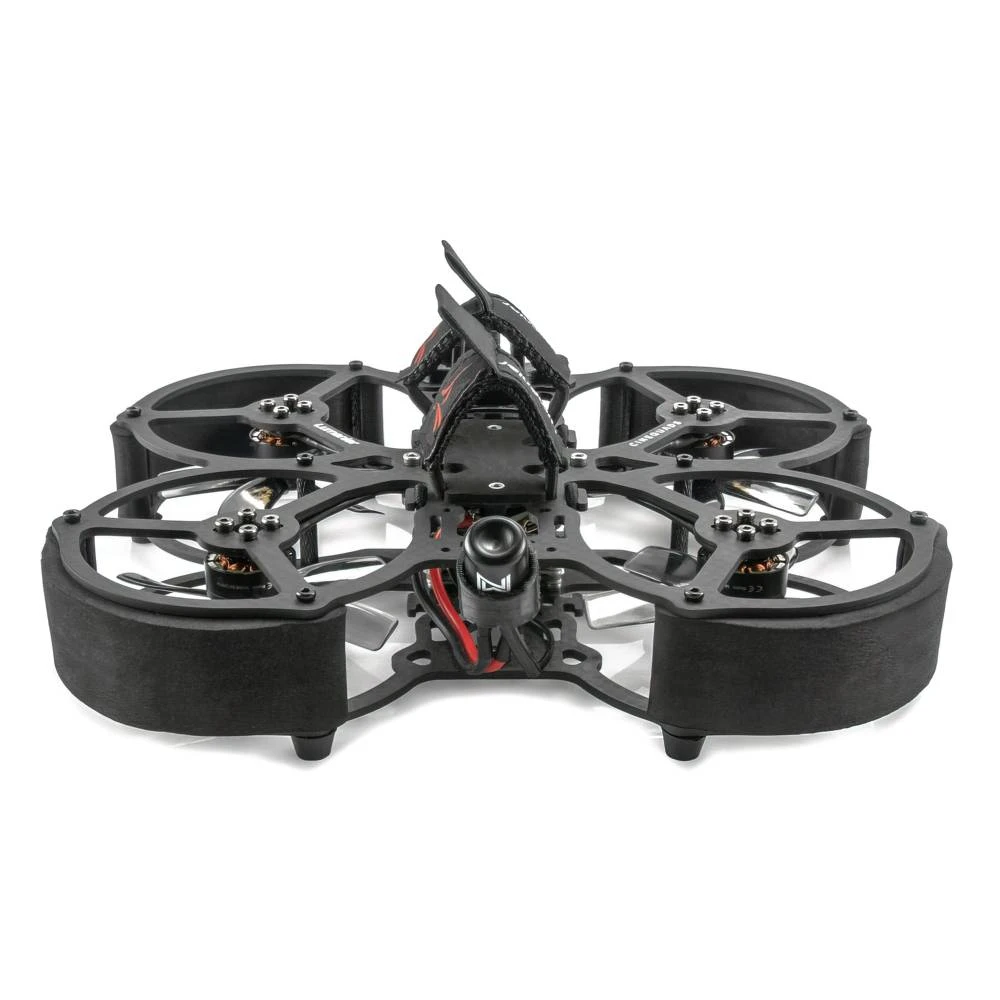

Lumenier QAV-PRO Micro Whoop 2.5" Cinequads Edition RTF

---

Lumenier QAV-PRO Micro Whoop 2.5″ Cinequads Edition – RTF

Features

• Equipped with the advanced DJI Caddx Nebula Pro Vista System
• Powered by Lumenier ZIP V2 1404 Micro Cinematic Motors – 4600KV
• RTF is fully built and test-flown by our technicians at our Florida facility.
• Designed by Lumenier in collaboration with Cinequads
• Supports HD Action Camera Mounting
• Great for Professional Cinematic Use
• Designed for both Analog and HD
• Molded Foam Bumper Protection
• Pusher Style Frame
• Ultra-lightweight
• Full Quasi-Isortropic Japanese Carbon Fiber (Matte Finish)

The Lumenier QAV-PRO Micro Whoop – Cinequads Edition is a versatile 2.5″ micro-sized FPV quadcopter that is designed to be small and agile. Featuring full propeller protection with premium carbon fiber, while carrying your HD camera for the ultimate micro FPV cinema experience!

Lumenier has once again teamed up with Cinequads, founded by the world-renowned FPV pilot Phil Freybott! Now bringing you the ultimate micro cinematography whoop. Phil has many years of experience shooting professionally with FPV drones on TV commercial sets, and movies. You can find his work showcased with automotive brands like Porsche and Mercedes.

Combining Cinequads’ professional experience and optimized workflow with Lumenier’s high-quality design and manufacturing, we are excited to bring you the next professional class of FPV Cine drones… the Lumenier QAV-PRO line!

Note: The Elastic LiPo straps are not included.

ADDED PROTECTION WTH MOLDED FOAM BUMPERS

The QAV-PRO Micro Whoop gives you the option to fly with only the Carbon Fiber frame, or with added protection provided by the snap-on foam bumpers. Flying close to people or objects that you need a little more security? No problem! Simply pop on the foam pads in seconds and you’re good to go. When you’re done you can take them back off and fly again with just the carbon guards. So simple!

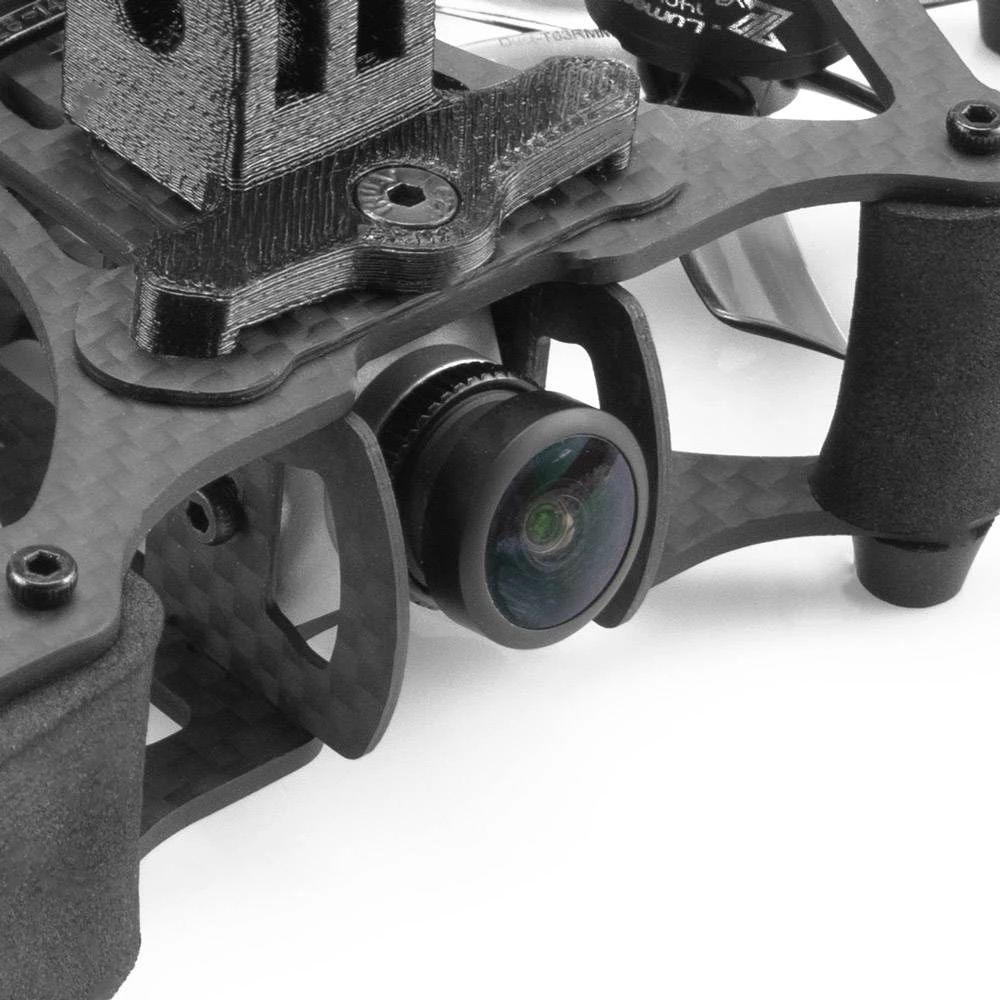

SUPPORTS GOPRO / HD CAMERA MOUNTING

Want to add 4k buttery smooth video recording to your QAV-PRO? No problem! the frame is designed to carry a GoPro style camera with a dedicated camera mount on top. This allows a variety of cameras and 3-D prints to securely hold the HD camera in place making sure you get the perfect shot!

DESIGNED FOR BOTH ANALOG AND HD

The QAV-PRO Micro Whoop frame was designed from the ground up to be very versatile and allow many different configurations with the same design. This one airframe design fits 20×20 stacks, 25.5×25.5 toothpick AIO boards, and Caddx Vista digital HD system. This frame has mounting points for an antenna, camera, receiver, transmitter, and more. Now you can fly in full digital HD in an incredibly small package!

PUSHER STYLE FRAME

The Lumenier QAV-PRO Micro Whoop airframe design supports a pusher configuration. it was found to have 15-20% more flight time and an even better throttle response. Many “pusher” style frames struggle to easily take off from the ground since their props are often resting on the surface, but with the QAV-PRO Micro Whoop… it’s no problem since the entire prop is surrounded by carbon fiber. This gives you plenty of clearance to take off and land without any issue.

ULTRA-LIGHTWEIGHT

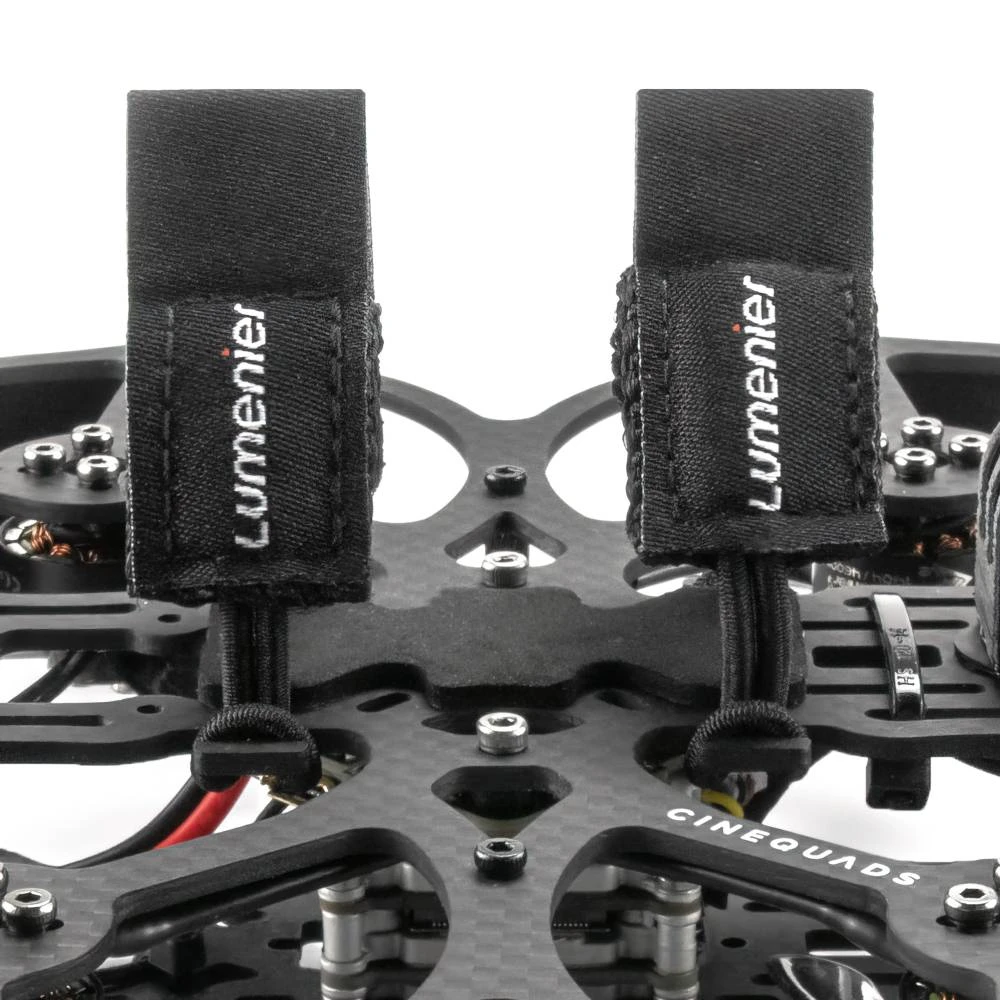

With an all-up weight of just 53g, this airframe is top in class. It has the perfect balance of durability and protection that you need, without any extra dead weight that you don’t. The body is made up of ultra-strong 3K carbon fiber. Combined with custom light-weight quick-swap battery straps and M2 hardware, this kit is the perfect 2.5″ setup.

---

RTF Specifications

• QAV-PRO Micro Whoop Airframe Weight: 53g (66g with bumpers and lipo straps)
• AUW Weight: 167g (excluding battery)
• AIO FC / ESC:  iFlight Beast F7 V2 55A AIO 25.5×25.5mm Flight Controller (BMI270) or BETAFPV F722 35A 2-6S AIO BLHeli_S Brushless Flight Controller
• Motors: Lumenier ZIP V2 1404 Micro Cinematic Motor – 4600KV
• Propellers: HQProp DP T63MMX6 6-Blade Propeller
• HD FPV System: Caddx Nebula Pro Vista Kit 720p/120fps Low Latency HD Digital FPV System
• Frame: Lumenier QAV-PRO Micro Whoop 2.5″ Cinequads Edition

Note: The DJI HD FPV Air Unit is currently only compatible with the DJI FPV Goggles. IT IS REQUIRED to use the DJI FPV Goggles with the DJI FPV Air Unit on this quad. The DJI Remote Controller is recommended for beginners since you won’t need to set up another receiver; however, you can add a receiver yourself from FrSky, TBS. Spektrum, etc., and then bind to your own radio as usual.

The DJI Remote Controller is recommended for beginners since you won’t need to set up another receiver, but it is also optional in this bundle because it is NOT required in order to use the FPV system. If you don’t choose to use the DJI Remote Controller, you can add a receiver yourself from FrSky, TBS, Spektrum, etc., and then bind to your own radio as usual.

RTF Includes

• 1x Lumenier QAV-PRO Micro Whoop 2.5″ Cinequads Edition RTF
• 1x Lumenier Soft Zipper Case

Additional Suggested Parts (Optional)

• FPV Goggles (required to use DJI Air Unit): DJI HD FPV Goggles 2
• Batteries: 4S Flight Batteries
• Radio Controller: DJI Remote Controller (Mode 2)
• Battery Charger (Note: XT30 connector installed by default on QAV-PRO Micro Whoop Drone. Make sure your charger supports XT30, or you have adapter cable/board)
• HD Action Camera

Downloads

• Download the 3D Printable STL for XT30 / Antenna mount here
