Lumenier QAV-R 2 Slam SKITZO Freestyle 5" Quadcopter Frame (Hydro Dipped)

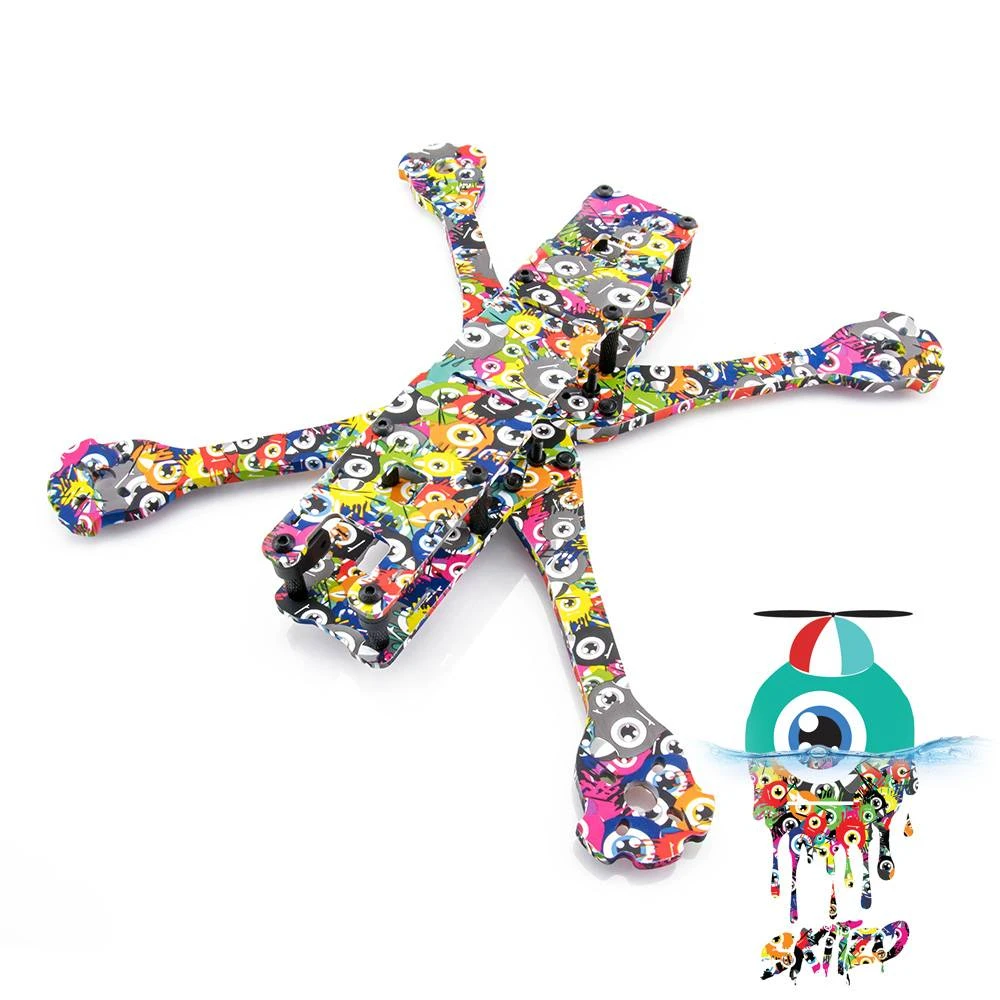

For pilots who want to make a statement when they fly, the Lumenier QAV-R 2 SKITZO is about as bold as you can go. The SKITZO logo is “sticker-bombed” via Hydro dipping on the frame from head to toe resulting in a mind-boggling look that will get everyone’s attention!

This customized QAV-R 2 airframe has been designed in collaboration with world-famous FPV Freestyle Pilot SKITZO FPV. The design is thanks to unique Hydro dipping technology that fully coats the underlying carbon fiber frame evenly and results in a smooth-to-the-touch feel. In addition, the arm layout is now a “true-x” configuration for a perfectly balanced feel on both roll and pitch.

The QAV-R 2 SKITZO Freestyle frame features an elongated body compared to the orignal QAV-R 2, enabling 30×30 and 20×20 mounting in both the rear and center of the frame, and allowing you to be creative with your gear layout. Each kit includes an X Brace bottom plate for improved durability needed in bando freestyle flying. The SKITZO version of the QAV-R 2 is also backward compatible with the original QAV-R 2 arms and body plates, so you can mix and match arm and body styles if you choose.

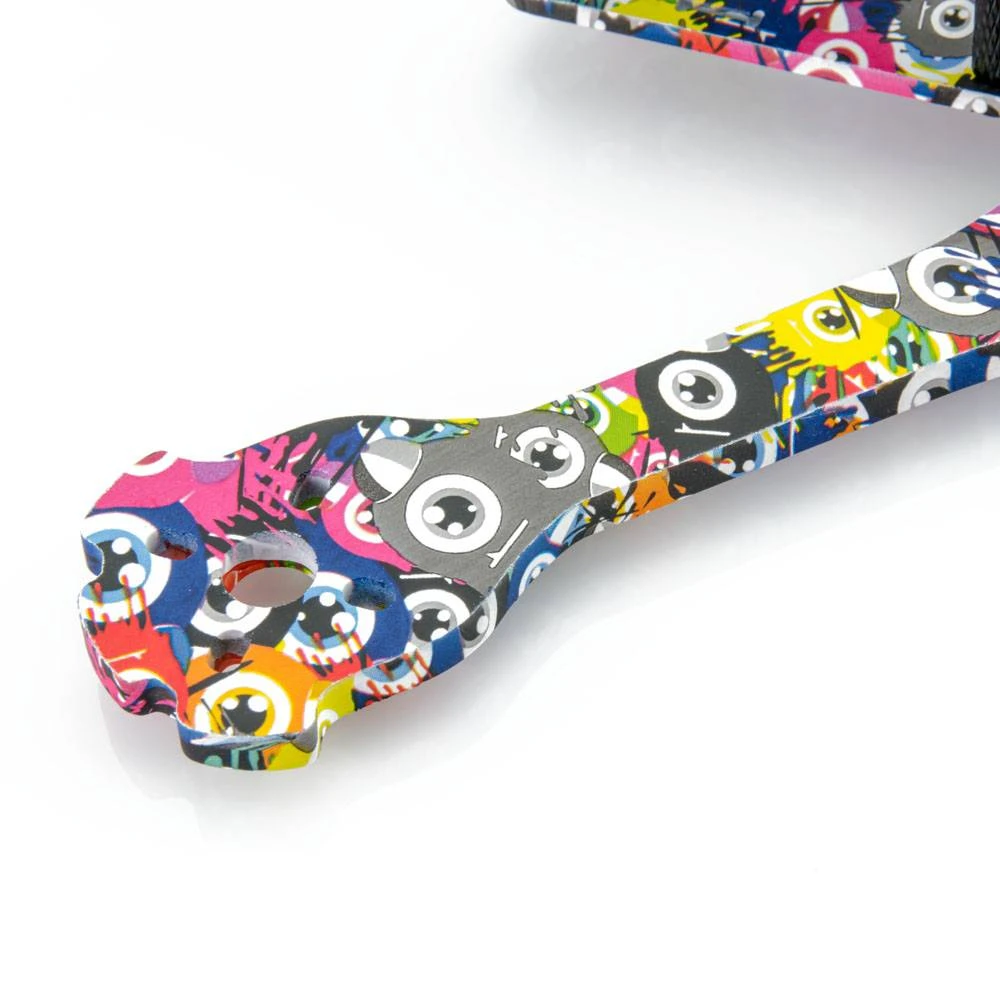

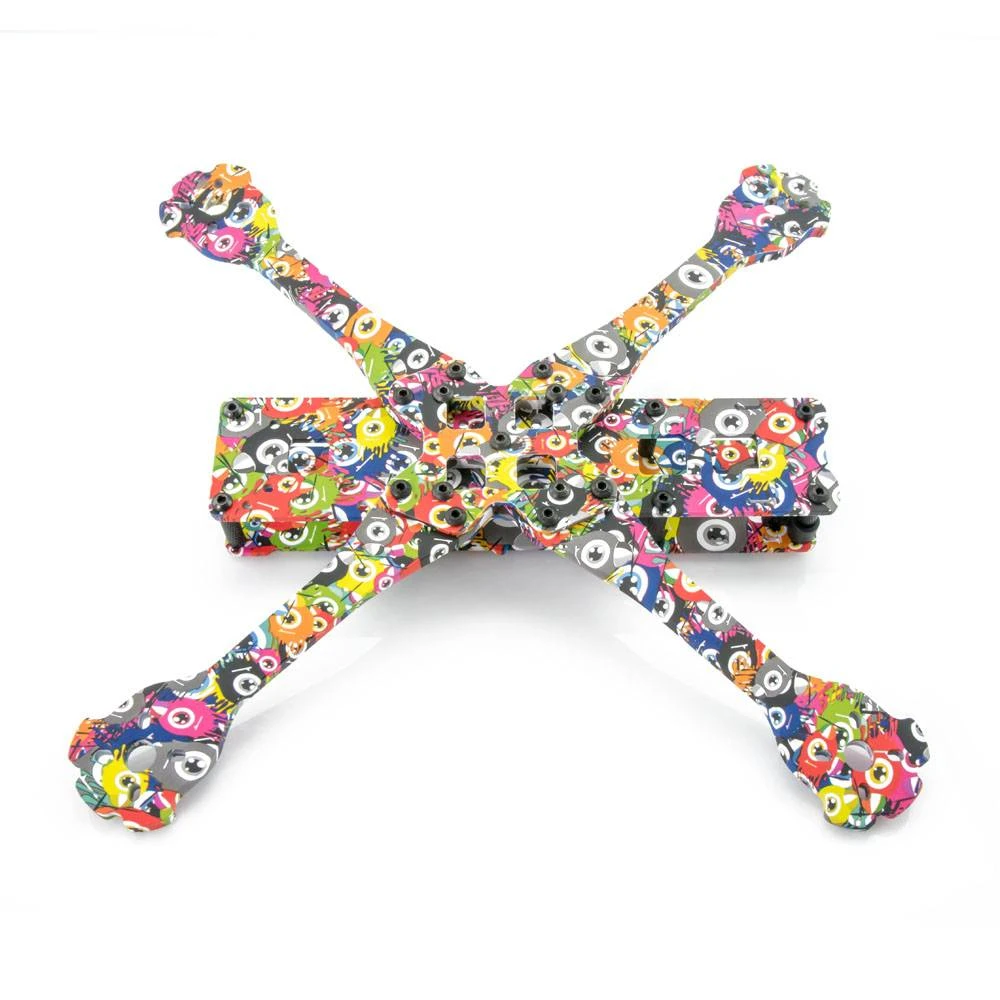

Even though it’s pretty to look at, the QAV-R 2 SKITZO is built to last, with individually removable 4.5mm thick arms on the 5″ version. The four arms form an interlocking arrangement on the bottom of the frame that strengthens the whole quad. The arms come with bumpers that protect your motors from damage should you (when you) get into an accident with a tree or asphalt. The SKITZO also comes with the X Bottom Brace to further strengthen the arms and body of the frame giving you a colossal 9.5mm of carbon at the center of the frame.

Your electronics stack on the QAV-R 2 SKITZO can be configured how you want, with either standard 30.5×30.5mm spaced stacks or mini 20x20mm stacks. Both versions of the QAV-R 2 SKITZO are made to top-mount the LiPo battery and the top plate has horizontal slots for your LiPo strap if you like to mount your LiPo horizontal (AKA toilet tank). The included silicone non-slip battery pad helps grip the LiPo and prevents any movement during the flight and or during a crash.

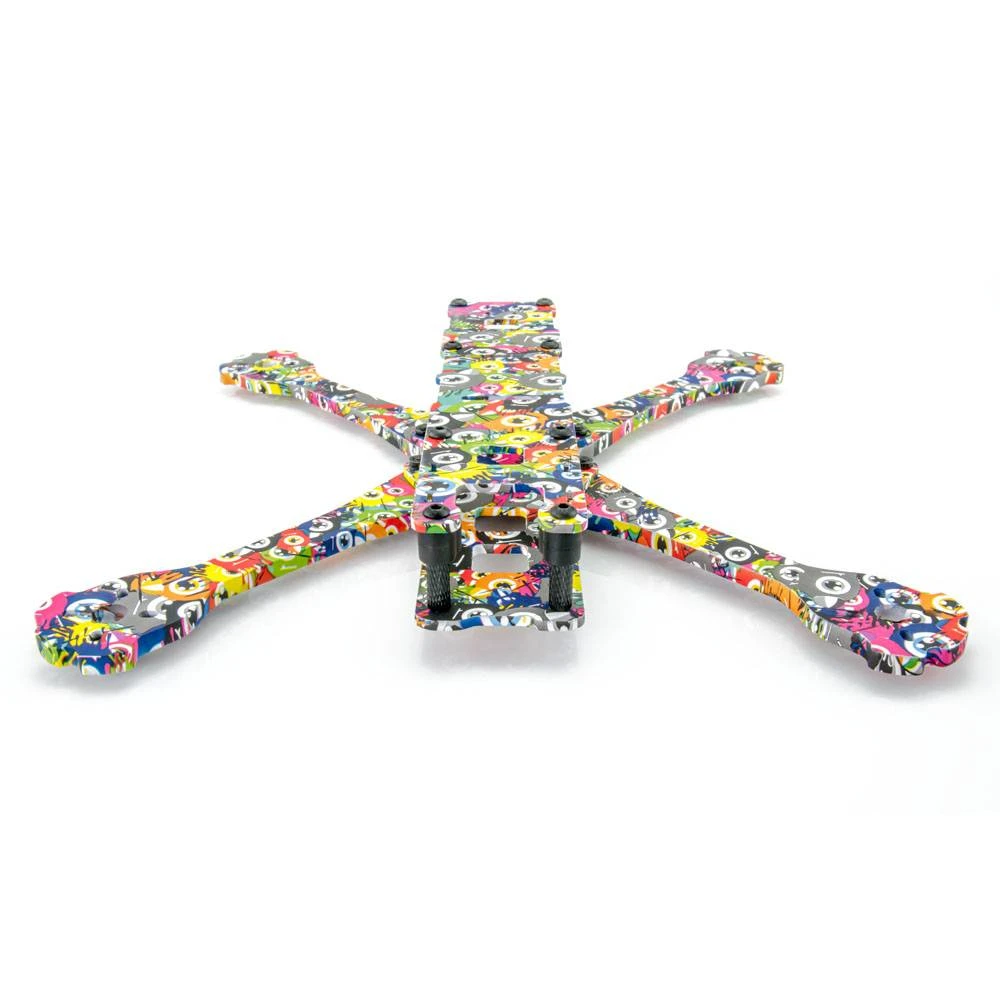

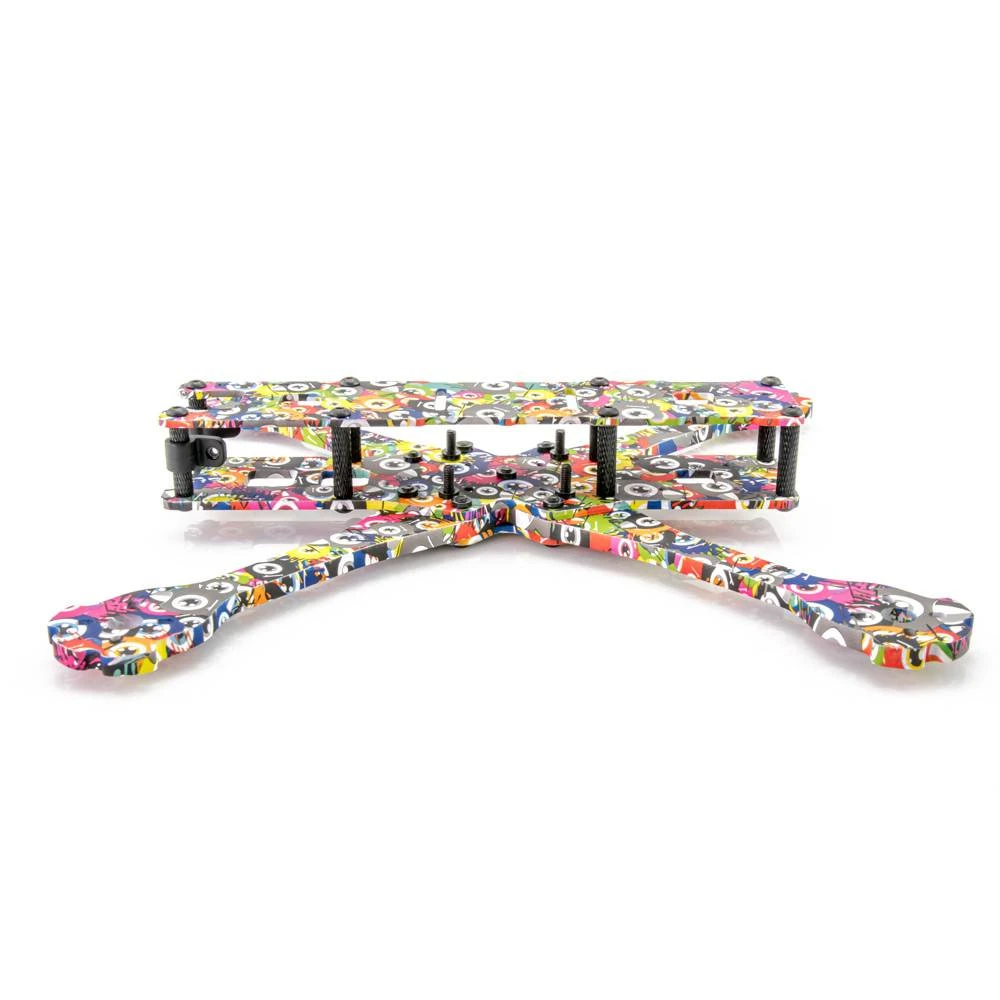

The QAV-R 2 SKITZO comes in two different versions, the QAV-R 2 SKITZO and the QAV-R 2 SKITZO Slam. The Slam version has a much shorter gap (20mm) between the top and bottom plates and is designed for micro-sized cameras, something that has become increasingly popular in the FPV community as the resurgence in arm-mounted ESCs means less space needed in the electronics stack. While the standard QAV-R 2 SKITZO is spaced 28mm between the top and bottom plates and designed for a full-size FPV camera.

The Slam comes with molded rubber camera brackets that fit any micro-sized FPV camera. While the standard QAV-R 2 comes with carbon fiber sidewalls that fit full-size FPV cameras.

Features

• Full 3K Carbon Fiber airframe with removable 4.5mm arms (5″, 6″, 7″ arm options)
• SKITZO theme sticker bomb hydro dip
• Fits both 30.5x and 20x stacks in center and rear
• Premium carbon fiber with X Brace included
• Individually “keyed” removable arms, remove just 2 screws, and leave your stack in place
• Slammed low-profile keeps the CG low
• True-X configuration
• Black oxide steel screws
• Easy-grip black anodized spacers
• Motor guards on the end of the arms to protect the motor during a crash
• Silicone non-slip battery pad

Weight

• Airframe with Hardware, Battery Pad, and Landing Pads:
• 5″ version – 135g

Includes

• 1x Lumenier QAV-R 2 Slam SKITZO Quadcopter Kit
• 4x 4.5mm carbon fiber arms (5mm if 7″ arms chosen)
• 2mm carbon fiber top plate
• 2.5mm carbon fiber bottom plate (with press-fit steel nuts)
• 2x molded rubber camera mounts
• 1x Lumenier Sticker Sheet
• 1x Set of black steel screws and aluminum hardware including knurled spacers, cable ties
• 1x No-slip silicone battery pad
• 4x Neoprene landing pads
• 4x Silicone vibration-damping o-rings
• 1x Lumenier Indestructible Kevlar Lipo strap (20x250mm)

Note: The hydro dip coating is very durable and resistant to wear, however over tightening of screws can damage the hydro dip layer. We suggest using thread locker on your screws to secure you build. You can turn the screws until they are snug and in place, just do no over tighten them.
