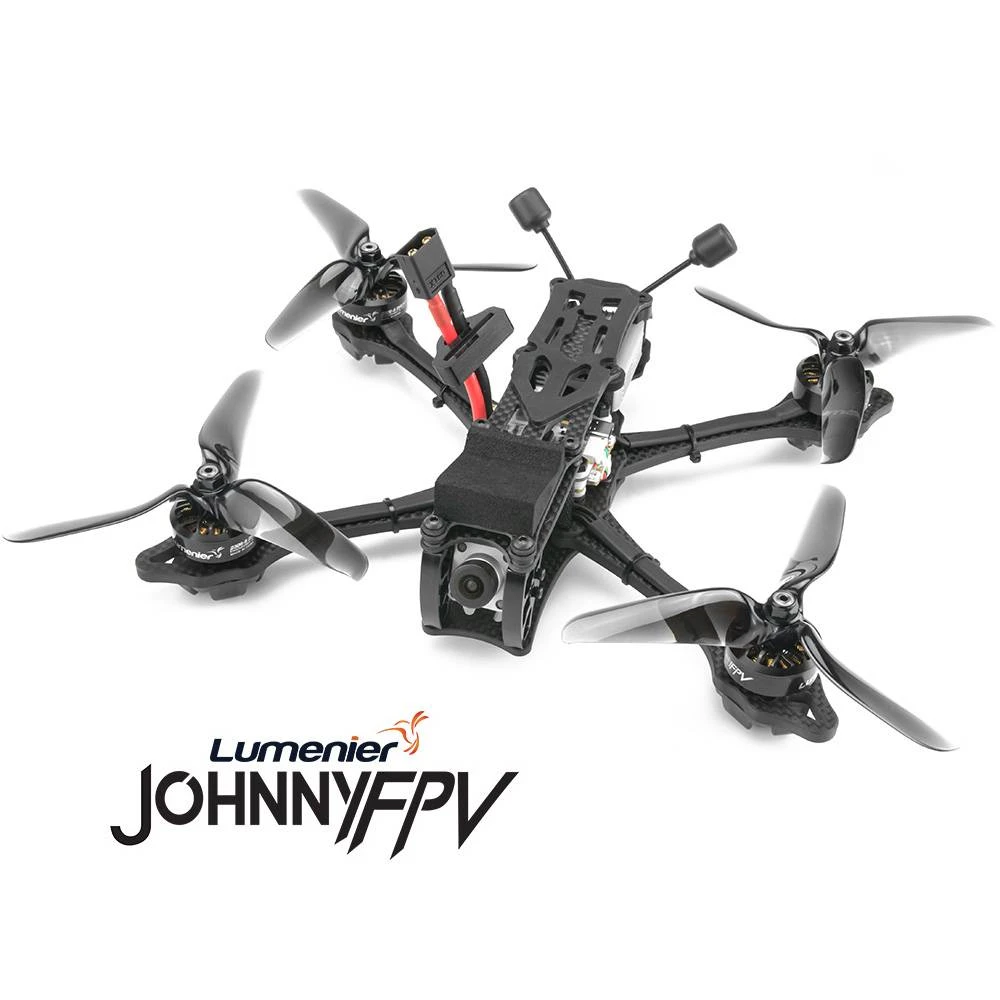

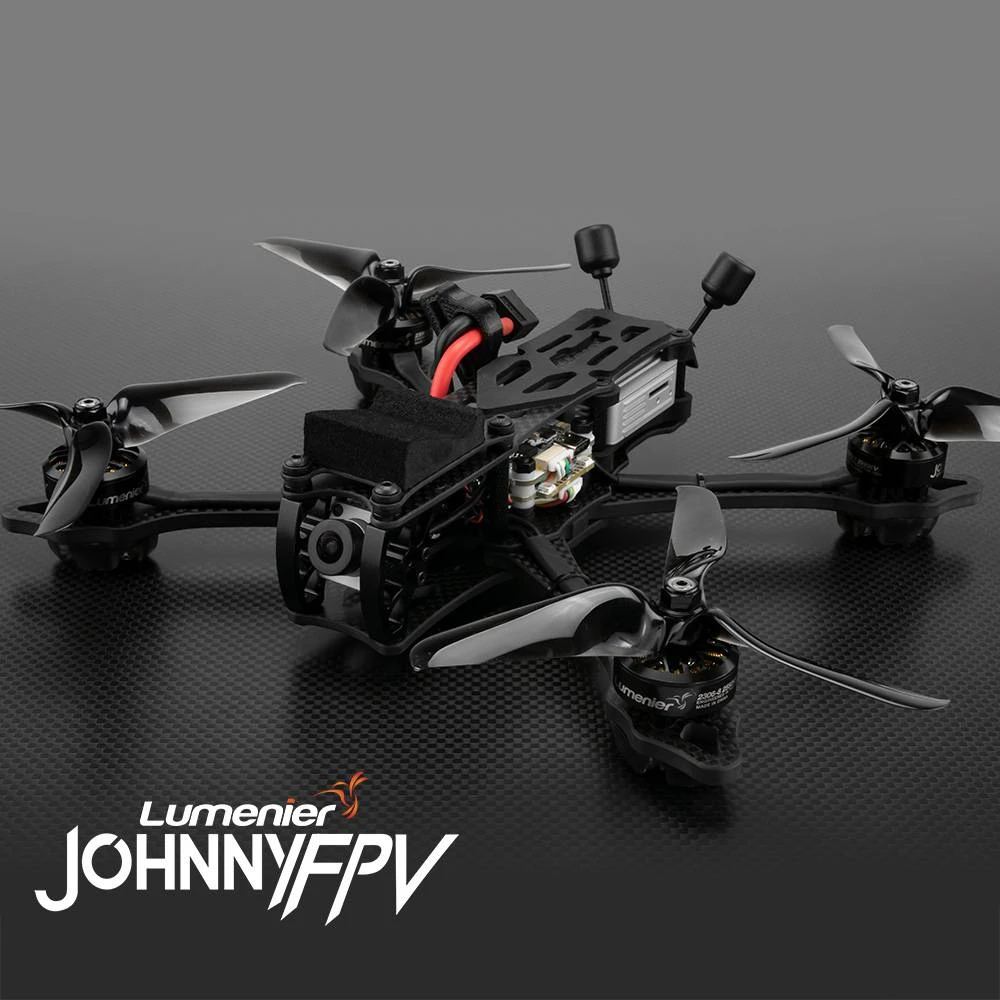

Lumenier QAV-S JohnnyFPV Special Edition 5" FPV Freestyle Drone RTF W/ DJI Digital HD FPV System – 4S

---

Lumenier QAV-S JohnnyFPV Special Edition 5″ FPV Freestyle Drone RTF w/ DJI Digital HD FPV System – 4S

The Lumenier QAV-S JohnnyFPV Special Edition RTF features the amazing new DJI Digital HD FPV System. This quad makes flying FPV truly breathtaking. With the 720p video shown at 120fps through the goggles, DJI has set the bar at a new high for clarity and image quality in an FPV system. In addition to flying this system with the Lumenier QAV-S JohnnyFPV Special Edition 5″ FPV Freestyle Drone and our popular JohnnyFPV V2 Cinematic motors, you’re in for super smooth and locked in flying all while seeing the world in HD!

You’ll gain a new appreciation for grass, branches, and power lines – all things that were almost invisible with an analog setup, but not with the DJI HD FPV system.

No worrying about making sure you set up everything correctly, our build teams do all the hard work for you and the DJI system makes it easier than ever to fly FPV. You want to fly this thing as soon as you get it right? That’s our intent!

Note: Prop Color May Vary

Features

• RTF fully built and test flown by our technicians at our Florida facility
• Equipped with the DJI Digital HD FPV System – all set up and ready to go
• Buttery-smooth 720p 120fps FPV feed
• Pre-tuned with smooth freestyle settings
• Full 3K Carbon Fiber JohnnyFPV Airframe
• Easy arm swaps – swap arms by removing only 1 screws without touching your stack!
• Premium Lumenier JohnnyFPV motors (V2)
• Advanced and future proof Lux HD F4 Flight Controller
• Fly in style in an all-blacked out look
• Black Oxide steel screws
• Easy-grip knurled black anodized spacers (35mm)
• “Bumpers” on the end of the arms to protect the motor during a crash
• Vibration isolated HD camera plate for smooth HD recording

Weight

• Airframe: 129g (airframe + hardware)
• AUW: Lumenier QAV-S JohnnyFPV Special Edition RTF w/ DJI Digital FPV has an AUW of 398g (excluding battery + props)

RTF Included Components and Parts

A fully built and tested Lumenier QAV-S JohnnyFPV Special Edition Quadcopter

• 1x Lumenier QAV-S JohnnyFPV Special Edition 5″ FPV Freestyle Drone
• 1x DJI Digital HD FPV Air Unit (FPV Camera + Air Unit Module)
• 1 x Lumenier Indestructible Kelvar Battery Strap (20x250mm)

• 1 x Lumenier Indestructible Kelvar Battery Strap (16x250mm)
• 2 x Lumenier 5×5.3×3 – Gate Breaker Propeller
• 4 x Lumenier 2306 JohnnyFPV Cinematic V2 Motor 2550KV

• 1 x Lumenier LUX F4 HD Ultimate Flight Controller
• 1 x Lumenier Razor LED 55A 4-in-1 F3 BLHeli_32 2-6s ESC
• 1 x 1000uf Capacitor Holder
• 1 x Lumenier 3D XT60 Strap Mount
• 1 x Lumenier Soft Zipper Case
• Note: Prop Color May Vary

Downloads

• Lumenier QAV-S JohnnyFPV Special Edition User Manual / Assembly Guide

Looking to buy the Full Bundle with DJI FPV Goggles and Controller?

• Lumenier QAV-S JohnnyFPV Special Edition 5″ FPV Freestyle Drone RTF Bundle w/ DJI Digital HD FPV System
• Frame kit alone for DIY build – Lumenier QAV-S JohnnyFPV Special Edition 5″ FPV Freestyle Drone Airframe

Additional Suggested Parts

FPV Goggles (required to use DJI Air Unit)

• DJI HD FPV Goggles 2

Radio Controller

• DJI Remote Controller (Mode 2)

Important

The DJI HD FPV Air Unit is currently only compatible with the DJI FPV Goggles. While optional in the bundle, IT IS REQUIRED to use the DJI FPV Goggles with the DJI FPV Air Unit on this quad.

The DJI Remote Controller is recommended for beginners since you won’t need to set up another receiver, but it is also optional in this bundle because it is NOT required in order to use the FPV system. If you don’t choose to use the DJI Remote Controller, you can add a receiver yourself from FrSky, Spektrum, etc. and then bind to your own radio as usual.

Downloads

Find the customized tune and config settings used on this RTF build in case you need to flash or recover the settings the drone had at shipment.

• Download the settings txt file for MatekF722HD FC version here. (BF 4.2.11)
