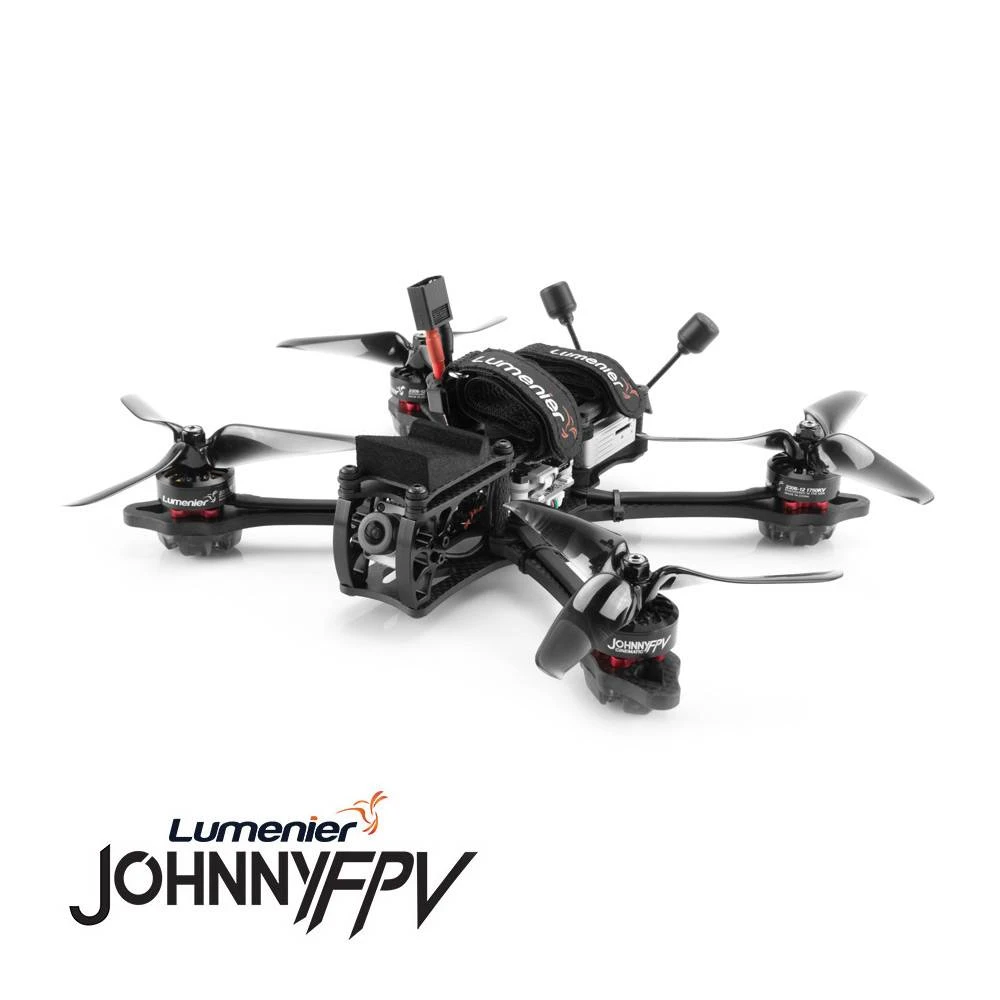

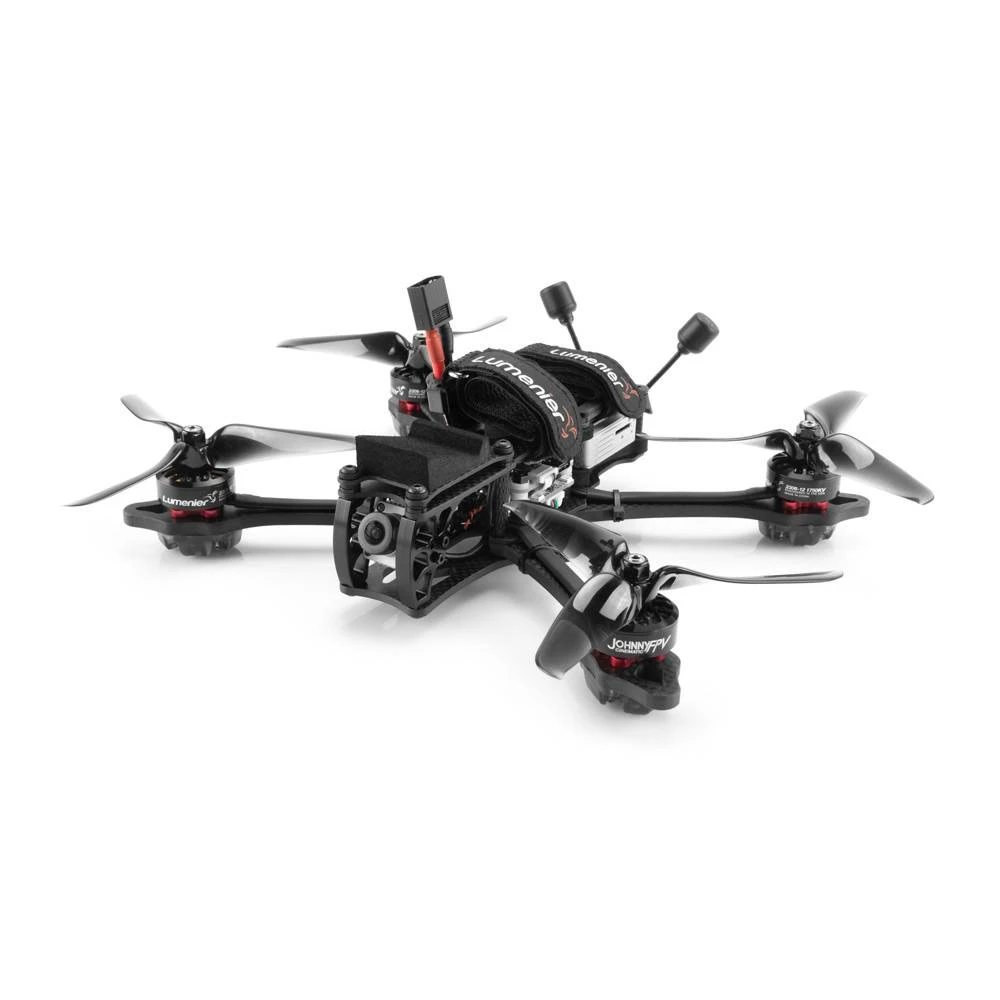

Lumenier QAV-S JohnnyFPV Special Edition 5" FPV Freestyle Drone RTF W/ DJI Digital HD FPV System – 6S

---

The Lumenier QAV-S JohnnyFPV Special Edition 6S RTF features the amazing new DJI Digital HD FPV System! This quad makes flying FPV truly breathtaking. With the 720p video shown at 120fps through the goggles, DJI has set the bar at a new high for clarity and image quality in an FPV system. In addition to flying this system with the Lumenier QAV-S JohnnyFPV Special Edition 5″ FPV Freestyle Drone and our popular JohnnyFPV V2 Cinematic motors, you’re in for super smooth and locked in flying all while seeing the world in HD!

You’ll gain a new appreciation for grass, branches, and power lines – all things that were almost invisible with an analog setup, but not with the DJI HD FPV system.

No worrying about making sure you set up everything correctly… our build teams do all the hard work for you, and the DJI system makes it easier than ever to fly FPV. You want to fly this thing as soon as you get it right? That’s our intent!

VIDEOS:  LUMENIER QAV-S JohnnyFPV Special Edition

Lumenier QAV-S JohnnyFPV Special Edition 5″ FPV Freestyle Drone RTF w/ DJI Digital HD FPV System

Features

• Easy arm swaps – swap arms by removing only 1 screw without touching your stack!
• Equipped with the DJI Digital HD FPV System – all set up and ready to go
• RTF is fully built and test flown by our technicians at our Florida facility
• “Bumpers” on the end of the arms to protect the motor during a crash
• Vibration isolated HD camera plate for smooth HD recording
• Advanced and future proof Lux HD F4 Flight Controller
• Fly in style with this RTF’s sleek blacked-out look
• Easy-grip knurled 35mm black anodized spacers
• Premium Lumenier JohnnyFPV V2 6S motors
• Full 3K Carbon Fiber JohnnyFPV Airframe
• Pre-tuned with smooth freestyle settings
• Buttery-smooth 720p 120fps FPV feed
• Black Oxide steel screws

GOGGLES COMPATIBILITY NOTIFICATION

The DJI HD FPV Air Unit is currently only compatible with the DJI FPV Goggles. While optional in the bundle, IT IS REQUIRED to use the DJI FPV Goggles with the DJI FPV Air Unit on this quad The DJI Remote Controller is recommended for beginners since you won’t need to set up another receiver, but it is also optional in this bundle because it is NOT required in order to use the FPV system. If you don’t choose to use the DJI Remote Controller, you can add a receiver yourself from FrSky, Spektrum, etc., and then bind to your own radio as usual.

Specifications

• VTX/ Camera: DJI Digital HD FPV Air Unit (FPV Camera + Air Unit Module)
• Motors: Lumenier 2306-12 JohnnyFPV Cinematic V2 6S 1750KV
• ESC: Lumenier Razor LED 55A 4-in-1 F3 BLHeli_32 2-6s ESC
• Props: Lumenier 5×5.3×3 – Gate Breaker Propeller
• FC: Lumenier LUX F4 HD Ultimate Flight Controller
• AUW Weight: 398g (excluding battery + props)
• Airframe Weight: 129g (airframe + hardware)
• Capacitor Holder: 3D Printed TPU
• Frame Material: 3K Carbon Fiber
• Capacitor: 1000uf
• Arm Size: 5″

Manual

• Lumenier QAV-S JohnnyFPV Special Edition User Manual / Assembly Guide

Looking to buy the Full Bundle with DJI FPV Goggles and Controller?

• Bundle: Lumenier QAV-S JohnnyFPV Special Edition 5″ FPV Freestyle Drone RTF Bundle w/ DJI Digital HD FPV System
• Frame Kit for DIY build: Lumenier QAV-S JohnnyFPV Special Edition 5″ FPV Freestyle Drone Airframe

Recommended (Not Included)

• FPV Goggles (required to use DJI Air Unit): DJI HD FPV Goggles 2
• Radio Controller: DJI Remote Controller (Mode 2)

Includes

• 1x Lumenier QAV-S JohnnyFPV Special Edition 5″ 6S FPV Freestyle Drone (Pre-Built and Tested)
• 1x Lumenier Indestructible Kelvar Battery Strap (20x250mm)

• 1x Lumenier Indestructible Kelvar Battery Strap (16x250mm)
• 2x Lumenier 5×5.3×3 – Gate Breaker Propeller (Set of 4)
• 1x Lumenier 3D XT60 Strap Mount
• 1x Lumenier Soft Zipper Case

Downloads

Find the customized tune and config settings used on this RTF build in case you need to flash or recover the settings the drone had at shipment.

• Download the settings txt file for MatekF722HD FC version here. (BF 4.2.11)
