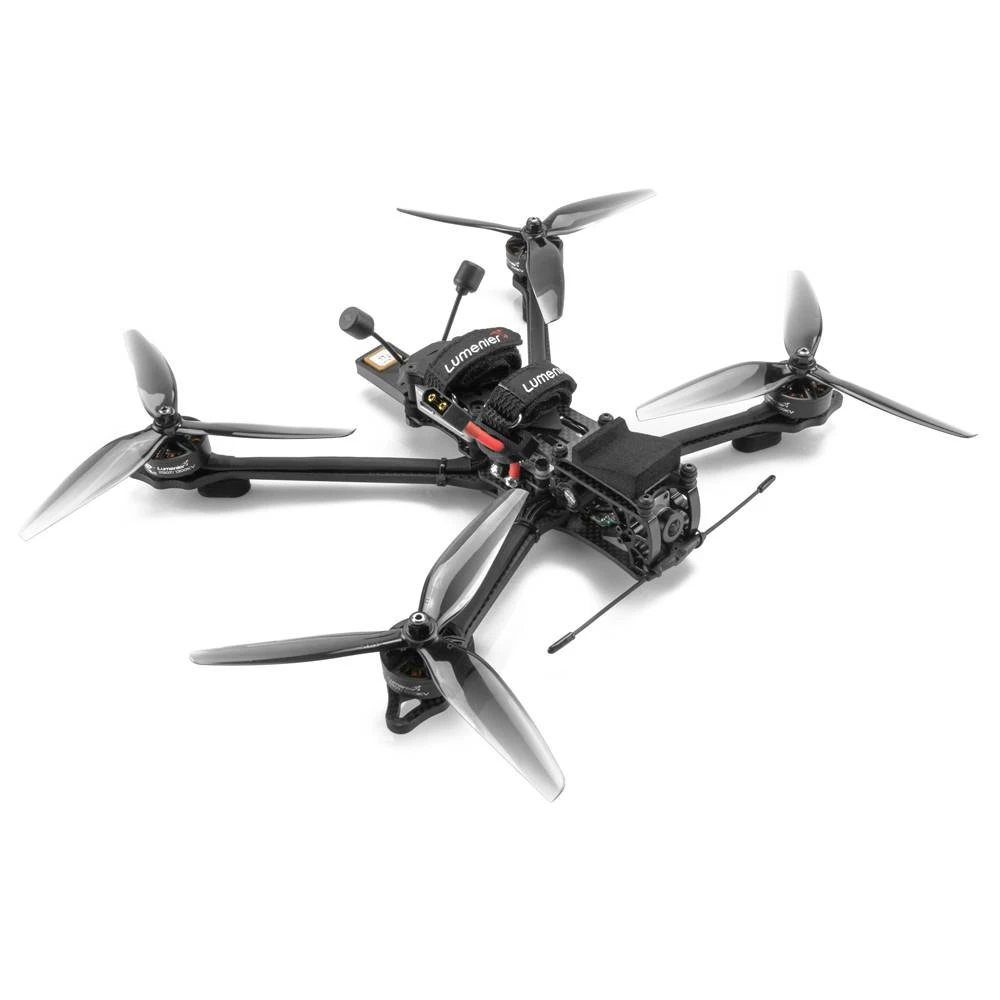

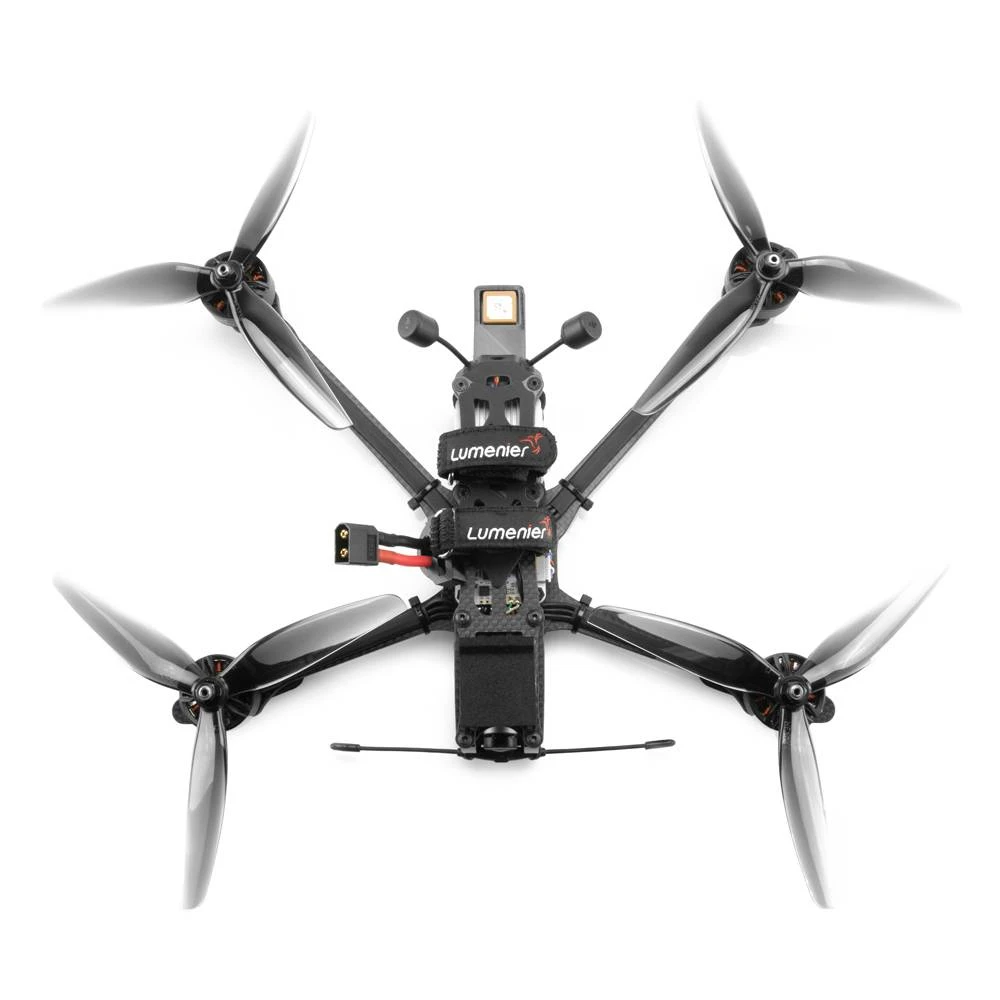

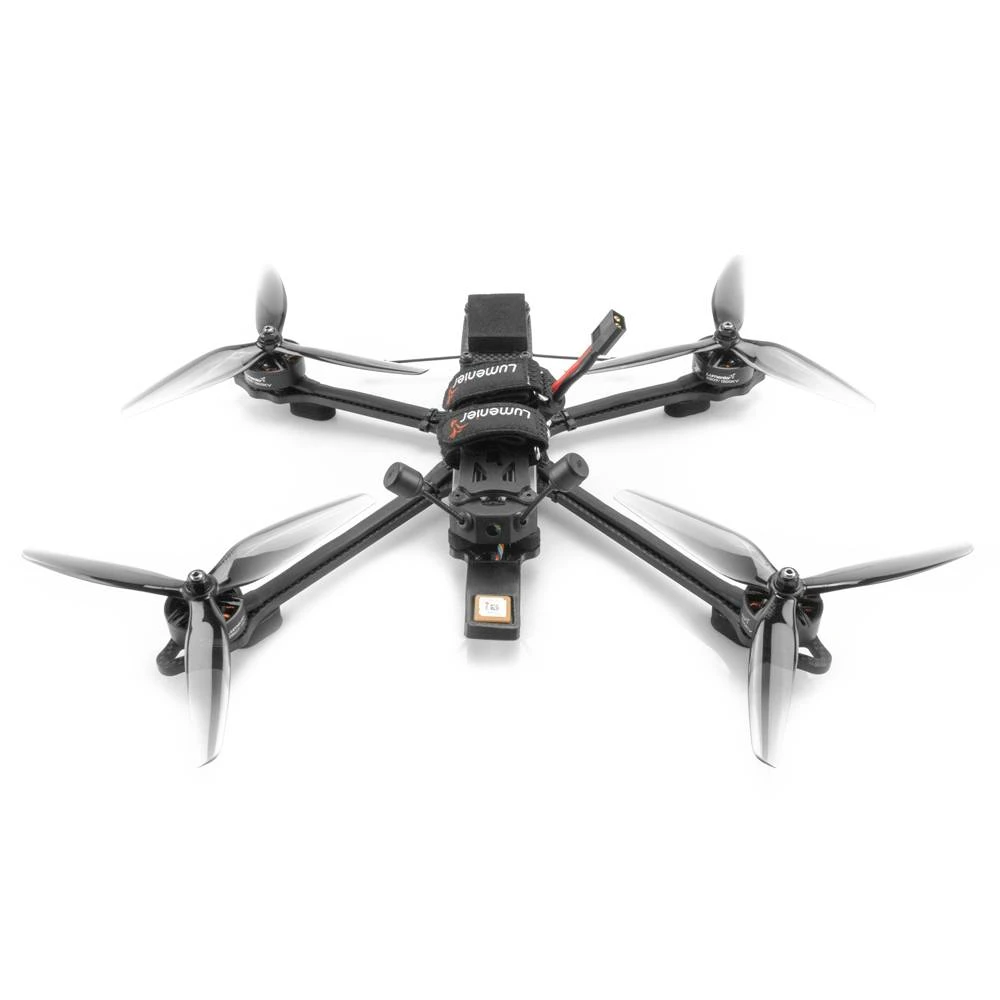

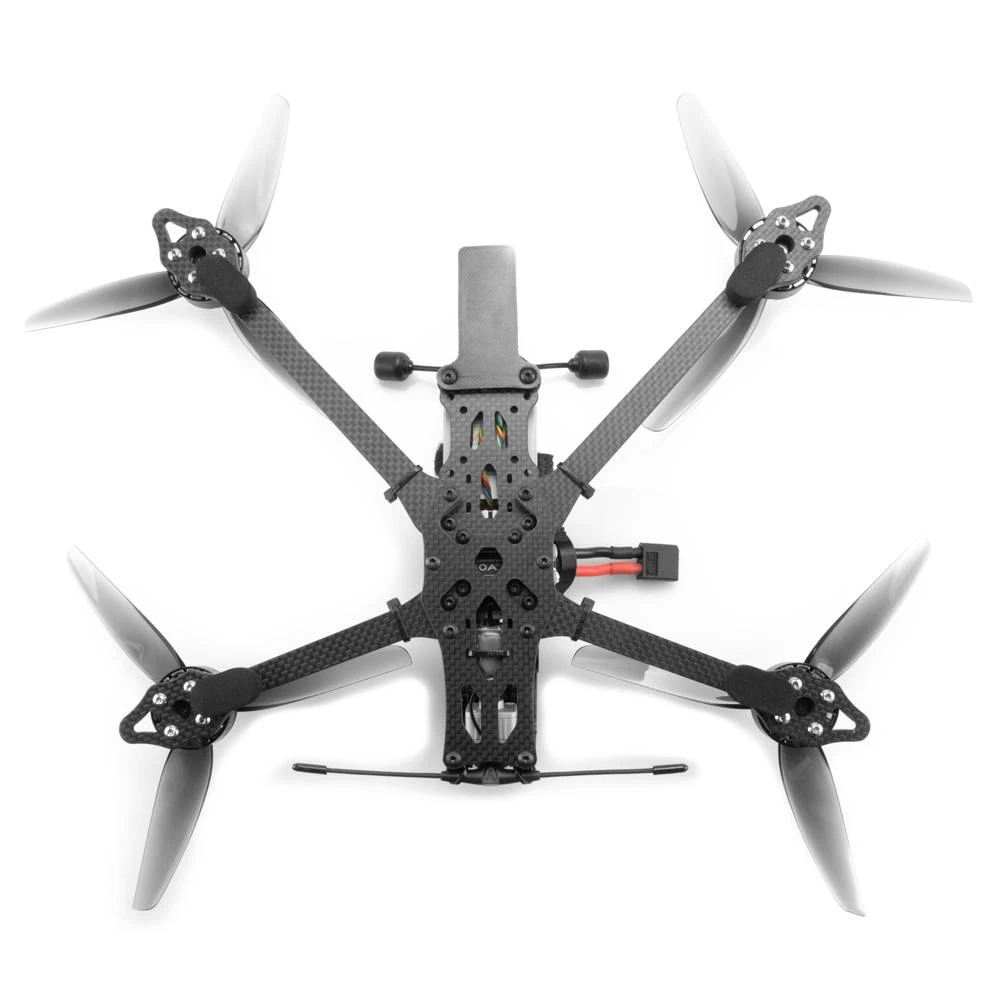

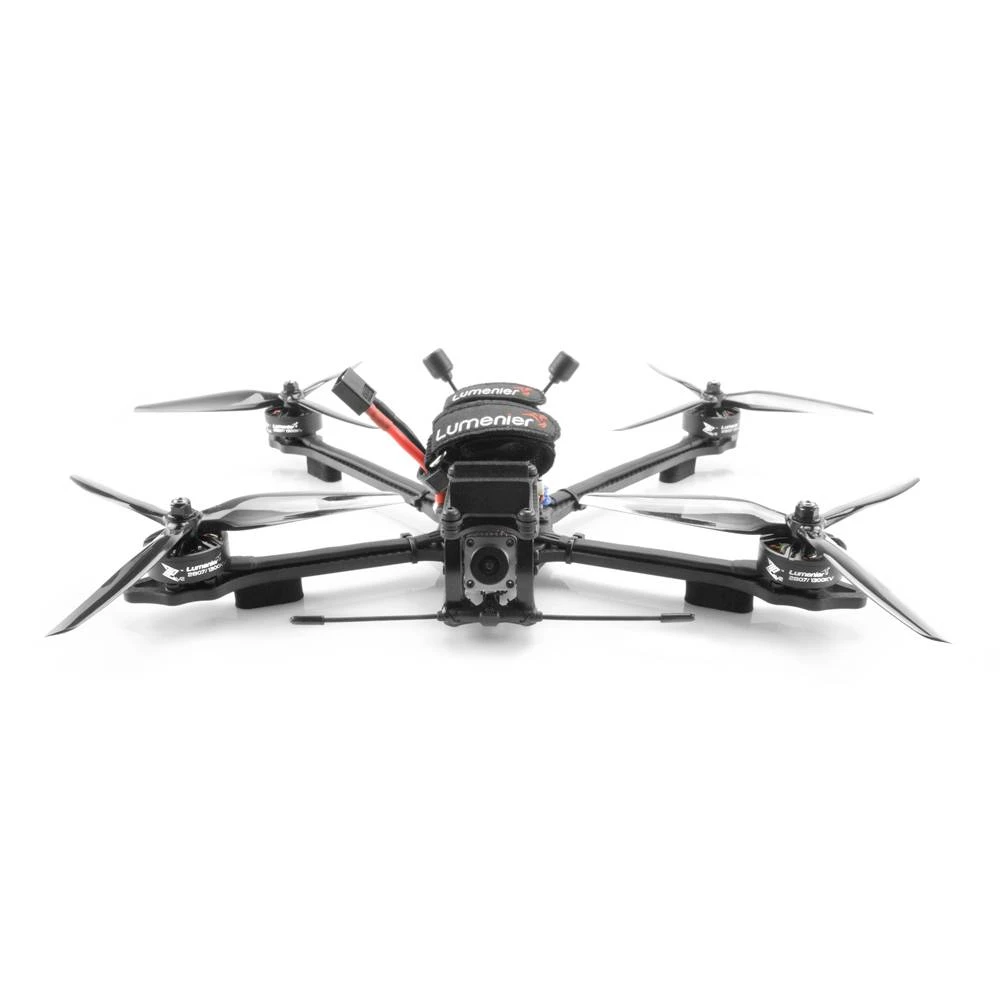

Lumenier QAV-S JohnnyFPV Special Edition 7" Long Range FPV RTF W/ DJI HD System + GPS – TBS Crossfire

---

The Lumenier QAV-S JohnnyFPV Special Edition 7″ 6S RTF features the amazing new DJI Digital HD FPV System and TBS Crossfire receiver! This quad makes flying FPV truly breathtaking. With the 720p video shown at 120fps through the goggles, DJI has set the bar at a new high for clarity and image quality in an FPV system. Flying with this DJI system in combination with our popular Lumenier ZIP V2 2807 Cinematic Motors, you’re in for super smooth and locked in flying all while seeing the world in HD! The new 7″ Arms and the Matek SAM-M8Q GPS Module offer a long-range flight like no other.

This setup is the ultimate in long-range FPV flying. Built to fly far, and with Crossfire it’s possible to go miles! Powerful motors and large 7″ props make this drone capable of carrying large camera payloads as well as larger batteries for increased flight time. Everything on this drone is of premium quality, we held nothing back.

This QAV-S JohnnyFPV 7″ version uses a “deadcat” style for the arms, which sweeps the arms back keeping your props out of view of your HD recording camera. Now you can cruise long-range, diving down the mountains with buttery smooth HD footage and no props in view!

No worrying about making sure you set up everything correctly… our build teams do all the hard work for you, and the DJI system makes it easier than ever to fly FPV. You want to fly this thing as soon as you get it right? That’s our intent!

You’ll gain a new appreciation for grass, branches, and power lines – all things that were almost invisible with an analog setup, but not with the DJI HD FPV system.

Lumenier QAV-S JohnnyFPV Special Edition 7″ LR 6S FPV Drone RTF  w/ DJI + GPS + TBS Crossfire

Features

• Easy swap 7″ arms – swap arms by removing only 1 screw without touching your stack!
• Equipped with the DJI Digital HD FPV System – all set up and ready to go
• RTF is fully built and test flown by our technicians at our Florida facility
• “Bumpers” on the end of the arms to protect the motor during a crash
• Vibration isolated HD camera plate for smooth HD recording
• Advanced and future proof Lux HD F4 Flight Controller
• Fly in style with this RTF’s sleek blacked-out look
• Premium Lumenier ZIP V2 2807 1300KV motors
• Easy-grip knurled black anodized spacers
• Full 3K Carbon Fiber JohnnyFPV Airframe
• Buttery-smooth 720p 120fps FPV feed
• Pre-tuned with smooth LR settings
• Black Oxide steel screws

GOGGLES COMPATIBILITY NOTIFICATION

The DJI HD FPV Air Unit is currently only compatible with the DJI FPV Goggles. While optional in the bundle, IT IS REQUIRED to use the DJI FPV Goggles with the DJI FPV Air Unit on this quad.

Specifications

• VTX/ Camera: DJI Digital HD FPV Air Unit (FPV Camera + Air Unit Module)
• Motors: Lumenier ZIP V2 2807 Cinematic Motor – 1300KV
• Props: HQProp DP 7X4X3 Propeller (Set of 4 – Light Grey)
• ESC: Lumenier ELITE PRO 60A 2-6S BLHeli_32 4-in-1 ESC
• Receiver: TBS Crossfire Nano Rx + Immortal T antenna
• FC: Lumenier LUX F4 HD Ultimate Flight Controller
• Capacitor / GPS Holder: 3D Printed TPU
• AUW Weight: 538g (excluding battery)
• GPS: Matek SAM-M8Q GPS Module
• Frame Material: 3K Carbon Fiber
• Arm Size: Fits up to 7″ Propellers
• Capacitor: 1000uf

Recommended (Not Included)

• FPV Goggles (required to use DJI Air Unit): DJI HD FPV Goggles 2
• Radio Controller: DJI Remote Controller (Mode 2)
• 6s Lipo Battery:
• • Good short-med. range: Lumenier 1500mAh 6s 95c Lipo Battery
  • Excellent shot-med. range: Lumenier N2O 1500mAh 6s 120c Lipo Battery
  • Excellent med.-long-range: Lumenier N2O Extreme 1850mAh 6s 150c Lipo Battery
  • Excellent extreme long-range: Lumenier 2900mAh 6S 120c CineLifter LiPo Battery XT60

Includes

• 1x Lumenier QAV-S JohnnyFPV Special Edition 7″ 6S FPV Freestyle Drone + GPS – TBS Crossfire (Pre-Built and Tested)
• 1x Lumenier Soft Zipper Case

Downloads

Find the customized tune and config settings used on this RTF build in case you need to flash or recover the settings the drone had at shipment.

• Download the settings txt file for MatekF722HD FC version here. (BF 4.2.11)
