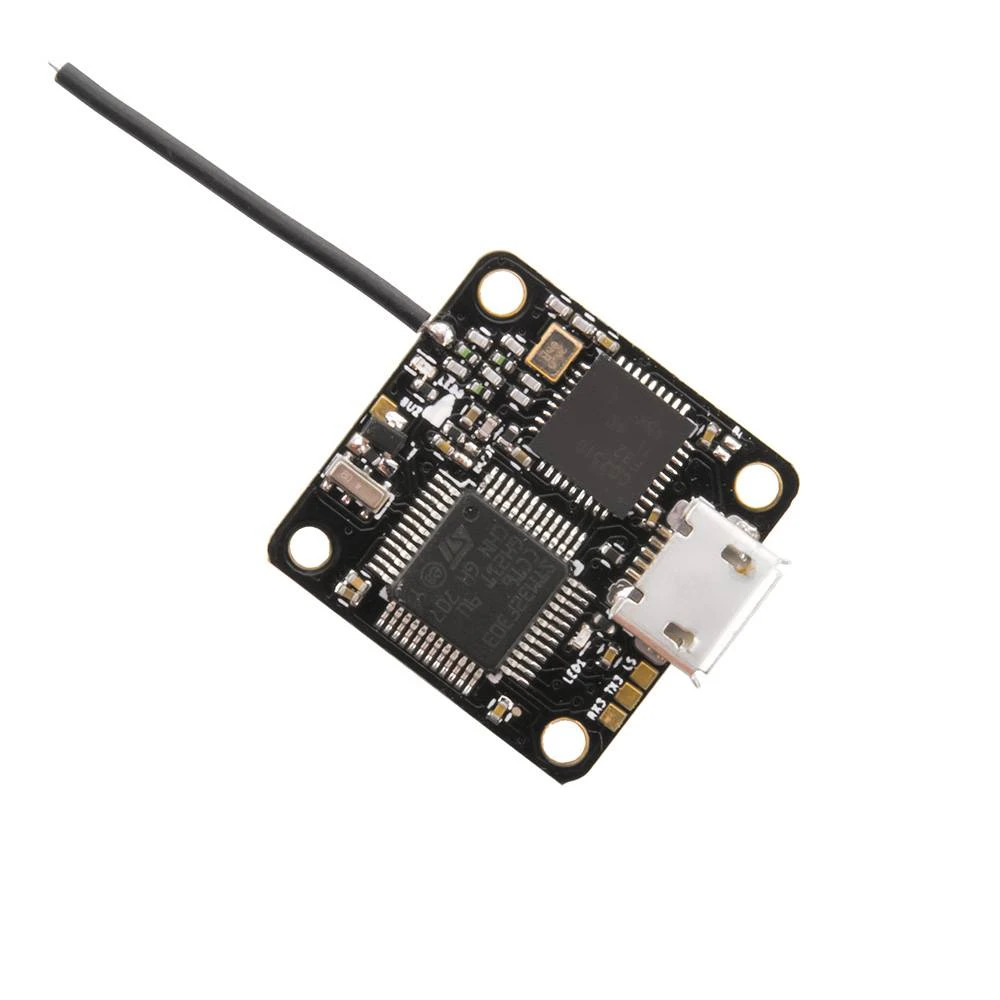

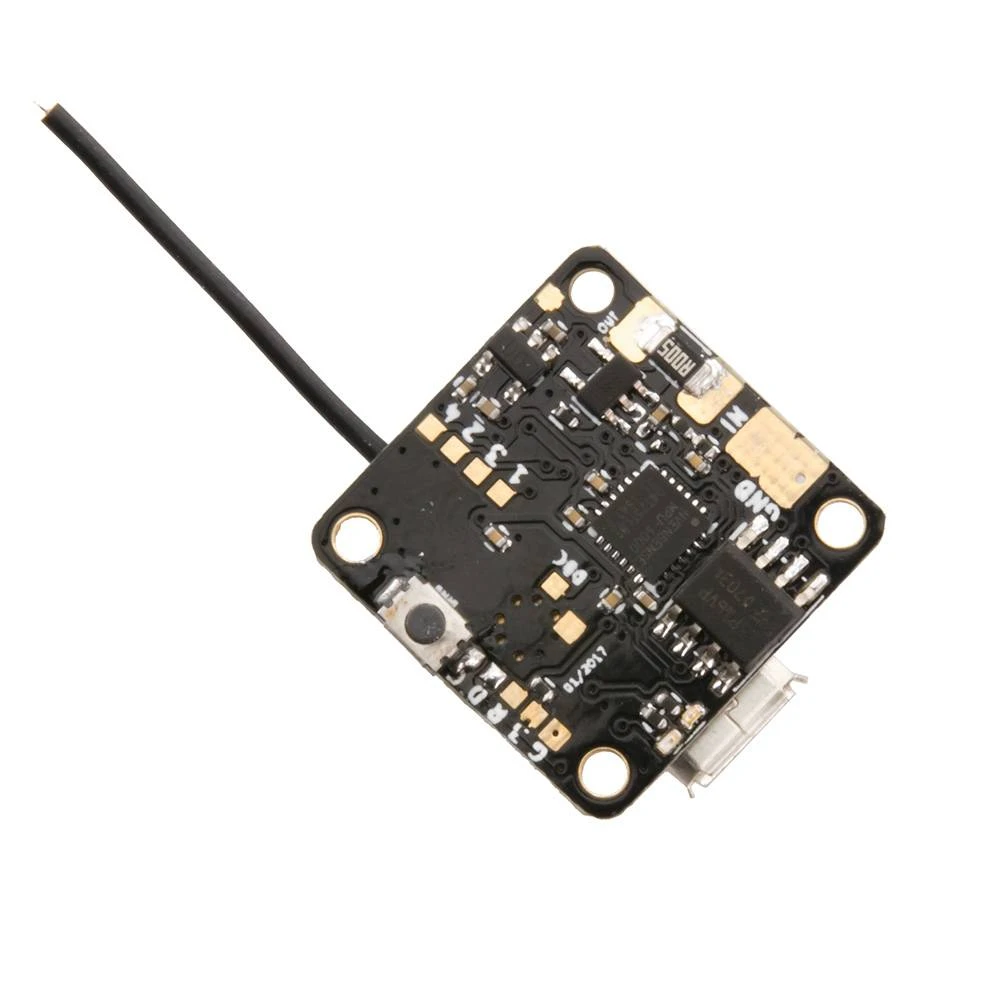

Lumenier TinyFISH F3 16x16mm Flight Controller W/ Built-in 8CH SBUS FrSky Receiver

The Lumenier tinyFISH F3 Flight Controller brings incredible power and performance to the micro brushless world. It uses a powerful F3 processor along with top of the line hardware. Now you can get all the performance from an F3 based flight controller in a truly micro size! This flight controller uses 16x16mm mounting holes and a low profile design allowing for smaller airframe designs than ever before. The tinyFISH comes with BetaFlight pre-installed.

The tinyFISH F3 Flight Controller has a built 8CH SBUS FrSky compatible receiver, making setup a breeze. This flight controller has been designed by and named after our friends at fishpepper.de under an open source license.

Software/Hardware Features

• 1-3S Direct Lipo input support (3-12v) (LiPo power is required for PC connectivity!)
• 16x16mm hole to hole spacing (20x20mm outer dimension)
• Integrated FrSky compatible SBUS receiver (basically an integrated uSKY rx)
• STM32F3 CPU
• MPU-6000 SPI gyro
• Supports DSHOT
• Integrated Blackbox dataflash
• Integrated voltage- and current-sensor
• Buzzer output
• RGB led output
• Open hardware

Specifications

• CPU: STM32F3
• SPI: ICM-20608-G Accelerometers and Gyroscope
• Mounting Hole: 16x16mm, M2
• Can support current, voltage monitoring
• 2.4G Receiver
• Channel: 8CH
• SUBS Output
• Control Range: 200m
• Compatible with Frsky X9D Plus Transmitter

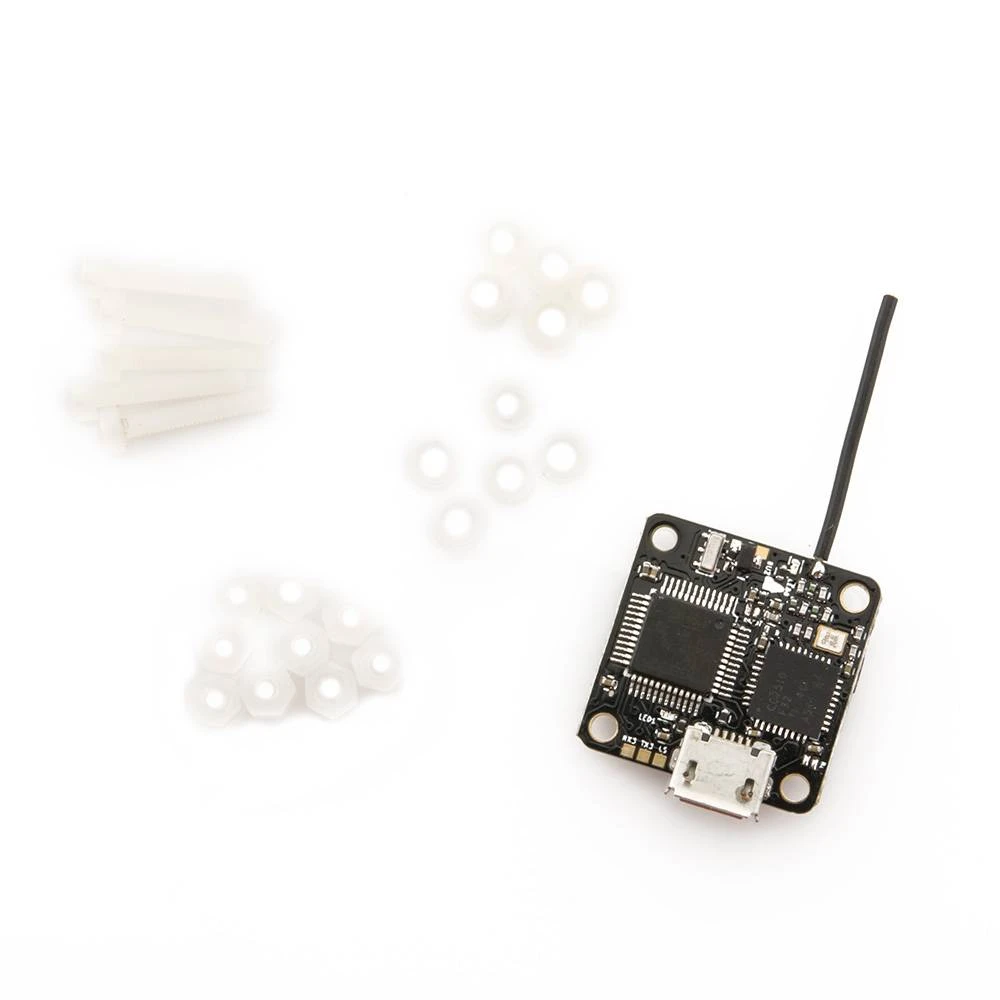

Includes

• 1x Lumenier tinyFISH F3 Flight Controller
• 1x Set of nylon spacers, screws, nuts

Downloads

• Download Betaflight Configurator – Latest Betaflight Firmware
