MATEKSYS VTX-1G3SE 2CH Video Transmitter – 1.2GHz/1.3GHz (U.S. Version)
Original price was: $44.99.$31.49Current price is: $31.49.
- Nature-friendly materials, for a better planet.
- SSL encryption, absolutely safe shopping
- Expertly Sourced, Quality Guaranteed
- Shop with Peace of Mind

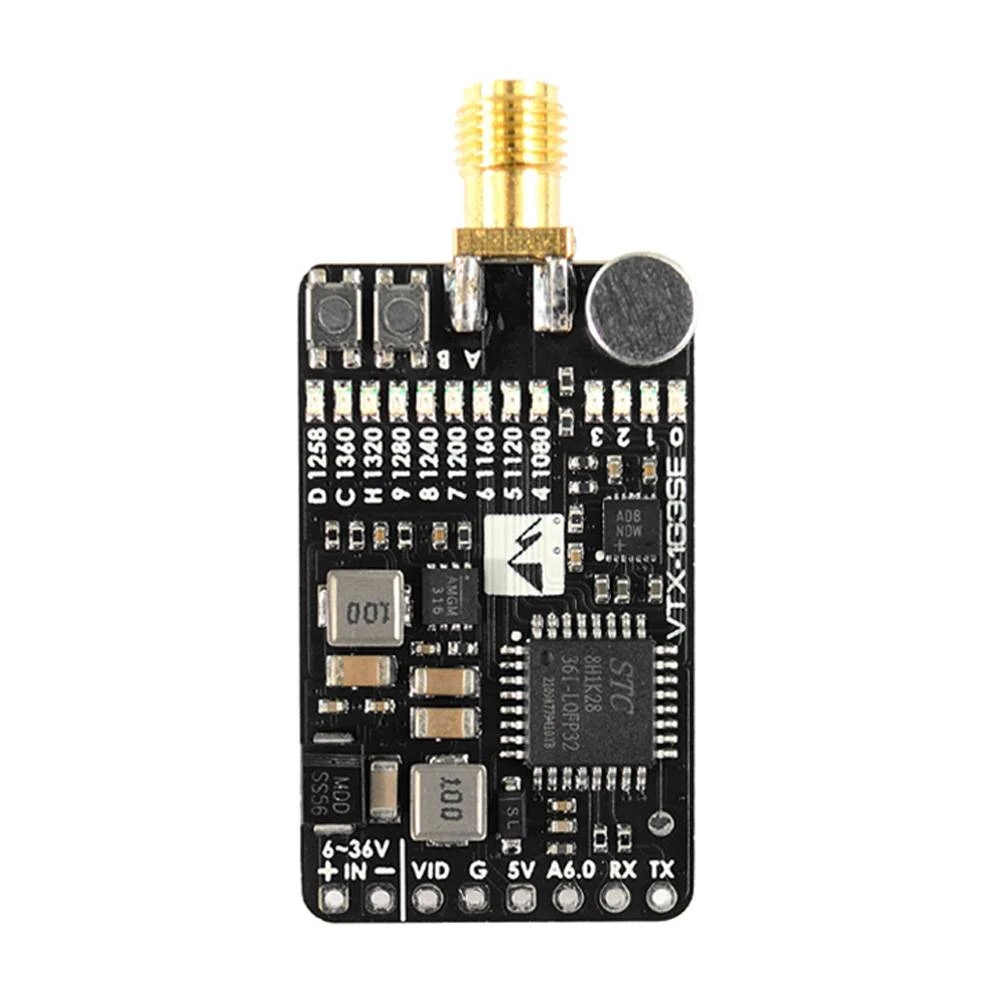

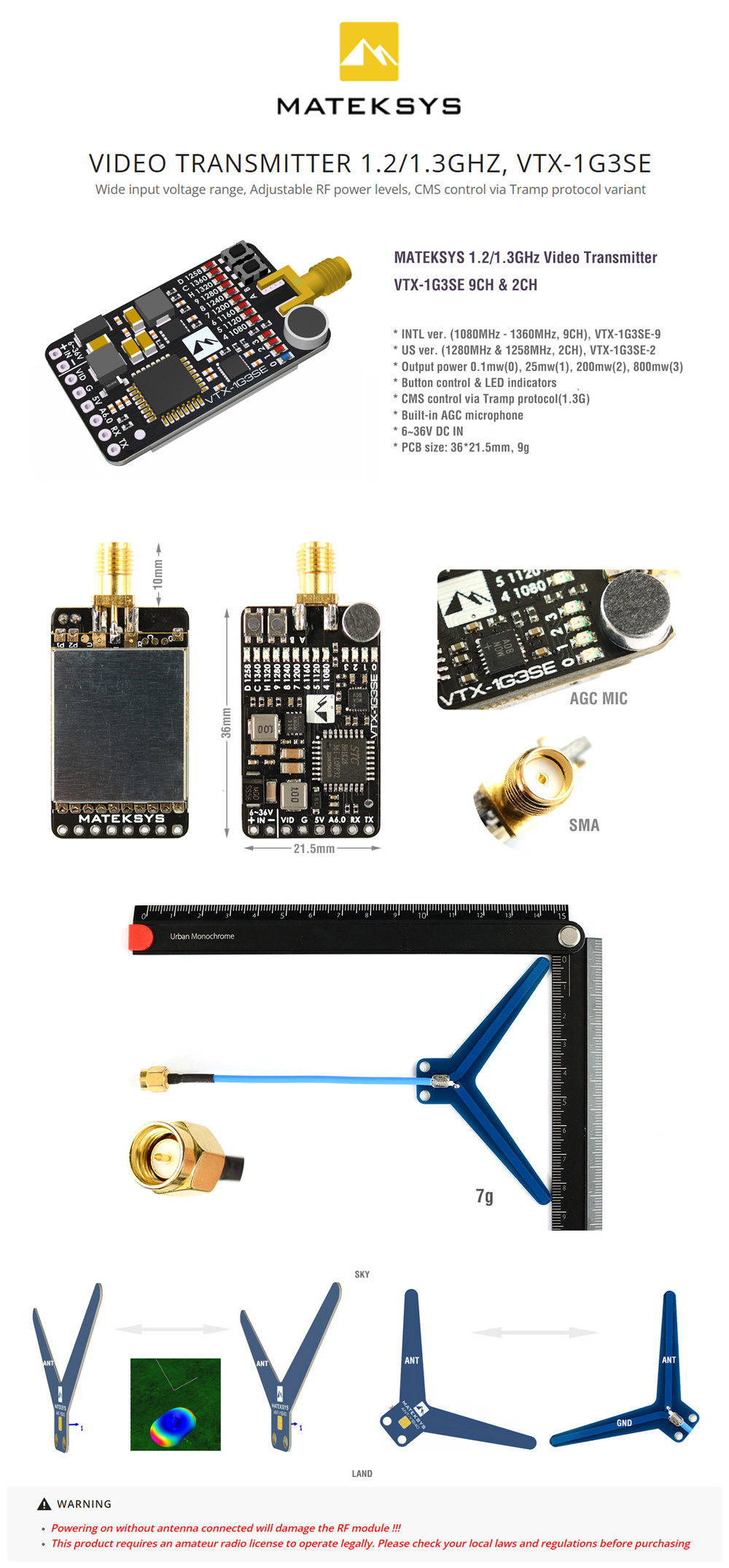

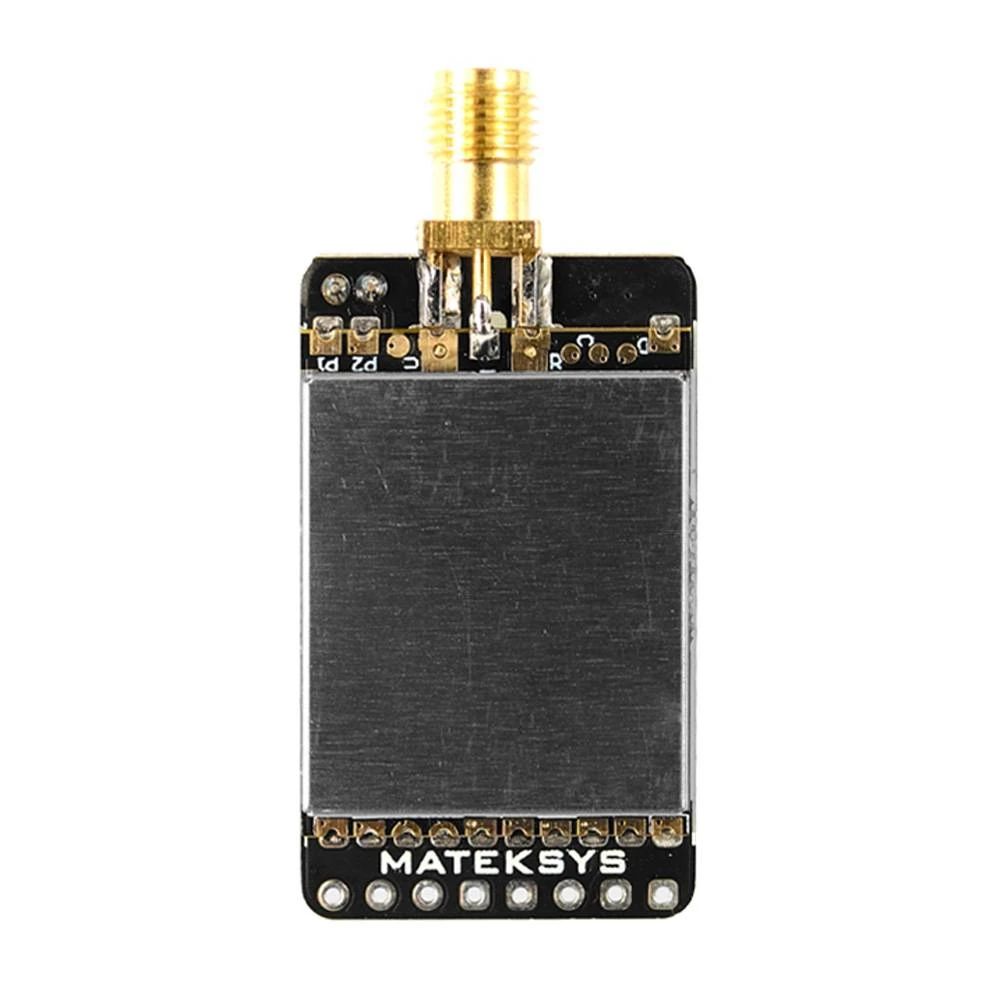

The MATEKSYS 1G3SE Video Transmitter works on both 1.2GHz and 1.3GHz frequencies. This VTX comes with a Dipole SMA Antenna and features 2 US channels, an SMA connector, button control, LED indicators, and more!
Features
- RF power output: 0.1mw(0, pit mode), 25mw(1), 200mw(2), 800mw(3)
- 2CH US version – SKU: VTX-1G3SE-2 (1258MHz & 1280MHz)
- CMS control via Tramp protocol variant for 1.3G
- CMS Control via IRC Tramp Protocol
- Button control and LED indicators
- Built-in AGC microphone
Specifications
- Power Consumption: 40mA(0.1mw), 110mA(25mw), 150mA(200mw), 250mA(800mw) @12V IN
- Audio Subcarrier: 6.5 MHz & 6.0MHz, onboard microphone on 6.5MHz

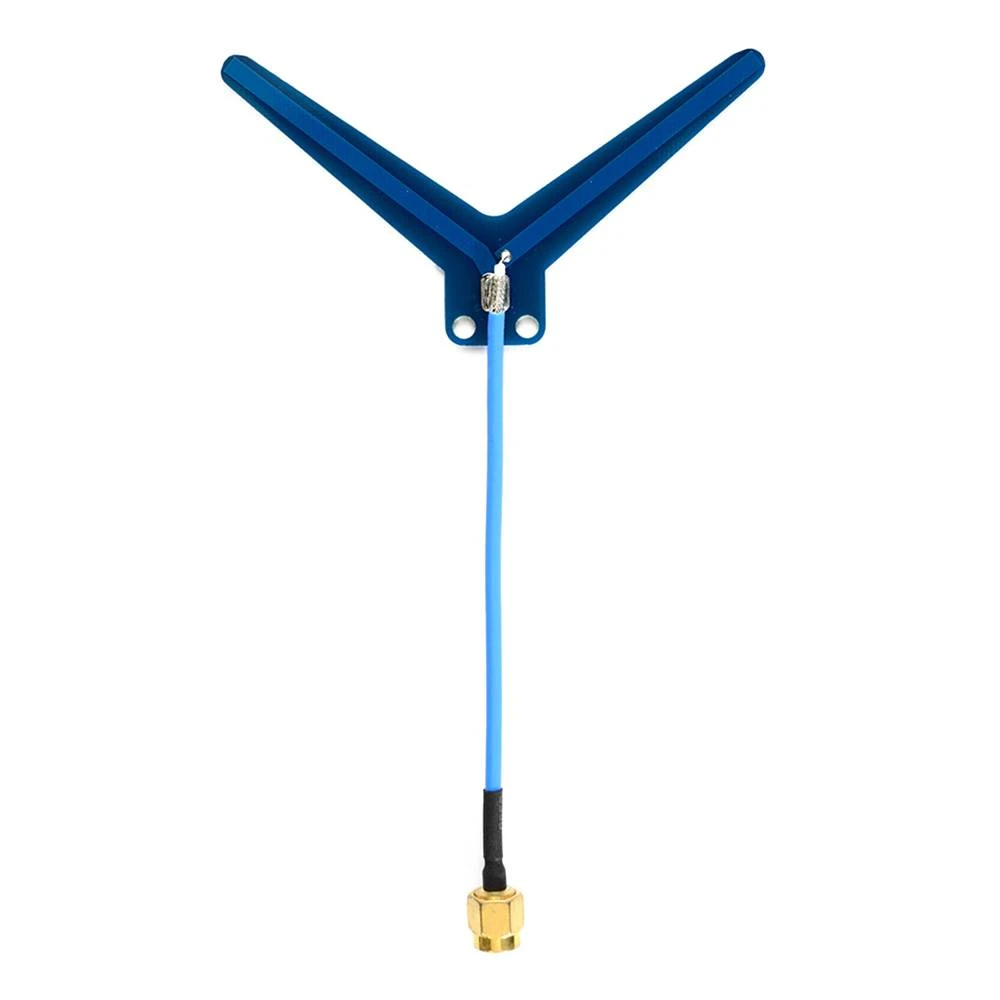

- Antenna: Dipole SMA Antenna (Center Freq 1240MHz)
- Voltage: 6-36V DC IN (2-8S LiPo)
- Video format: NTSC or PAL
- Weight: 9g ( w/o Antenna)
- Size: board 36*21.5mm
- RF Connector: SMA
- Model: VTX-1G3SE-2
- Channels: 2CH US
- Note: 2CH US version is locked to 1258 & 1280MHz, can’t be unlocked to 9CH via firmware update.
Includes
- 1x MATEKSYS VTX-1G3SE 2CH Video Transmitter – 1.2GHz/1.3GHz (U.S. Version)
- 1x Dipole SMA Antenna
FPV Regulatory Notice
The use and operation of this type of product in the USA and many other countries may require a license and some countries may forbid its use entirely. In the USA, you will need a “HAM” amateur radio license. Learn more about HAM licenses, and find a HAM license exam session in your area. It is your responsibility to ensure that the use of this product meets the requirements imposed by your government’s rules and regulations for RF devices. Do not purchase this product if you are unsure of the government requirements or are not able to comply with them. GetFPV cannot be held responsible for your actions if you purchase and/or use this product in violation of your government’s regulations. By agreeing to our terms and conditions during the check-out process, you also agree to have read and to understand this notice.
| SKU | 16959 |
|---|---|
| UPC (GTIN) | 764613342390 |
| Manufacturer | Matek Systems |
| Frequencies | US: 1258, 1280 |
| Item Returns | This item can be returned |
