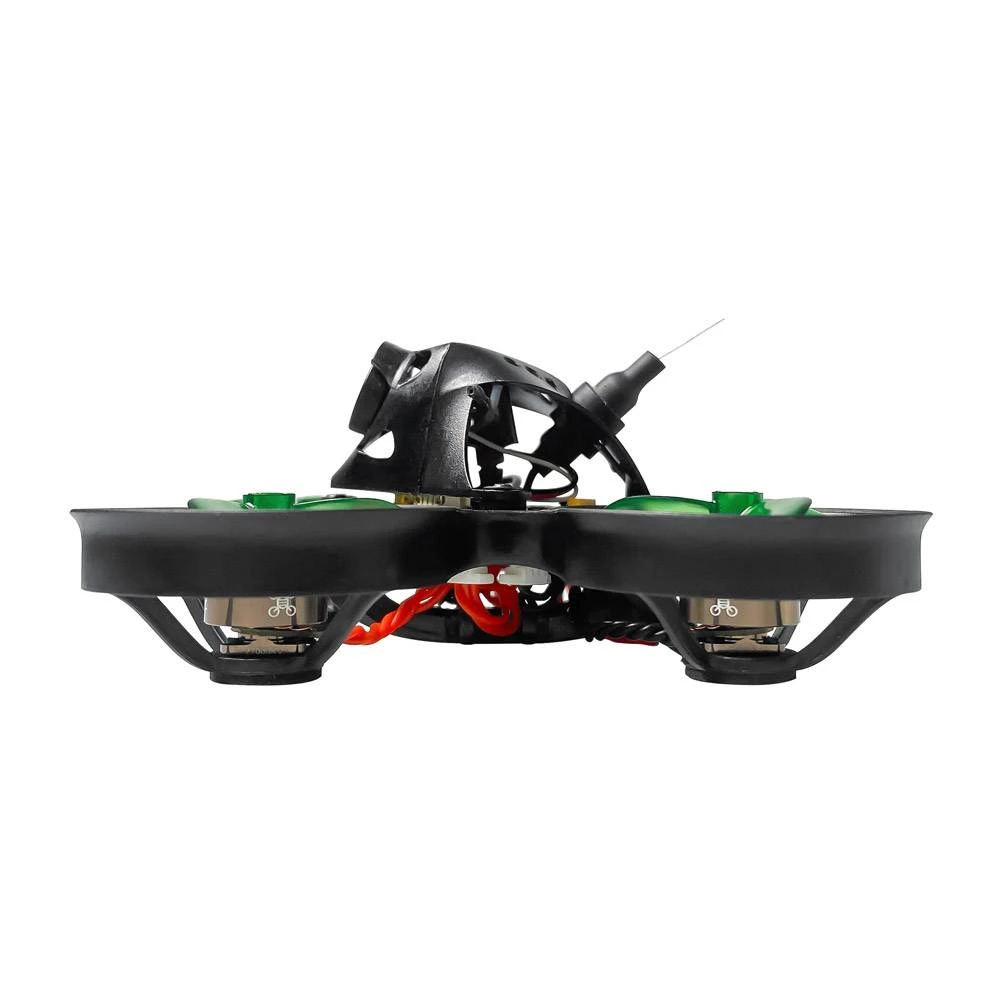

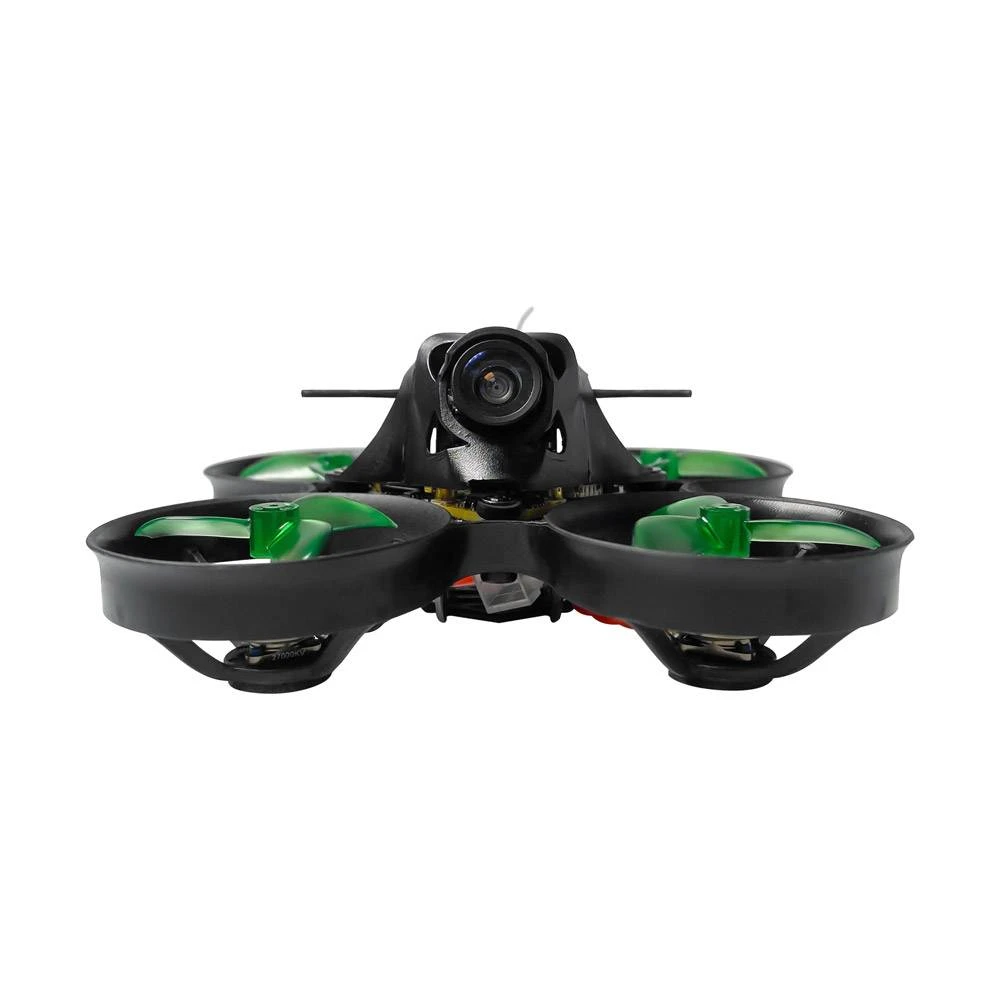

NewBeeDrone AcroBee65 V4 BNF W/ BeeBrain BLV4 – TBS Crossfire

The NewBeeDrone AcroBee65 V4 BNF features a BeeBrain BLV4 AIO flight controller with a built-in VTX and TBS Crossfire receiver. The Flow 0802 27000KV motors make this whoop really zip around!

VIDEO: I got the NewBeeDrone AcroBee65 BLV4 TBS Tiny Whoop / The Ultimate BNF Whoop

• NewBeeDrone BeeBrain V4 AIO
• Built-in TBS Crossfire Reciever
• Flow 0802 27000KV Motors
• 65mm Wheelbase

• AIO Flight Controller: BeeBrain BLV4 CRSF with built-in VTX and Crossfire Receiver
• Motors: Flow 0802 27000kv Double Ball Bearing Brushless motor
• Propeller: Azi Tri-Blade 31mm Propeller(Jade Green Color)
• Frame: Cockroach65 Brushless Frame (Solid Black Color)
• Total Weight of the Drone without battery: 24.8g
• Canopy: Goober Canopy v1(Solid Black)
• Camera: BeeEye Camera
• Drone Size: 65mm

BEEBRAIN V4 AIO

• Uart2: Crossfire Nano receiver (Binding instruction: just like the Crossfire Nano, after powering up the drone, hold the bind button on the back side of the USB to get into bind mode)
• VTX: Switchable output power from 5mw- 25mw(for Racing) – SmartMAX(SmartMax up to 400mw)  with BeeTX 5.8Ghz Antenna
• Battery input: 1-2S (For 2S you will need to set the throttle cap at less than 50%)
• Flight Controller Weight: 6.5g(Include antennas and battery connector)
• ESC: 12A BLHeliS Pre-Flash with Bluejay 0.18 target: S-H-40 48kHz
• Receiver: Crossfire Nano receiver with MINIMORTAL T Antenna
• OSD: NBD7456 Graphical OSD compatible with Betaflight OSD
• Flight Controller Size: Outer dimensions: 29x29x7.6mm
• Power Connector: NBD-PH2.0 connector
• Flight Controller Holes: 25.5×25.5mm
• ESC Connector: JST-1.0 3Pin
• MCU: STM32F411
• GYRO: BMI270

IMPORTANT NOTES

• The 27000kv motor on your device is designed for high performance and may be too strong for most users. To ensure safety, the factory has set the device to only use 80% of the maximum power by default. However, if you require more power, it is possible to adjust the settings through the Betaflight software, which can be accessed under the PID tab. Please note that increasing the power beyond the default setting may increase the risk of damage to the device or injury to yourself or others, and should be done with caution.

• Battery: 1-2S (PH2.0 connector)

• BeeBrain BLV4 CRSF Betaflight 4.4 Firmware

• 1x NewBeeDrone AcroBee65 V4 BNF w/ BeeBrain BLV4 – TBS Crossfire

VIDEO: AcroBee65 BLV4 CRSF Receiver Binding Instruction| A NewBeeDrone Tutorial
