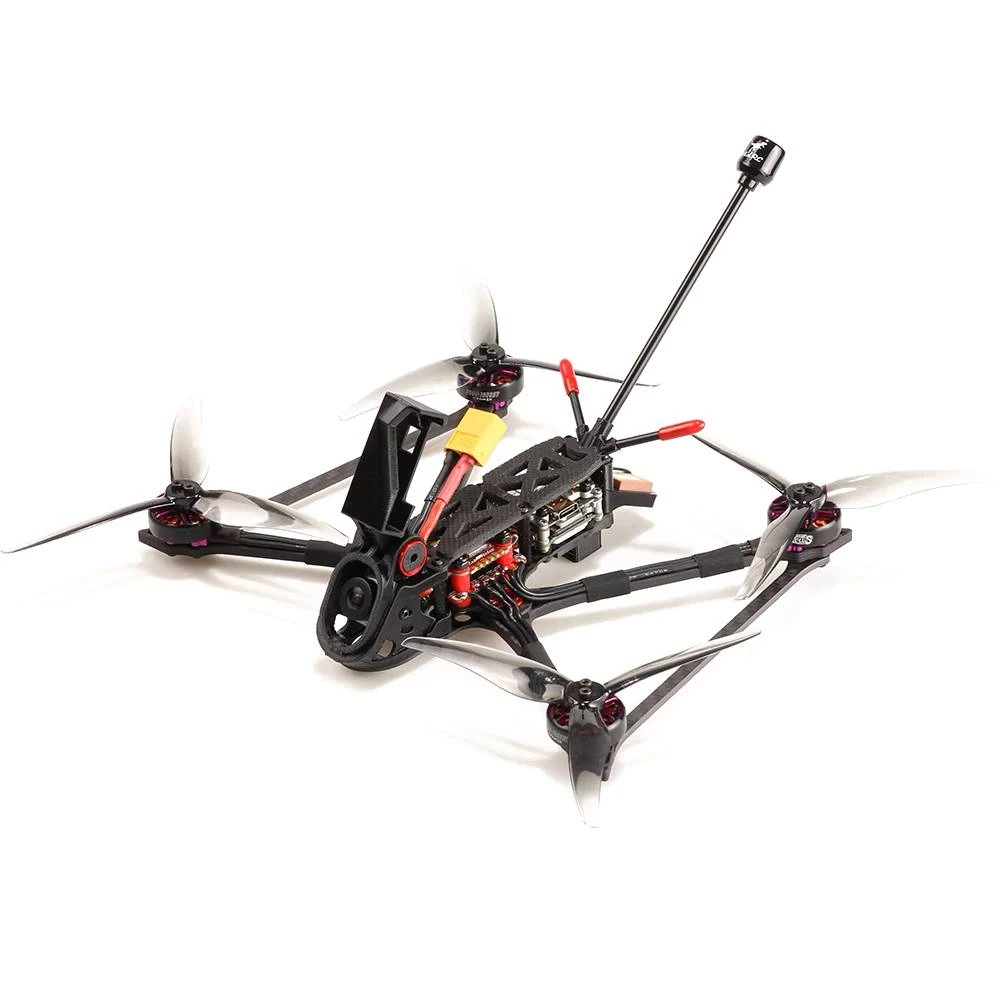

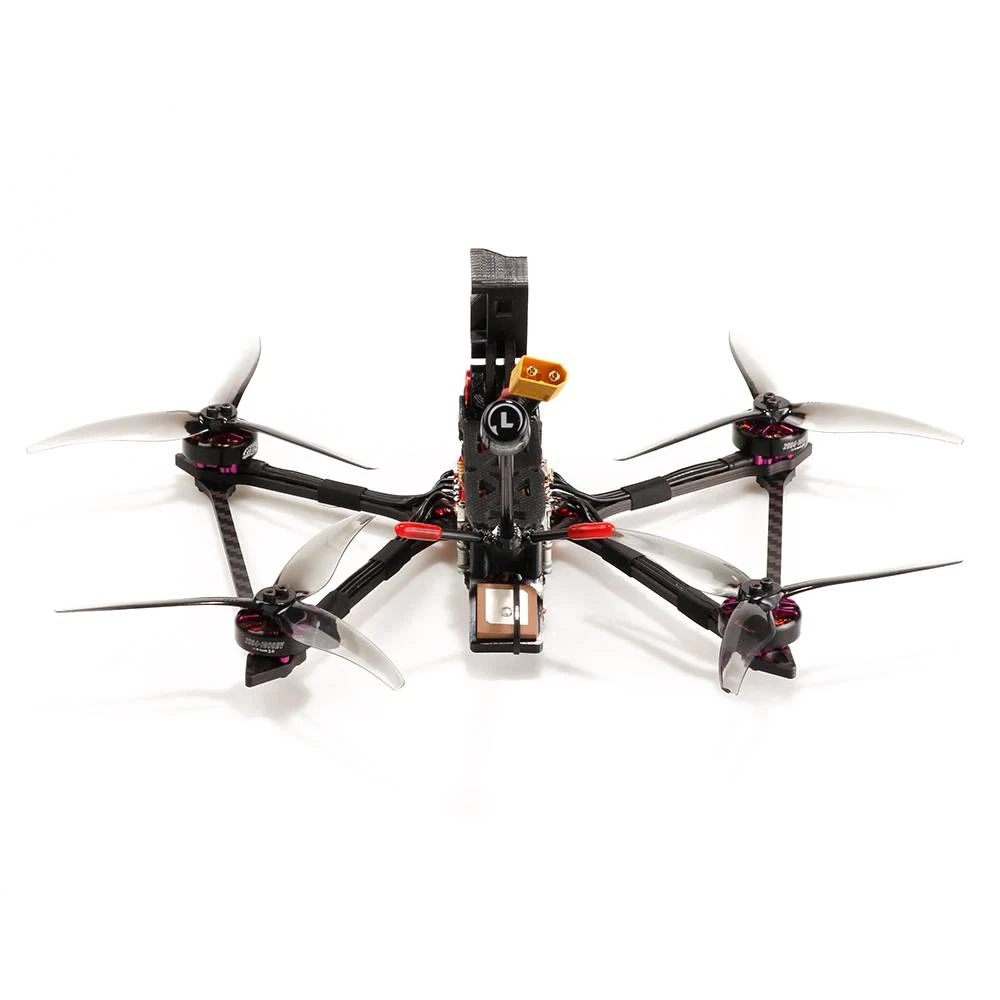

Rekon FPV Rekon5 5" Mini LR Quadcopter HD W/ Caddx Polar Micro – 4S

The Rekon5 is a 5″ HD quadcopter that comes with the 2004 2600KV motors (4S).

The Rekon5 is based on the original Dave_C FPV MiniLongRange design. This five-inch platform is an evolution of the MicroLongRange concept adapted to carry more payload. Like its smaller 4″ cousin, this 5″ platform can reach flight times of over 25 minutes while being very quiet, efficient, and relatively low cost compared to 7″ quads that are usually used for long-range flights.

The main advantage of 5″ compared to the 4″ is the ability to carry loads like GoPros and Lithium-Ion batteries without affecting flight performance and noise level too much. On top of that, the cruising speed is increased and the ability to do acrobatic freestyle maneuvers is noticeably improved. This platform can also be used with a wider variety of batteries depending on the intended use: 850-1800mAh on the 4S version and 550-1300mAh on the 6S version will work without issues. Both versions are also compatible with 3000mAh 4S Li-Ion packs if you are looking for maximum flight time.

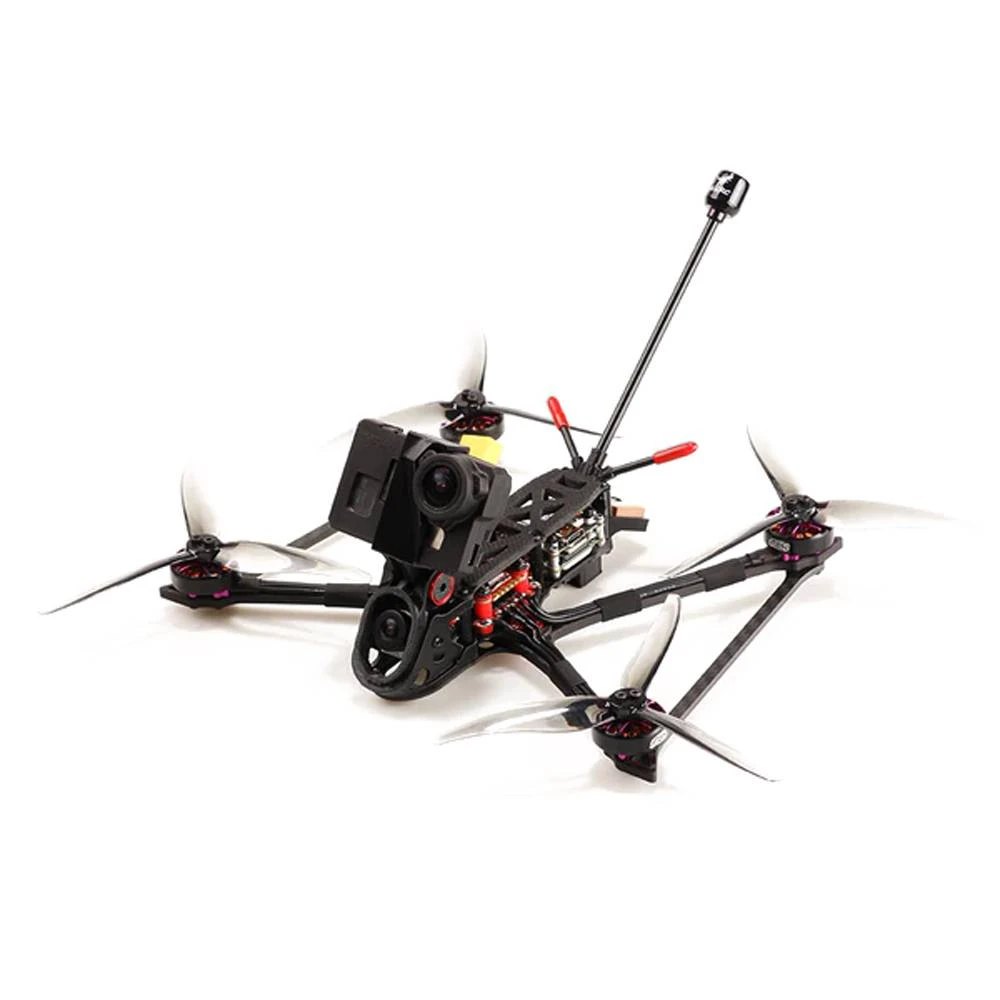

Note: Action camera (as seen in the picture) NOT included.

VIDEO: Rekon5 Mini LongRange 5-inch Review

Features

• A lightweight frame with 10mm aluminum bolt construction, compact 25/20mm standoff split deck main body for double 20×20 stacks
• Mild dead cat design reduces the props in view while not affecting flight performance
• Foldable crossfire immortal T-mount inspired by Alexandre Arvinte (@ledrone.club)
• Optional braces for improved vibration dampening and crash resistance
• Optimized for 2004 – 2204 motors with 12×12 M2 mounts
• Shock absorbing TPU front with integrated GoPro mount
• External buzzer mount for Buzzer
• GPS mount for M80 GPS

REKON5 FRAME

The REKON 5 features an innovative frame design using single-piece front and rear arms locked by an aluminum bolt. The bolt is used to create a strong and stiff center section of the frame, locking the arms and de-coupling forces from the rest of the frame. This allows the use of use very light M2 hardware and thin carbon plates on the other parts of the frame, reducing the overall weight for maximum efficiency. On top of that, the bolt makes it possible to apply much more torque and it’s not prone to break or strip-like M2 or M3 hardware often does. A lot of attention was also put toward the design of the front and camera mount. Dead cat frames are inherently prone to take heavy impacts in this area since the arms are swept backward and the front is exposed. This is why the REKON5 uses a flexible, 3D printed canopy supported by a carbon brace to absorb impact energy and protect the camera in case of a crash.

Specifications

• Net Weight:223.5g (Weight without receiver)
• Receiver: PNP or TBS Crossfire

REKON5 FREESTYLE 5″ FRAME

• Support for propellers: Up to 5 inches
• Weight:53g (Including TPU)
• Overall size:210 * 155mm
• Wheelbase:210mm
• Type:5″ frame

ZEUS F722 MINI FLIGHT CONTROLLER

• BEC Output:5V/3A,9V/2A
• CPU:STM32F722 RET6
• Input Voltage:3-6S Lipo
• MPU: MPU6000
• Weight:8.1g

ZEUS 30A BL32 3-6S 4in1 ESC

• Peak Current:35A（10 Sec）
• Input Voltage:3-6S Lipo
• Steady Current:30A
• CPU:STM32F051
• Weight:7g

CADDX POLAR MICRO VISTA KIT

• Operating Frequency:5.725-5.850 GHz
• Input Power:7.4-26.2V
• Channels:8

2004 2600KV (4S) BRUSHLESS MOTOR

• Recommended Prop(inch):5Inch
• Weight:15.5g

M80 GPS

• Size:18.5mm x 18.5mm x 7.1mm
• Power Supply:5V
• Weight:9.4g

SOTER FPV BUZZER

• Input voltage: 5V
• Size:22mm x 12mm x12mm
• Weight:4g

GEMFAN 5125 5 ” 3-BLADE PROPELLER

• Quantity:4 CW & 4 CCW

Includes

• 1x Rekon FPV Rekon5 5″ Mini LR Quadcopter HD w/ Caddx Polar Micro – 4S
• 1x IPEX Inner needle Small hammer antenna (LHCP)
• 1x Naked Gopro mount TPU
• 1x Soter FPV drone buzzer
• 8x GEMFAN 5125
• 2x Battery Straps
• 1x M80 GPS
