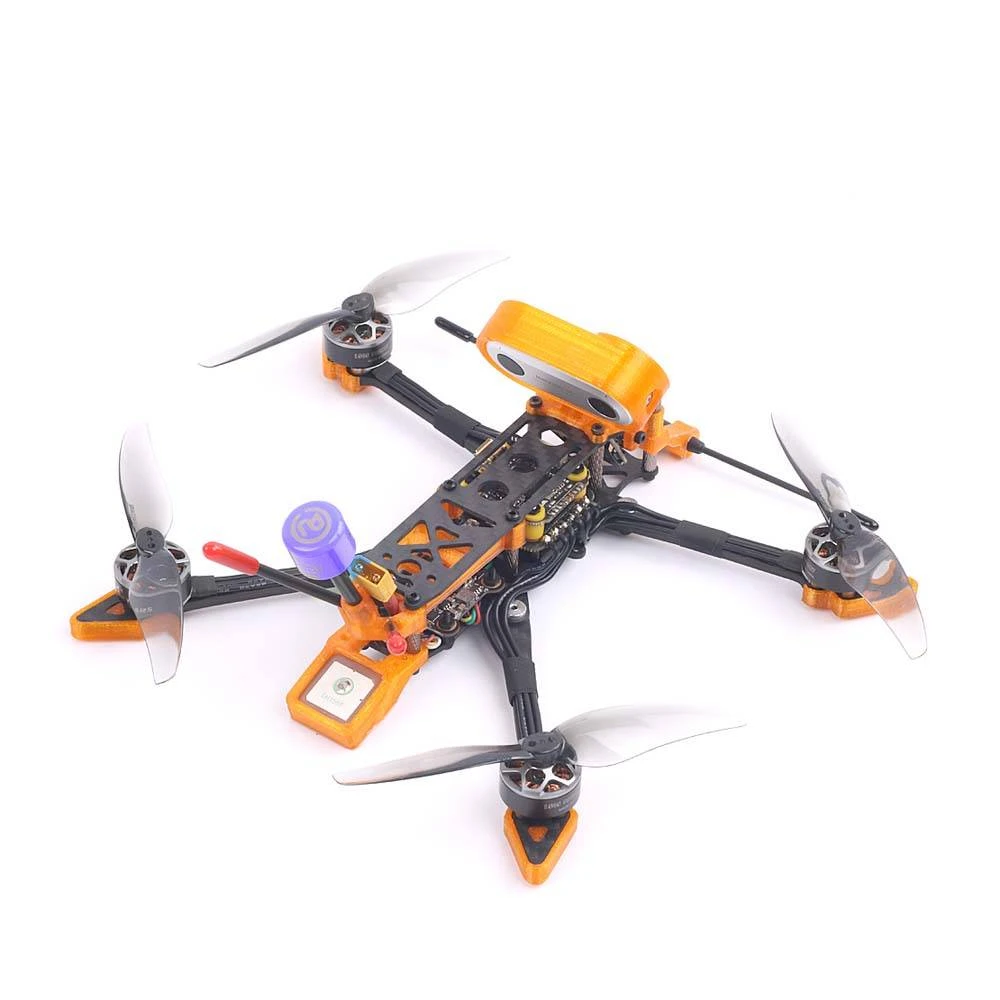

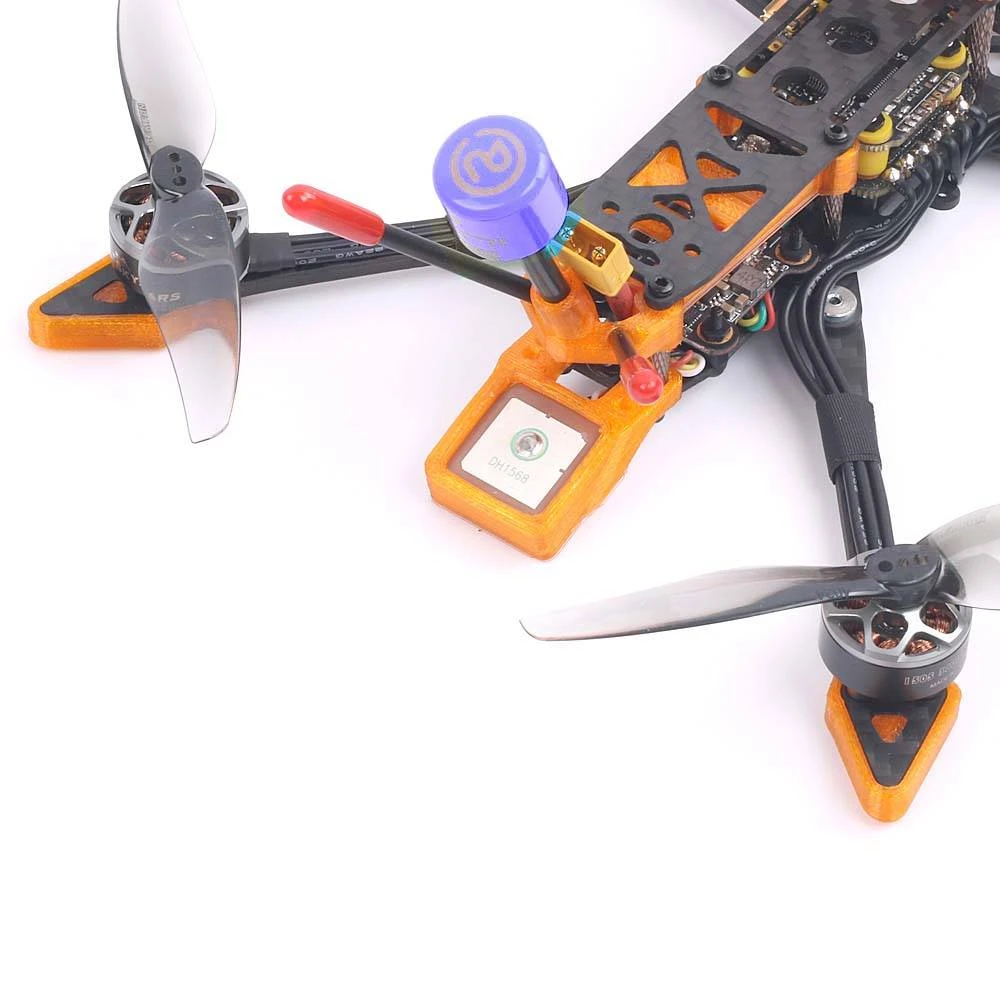

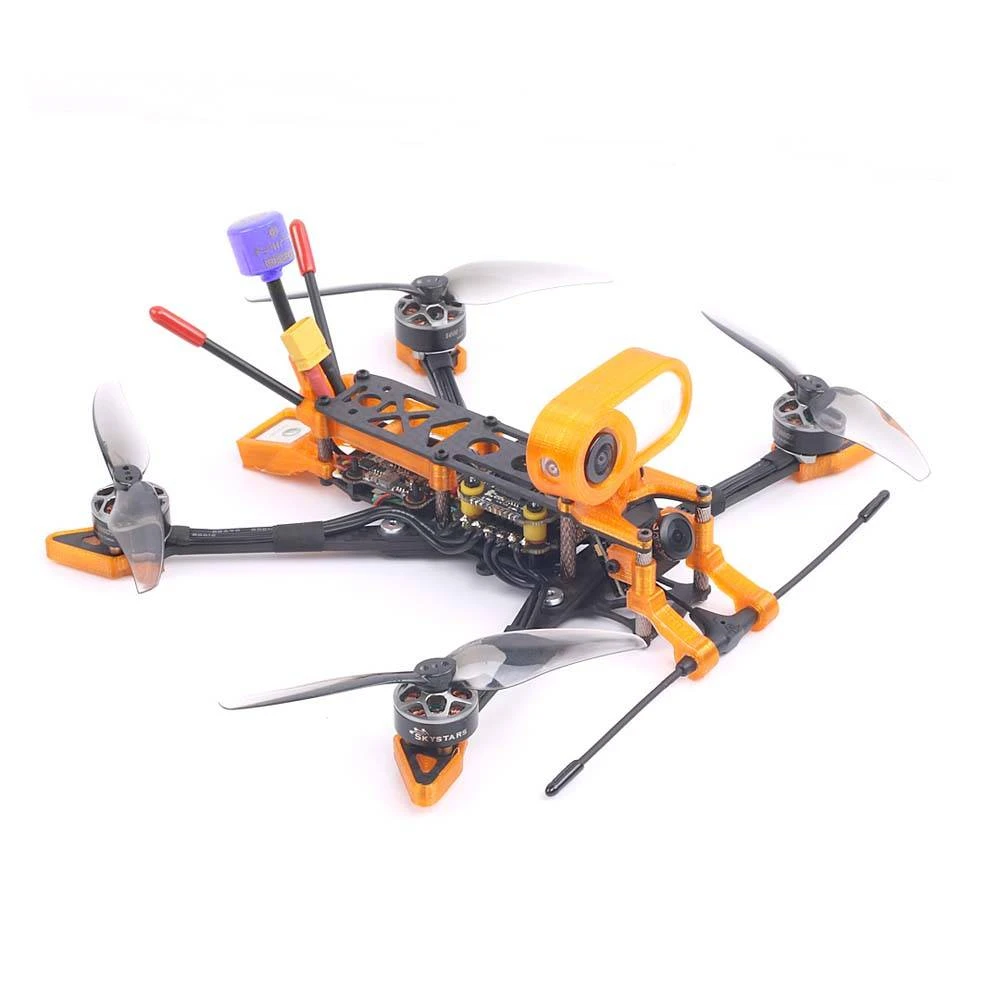

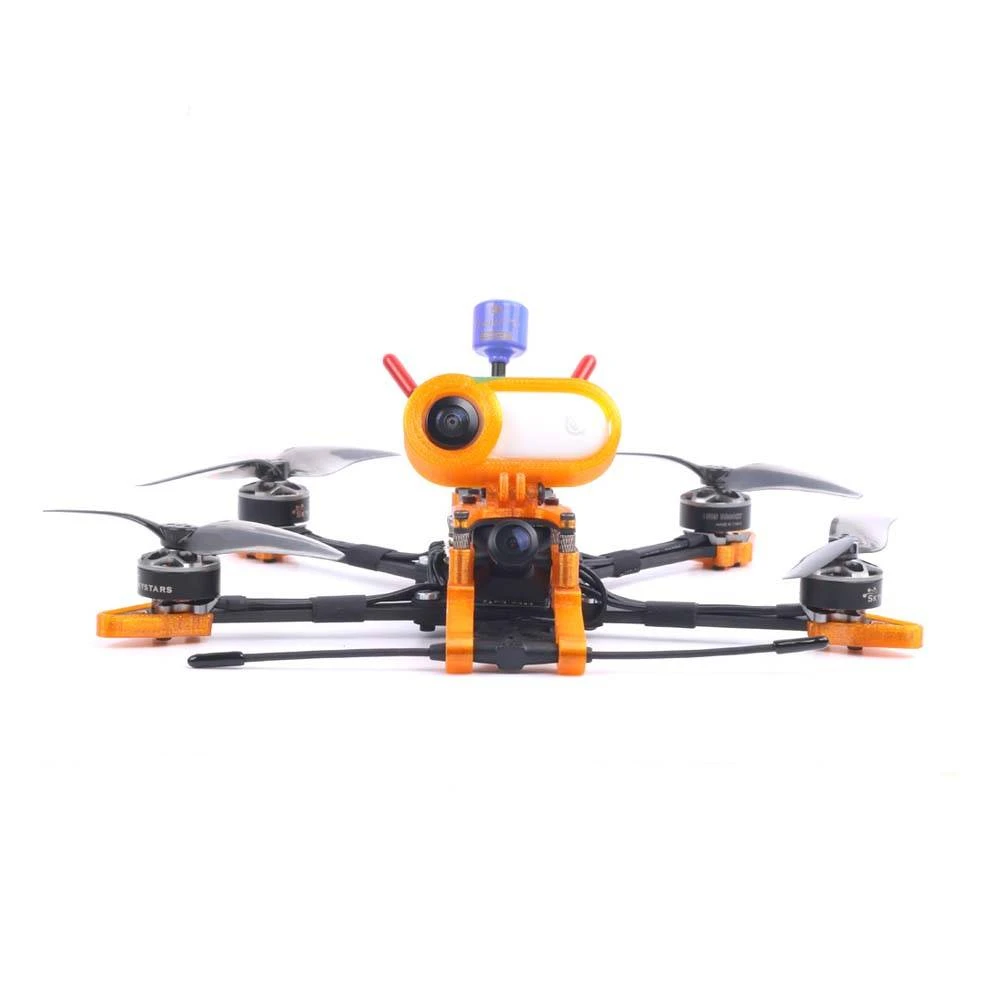

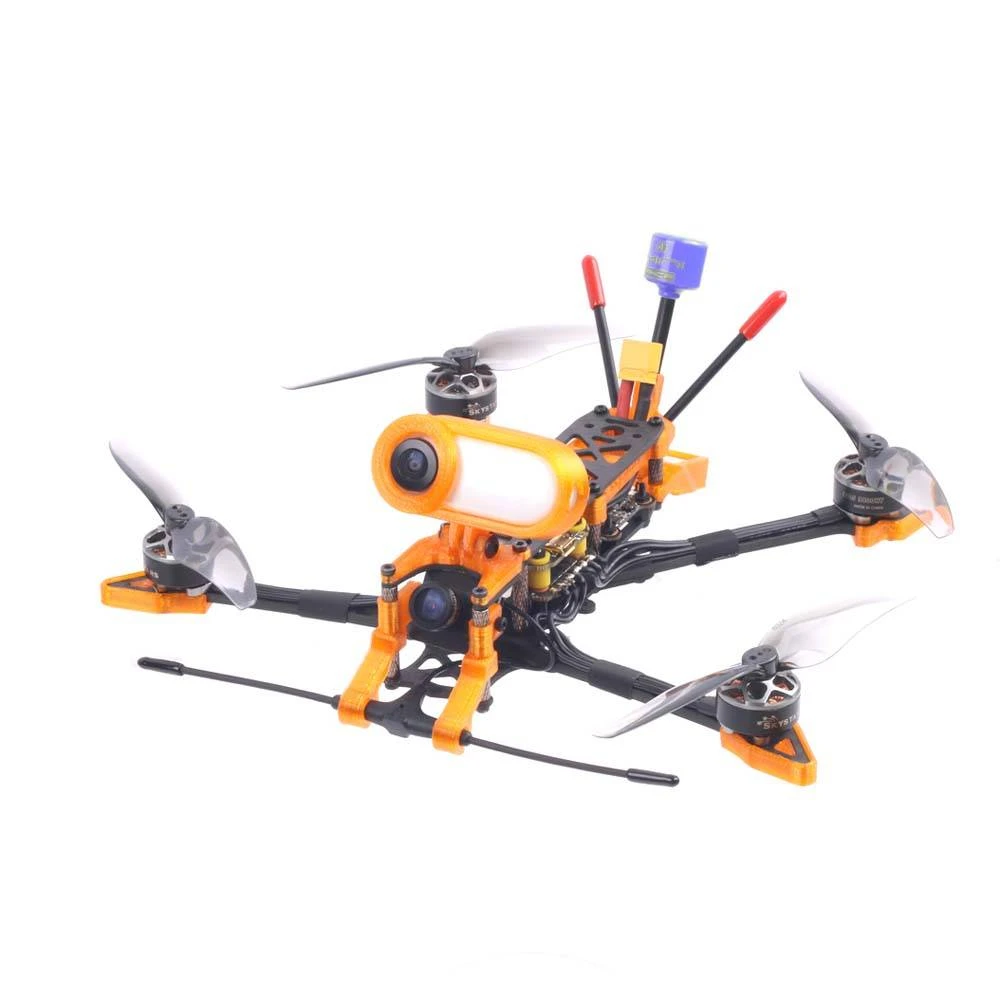

SkyStars G4 4" LR FPV Drone W/ GPS (PNP – 4S)

The SkyStars G4 4″ LR FPV Drone is equipped with a micro F4 flight controller, KM-35A 3-6S Blheli_S 4-in-1 ESC, 25mW/200mW/400mW switchable VTX, Skystars 1505 motors, CMOS 1200 TVL camera, RHCP antenna, Gemfan 4024 props, GPS, and many other items that make this a must-have!

An amazing deal for a full drone!

Note: You will need to use your own Rx and bind to the radio of your choice. The receiver, battery, goggles, and radio controller NOT included. Antenna color may vary

Specifications

Frame

• Wheelbase 182mm
• Net weight: 34g
• The front stack hole supports 16/20/25.5 three-hole positions, the rear stack hole supports 20*20 hole positions
• Motor mounting holes: 9-12mm 3 holes
• Aluminum column: M2x25/ M2x20

FC

• Micro F4 Flight Control Board
• MPU: 6000
• CPU: STM32F405RGT6
• Input Voltage: 2-6S Lipo
• Baro: YES
• Built-in Betaflight OSD to adjust PID
• BEC Output: 5V@3A
• Size: 20*20mm mounting

ESC

• KM-35A 3-6S Blheli_S 4IN1 ESC
• Input Voltage: 3-6S Lipo battery
• Constant Current: 35A
• Peak Current: 45A

VTX

• FPV Transmitter
• Output power: 25mW/200mW/400mW switchable
• Control mode: button OR Channel changes and Pitmode setting through PWM With a microphone, you can switch the audio flexibly
• BAT: 7-26V,BEC 5V-1A
• Frequency: 5.8GHz 5 bands 40channels

Motor

• Skystars 1505 KV3800 (4S)

Camera

• CMOS 1200 TVL

Propeller

• GEMFAN 4024

Antenna

• 5.8G RHCP FPV Transmitter Antenna Frequency Range:5.7GHz Radiation Pattern: Omnidirectional Impedance:50Ω Gain:2.8dbi Polarization: RHCP

GPS

• Mini M8N GPS8030
• Model：M8030-KT
• Frequency：GPS L1,GLONASS L1,BEIDOU B1,GALILEO E1,SBAS L1,QZSS L1
• Working mode：GPS,GLONASS,BEIDOU,GALILEO,SBAS,QZSS

Includes

• 1 x 4″ Frame
• 1 x Micro F4 Flight Control Board
• 1 x KM-35A 3-6S Blheli_S 4IN1 ESC
• 1 x 25mW/200mW/400mW VTX
• 4 x Skystars 1505 KV3800(4S)
• 1 x CMOS 1200 TVL Camera
• 8 x GEMFAN 4024 Propeller
• 1 x 5.8G RHCP FPV Transmitter Antenna
• 1 x GPS
• 1 x Battery Strip
• 1 x Battery Anti-Slide Pads
