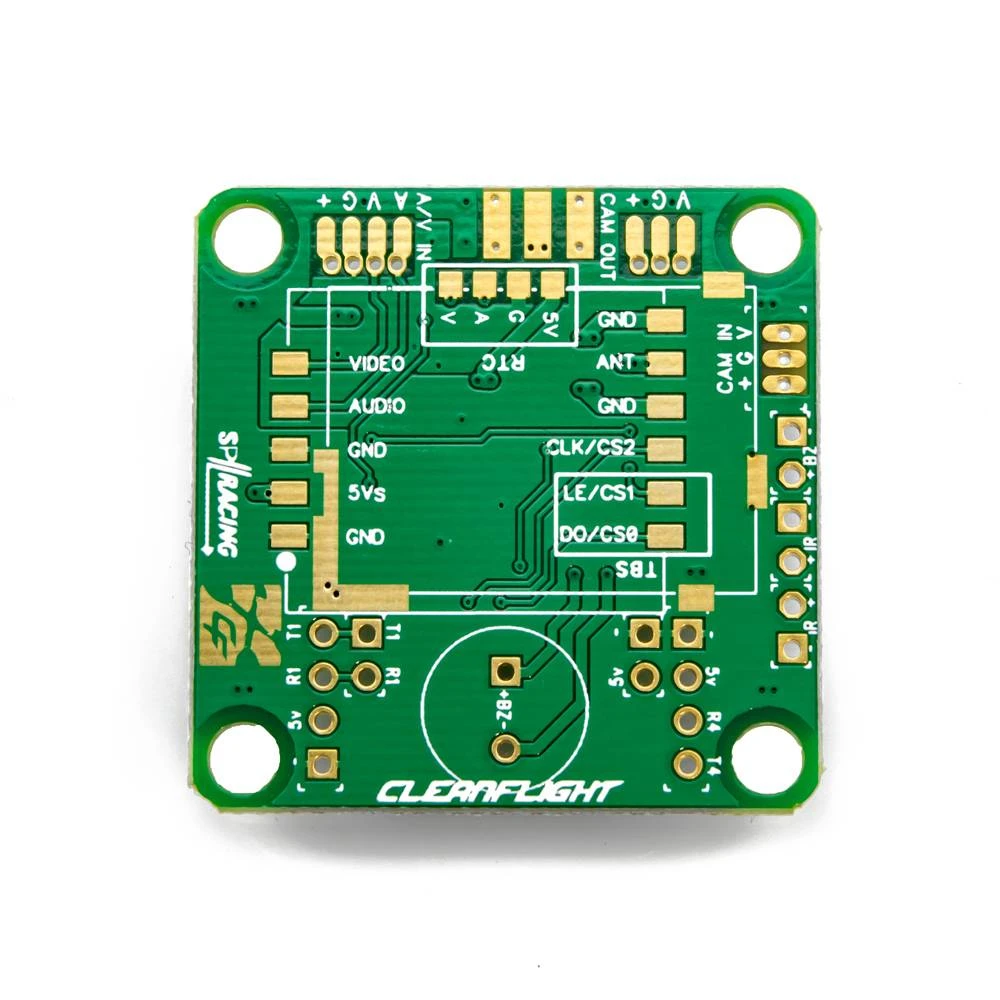

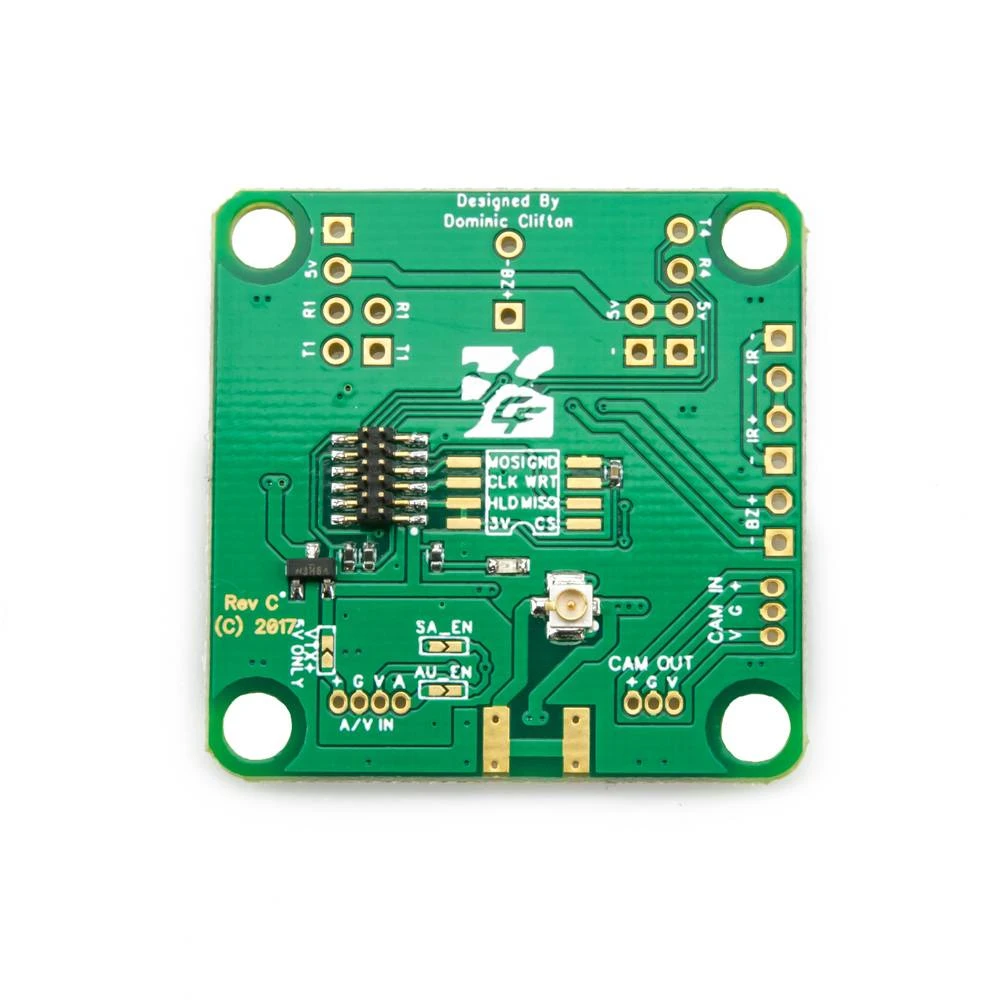

SP Racing Stacking VTX Board (without VTX Module)

The SP Racing F7 VTX board is a stackable board designed to work with the SP Racing F7 Dual or SP Racing H7 EXTREME flight controllers.

This VTX board enables you to direct solder your TBS Unify or RTC6705 VTX modules. It also allows fitting of the Frsky XM+ Micro D16 SBUS receiver. The VTX can even be turned off separately from your RC Transmitter!

Does not come with a VTX Module.

Features

• Has space to install RTC6705 module (FX758-2-SPI) or TBS Unify Pro.
• Has space to install FrSKY XM+ Full Range Diversity Receiver
• Compatible with: SPRacingH7EXTREME & SPRacingF7DUAL

Manual – VTX board info towards the end.

Includes

• 1x F7 DUAL VTX Board (No VTX installed)
• 4x Rubber Grommets
• 2x Male 2-pin very low profile stacking connectors (install in VTX board)
• 1x Male 4-pin A/V stacking connector (install in VTX board)
• 2x Female 2-pin very low profile stacking connectors (install in FC board)
• 1x Female 4-pin A/V stacking connector (install in FC board)
