Stan FPV 5" Injected UDP Propeller Guards – Basic Conversion Kit

TAME THE BEAST! The Stan FPV 5″ UDP Guards – Basic Conversion Kit allows you to easily convert your current 5″ or larger drone into a safe and smooth cinematic flyer! 99% of frames that hold a 5″ prop will fit these universal ducted prop guards.

This new injected version is manufactured for StanFPV by HQ Prop and they are made from very durable polycarbonate. These guards are now nearly indestructible. Aero and sound wave flow was taken into consideration and implemented here, actually REDUCING prop noise! It’s literally like magic and one of the best features of this design. The sounds aim up and down, reducing perceived side noise.

This set-up uses a 4″ propeller in place of the 5″. This allows the motors to work less with the same performance which enables our propellers to handle a higher load and give better flight times because with increased thrust and efficiency. They more than make up for the weight of themselves while providing safety and a smoother flight feel. With their highly tuned ducts, the smaller higher pitch prop performs like a smoothed-out version. They can easily be installed or taken off to give you two flight styles on the same drone. Two drones in one!

Cinewhoop flying anyone?! These convert your current 5″ drone into a filmmaking BEAST! Bring new life to that old quad that’s been on the wall for a year now or plan a completely new build specifically around them! They fit the oldest and newest of frames like the “Alien”, “Blastr”, “Apex”, “Super G”, Marmotte, Badger, Goat, Remix, Aquaphobe, Johnnys Frames, and MANY MORE!

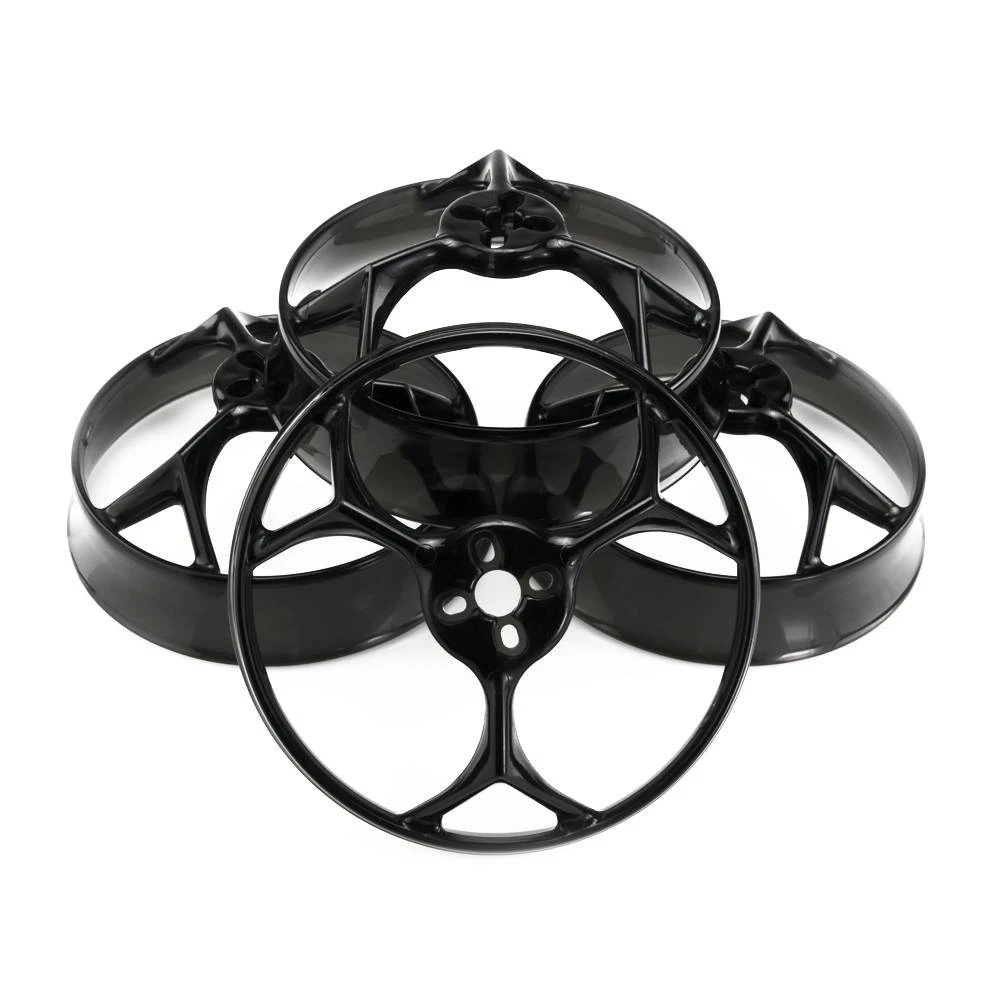

This basic kit comes with 4 guards that are sure to enhance your flight experience. Looking for more? Try the Full Conversion Kit which comes packed with additional accessories and hardware.

Note: Placing rubber spacers between the arm and guard allows you to dial in the perfect height and/or add clearance. When tightened, the bolts are then recessed in the guard to give you BUILT-IN non-metal landing skids so you can effortlessly slide along.

Video: 5″ Inducted UDP Guards

Features

• Aesthetically pleasing and functional
• Increases Safety and Efficiency
• Smoother Flight Performance
• For Indoor or Outdoor use
• Noise Reduction
• Customizable
• Universal fit
• Acro-able

Specifications

• Length: 4.6″
• Height: 1.9″
• Made of durable HQProp Material
• Fits any 16mm-19mm (4) screw bolt pattern
• Color: HQ Smoke Grey

Compatibility

• Frame: 5″ or larger
• Motors: Any motor using a standard 16mm-19mm four-bolt pattern like 2206, 2306, 2207, 2604
• Recommended Propeller: 4″ Gemfan 4052

Includes

• 1x 5″ Injected UDP Guards (Set of 4)
• Note: Guards Only – Hardware and Accessories Not included
