TrueRC X²-AIR 5.8GHz MK II Antenna Combo Kit W/ Singularity Antennas – LHCP

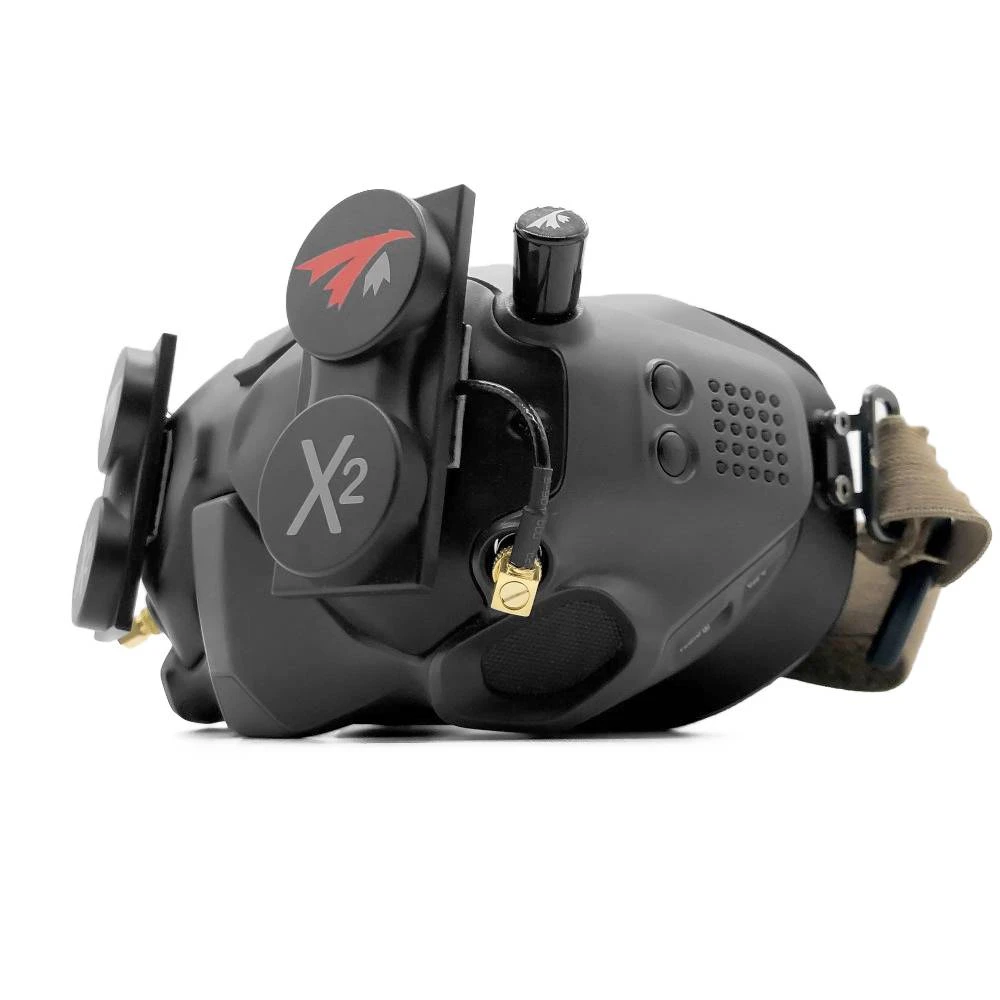

Introducing… the TrueRC X²-AIR 5.8GHz MK II Antenna Combo Kit! More gain and more convenience! This is the adaptation of the all-mighty X²-AIR into a slick low profile face mount for the DJI goggles. Simply peel the included adhesive, stick them on and throw your goggles in your bag ready for a day of flying. Improved 13dBic gain and a massive combined beamwidth of 180deg yield an amazing flight experience in the toughest conditions. Fill the remaining ports with a pair of included Singularity Stubby antennas and performances have never been so convenient!

Note: Goggles are Not Included.

Features

• Highly compact stubby antennas for combined directional and omnidirectional coverage
• Super wide 150-degree beam for each antenna combining to 180deg beam width
• Large SWR and axial ratio bandwidth, work even out of the 5.8GHz band
• Compact low-profile design on your goggles, easy to store and transport
• High 13 dBic for unsurpassed long-range and signal penetration
• Mount direct on DJI faceplate with included adhesive backing
• Sector type beam shape (widest on horizontal)
• Custom knurled RP-SMA connectors
• Circularly Polarized

Specifications

X²-AIR 5.8GHZ MKII

• Connector: Custom knurled RP-SMA
• Dimension: 72mm x 34mm x 15mm
• Horizontal beam @-3dB**: 75°
• Beam-width Horizontal*: 150°
• Bandwidth: 5.1GHz-7.0GHz
• Vertical beam @-3dB**: 34°
• Beam-width Vertical*: 62°
• Polarization: LHCP
• Weight: 20g each
• Gain: 13 dBic

SINGULARITY STUBBY

• Polarization: LHCP (Stock DJI is LHCP)
• Cross-Polar Rejection: -15 to -30dB (1.9%)
• Bandwidth: 5.6GHz-6.0GHz
• Radiation Efficiency: 99%
• Size: 12.7mm x 20mm
• Connector: RP-SMA
• SWR: <=1.5:1
• Weight: 3.7 g
• Gain: 1.9dbic

*Coverage of individual antenna where reception is at least equivalent to an Omni.
**Coverage of individual antenna where at least 70% of the max range is obtained.

U.S. Pat. 10,804,618
Can. Pat. 2968566

Links

• True-SMA Thumbwheel

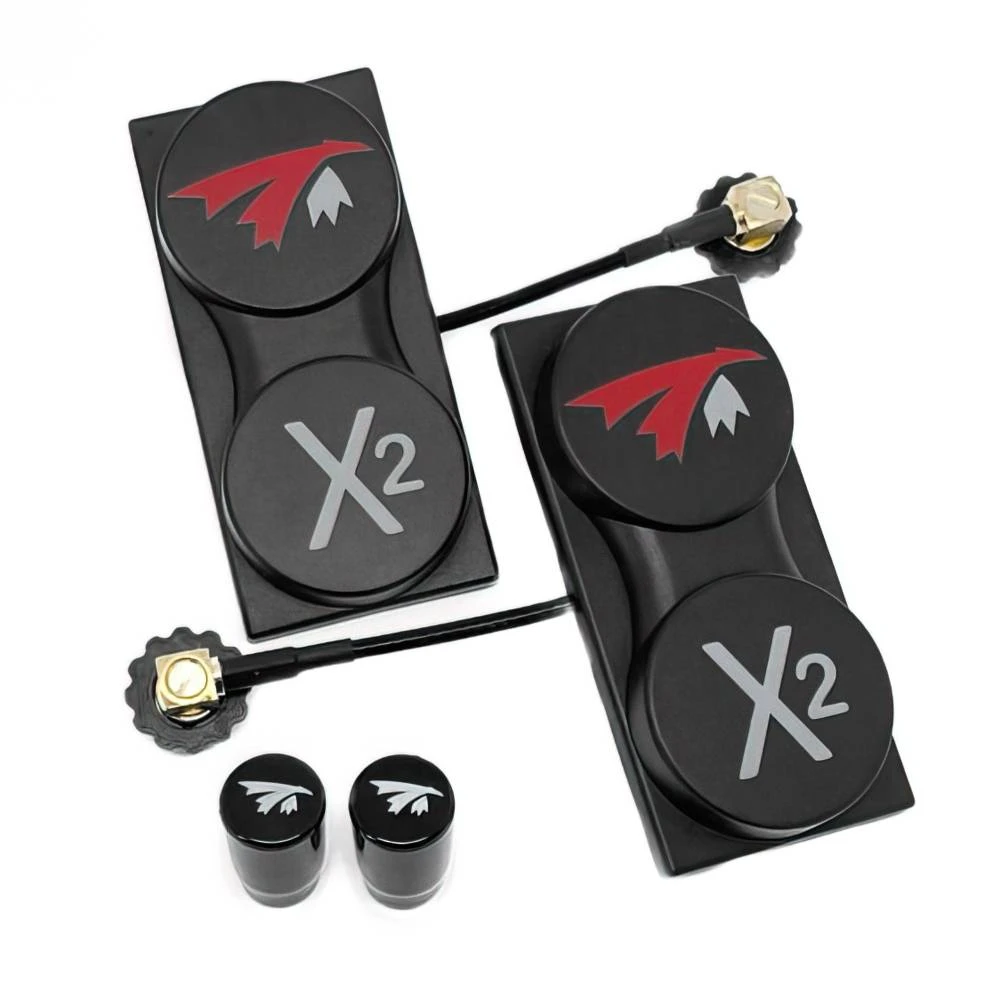

Includes

• 2x TrueRC X²-Air MKII Antenna (one for each side).
• 2x TrueRC Singularity Stubby Antenna
• Note: Goggles are Not Included.
