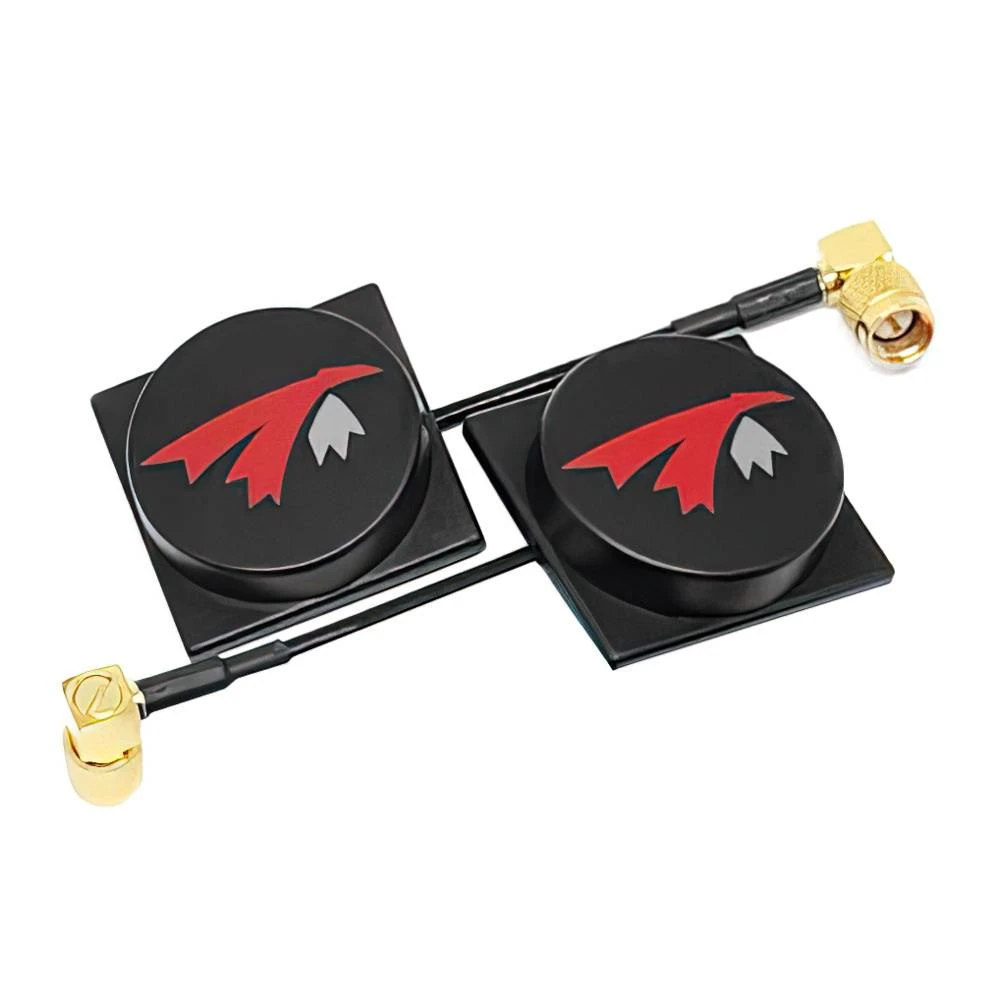

TrueRC X-AIR 5.8GHz MK II Antenna (Set Of 2) – HDZERO Goggles

The TrueRC X-AIR 5.8GHz MK II Antennas work with the HDZERO FPV Goggles. Slide the antennas on the module’s rails and screw on the custom knurled SMA connectors to obtain 10dBic gain combined with a healthy flyable beam width of 120deg.

Note: Goggles and Omnis are not included.

VIDEO: (Insert Video Title here in Bold)

• Super wide 120-degree beam for each antenna combined with a 135deg beam width
• Large SWR and axial ratio bandwidth, work even out of the 5.8GHz band
• Mount directly onto the HDZero Goggles with included slide-on mounts.
• Compact low-profile design, easy to store and transport
• High 10 dBic for long-range and signal penetration
• Custom knurled SMA connectors
• Circularly Polarized

LOW PROFILE DESIGN – ONLY 15MM THICK

15mm thickness allows you to leave them attached at all times without fear of breaking them. The included slide-on mounts fit natively on the HDZero FPV Goggles for easy installation.

CUSTOM SMA CONNECTORS

As with all other components of X-AIR antennas, the custom SMA connector is made to the highest standards to fit your HDZero FPV Goggles perfectly and make sure every bit of RF power is transferred from the X-AIR.

PAIR WITH OCP ANTENNAS

Pair with OCP omnidirectional antennas for a complete antenna system!

• Beam-width @-3dB**: 68deg.
• Polarization: RHCP or LHCP
• Dimension: 32 x 32 x 15mm
• Bandwidth: 5.1GHz-6.7GHz
• Connector: SMA male
• Beam-width*: 120deg
• Gain: 9.5-10.5 dBic

IMPORTANT NOTES

• *Coverage of individual antenna where reception is at least equivalent to an omni.
• **Coverage of individual antenna where at least 70% of the max range is obtained.

•  (Insert recommended products here. Example: “Battery: Lumenier 10000mAh 6s 25c Lipo Battery”)

• Thingiverse: HDZero FPV Goggles Rail Mount Adapter

• 2x TrueRC X-AIR 5.8GHz MK II Antennas (Choose Polarization)
• 2x Side Mounts for HDZero FPV Goggles
