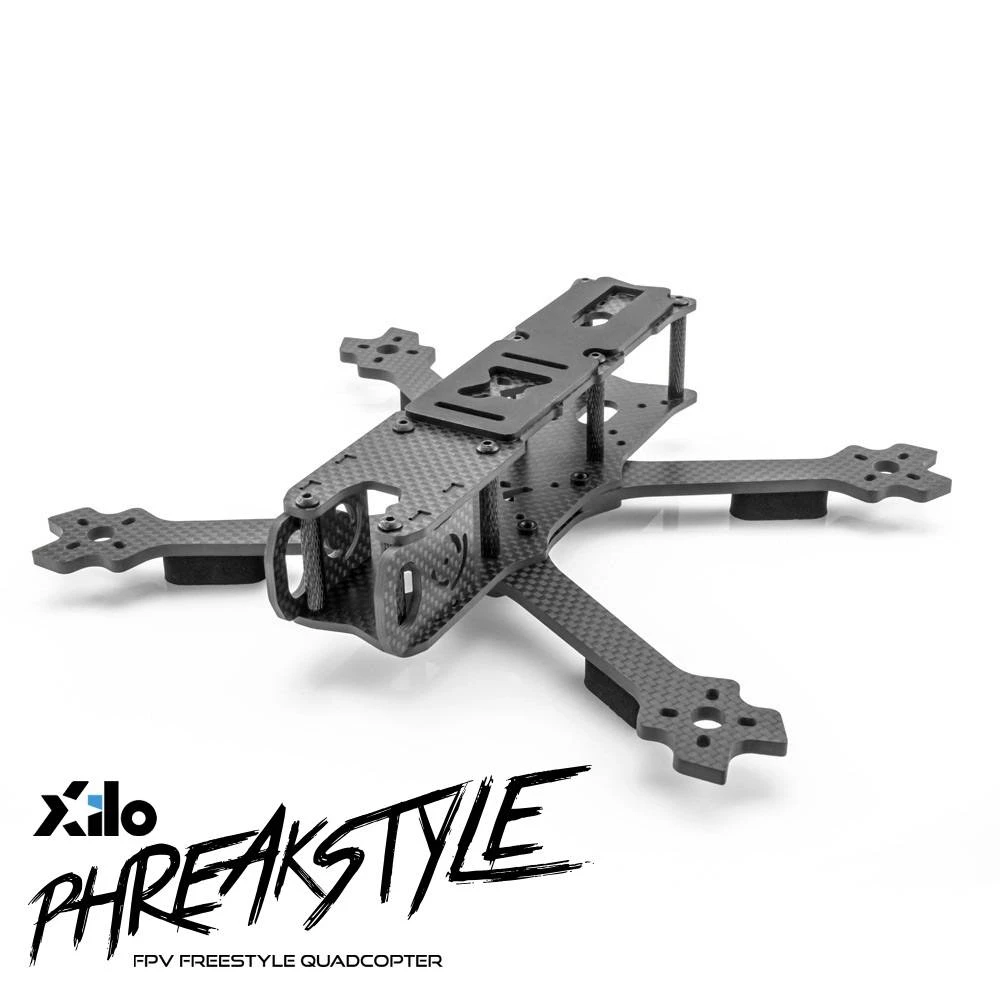

XILO Phreakstyle Freestyle Quadcopter Frame Kit – 5"/6"/7"

The Phreakstyle Quadcopter Frame Kit is XILO’s take on the FPV freestyle airframe. The ultra-durable, easy to work on, carbon fiber airframe was built to take a beating. The Phreakstyle offers freestyle FPV pilots a frame with all the space and features you want – at an affordable price.

Whether you are flying in bandos or some proximity flying around trees – accidents happen. You want a quad that is easy to repair and won’t cost an arm and a leg to fix. If you’re looking for an awesome frame at a great price, then the XILO Phreakstyle is the quad for you!

Dual Mounting Options

We know every FPV pilot builds quads unique to their needs. The Phreakstyle fulfills that need by facilitating tons of flexibility in your build. It features dual electronics stack mounting options, with 20×20 and 30×30 support in both the middle and rear of the frame.

Mount Your Battery How You Want

The XILO Phreakstyle frame allows for many different ways to mount your battery to your quad. It can be mounted in the standard location on the top plate utilizing the silicone no-slip battery pad in parallel with the plate, or alternatively use the dual strap slots in the top plate to mount it perpendicular to the top plate in “toilet bowl” style. Furthermore, you can also mount a battery below the frame if you’d like to get creative and take advantage of the battery strap slot between the arms. Going for some serious long-range? Mount a battery on top and bottom in parallel for an extended run time while still keeping a balanced quad!

Built To Last

The airframe features removable 4mm (5mm for 6 and 7″ arms) carbon fiber arms and 2.5mm thick top and bottom plates. Similar to the Phreak Racing Frame, the Phreakstyle arms are sandwiched between the bottom plate and 2.5mm battery plate giving you an incredible 9mm thick of carbon fiber at the center of the body. Each arm is secured in place with just 2 screws and steel press-fit nuts on the main plate. This allows fast and easy arm swaps by simply taking out 1 screw and loosening the other and pulling the arm out of the slot.

Each 4mm arm and plates are CNC milled out of a solid sheet of high-quality XILO carbon fiber. The outer weave of the carbon fiber runs 100% down each arm of the XILO Phreak (0/90 weave), maximizing the strength of the carbon and arms. The center layers are offset at 45 degrees providing even and balanced strength throughout the entire plate.

Protect The Expensive Stuff

This XILO Phreakystyle’s side camera plates protrude from the nose of the frame, protecting your FPV camera in case of an impact. The Phreakstyle was designed for standard-sized FPV cameras. You can also mount a micro FPV camera if you’d like by adding camera mounts or a mounting adapter.

The Phreakstyle kit comes with high-quality anodized aluminum spacers. All screws are premium, black oxide steel. The spacers have a textured grip surface treatment, which facilitates holding of the spacers during assembly and servicing of the airframe. The spacers are 28mm tall (20mm for slam) giving you plenty of room for all the electronics to be protected inside. A top-mounted silicone non-slip battery pad is included which makes an excellent platform for your LiPo battery and helps reduce the chances of a battery ejection during a crash.

Features

• Full 3K Carbon Fiber airframe with removable 4mm arms (5″, 6″, or 7″ options) (5mm thickness for 6 and 7″ arms)
• Slotted arms allow for easy arm swaps by removing only 1 screw
• Built-in carbon fiber camera bumper guards
• Squashed-X configuration keeps props out of view
• Black Oxide steel screws
• Easy-grip anodized spacers
• Motor guards on the end of the arms to protect the motor during a crash
• Fits both 30.5x and 20x stacks in middle and rear
• Silicone non-slip battery pad
• Fits the new DJI Digital HD FPV Air Unit in the back

Weight

• Airframe with Hardware:
• 5″ version – 125g

Includes

• 1x XILO Phreakstyle Freestyle Quadcopter Frame Kit (5″, 6″, or 7″ options)
• 4 x 4mm carbon fiber arms (5mm thickness for 6 and 7″ arms)
• 2.5mm carbon fiber top plate
• 2.5mm carbon fiber main plate (with press-fit steel nuts)
• 2.5mm carbon fiber bottom plate
• 2 x 2.5mm carbon fiber side camera plates
• 4 x Neoprene landing pads
• 1 x XILO Sticker Sheet
• 1 x Set of black steel screws and aluminum hardware including knurled spacers, cable ties
• 4 x M3x30mm button head screw
• 4 x M3x15mm button head screw
• 12 x M3x8mm button head screw
• 16 x M3x6mm hex screw
• 8 x M3x28mm standoffs
• 1 x No-slip silicone battery pad
• 4 x Silicone vibration-damping o-rings
• 1 x XILO 240mm battery strap

3D Printed Part Design Files

Have your own 3D printer or a buddy that can print some parts for you? Try out these popular designs made just for this frame!

• Xilo Phreakstyle 30 Degree Universal HD Mount
